XM-A7W5-0804D
XR-A7W5-0804D ROHS

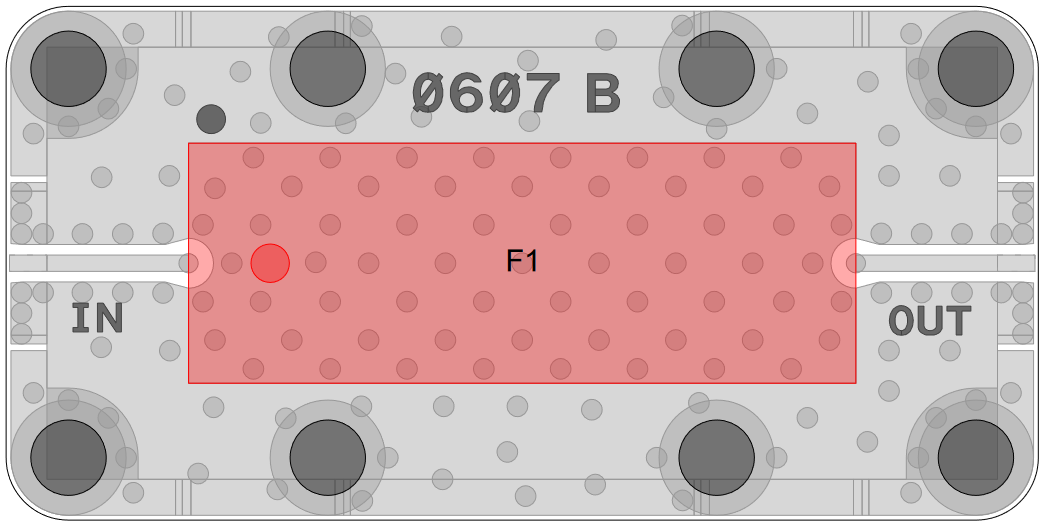

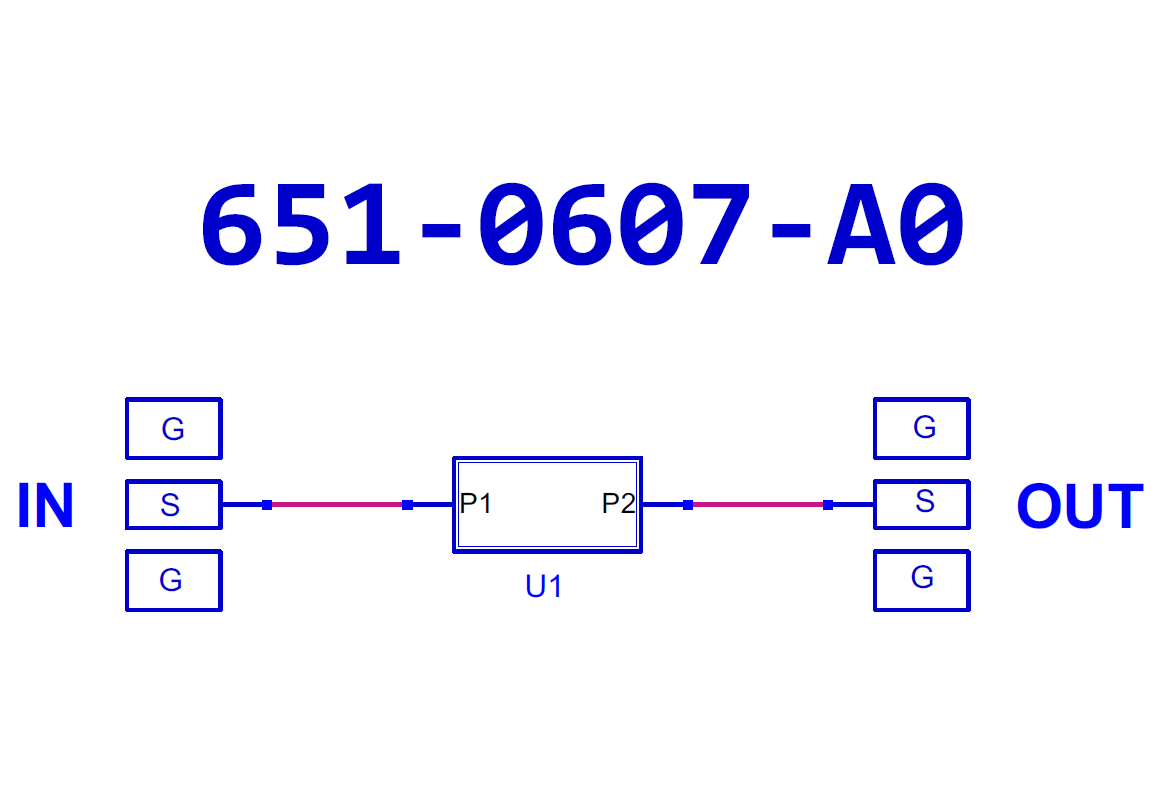

Band Pass Filter, B161LA0S [PCB: 0607]

Configurations

Product Page

 N/A DLI

Spec Sheet

 N/A B161LA0S

CF

 N/A 16000 MHz

3dB BW

 N/A 1360 MHz

IL

 N/A 4 dB

20 dB Rej Low Side

 N/A 15060 MHz

20 dB Rej High Side

 N/A 16870 MHz

40 dB Rej Low Side

 N/A 14720 MHz

40 dB Rej High Side

 N/A 16970 MHz

N/A

Part Number

 N/A XR-A7W5-0804D
