XM-A7W4-0604C
XR-A7W4-0604C ROHS

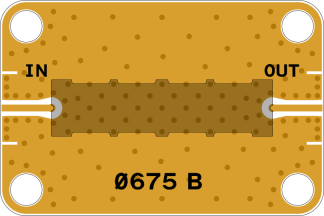

Band Pass Filter, B280LA0S [PCB: 0675]

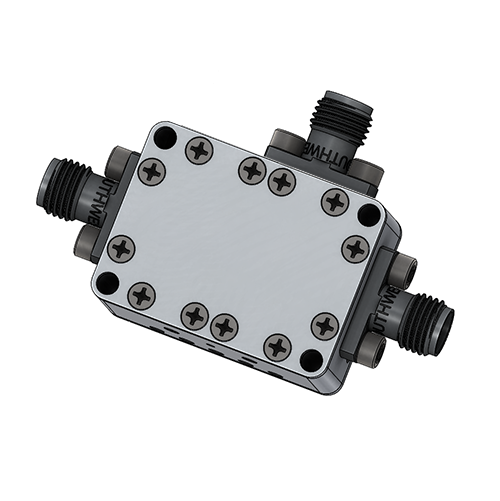

Connectorized Housing

Configurations

Product Page

 N/A DLI

Spec Sheet

 N/A B280LA0S

CF

 N/A 28000 MHz

3dB BW

 N/A 2250 MHz

IL

 N/A 2.70 dB

20 dB Rej Low Side

 N/A 26420 MHz

20 dB Rej High Side

 N/A 29160 MHz

40 dB Rej Low Side

 N/A 26000 MHz

40 dB Rej High Side

 N/A 29500 MHz

Connector Series

 N/A 2.92mm

Part Number

 N/A XR-A7W4-0604C
