XM-A7L9-0404D
XR-A7L9-0404D ROHS

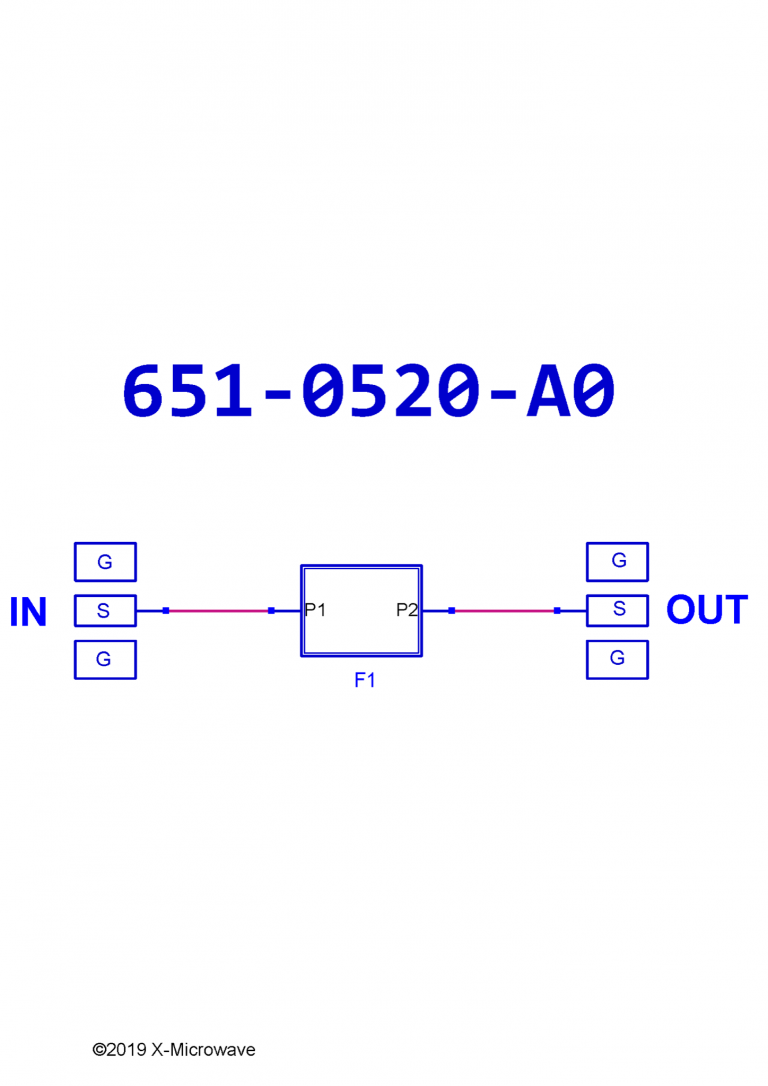

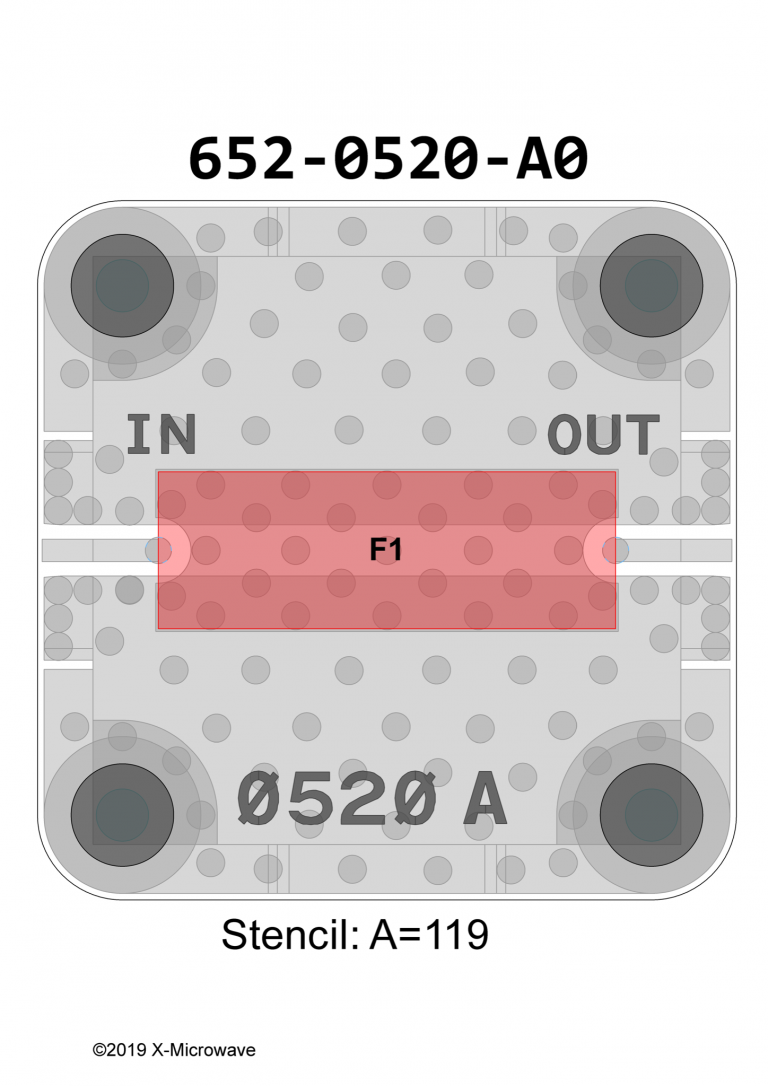

Band Pass Filter, B280LB0S [PCB: 0520]

Configurations

Product Page

 N/A DLI

Spec Sheet

 N/A B280LB0S

CF

 N/A 28000 MHz

3dB BW

 N/A 2800 MHz

IL

 N/A 1.37 dB

20 dB Rej Low Side

 N/A 25900 MHz

20 dB Rej High Side

 N/A 29760 MHz

40 dB Rej Low Side

 N/A 25220 MHz

40 dB Rej High Side

 N/A 30600 MHz

N/A

Part Number

 N/A XR-A7L9-0404D
