XM-A6W7-0204D
XR-A6W7-0204D ROHS

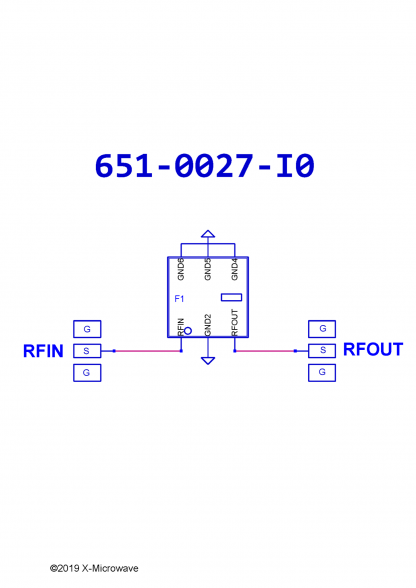

Band Pass Filter, BFCN-1560+ [PCB: 0027]
Product Page |
N/A Mini-Circuits |
Spec Sheet |
N/A BFCN-1560+ |
CF |
N/A 1560 MHz |
3dB BW |
N/A 408 MHz |
IL |
N/A 2.61 dB |
20 dB Rej Low Side |
N/A 1178 MHz |
20 dB Rej High Side |
N/A 1958 MHz |
40 dB Rej Low Side |
N/A 950 MHz |
40 dB Rej High Side |
N/A 2081 MHz |
|
N/A |
Part Number |
N/A XR-A6W7-0204D |
