Request Information

XM-A6H9-0604D
XR-A6H9-0604D ROHS

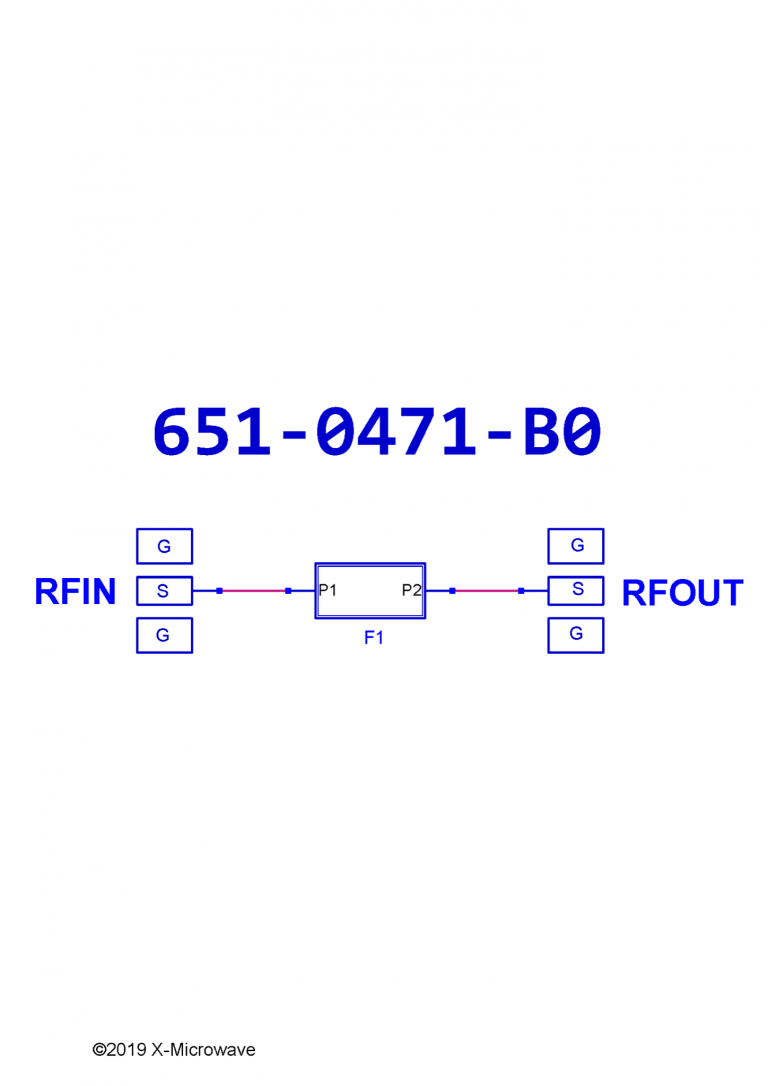

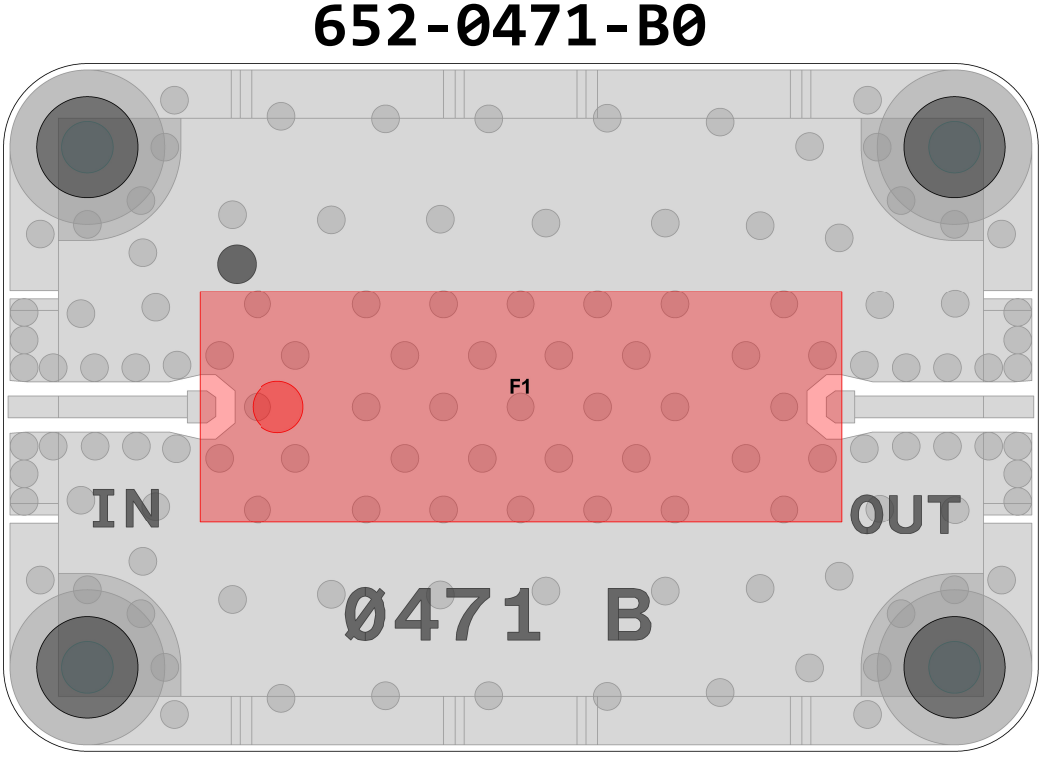

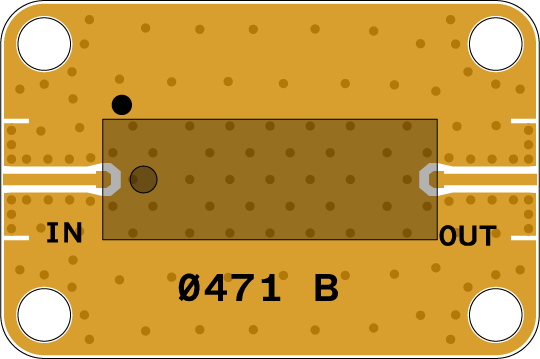

Band Pass Filter, B080MB5S [PCB: 0471]

Configurations

Product Page

 N/A DLI

Spec Sheet

 N/A B080MB5S

CF

 N/A 8000 MHz

3dB BW

 N/A 1412 MHz

IL

 N/A 1.79 dB

20 dB Rej Low Side

 N/A 7182 MHz

20 dB Rej High Side

 N/A 8960 MHz

40 dB Rej Low Side

 N/A 6930 MHz

40 dB Rej High Side

 N/A 9180 MHz

N/A

Part Number

 N/A XR-A6H9-0604D
