XM-A6H8-0204D
XR-A6H8-0204D ROHS

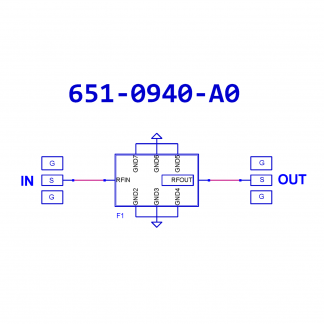

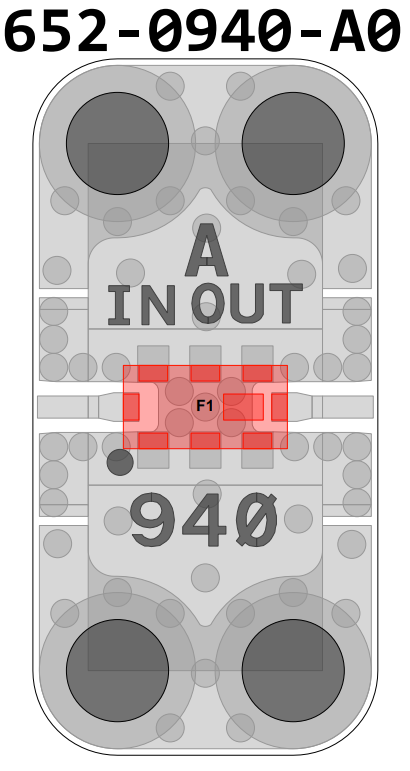

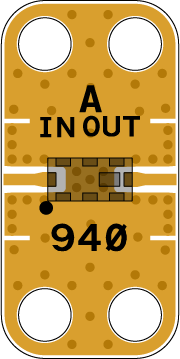

Band Pass Filter, BFCN-5100+ [PCB: 0940]
Product Page |
N/A Mini-Circuits |
Spec Sheet |
N/A BFCN-5100+ |
CF |
N/A 5100 MHz |
3dB BW |
N/A 5000 MHz |
IL |
N/A 1.3 dB |
20 dB Rej Low Side |
N/A 2500 MHz |
20 dB Rej High Side |
N/A 8875 MHz |
40 dB Rej Low Side |
N/A 2300 MHz |
40 dB Rej High Side |
N/A 9300 MHz |
|
N/A |
Part Number |
N/A XR-A6H8-0204D |
