XM-A476-0304D
XR-A476-0304D ROHS

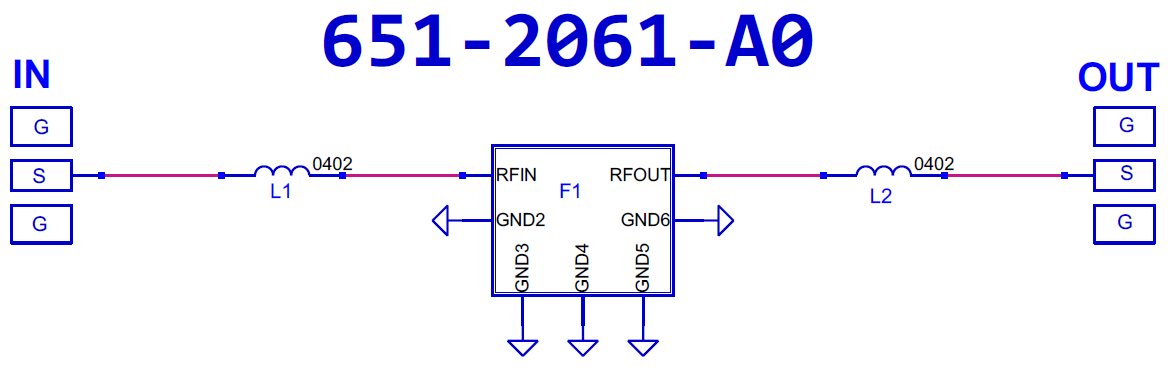

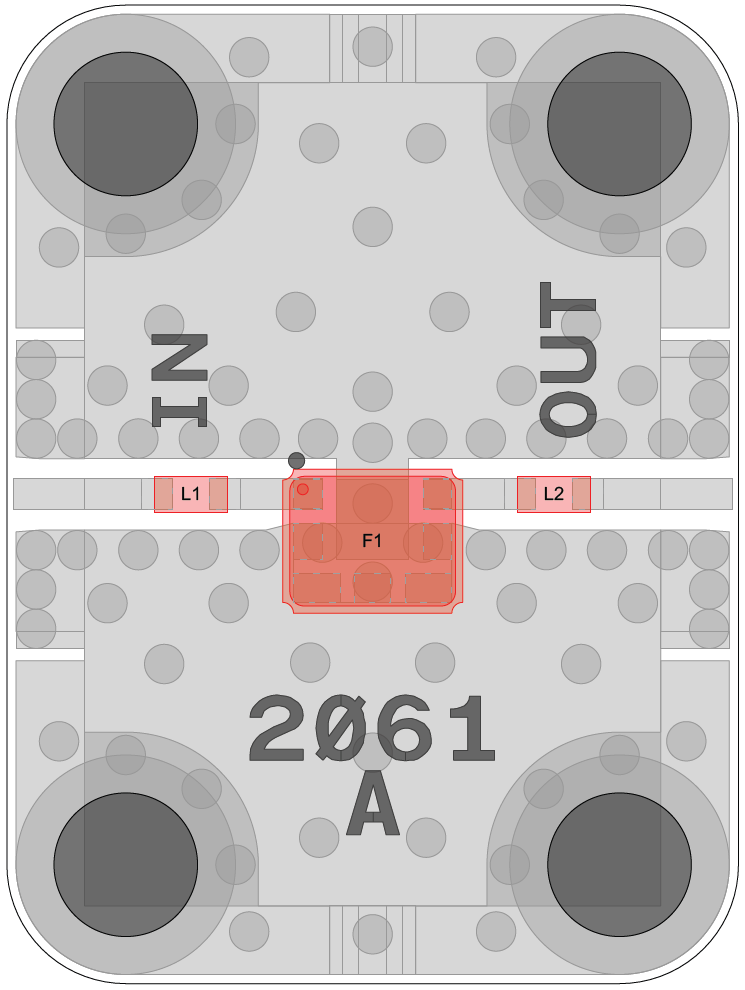

Band Pass Filter, AKF-1938 [PCB: 2061]

Product Page

 N/A Akoustis

Spec Sheet

 N/A AKF-1938

CF

 N/A 3830 MHz

3dB BW

 N/A 100 MHz

IL

 N/A 1.8 dB

20 dB Rej Low Side

 N/A 3750 MHz

20 dB Rej High Side

 N/A 3900 MHz

40 dB Rej Low Side

 N/A 3730 MHz

40 dB Rej High Side

 N/A 3910 MHz

N/A

Part Number

 N/A XR-A476-0304D
