XM-A3U9-0204D
XR-A3U9-0204D ROHS

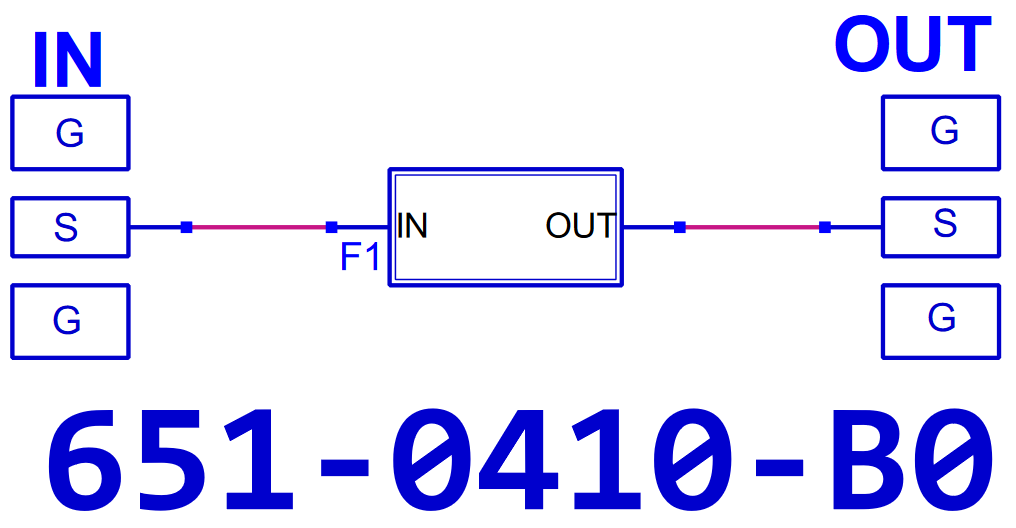

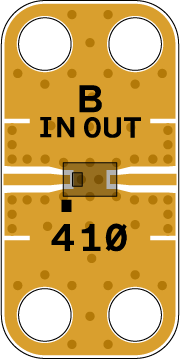

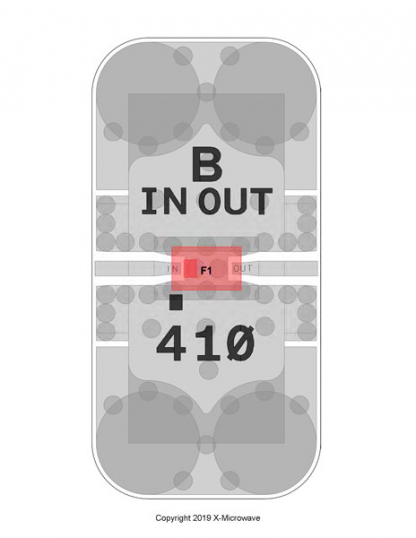

Band Pass Filter, DEA202450BT-1213C1 [PCB: 0410]
Product Page |
N/A TDK |
Spec Sheet |
N/A DEA202450BT-1213C1 |
CF |
N/A 2450 MHz |
3dB BW |
N/A 530 MHz |
IL |
N/A 1.06 dB |
20 dB Rej Low Side |
N/A 1790 MHz |
20 dB Rej High Side |
N/A 3220 MHz |
40 dB Rej Low Side |
N/A 1350 MHz |
40 dB Rej High Side |
N/A 3840 MHz |
|
N/A |
Part Number |
N/A XR-A3U9-0204D |
