XM-A2C2-0604D
XR-A2C2-0604D ROHS

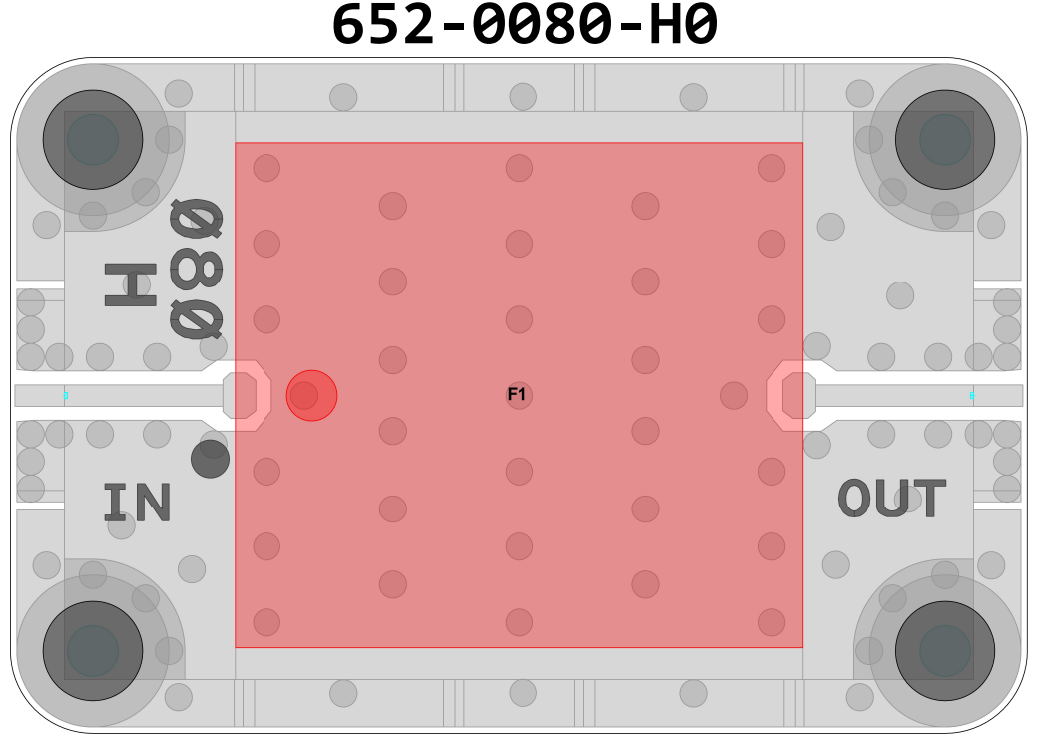

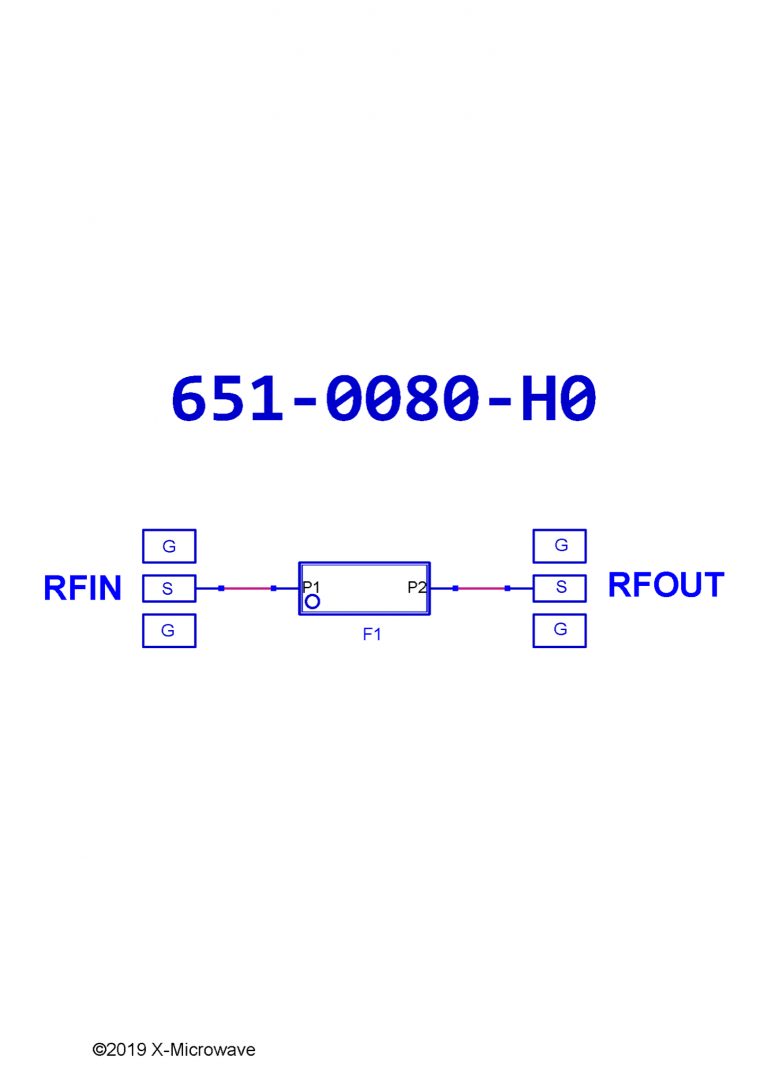

Band Pass Filter, B028RF2S [PCB: 0080]

Configurations

Product Page

 N/A DLI

Spec Sheet

 N/A B028RF2S

CF

 N/A 2800 MHz

3dB BW

 N/A 2336 MHz

IL

 N/A 2 dB

20 dB Rej Low Side

 N/A 1650 MHz

20 dB Rej High Side

 N/A 4390 MHz

40 dB Rej Low Side

 N/A 1390 MHz

40 dB Rej High Side

 N/A 4705 MHz

N/A

Part Number

 N/A XR-A2C2-0604D
