XM-A2B3-0404D
XR-A2B3-0404D ROHS

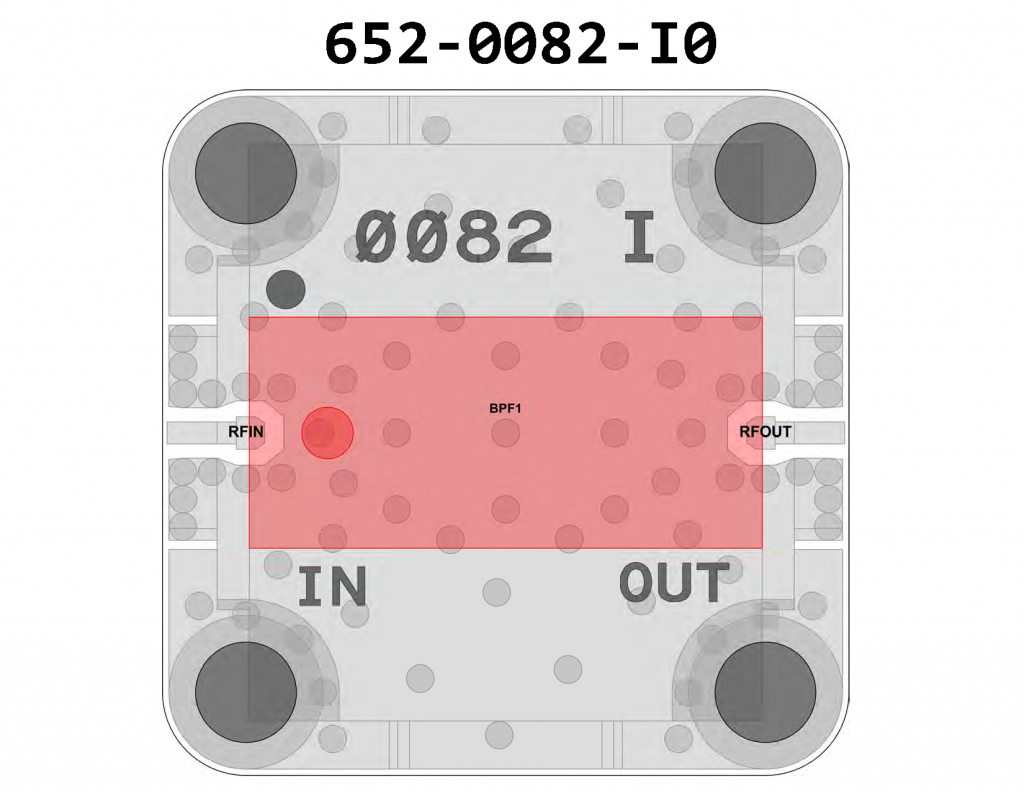

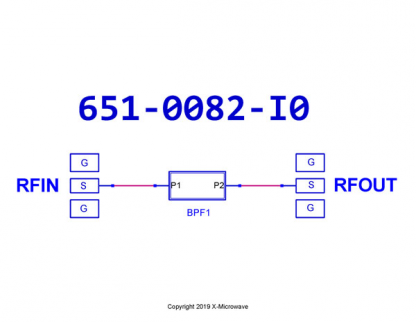

Band Pass Filter, B096QC2S [PCB: 0082]
CF |
N/A 9600 MHz |
3dB BW |
N/A 5440 MHz |
IL |
N/A 2 dB |
20 dB Rej Low Side |
N/A 6920 MHz |
20 dB Rej High Side |
N/A 12920 MHz |
40 dB Rej Low Side |
N/A 6380 MHz |
40 dB Rej High Side |
N/A 13120 MHz |
|
N/A |
Part Number |
N/A XR-A2B3-0404D |
