XM-B6K4-0819D
XR-B6K4-0819D ROHS

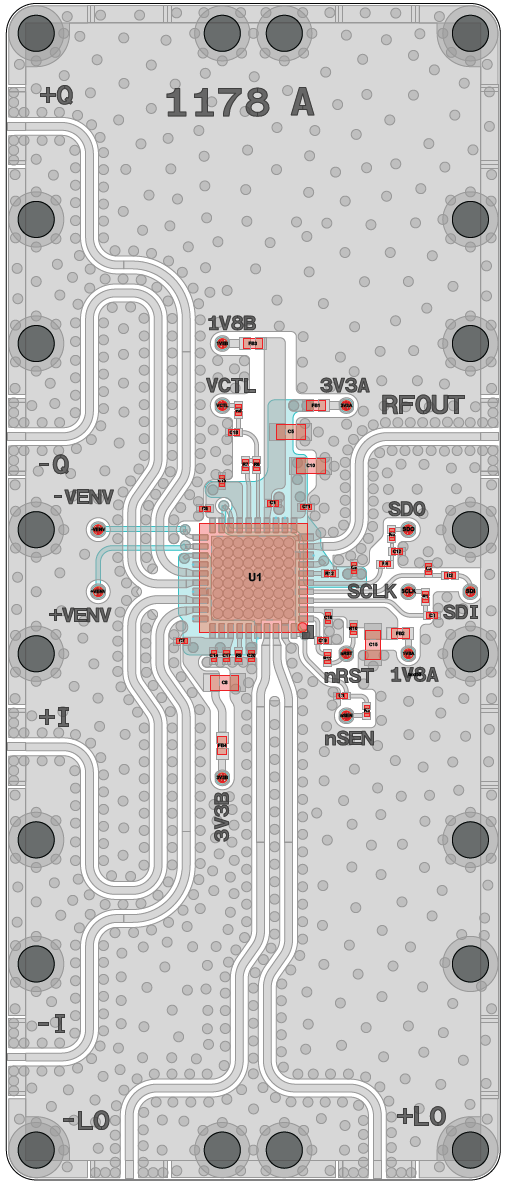

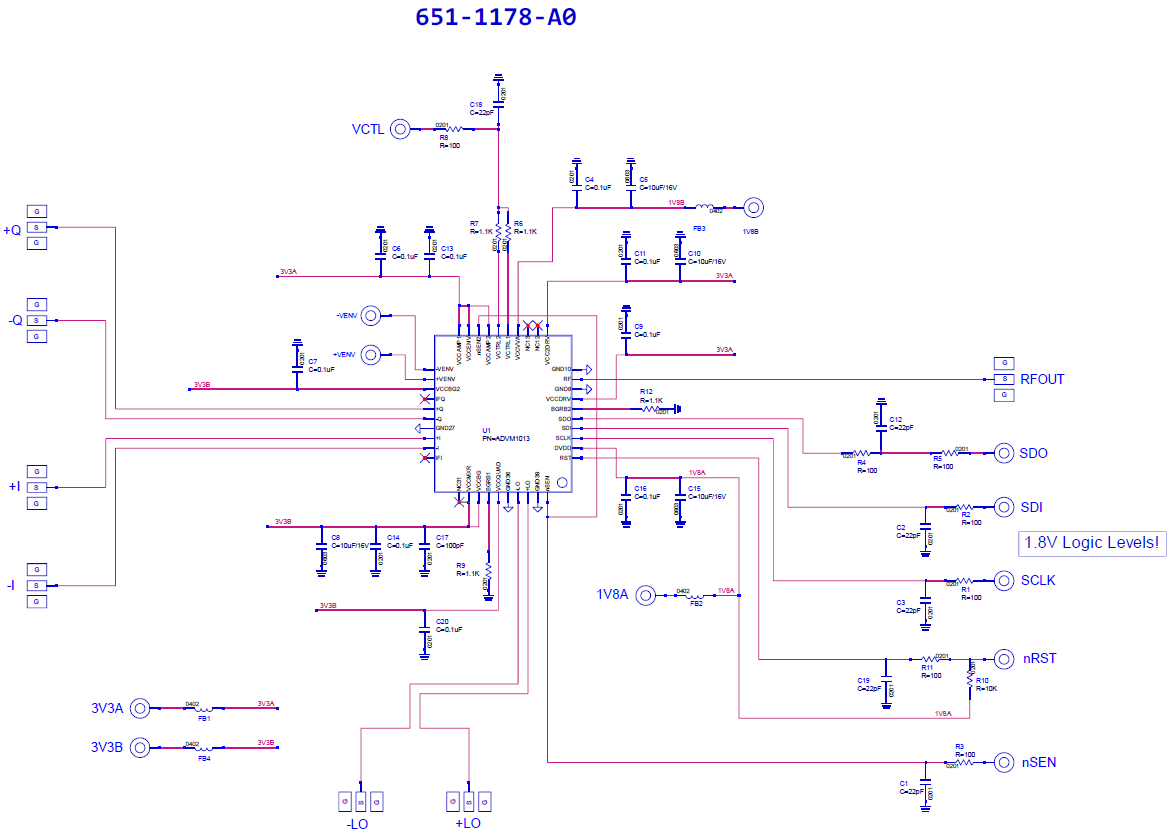

Upconverter, ADMV1013ACCZ [PCB: 1178]
Recommended Bias Controller: XM-B6K5-0812D-SP
Product Page |
N/A ADI |
Spec Sheet |
N/A ADMV1013ACCZ |
LO Level |
N/A 0 dBm |
LO Low Freq |
N/A 5400 MHz |
LO High Freq |
N/A 10250 MHz |
RF Low Freq |
N/A 24000 MHz |
RF High Freq |
N/A 44000 MHz |
IF Low Freq |
N/A 800 MHz |
IF High Freq |
N/A 6000 MHz |
Gain |
N/A 18 dB |
|
N/A |
Part Number |
N/A XR-B6K4-0819D |
