XM-C3U9-0604D
XR-C3U9-0604D ROHS

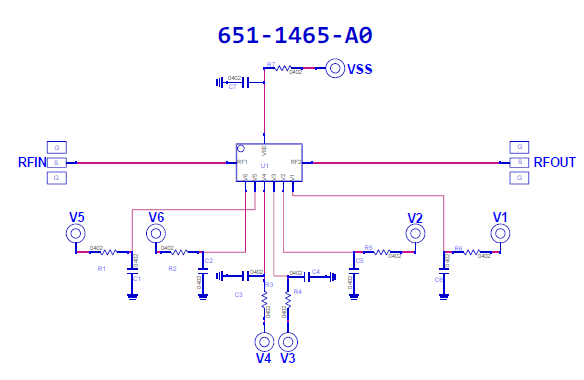

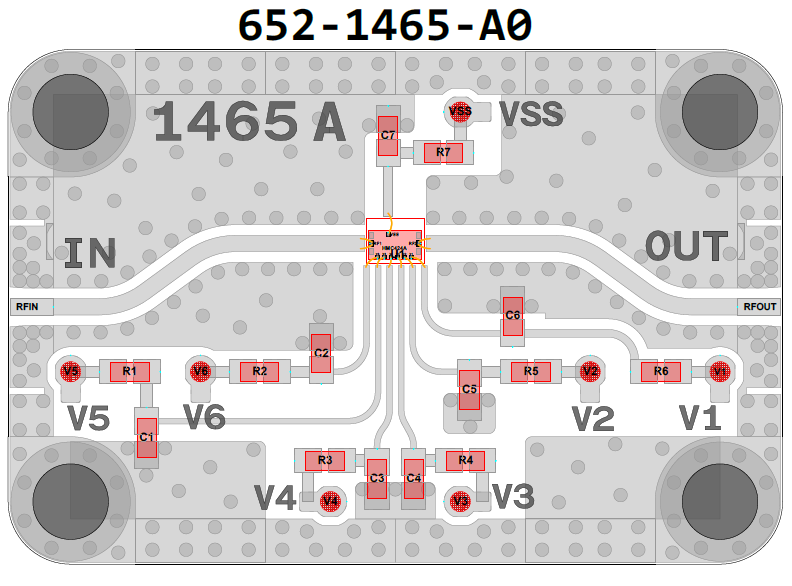

Digital Step Attenuator, HMC424A [PCB: 1465]
Recommended Bias Controller: XM-C3V1-0604D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC424A

Low Freq

 N/A 0 MHz

High Freq

 N/A 13000 MHz

Atten Range

 N/A 31.50 dB

Atten Step

 N/A 0.50 dB

IL

 N/A 4.20 dB

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VEE to -5V
Verify supply current of 2.8 mA
2. Set attenuation level using Parallel control
3. Apply RF input signal


Power-down Sequence
1. Remove RF input singal
2. Set VEE to 0V

Part Number

 N/A XR-C3U9-0604D
