| XM Part Number | Image | Spec Sheet |
Buy Direct (Intl. add 15%) |
Feature Mfr | Type | XM Part Number | PKG | LO Level | LO Low Freq | LO High Freq | RF Low Freq | RF High Freq | IF Low FreqMixer | IF High Freq | Conv Loss | RoHS | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XM-A155-0604C |
 0604D |
ADE-1LH+ |
$378.00 | Mini-Circuits | N/A | XM-A155-0604C | SMT | 10 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5 dB |
XR-A155-0604C |
Request Quote |
| XM-A155-0604D |

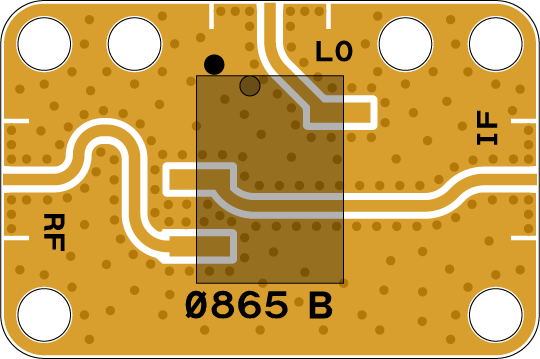

 0865_WEB |
ADE-1LH+ |
$145.00 | Mini-Circuits | N/A | XM-A155-0604D | SMT | 10 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5 dB |
XR-A155-0604D |
Request Quote |
| XM-A156-0604C |
0604D |
ADE-1LH+ |
$378.00 | Mini-Circuits | N/A | XM-A156-0604C | SMT | 10 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5 dB |
XR-A156-0604C |
Request Quote |
| XM-A156-0604D |

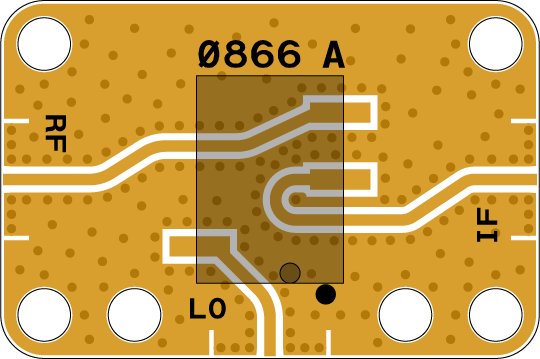

 0866_WEB |
ADE-1LH+ |
$145.00 | Mini-Circuits | N/A | XM-A156-0604D | SMT | 10 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5 dB |
XR-A156-0604D |
Request Quote |
| XM-A1M7-0404C |
 0404B |
SIM-14LH+ |
$351.00 | Mini-Circuits | N/A | XM-A1M7-0404C | SMT | 10 dBm | 3700 MHz | 10000 MHz | 3700 MHz | 10000 MHz | 0 MHz | 4000 MHz | 7.3 dB |
XR-A1M7-0404C |
Request Quote |
| XM-A1M7-0404D |

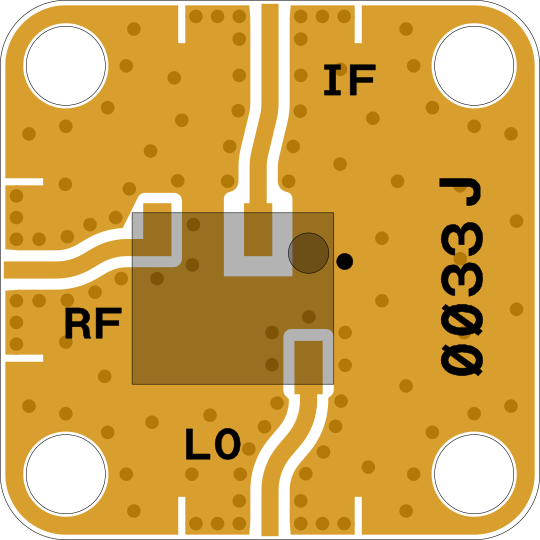

 0033_WEB |
SIM-14LH+ |
$131.00 | Mini-Circuits | N/A | XM-A1M7-0404D | SMT | 10 dBm | 3700 MHz | 10000 MHz | 3700 MHz | 10000 MHz | 0 MHz | 4000 MHz | 7.3 dB |
XR-A1M7-0404D |
Request Quote |
| XM-A1M8-0404C |
0404B |
SIM-43LH+ |
$350.00 | Mini-Circuits | N/A | XM-A1M8-0404C | SMT | 10 dBm | 824 MHz | 4200 MHz | 824 MHz | 4200 MHz | 0 MHz | 1500 MHz | 6.3 dB |
XR-A1M8-0404C |
Request Quote |
| XM-A1M8-0404D |
0033_WEB |
SIM-43LH+ |
$124.00 | Mini-Circuits | N/A | XM-A1M8-0404D | SMT | 10 dBm | 824 MHz | 4200 MHz | 824 MHz | 4200 MHz | 0 MHz | 1500 MHz | 6.3 dB |
XR-A1M8-0404D |
Request Quote |
| XM-A1M9-0404C |
0404B |
SIM-63LH+ |
$361.00 | Mini-Circuits | N/A | XM-A1M9-0404C | SMT | 10 dBm | 750 MHz | 6000 MHz | 750 MHz | 6000 MHz | 0 MHz | 1500 MHz | 6.6 dB |
XR-A1M9-0404C |
Request Quote |
| XM-A1M9-0404D |
0033_WEB |
SIM-63LH+ |
$121.00 | Mini-Circuits | N/A | XM-A1M9-0404D | SMT | 10 dBm | 750 MHz | 6000 MHz | 750 MHz | 6000 MHz | 0 MHz | 1500 MHz | 6.6 dB |
XR-A1M9-0404D |
Request Quote |
| XM-A1N1-0404C |
0404B |
SIM-83LH+ |
$361.00 | Mini-Circuits | N/A | XM-A1N1-0404C | SMT | 10 dBm | 1700 MHz | 8000 MHz | 1700 MHz | 8000 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1N1-0404C |
Request Quote |
| XM-A1N1-0404D |
0033_WEB |
SIM-83LH+ |
$125.00 | Mini-Circuits | N/A | XM-A1N1-0404D | SMT | 10 dBm | 1700 MHz | 8000 MHz | 1700 MHz | 8000 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1N1-0404D |
Request Quote |
| XM-A1N2-0404C |
0404B |
SIM-153LH+ |
$358.00 | Mini-Circuits | N/A | XM-A1N2-0404C | SMT | 10 dBm | 3200 MHz | 15000 MHz | 3200 MHz | 15000 MHz | 0 MHz | 4000 MHz | 7.5 dB |
XR-A1N2-0404C |
Request Quote |
| XM-A1N2-0404D |
0033_WEB |
SIM-153LH+ |
$131.00 | Mini-Circuits | N/A | XM-A1N2-0404D | SMT | 10 dBm | 3200 MHz | 15000 MHz | 3200 MHz | 15000 MHz | 0 MHz | 4000 MHz | 7.5 dB |
XR-A1N2-0404D |
Request Quote |
| XM-A1N3-0404C |
0404B |
SIM-24MH+ |
$376.00 | Mini-Circuits | N/A | XM-A1N3-0404C | SMT | 13 dBm | 7300 MHz | 20000 MHz | 7300 MHz | 20000 MHz | 0 MHz | 7500 MHz | 5.7 dB |
XR-A1N3-0404C |
Request Quote |
| XM-A1N3-0404D |
0033_WEB |
SIM-24MH+ |
$135.00 | Mini-Circuits | N/A | XM-A1N3-0404D | SMT | 13 dBm | 7300 MHz | 20000 MHz | 7300 MHz | 20000 MHz | 0 MHz | 7500 MHz | 5.7 dB |
XR-A1N3-0404D |
Request Quote |
| XM-A1N4-0404C |
0404B |
SIM-43MH+ |
$357.00 | Mini-Circuits | N/A | XM-A1N4-0404C | SMT | 13 dBm | 824 MHz | 4200 MHz | 824 MHz | 4200 MHz | 0 MHz | 1500 MHz | 6.3 dB |
XR-A1N4-0404C |
Request Quote |
| XM-A1N4-0404D |
0033_WEB |
SIM-43MH+ |
$119.00 | Mini-Circuits | N/A | XM-A1N4-0404D | SMT | 13 dBm | 824 MHz | 4200 MHz | 824 MHz | 4200 MHz | 0 MHz | 1500 MHz | 6.3 dB |
XR-A1N4-0404D |
Request Quote |
| XM-A1N5-0404C |
0404B |
SIM-153MH+ |
$371.00 | Mini-Circuits | N/A | XM-A1N5-0404C | SMT | 13 dBm | 3200 MHz | 15000 MHz | 3200 MHz | 15000 MHz | 0 MHz | 4000 MHz | 7.5 dB |
XR-A1N5-0404C |
Request Quote |
| XM-A1N5-0404D |
0033_WEB |
SIM-153MH+ |
$131.00 | Mini-Circuits | N/A | XM-A1N5-0404D | SMT | 13 dBm | 3200 MHz | 15000 MHz | 3200 MHz | 15000 MHz | 0 MHz | 4000 MHz | 7.5 dB |
XR-A1N5-0404D |
Request Quote |
| XM-A1N6-0404C |
0404B |
SIM-722MH+ |
$357.00 | Mini-Circuits | N/A | XM-A1N6-0404C | SMT | 13 dBm | 2300 MHz | 7200 MHz | 2300 MHz | 7200 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1N6-0404C |
Request Quote |
| XM-A1N6-0404D |
0033_WEB |
SIM-722MH+ |
$128.00 | Mini-Circuits | N/A | XM-A1N6-0404D | SMT | 13 dBm | 2300 MHz | 7200 MHz | 2300 MHz | 7200 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1N6-0404D |
Request Quote |
| XM-A1N7-0404C |
0404B |
SIM-83LH+ |
$345.00 | Mini-Circuits | N/A | XM-A1N7-0404C | SMT | 13 dBm | 3700 MHz | 8500 MHz | 3700 MHz | 8500 MHz | 0 MHz | 4000 MHz | 6.9 dB |
XR-A1N7-0404C |
Request Quote |
| XM-A1N7-0404D |
0033_WEB |
SIM-83LH+ |
$128.00 | Mini-Circuits | N/A | XM-A1N7-0404D | SMT | 13 dBm | 3700 MHz | 8500 MHz | 3700 MHz | 8500 MHz | 0 MHz | 4000 MHz | 6.9 dB |
XR-A1N7-0404D |
Request Quote |
| XM-A1N8-0404C |
0404B |
SIM-14H+ |
$358.00 | Mini-Circuits | N/A | XM-A1N8-0404C | SMT | 17 dBm | 3700 MHz | 10000 MHz | 3700 MHz | 10000 MHz | 0 MHz | 4000 MHz | 7 dB |
XR-A1N8-0404C |
Request Quote |
| XM-A1N8-0404D |
0033_WEB |
SIM-14H+ |
$131.00 | Mini-Circuits | N/A | XM-A1N8-0404D | SMT | 17 dBm | 3700 MHz | 10000 MHz | 3700 MHz | 10000 MHz | 0 MHz | 4000 MHz | 7 dB |
XR-A1N8-0404D |
Request Quote |
| XM-A1N9-0404C |
0404B |
SIM-43H+ |
$358.00 | Mini-Circuits | N/A | XM-A1N9-0404C | SMT | 17 dBm | 1000 MHz | 4000 MHz | 1000 MHz | 4000 MHz | 0 MHz | 1500 MHz | 6.5 dB |
XR-A1N9-0404C |
Request Quote |
| XM-A1N9-0404D |
0033_WEB |
SIM-43H+ |
$120.00 | Mini-Circuits | N/A | XM-A1N9-0404D | SMT | 17 dBm | 1000 MHz | 4000 MHz | 1000 MHz | 4000 MHz | 0 MHz | 1500 MHz | 6.5 dB |
XR-A1N9-0404D |
Request Quote |
| XM-A1P1-0404C |
0404B |
SIM-193H+ |
$374.00 | Mini-Circuits | N/A | XM-A1P1-0404C | SMT | 17 dBm | 7300 MHz | 19000 MHz | 7300 MHz | 19000 MHz | 0 MHz | 7500 MHz | 8 dB |
XR-A1P1-0404C |
Request Quote |
| XM-A1P1-0404D |
0033_WEB |
SIM-193H+ |
$143.00 | Mini-Circuits | N/A | XM-A1P1-0404D | SMT | 17 dBm | 7300 MHz | 19000 MHz | 7300 MHz | 19000 MHz | 0 MHz | 7500 MHz | 8 dB |
XR-A1P1-0404D |
Request Quote |
| XM-A1P2-0404C |
0404B |
SIM-762H+ |
$355.00 | Mini-Circuits | N/A | XM-A1P2-0404C | SMT | 17 dBm | 2300 MHz | 7600 MHz | 2300 MHz | 7600 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1P2-0404C |
Request Quote |
| XM-A1P2-0404D |
0033_WEB |
SIM-762H+ |
$128.00 | Mini-Circuits | N/A | XM-A1P2-0404D | SMT | 17 dBm | 2300 MHz | 7600 MHz | 2300 MHz | 7600 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1P2-0404D |
Request Quote |
| XM-A1P3-0404C |
 0404C |
SIM-14LH+ |
$248.00 | Mini-Circuits | N/A | XM-A1P3-0404C | SMT | 10 dBm | 3700 MHz | 10000 MHz | 3700 MHz | 10000 MHz | 0 MHz | 4000 MHz | 7.3 dB |
XR-A1P3-0404C |
Request Quote |
| XM-A1P3-0404D |

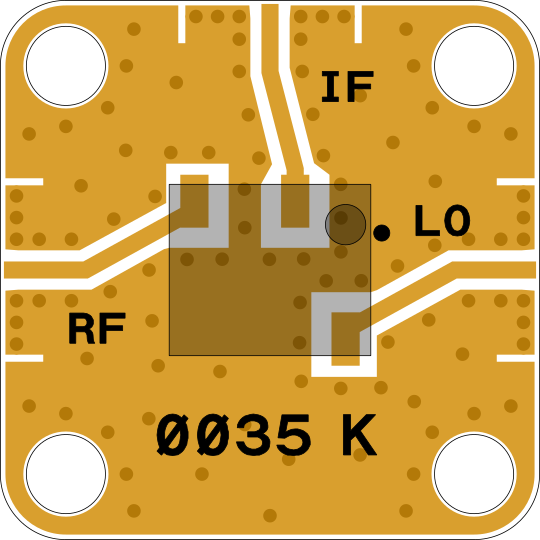

 0035_WEB |
SIM-14LH+ |
$131.00 | Mini-Circuits | N/A | XM-A1P3-0404D | SMT | 10 dBm | 3700 MHz | 10000 MHz | 3700 MHz | 10000 MHz | 0 MHz | 4000 MHz | 7.3 dB |
XR-A1P3-0404D |
Request Quote |
| XM-A1P4-0404C |
0404C |
SIM-43LH+ |
$242.00 | Mini-Circuits | N/A | XM-A1P4-0404C | SMT | 10 dBm | 824 MHz | 4200 MHz | 824 MHz | 4200 MHz | 0 MHz | 1500 MHz | 6.3 dB |
XR-A1P4-0404C |
Request Quote |
| XM-A1P4-0404D |
0035_WEB |
SIM-43LH+ |
$124.00 | Mini-Circuits | N/A | XM-A1P4-0404D | SMT | 10 dBm | 824 MHz | 4200 MHz | 824 MHz | 4200 MHz | 0 MHz | 1500 MHz | 6.3 dB |
XR-A1P4-0404D |
Request Quote |
| XM-A1P5-0404C |
0404C |
SIM-63LH+ |
$248.00 | Mini-Circuits | N/A | XM-A1P5-0404C | SMT | 10 dBm | 750 MHz | 6000 MHz | 750 MHz | 6000 MHz | 0 MHz | 1500 MHz | 6.6 dB |
XR-A1P5-0404C |
Request Quote |
| XM-A1P5-0404D |
0035_WEB |
SIM-63LH+ |
$121.00 | Mini-Circuits | N/A | XM-A1P5-0404D | SMT | 10 dBm | 750 MHz | 6000 MHz | 750 MHz | 6000 MHz | 0 MHz | 1500 MHz | 6.6 dB |
XR-A1P5-0404D |
Request Quote |
| XM-A1P6-0404C |
0404C |
SIM-83LH+ |
$250.00 | Mini-Circuits | N/A | XM-A1P6-0404C | SMT | 10 dBm | 1700 MHz | 8000 MHz | 1700 MHz | 8000 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1P6-0404C |
Request Quote |
| XM-A1P6-0404D |
0035_WEB |
SIM-83LH+ |
$125.00 | Mini-Circuits | N/A | XM-A1P6-0404D | SMT | 10 dBm | 1700 MHz | 8000 MHz | 1700 MHz | 8000 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1P6-0404D |
Request Quote |
| XM-A1P7-0404C |
0404C |
SIM-153LH+ |
$358.00 | Mini-Circuits | N/A | XM-A1P7-0404C | SMT | 10 dBm | 3200 MHz | 15000 MHz | 3200 MHz | 15000 MHz | 0 MHz | 4000 MHz | 7.5 dB |
XR-A1P7-0404C |
Request Quote |
| XM-A1P7-0404D |
0035_WEB |
SIM-153LH+ |
$131.00 | Mini-Circuits | N/A | XM-A1P7-0404D | SMT | 10 dBm | 3200 MHz | 15000 MHz | 3200 MHz | 15000 MHz | 0 MHz | 4000 MHz | 7.5 dB |
XR-A1P7-0404D |
Request Quote |
| XM-A1P8-0404C |
0404C |
SIM-24MH+ |
$376.00 | Mini-Circuits | N/A | XM-A1P8-0404C | SMT | 13 dBm | 7300 MHz | 20000 MHz | 7300 MHz | 20000 MHz | 0 MHz | 7500 MHz | 5.7 dB |
XR-A1P8-0404C |
Request Quote |
| XM-A1P8-0404D |
0035_WEB |
SIM-24MH+ |
$135.00 | Mini-Circuits | N/A | XM-A1P8-0404D | SMT | 13 dBm | 7300 MHz | 20000 MHz | 7300 MHz | 20000 MHz | 0 MHz | 7500 MHz | 5.7 dB |
XR-A1P8-0404D |
Request Quote |
| XM-A1P9-0404C |
0404C |
SIM-43MH+ |
$242.00 | Mini-Circuits | N/A | XM-A1P9-0404C | SMT | 13 dBm | 824 MHz | 4200 MHz | 824 MHz | 4200 MHz | 0 MHz | 1500 MHz | 6.3 dB |
XR-A1P9-0404C |
Request Quote |
| XM-A1P9-0404D |
0035_WEB |
SIM-43MH+ |
$84.00 | Mini-Circuits | N/A | XM-A1P9-0404D | SMT | 13 dBm | 824 MHz | 4200 MHz | 824 MHz | 4200 MHz | 0 MHz | 1500 MHz | 6.3 dB |
XR-A1P9-0404D |
Request Quote |
| XM-A1R1-0404C |
0404C |
SIM-153MH+ |
$261.00 | Mini-Circuits | N/A | XM-A1R1-0404C | SMT | 13 dBm | 3200 MHz | 15000 MHz | 3200 MHz | 15000 MHz | 0 MHz | 4000 MHz | 7.5 dB |
XR-A1R1-0404C |
Request Quote |
| XM-A1R1-0404D |
0035_WEB |
SIM-153MH+ |
$131.00 | Mini-Circuits | N/A | XM-A1R1-0404D | SMT | 13 dBm | 3200 MHz | 15000 MHz | 3200 MHz | 15000 MHz | 0 MHz | 4000 MHz | 7.5 dB |
XR-A1R1-0404D |
Request Quote |
| XM-A1R2-0404C |
0404C |
SIM-722MH+ |
$357.00 | Mini-Circuits | N/A | XM-A1R2-0404C | SMT | 13 dBm | 2300 MHz | 7200 MHz | 2300 MHz | 7200 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1R2-0404C |
Request Quote |
| XM-A1R2-0404D |
0035_WEB |
SIM-722MH+ |
$128.00 | Mini-Circuits | N/A | XM-A1R2-0404D | SMT | 13 dBm | 2300 MHz | 7200 MHz | 2300 MHz | 7200 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1R2-0404D |
Request Quote |
| XM-A1R3-0404C |
0404C |
SIM-83LH+ |
$241.00 | Mini-Circuits | N/A | XM-A1R3-0404C | SMT | 13 dBm | 3700 MHz | 8500 MHz | 3700 MHz | 8500 MHz | 0 MHz | 4000 MHz | 6.9 dB |
XR-A1R3-0404C |
Request Quote |
| XM-A1R3-0404D |
0035_WEB |
SIM-83LH+ |
$128.00 | Mini-Circuits | N/A | XM-A1R3-0404D | SMT | 13 dBm | 3700 MHz | 8500 MHz | 3700 MHz | 8500 MHz | 0 MHz | 4000 MHz | 6.9 dB |
XR-A1R3-0404D |
Request Quote |
| XM-A1R4-0404C |
0404C |
SIM-14H+ |
$252.00 | Mini-Circuits | N/A | XM-A1R4-0404C | SMT | 17 dBm | 3700 MHz | 10000 MHz | 3700 MHz | 10000 MHz | 0 MHz | 4000 MHz | 7 dB |
XR-A1R4-0404C |
Request Quote |
| XM-A1R4-0404D |
0035_WEB |
SIM-14H+ |
$131.00 | Mini-Circuits | N/A | XM-A1R4-0404D | SMT | 17 dBm | 3700 MHz | 10000 MHz | 3700 MHz | 10000 MHz | 0 MHz | 4000 MHz | 7 dB |
XR-A1R4-0404D |
Request Quote |
| XM-A1R5-0404C |
0404C |
SIM-43H+ |
$358.00 | Mini-Circuits | N/A | XM-A1R5-0404C | SMT | 17 dBm | 1000 MHz | 4000 MHz | 1000 MHz | 4000 MHz | 0 MHz | 1500 MHz | 6.5 dB |
XR-A1R5-0404C |
Request Quote |
| XM-A1R5-0404D |
0035_WEB |
SIM-43H+ |
$120.00 | Mini-Circuits | N/A | XM-A1R5-0404D | SMT | 17 dBm | 1000 MHz | 4000 MHz | 1000 MHz | 4000 MHz | 0 MHz | 1500 MHz | 6.5 dB |
XR-A1R5-0404D |
Request Quote |
| XM-A1R6-0404C |
0404C |
SIM-193H+ |
$272.00 | Mini-Circuits | N/A | XM-A1R6-0404C | SMT | 17 dBm | 7300 MHz | 19000 MHz | 7300 MHz | 19000 MHz | 0 MHz | 7500 MHz | 8 dB |
XR-A1R6-0404C |
Request Quote |
| XM-A1R6-0404D |
0035_WEB |
SIM-193H+ |
$143.00 | Mini-Circuits | N/A | XM-A1R6-0404D | SMT | 17 dBm | 7300 MHz | 19000 MHz | 7300 MHz | 19000 MHz | 0 MHz | 7500 MHz | 8 dB |
XR-A1R6-0404D |
Request Quote |
| XM-A1R7-0404C |
0404C |
SIM-762H+ |
$248.00 | Mini-Circuits | N/A | XM-A1R7-0404C | SMT | 17 dBm | 2300 MHz | 7600 MHz | 2300 MHz | 7600 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1R7-0404C |
Request Quote |
| XM-A1R7-0404D |
0035_WEB |
SIM-762H+ |
$128.00 | Mini-Circuits | N/A | XM-A1R7-0404D | SMT | 17 dBm | 2300 MHz | 7600 MHz | 2300 MHz | 7600 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1R7-0404D |
Request Quote |
| XM-A1R8-0404C |
 0404D |
SIM-14LH+ |
$351.00 | Mini-Circuits | N/A | XM-A1R8-0404C | SMT | 10 dBm | 3700 MHz | 10000 MHz | 3700 MHz | 10000 MHz | 0 MHz | 4000 MHz | 7.3 dB |
XR-A1R8-0404C |
Request Quote |
| XM-A1R8-0404D |

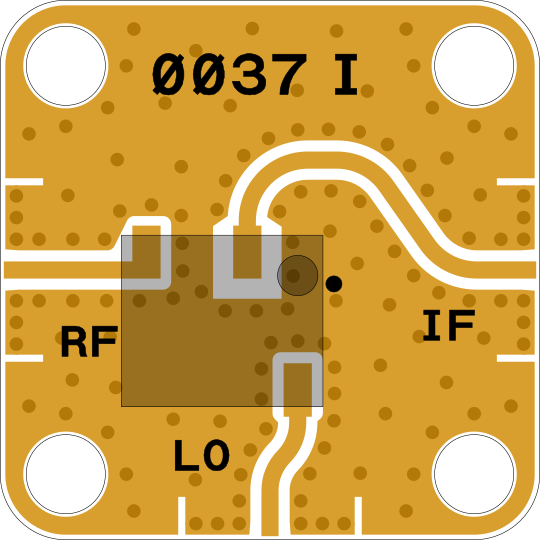

 0037_WEB |
SIM-14LH+ |
$131.00 | Mini-Circuits | N/A | XM-A1R8-0404D | SMT | 10 dBm | 3700 MHz | 10000 MHz | 3700 MHz | 10000 MHz | 0 MHz | 4000 MHz | 7.3 dB |
XR-A1R8-0404D |
Request Quote |
| XM-A1R9-0404C |
0404D |
SIM-43LH+ |
$350.00 | Mini-Circuits | N/A | XM-A1R9-0404C | SMT | 10 dBm | 824 MHz | 4200 MHz | 824 MHz | 4200 MHz | 0 MHz | 1500 MHz | 6.3 dB |
XR-A1R9-0404C |
Request Quote |
| XM-A1R9-0404D |
0037_WEB |
SIM-43LH+ |
$124.00 | Mini-Circuits | N/A | XM-A1R9-0404D | SMT | 10 dBm | 824 MHz | 4200 MHz | 824 MHz | 4200 MHz | 0 MHz | 1500 MHz | 6.3 dB |
XR-A1R9-0404D |
Request Quote |
| XM-A1T1-0404C |
0404D |
SIM-63LH+ |
$361.00 | Mini-Circuits | N/A | XM-A1T1-0404C | SMT | 10 dBm | 750 MHz | 6000 MHz | 750 MHz | 6000 MHz | 0 MHz | 1500 MHz | 6.6 dB |
XR-A1T1-0404C |
Request Quote |
| XM-A1T1-0404D |
0037_WEB |
SIM-63LH+ |
$121.00 | Mini-Circuits | N/A | XM-A1T1-0404D | SMT | 10 dBm | 750 MHz | 6000 MHz | 750 MHz | 6000 MHz | 0 MHz | 1500 MHz | 6.6 dB |
XR-A1T1-0404D |
Request Quote |
| XM-A1T2-0404C |
0404D |
SIM-83LH+ |
$250.00 | Mini-Circuits | N/A | XM-A1T2-0404C | SMT | 10 dBm | 1700 MHz | 8000 MHz | 1700 MHz | 8000 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1T2-0404C |
Request Quote |
| XM-A1T2-0404D |
0037_WEB |
SIM-83LH+ |
$125.00 | Mini-Circuits | N/A | XM-A1T2-0404D | SMT | 10 dBm | 1700 MHz | 8000 MHz | 1700 MHz | 8000 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1T2-0404D |
Request Quote |
| XM-A1T3-0404C |
0404D |
SIM-153LH+ |
$358.00 | Mini-Circuits | N/A | XM-A1T3-0404C | SMT | 10 dBm | 3200 MHz | 15000 MHz | 3200 MHz | 15000 MHz | 0 MHz | 4000 MHz | 7.5 dB |
XR-A1T3-0404C |
Request Quote |
| XM-A1T3-0404D |
0037_WEB |
SIM-153LH+ |
$131.00 | Mini-Circuits | N/A | XM-A1T3-0404D | SMT | 10 dBm | 3200 MHz | 15000 MHz | 3200 MHz | 15000 MHz | 0 MHz | 4000 MHz | 7.5 dB |
XR-A1T3-0404D |
Request Quote |
| XM-A1T4-0404C |
0404D |
SIM-24MH+ |
$376.00 | Mini-Circuits | N/A | XM-A1T4-0404C | SMT | 13 dBm | 7300 MHz | 20000 MHz | 7300 MHz | 20000 MHz | 0 MHz | 7500 MHz | 5.7 dB |
XR-A1T4-0404C |
Request Quote |
| XM-A1T4-0404D |
0037_WEB |
SIM-24MH+ |
$135.00 | Mini-Circuits | N/A | XM-A1T4-0404D | SMT | 13 dBm | 7300 MHz | 20000 MHz | 7300 MHz | 20000 MHz | 0 MHz | 7500 MHz | 5.7 dB |
XR-A1T4-0404D |
Request Quote |
| XM-A1T5-0404C |
0404D |
SIM-43MH+ |
$242.00 | Mini-Circuits | N/A | XM-A1T5-0404C | SMT | 13 dBm | 824 MHz | 4200 MHz | 824 MHz | 4200 MHz | 0 MHz | 1500 MHz | 6.3 dB |
XR-A1T5-0404C |
Request Quote |
| XM-A1T5-0404D |
0037_WEB |
SIM-43MH+ |
$84.00 | Mini-Circuits | N/A | XM-A1T5-0404D | SMT | 13 dBm | 824 MHz | 4200 MHz | 824 MHz | 4200 MHz | 0 MHz | 1500 MHz | 6.3 dB |
XR-A1T5-0404D |
Request Quote |
| XM-A1T6-0404C |
0404D |
SIM-153MH+ |
$371.00 | Mini-Circuits | N/A | XM-A1T6-0404C | SMT | 13 dBm | 3200 MHz | 15000 MHz | 3200 MHz | 15000 MHz | 0 MHz | 4000 MHz | 7.5 dB |
XR-A1T6-0404C |
Request Quote |
| XM-A1T6-0404D |
0037_WEB |
SIM-153MH+ |
$131.00 | Mini-Circuits | N/A | XM-A1T6-0404D | SMT | 13 dBm | 3200 MHz | 15000 MHz | 3200 MHz | 15000 MHz | 0 MHz | 4000 MHz | 7.5 dB |
XR-A1T6-0404D |
Request Quote |
| XM-A1T7-0404C |
0404D |
SIM-722MH+ |
$249.00 | Mini-Circuits | N/A | XM-A1T7-0404C | SMT | 13 dBm | 2300 MHz | 7200 MHz | 2300 MHz | 7200 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1T7-0404C |
Request Quote |
| XM-A1T7-0404D |
0037_WEB |
SIM-722MH+ |
$128.00 | Mini-Circuits | N/A | XM-A1T7-0404D | SMT | 13 dBm | 2300 MHz | 7200 MHz | 2300 MHz | 7200 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1T7-0404D |
Request Quote |
| XM-A1T8-0404C |
0404D |
SIM-83LH+ |
$241.00 | Mini-Circuits | N/A | XM-A1T8-0404C | SMT | 13 dBm | 3700 MHz | 8500 MHz | 3700 MHz | 8500 MHz | 0 MHz | 4000 MHz | 6.9 dB |
XR-A1T8-0404C |
Request Quote |
| XM-A1T8-0404D |
0037_WEB |
SIM-83LH+ |
$128.00 | Mini-Circuits | N/A | XM-A1T8-0404D | SMT | 13 dBm | 3700 MHz | 8500 MHz | 3700 MHz | 8500 MHz | 0 MHz | 4000 MHz | 6.9 dB |
XR-A1T8-0404D |
Request Quote |
| XM-A1T9-0404C |
0404D |
SIM-14H+ |
$252.00 | Mini-Circuits | N/A | XM-A1T9-0404C | SMT | 17 dBm | 3700 MHz | 10000 MHz | 3700 MHz | 10000 MHz | 0 MHz | 4000 MHz | 7 dB |
XR-A1T9-0404C |
Request Quote |
| XM-A1T9-0404D |
0037_WEB |
SIM-14H+ |
$131.00 | Mini-Circuits | N/A | XM-A1T9-0404D | SMT | 17 dBm | 3700 MHz | 10000 MHz | 3700 MHz | 10000 MHz | 0 MHz | 4000 MHz | 7 dB |
XR-A1T9-0404D |
Request Quote |
| XM-A1U1-0404C |
0404D |
SIM-43H+ |
$244.00 | Mini-Circuits | N/A | XM-A1U1-0404C | SMT | 17 dBm | 1000 MHz | 4000 MHz | 1000 MHz | 4000 MHz | 0 MHz | 1500 MHz | 6.5 dB |
XR-A1U1-0404C |
Request Quote |
| XM-A1U1-0404D |
0037_WEB |
SIM-43H+ |
$120.00 | Mini-Circuits | N/A | XM-A1U1-0404D | SMT | 17 dBm | 1000 MHz | 4000 MHz | 1000 MHz | 4000 MHz | 0 MHz | 1500 MHz | 6.5 dB |
XR-A1U1-0404D |
Request Quote |
| XM-A1U2-0404C |
0404D |
SIM-193H+ |
$272.00 | Mini-Circuits | N/A | XM-A1U2-0404C | SMT | 17 dBm | 7300 MHz | 19000 MHz | 7300 MHz | 19000 MHz | 0 MHz | 7500 MHz | 8 dB |
XR-A1U2-0404C |
Request Quote |
| XM-A1U2-0404D |
0037_WEB |
SIM-193H+ |
$143.00 | Mini-Circuits | N/A | XM-A1U2-0404D | SMT | 17 dBm | 7300 MHz | 19000 MHz | 7300 MHz | 19000 MHz | 0 MHz | 7500 MHz | 8 dB |
XR-A1U2-0404D |
Request Quote |
| XM-A1U3-0404C |
0404D |
SIM-762H+ |
$355.00 | Mini-Circuits | N/A | XM-A1U3-0404C | SMT | 17 dBm | 2300 MHz | 7600 MHz | 2300 MHz | 7600 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1U3-0404C |
Request Quote |
| XM-A1U3-0404D |
0037_WEB |
SIM-762H+ |
$128.00 | Mini-Circuits | N/A | XM-A1U3-0404D | SMT | 17 dBm | 2300 MHz | 7600 MHz | 2300 MHz | 7600 MHz | 0 MHz | 3000 MHz | 6 dB |
XR-A1U3-0404D |
Request Quote |
| XM-A1U4-0404C |
0404B |
ADE-1LH+ |
$341.00 | Mini-Circuits | N/A | XM-A1U4-0404C | SMT | 10 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5 dB |
XR-A1U4-0404C |
Request Quote |
| XM-A1U4-0404D |
 0032_WEB |
ADE-1LH+ |
$117.00 | Mini-Circuits | N/A | XM-A1U4-0404D | SMT | 10 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5 dB |
XR-A1U4-0404D |
Request Quote |
| XM-A1U5-0404C |
0404B |
ADE-1MH+ |
$348.00 | Mini-Circuits | N/A | XM-A1U5-0404C | SMT | 13 dBm | 2 MHz | 500 MHz | 2 MHz | 500 MHz | 0 MHz | 500 MHz | 5.7 dB |
XR-A1U5-0404C |
Request Quote |
| XM-A1U5-0404D |
0032_WEB |
ADE-1MH+ |
$123.00 | Mini-Circuits | N/A | XM-A1U5-0404D | SMT | 13 dBm | 2 MHz | 500 MHz | 2 MHz | 500 MHz | 0 MHz | 500 MHz | 5.7 dB |
XR-A1U5-0404D |
Request Quote |
| XM-A1U6-0404C |
0404B |
ADE-1MHW+ |
$357.00 | Mini-Circuits | N/A | XM-A1U6-0404C | SMT | 13 dBm | 0.5 MHz | 600 MHz | 0.5 MHz | 600 MHz | 0 MHz | 600 MHz | 5.2 dB |
XR-A1U6-0404C |
Request Quote |
| XM-A1U6-0404D |
0032_WEB |
ADE-1MHW+ |
$124.00 | Mini-Circuits | N/A | XM-A1U6-0404D | SMT | 13 dBm | 0.5 MHz | 600 MHz | 0.5 MHz | 600 MHz | 0 MHz | 600 MHz | 5.2 dB |
XR-A1U6-0404D |
Request Quote |
| XM-A1U8-0404C |
0404B |
ADE-12MH+ |
$352.00 | Mini-Circuits | N/A | XM-A1U8-0404C | SMT | 13 dBm | 10 MHz | 1200 MHz | 10 MHz | 1200 MHz | 0 MHz | 1200 MHz | 6.3 dB |
XR-A1U8-0404C |
Request Quote |
| XM-A1U8-0404D |
0032_WEB |
ADE-12MH+ |
$125.00 | Mini-Circuits | N/A | XM-A1U8-0404D | SMT | 13 dBm | 10 MHz | 1200 MHz | 10 MHz | 1200 MHz | 0 MHz | 1200 MHz | 6.3 dB |
XR-A1U8-0404D |
Request Quote |
| XM-A1U9-0404C |
0404B |
ADE-25MH+ |
$361.00 | Mini-Circuits | N/A | XM-A1U9-0404C | SMT | 13 dBm | 5 MHz | 2500 MHz | 5 MHz | 2500 MHz | 5 MHz | 1500 MHz | 6.9 dB |
XR-A1U9-0404C |
Request Quote |
| XM-A1U9-0404D |
0032_WEB |
ADE-25MH+ |
$128.00 | Mini-Circuits | N/A | XM-A1U9-0404D | SMT | 13 dBm | 5 MHz | 2500 MHz | 5 MHz | 2500 MHz | 5 MHz | 1500 MHz | 6.9 dB |
XR-A1U9-0404D |
Request Quote |
| XM-A1V1-0404C |
0404B |
ADE-35MH+ |
$366.00 | Mini-Circuits | N/A | XM-A1V1-0404C | SMT | 13 dBm | 5 MHz | 3500 MHz | 5 MHz | 3500 MHz | 5 MHz | 2500 MHz | 6.9 dB |
XR-A1V1-0404C |
Request Quote |
| XM-A1V1-0404D |
0032_WEB |
ADE-35MH+ |
$137.00 | Mini-Circuits | N/A | XM-A1V1-0404D | SMT | 13 dBm | 5 MHz | 3500 MHz | 5 MHz | 3500 MHz | 5 MHz | 2500 MHz | 6.9 dB |
XR-A1V1-0404D |
Request Quote |
| XM-A1V2-0404C |
0404B |
ADE-42MH+ |
$376.00 | Mini-Circuits | N/A | XM-A1V2-0404C | SMT | 13 dBm | 5 MHz | 4200 MHz | 5 MHz | 4200 MHz | 5 MHz | 3500 MHz | 7.5 dB |
XR-A1V2-0404C |
Request Quote |
| XM-A1V2-0404D |
0032_WEB |
ADE-42MH+ |
$135.00 | Mini-Circuits | N/A | XM-A1V2-0404D | SMT | 13 dBm | 5 MHz | 4200 MHz | 5 MHz | 4200 MHz | 5 MHz | 3500 MHz | 7.5 dB |
XR-A1V2-0404D |
Request Quote |
| XM-A1V3-0404C |
0404B |
ADE-1H+ |
$345.00 | Mini-Circuits | N/A | XM-A1V3-0404C | SMT | 17 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5.3 dB |
XR-A1V3-0404C |
Request Quote |
| XM-A1V3-0404D |
0032_WEB |
ADE-1H+ |
$121.00 | Mini-Circuits | N/A | XM-A1V3-0404D | SMT | 17 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5.3 dB |
XR-A1V3-0404D |
Request Quote |
| XM-A1V4-0404C |
0404B |
ADE-1HW+ |
$351.00 | Mini-Circuits | N/A | XM-A1V4-0404C | SMT | 17 dBm | 5 MHz | 750 MHz | 5 MHz | 750 MHz | 0 MHz | 750 MHz | 6 dB |
XR-A1V4-0404C |
Request Quote |
| XM-A1V4-0404D |
0032_WEB |
ADE-1HW+ |
$125.00 | Mini-Circuits | N/A | XM-A1V4-0404D | SMT | 17 dBm | 5 MHz | 750 MHz | 5 MHz | 750 MHz | 0 MHz | 750 MHz | 6 dB |
XR-A1V4-0404D |
Request Quote |
| XM-A1V5-0404C |
0404B |
ADE-17H+ |
$363.00 | Mini-Circuits | N/A | XM-A1V5-0404C | SMT | 17 dBm | 100 MHz | 1700 MHz | 100 MHz | 1700 MHz | 50 MHz | 1500 MHz | 7.2 dB |
XR-A1V5-0404C |
Request Quote |
| XM-A1V5-0404D |
0032_WEB |
ADE-17H+ |
$123.00 | Mini-Circuits | N/A | XM-A1V5-0404D | SMT | 17 dBm | 100 MHz | 1700 MHz | 100 MHz | 1700 MHz | 50 MHz | 1500 MHz | 7.2 dB |
XR-A1V5-0404D |
Request Quote |
| XM-A1V6-0404C |
0404B |
ADEX-10H+ |
$339.00 | Mini-Circuits | N/A | XM-A1V6-0404C | SMT | 17 dBm | 10 MHz | 1000 MHz | 10 MHz | 1000 MHz | 0 MHz | 800 MHz | 7 dB |
XR-A1V6-0404C |
Request Quote |
| XM-A1V6-0404D |
0032_WEB |
ADEX-10H+ |
$117.00 | Mini-Circuits | N/A | XM-A1V6-0404D | SMT | 17 dBm | 10 MHz | 1000 MHz | 10 MHz | 1000 MHz | 0 MHz | 800 MHz | 7 dB |
XR-A1V6-0404D |
Request Quote |
| XM-A1V7-0404C |
0404C |
ADE-1LH+ |
$341.00 | Mini-Circuits | N/A | XM-A1V7-0404C | SMT | 10 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5 dB |
XR-A1V7-0404C |
Request Quote |
| XM-A1V7-0404D |
 0034_WEB |
ADE-1LH+ |
$117.00 | Mini-Circuits | N/A | XM-A1V7-0404D | SMT | 10 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5 dB |
XR-A1V7-0404D |
Request Quote |
| XM-A1V8-0404C |
0404C |
ADE-1MH+ |
$240.00 | Mini-Circuits | N/A | XM-A1V8-0404C | SMT | 13 dBm | 2 MHz | 500 MHz | 2 MHz | 500 MHz | 0 MHz | 500 MHz | 5.7 dB |
XR-A1V8-0404C |
Request Quote |
| XM-A1V8-0404D |
0034_WEB |
ADE-1MH+ |
$123.00 | Mini-Circuits | N/A | XM-A1V8-0404D | SMT | 13 dBm | 2 MHz | 500 MHz | 2 MHz | 500 MHz | 0 MHz | 500 MHz | 5.7 dB |
XR-A1V8-0404D |
Request Quote |
| XM-A1V9-0404C |
0404C |
ADE-1MHW+ |
$357.00 | Mini-Circuits | N/A | XM-A1V9-0404C | SMT | 13 dBm | 0.5 MHz | 600 MHz | 0.5 MHz | 600 MHz | 0 MHz | 600 MHz | 5.2 dB |
XR-A1V9-0404C |
Request Quote |
| XM-A1V9-0404D |
0034_WEB |
ADE-1MHW+ |
$124.00 | Mini-Circuits | N/A | XM-A1V9-0404D | SMT | 13 dBm | 0.5 MHz | 600 MHz | 0.5 MHz | 600 MHz | 0 MHz | 600 MHz | 5.2 dB |
XR-A1V9-0404D |
Request Quote |
| XM-A1W2-0404C |
0404C |
ADE-12MH+ |
$244.00 | Mini-Circuits | N/A | XM-A1W2-0404C | SMT | 13 dBm | 10 MHz | 1200 MHz | 10 MHz | 1200 MHz | 0 MHz | 1200 MHz | 6.3 dB |
XR-A1W2-0404C |
Request Quote |
| XM-A1W2-0404D |
0034_WEB |
ADE-12MH+ |
$125.00 | Mini-Circuits | N/A | XM-A1W2-0404D | SMT | 13 dBm | 10 MHz | 1200 MHz | 10 MHz | 1200 MHz | 0 MHz | 1200 MHz | 6.3 dB |
XR-A1W2-0404D |
Request Quote |
| XM-A1W3-0404C |
0404C |
ADE-25MH+ |
$361.00 | Mini-Circuits | N/A | XM-A1W3-0404C | SMT | 13 dBm | 5 MHz | 2500 MHz | 5 MHz | 2500 MHz | 5 MHz | 1500 MHz | 6.9 dB |
XR-A1W3-0404C |
Request Quote |
| XM-A1W3-0404D |
0034_WEB |
ADE-25MH+ |
$128.00 | Mini-Circuits | N/A | XM-A1W3-0404D | SMT | 13 dBm | 5 MHz | 2500 MHz | 5 MHz | 2500 MHz | 5 MHz | 1500 MHz | 6.9 dB |
XR-A1W3-0404D |
Request Quote |
| XM-A1W4-0404C |
0404C |
ADE-35MH+ |
$366.00 | Mini-Circuits | N/A | XM-A1W4-0404C | SMT | 13 dBm | 5 MHz | 3500 MHz | 5 MHz | 3500 MHz | 5 MHz | 2500 MHz | 6.9 dB |
XR-A1W4-0404C |
Request Quote |
| XM-A1W4-0404D |
0034_WEB |
ADE-35MH+ |
$137.00 | Mini-Circuits | N/A | XM-A1W4-0404D | SMT | 13 dBm | 5 MHz | 3500 MHz | 5 MHz | 3500 MHz | 5 MHz | 2500 MHz | 6.9 dB |
XR-A1W4-0404D |
Request Quote |
| XM-A1W5-0404C |
0404C |
ADE-42MH+ |
$376.00 | Mini-Circuits | N/A | XM-A1W5-0404C | SMT | 13 dBm | 5 MHz | 4200 MHz | 5 MHz | 4200 MHz | 5 MHz | 3500 MHz | 7.5 dB |
XR-A1W5-0404C |
Request Quote |
| XM-A1W5-0404D |
0034_WEB |
ADE-42MH+ |
$135.00 | Mini-Circuits | N/A | XM-A1W5-0404D | SMT | 13 dBm | 5 MHz | 4200 MHz | 5 MHz | 4200 MHz | 5 MHz | 3500 MHz | 7.5 dB |
XR-A1W5-0404D |
Request Quote |
| XM-A1W6-0404C |
0404C |
ADE-1H+ |
$237.00 | Mini-Circuits | N/A | XM-A1W6-0404C | SMT | 17 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5.3 dB |
XR-A1W6-0404C |
Request Quote |
| XM-A1W6-0404D |
0034_WEB |
ADE-1H+ |
$121.00 | Mini-Circuits | N/A | XM-A1W6-0404D | SMT | 17 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5.3 dB |
XR-A1W6-0404D |
Request Quote |
| XM-A1W7-0404C |
0404C |
ADE-1HW+ |
$243.00 | Mini-Circuits | N/A | XM-A1W7-0404C | SMT | 17 dBm | 5 MHz | 750 MHz | 5 MHz | 750 MHz | 0 MHz | 750 MHz | 6 dB |
XR-A1W7-0404C |
Request Quote |
| XM-A1W7-0404D |
0034_WEB |
ADE-1HW+ |
$125.00 | Mini-Circuits | N/A | XM-A1W7-0404D | SMT | 17 dBm | 5 MHz | 750 MHz | 5 MHz | 750 MHz | 0 MHz | 750 MHz | 6 dB |
XR-A1W7-0404D |
Request Quote |
| XM-A1W8-0404C |
0404C |
ADE-17H+ |
$363.00 | Mini-Circuits | N/A | XM-A1W8-0404C | SMT | 17 dBm | 100 MHz | 1700 MHz | 100 MHz | 1700 MHz | 50 MHz | 1500 MHz | 7.2 dB |
XR-A1W8-0404C |
Request Quote |
| XM-A1W8-0404D |
0034_WEB |
ADE-17H+ |
$123.00 | Mini-Circuits | N/A | XM-A1W8-0404D | SMT | 17 dBm | 100 MHz | 1700 MHz | 100 MHz | 1700 MHz | 50 MHz | 1500 MHz | 7.2 dB |
XR-A1W8-0404D |
Request Quote |
| XM-A1W9-0404C |
0404C |
ADEX-10H+ |
$229.00 | Mini-Circuits | N/A | XM-A1W9-0404C | SMT | 17 dBm | 10 MHz | 1000 MHz | 10 MHz | 1000 MHz | 0 MHz | 800 MHz | 7 dB |
XR-A1W9-0404C |
Request Quote |
| XM-A1W9-0404D |
0034_WEB |
ADEX-10H+ |
$117.00 | Mini-Circuits | N/A | XM-A1W9-0404D | SMT | 17 dBm | 10 MHz | 1000 MHz | 10 MHz | 1000 MHz | 0 MHz | 800 MHz | 7 dB |
XR-A1W9-0404D |
Request Quote |
| XM-A1Y1-0404C |
0404D |
ADE-1LH+ |
$227.00 | Mini-Circuits | N/A | XM-A1Y1-0404C | SMT | 10 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5 dB |
XR-A1Y1-0404C |
Request Quote |
| XM-A1Y1-0404D |
 0036_WEB |
ADE-1LH+ |
$117.00 | Mini-Circuits | N/A | XM-A1Y1-0404D | SMT | 10 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5 dB |
XR-A1Y1-0404D |
Request Quote |
| XM-A1Y2-0404C |
0404D |
ADE-1MH+ |
$240.00 | Mini-Circuits | N/A | XM-A1Y2-0404C | SMT | 13 dBm | 2 MHz | 500 MHz | 2 MHz | 500 MHz | 0 MHz | 500 MHz | 5.7 dB |
XR-A1Y2-0404C |
Request Quote |
| XM-A1Y2-0404D |
0036_WEB |
ADE-1MH+ |
$123.00 | Mini-Circuits | N/A | XM-A1Y2-0404D | SMT | 13 dBm | 2 MHz | 500 MHz | 2 MHz | 500 MHz | 0 MHz | 500 MHz | 5.7 dB |
XR-A1Y2-0404D |
Request Quote |
| XM-A1Y3-0404C |
0404D |
ADE-1MHW+ |
$247.00 | Mini-Circuits | N/A | XM-A1Y3-0404C | SMT | 13 dBm | 0.5 MHz | 600 MHz | 0.5 MHz | 600 MHz | 0 MHz | 600 MHz | 5.2 dB |
XR-A1Y3-0404C |
Request Quote |
| XM-A1Y3-0404D |
0036_WEB |
ADE-1MHW+ |
$124.00 | Mini-Circuits | N/A | XM-A1Y3-0404D | SMT | 13 dBm | 0.5 MHz | 600 MHz | 0.5 MHz | 600 MHz | 0 MHz | 600 MHz | 5.2 dB |
XR-A1Y3-0404D |
Request Quote |
| XM-A1Y5-0404C |
0404D |
ADE-12MH+ |
$352.00 | Mini-Circuits | N/A | XM-A1Y5-0404C | SMT | 13 dBm | 10 MHz | 1200 MHz | 10 MHz | 1200 MHz | 0 MHz | 1200 MHz | 6.3 dB |
XR-A1Y5-0404C |
Request Quote |
| XM-A1Y5-0404D |
0036_WEB |
ADE-12MH+ |
$125.00 | Mini-Circuits | N/A | XM-A1Y5-0404D | SMT | 13 dBm | 10 MHz | 1200 MHz | 10 MHz | 1200 MHz | 0 MHz | 1200 MHz | 6.3 dB |
XR-A1Y5-0404D |
Request Quote |
| XM-A1Y6-0404C |
0404D |
ADE-25MH+ |
$361.00 | Mini-Circuits | N/A | XM-A1Y6-0404C | SMT | 13 dBm | 5 MHz | 2500 MHz | 5 MHz | 2500 MHz | 5 MHz | 1500 MHz | 6.9 dB |
XR-A1Y6-0404C |
Request Quote |
| XM-A1Y6-0404D |
0036_WEB |
ADE-25MH+ |
$128.00 | Mini-Circuits | N/A | XM-A1Y6-0404D | SMT | 13 dBm | 5 MHz | 2500 MHz | 5 MHz | 2500 MHz | 5 MHz | 1500 MHz | 6.9 dB |
XR-A1Y6-0404D |
Request Quote |
| XM-A1Y7-0404C |
0404D |
ADE-35MH+ |
$262.00 | Mini-Circuits | N/A | XM-A1Y7-0404C | SMT | 13 dBm | 5 MHz | 3500 MHz | 5 MHz | 3500 MHz | 5 MHz | 2500 MHz | 6.9 dB |
XR-A1Y7-0404C |
Request Quote |
| XM-A1Y7-0404D |
0036_WEB |
ADE-35MH+ |
$137.00 | Mini-Circuits | N/A | XM-A1Y7-0404D | SMT | 13 dBm | 5 MHz | 3500 MHz | 5 MHz | 3500 MHz | 5 MHz | 2500 MHz | 6.9 dB |
XR-A1Y7-0404D |
Request Quote |
| XM-A1Y8-0404C |
0404D |
ADE-42MH+ |
$282.00 | Mini-Circuits | N/A | XM-A1Y8-0404C | SMT | 13 dBm | 5 MHz | 4200 MHz | 5 MHz | 4200 MHz | 5 MHz | 3500 MHz | 7.5 dB |
XR-A1Y8-0404C |
Request Quote |
| XM-A1Y8-0404D |
0036_WEB |
ADE-42MH+ |
$125.00 | Mini-Circuits | N/A | XM-A1Y8-0404D | SMT | 13 dBm | 5 MHz | 4200 MHz | 5 MHz | 4200 MHz | 5 MHz | 3500 MHz | 7.5 dB |
XR-A1Y8-0404D |
Request Quote |
| XM-A1Y9-0404C |
0404D |
ADE-1H+ |
$237.00 | Mini-Circuits | N/A | XM-A1Y9-0404C | SMT | 17 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5.3 dB |
XR-A1Y9-0404C |
Request Quote |
| XM-A1Y9-0404D |
0036_WEB |
ADE-1H+ |
$121.00 | Mini-Circuits | N/A | XM-A1Y9-0404D | SMT | 17 dBm | 0.5 MHz | 500 MHz | 0.5 MHz | 500 MHz | 0 MHz | 500 MHz | 5.3 dB |
XR-A1Y9-0404D |
Request Quote |
| XM-A211-0404C |
0404D |
ADE-1HW+ |
$243.00 | Mini-Circuits | N/A | XM-A211-0404C | SMT | 17 dBm | 5 MHz | 750 MHz | 5 MHz | 750 MHz | 0 MHz | 750 MHz | 6 dB |
XR-A211-0404C |
Request Quote |
| XM-A211-0404D |
0036_WEB |
ADE-1HW+ |
$125.00 | Mini-Circuits | N/A | XM-A211-0404D | SMT | 17 dBm | 5 MHz | 750 MHz | 5 MHz | 750 MHz | 0 MHz | 750 MHz | 6 dB |
XR-A211-0404D |
Request Quote |
| XM-A212-0404C |
0404D |
ADE-17H+ |
$363.00 | Mini-Circuits | N/A | XM-A212-0404C | SMT | 17 dBm | 100 MHz | 1700 MHz | 100 MHz | 1700 MHz | 50 MHz | 1500 MHz | 7.2 dB |
XR-A212-0404C |
Request Quote |
| XM-A212-0404D |
0036_WEB |
ADE-17H+ |
$123.00 | Mini-Circuits | N/A | XM-A212-0404D | SMT | 17 dBm | 100 MHz | 1700 MHz | 100 MHz | 1700 MHz | 50 MHz | 1500 MHz | 7.2 dB |
XR-A212-0404D |
Request Quote |
| XM-A213-0404C |
0404D |
ADEX-10H+ |
$339.00 | Mini-Circuits | N/A | XM-A213-0404C | SMT | 17 dBm | 10 MHz | 1000 MHz | 10 MHz | 1000 MHz | 0 MHz | 800 MHz | 7 dB |
XR-A213-0404C |
Request Quote |
| XM-A213-0404D |
0036_WEB |
ADEX-10H+ |
$117.00 | Mini-Circuits | N/A | XM-A213-0404D | SMT | 17 dBm | 10 MHz | 1000 MHz | 10 MHz | 1000 MHz | 0 MHz | 800 MHz | 7 dB |
XR-A213-0404D |
Request Quote |
| XM-A347-0404D |
 0196-J_PCB.png |
ML1-0110LSM-2 |
$267.00 | Marki Microwave | Double Balance | XM-A347-0404D | N/A | N/A | 1500 MHz | 10000 MHz | 1500 MHz | 10000 MHz | 0 MHz | 2000 MHz | N/A | Request Quote | |
| XM-A3M4-0404C |
0404D |
MM1-2567LCH-2 |
QUOTE | Marki Microwave | Double Balance | XM-A3M4-0404C | DIE | 11 dBm | 25000 MHz | 67000 MHz | 25000 MHz | 67000 MHz | 0 MHz | 30000 MHz | 0 dB |
XR-A3M4-0404C |
Request Quote |
| XM-A3M4-0404D |
 0565_WEB |
MM1-2567LCH-2 |
QUOTE | Marki Microwave | Double Balance | XM-A3M4-0404D | DIE | 11 dBm | 25000 MHz | 67000 MHz | 25000 MHz | 67000 MHz | 0 MHz | 30000 MHz | 0 dB |
XR-A3M4-0404D |
Request Quote |
| XM-A3T5-0609C-01 |
 0609C |
HMC815B |
$612.00 | ADI | IQ | XM-A3T5-0609C-01 | N/A | 15 dBm | 10500 MHz | 14500 MHz | 21000 MHz | 27000 MHz | 0 MHz | 3750 MHz | N/A |
XR-A3T5-0609C-01 |
Request Quote |
| XM-A3T5-0609D |
 0430_WEB |
HMC815B |
$361.00 | ADI | IQ | XM-A3T5-0609D | N/A | 15 dBm | 10500 MHz | 14500 MHz | 21000 MHz | 27000 MHz | 0 MHz | 3750 MHz | N/A |
XR-A3T5-0609D |
Request Quote |
| XM-A3U3-0404C |
0404C |
MM1-0626HSM-2 |
$468.00 | Marki Microwave | Double Balance | XM-A3U3-0404C | SMT | 20 dBm | 6000 MHz | 26500 MHz | 6000 MHz | 26500 MHz | 0 MHz | 9000 MHz | 7.5 dB |
XR-A3U3-0404C |
Request Quote |
| XM-A3U3-0404D |
 0190_WEB |
MM1-0626HSM-2 |
$269.00 | Marki Microwave | Double Balance | XM-A3U3-0404D | SMT | 20 dBm | 6000 MHz | 26500 MHz | 6000 MHz | 26500 MHz | 0 MHz | 9000 MHz | 7.5 dB |
XR-A3U3-0404D |
Request Quote |
| XM-A3V2-0604C |
0604D |
MAMXES0117 |
$264.00 | Macom | N/A | XM-A3V2-0604C | SMT | 17 dBm | 80 MHz | 2500 MHz | 80 MHz | 2500 MHz | 0 MHz | 1000 MHz | 6.5 dB |
XR-A3V2-0604C |
Request Quote |
| XM-A3V2-0604D |
 0411_WEB |
MAMXES0117 |
$88.00 | Macom | N/A | XM-A3V2-0604D | SMT | 17 dBm | 80 MHz | 2500 MHz | 80 MHz | 2500 MHz | 0 MHz | 1000 MHz | 6.5 dB |
XR-A3V2-0604D |
Request Quote |
| XM-A3W2-0404C |
0404D |
HMC1048ALC3B |
$480.00 | ADI | N/A | XM-A3W2-0404C | SMT | 13 dBm | 2250 MHz | 12000 MHz | 2250 MHz | 12000 MHz | 0 MHz | 4000 MHz | 10 dB |
XR-A3W2-0404C |
Request Quote |
| XM-A3W2-0404D |
 0472_WEB |
HMC1048ALC3B |
$275.00 | ADI | N/A | XM-A3W2-0404D | SMT | 13 dBm | 2250 MHz | 12000 MHz | 2250 MHz | 12000 MHz | 0 MHz | 4000 MHz | 10 dB |
XR-A3W2-0404D |
Request Quote |
| XM-A419-0404D |
 0192_WEB |
$222.00 | Marki Microwave | Double Balance | XM-A419-0404D | SMT | 18 dBm | 1500 MHz | 10000 MHz | 1500 MHz | 10000 MHz | 0 MHz | 2000 MHz | 7 dB | Request Quote | ||
| XM-A425-0404D |
 0193_WEB |
T3H-18GLCTG-2 |
$1,483.00 | Marki Microwave | Two-Tone-Terminator | XM-A425-0404D | SMT | 20 dBm | 10 MHz | 18000 MHz | 10 MHz | 18000 MHz | 10 MHz | 18000 MHz | 8.5 dB |
XR-A425-0404D |
Request Quote |
| XM-A426-0404D |
0193_WEB |
T3H-18GLCTG-1 |
$1,292.00 | Marki Microwave | Two-Tone-Terminator | XM-A426-0404D | SMT | 20 dBm | 10 MHz | 18000 MHz | 10 MHz | 18000 MHz | 10 MHz | 18000 MHz | 9.5 dB |
XR-A426-0404D |
Request Quote |
| XM-A427-0404D |
0193_WEB |
T3H-20GLCTG-1 |
$1,268.00 | Marki Microwave | Two-Tone-Terminator | XM-A427-0404D | SMT | 15 dBm | 10 MHz | 20000 MHz | 10 MHz | 20000 MHz | 10 MHz | 18000 MHz | 9.5 dB |
XR-A427-0404D |
Request Quote |
| XM-A428-0404D |
0193_WEB |
T3H-20GLCTG-2 |
$1,271.00 | Marki Microwave | Two-Tone-Terminator | XM-A428-0404D | SMT | 20 dBm | 10 MHz | 20000 MHz | 10 MHz | 20000 MHz | 10 MHz | 18000 MHz | 9.5 dB |
XR-A428-0404D |
Request Quote |
| XM-A4A4-0404C |
0404D |
MAMX-011009 |
$371.00 | Macom | Sub Harmonic | XM-A4A4-0404C | SMT | 15 dBm | 14000 MHz | 32000 MHz | 14000 MHz | 32000 MHz | 0 MHz | 7000 MHz | 11 dB |
XR-A4A4-0404C |
Request Quote |
| XM-A4A4-0404D |
 0406_WEB |
MAMX-011009 |
$159.00 | Macom | Sub Harmonic | XM-A4A4-0404D | SMT | 15 dBm | 4000 MHz | 20000 MHz | 14000 MHz | 32000 MHz | 0 MHz | 7000 MHz | 11 dB |
XR-A4A4-0404D |
Request Quote |
| XM-A4A5-0404C |
0404C |
MAMX-011021 |
$450.00 | Macom | High Linearity | XM-A4A5-0404C | SMT | 14 dBm | 3000 MHz | 35000 MHz | 5000 MHz | 33000 MHz | 0 MHz | 4500 MHz | 8 dB |
XR-A4A5-0404C |
Request Quote |
| XM-A4A5-0404D |
 0405_WEB |
MAMX-011021 |
$236.00 | Macom | High Linearity | XM-A4A5-0404D | SMT | 14 dBm | 3000 MHz | 33000 MHz | 5000 MHz | 35000 MHz | 0 MHz | 4500 MHz | 8 dB |
XR-A4A5-0404D |
Request Quote |
| XM-A4A8-0404C |
0404C |
MA4EX240L1-1225T |
QUOTE | Macom | Double Balance | XM-A4A8-0404C | SMT | 5 dBm | 1700 MHz | 2500 MHz | 1700 MHz | 2500 MHz | 0 MHz | 400 MHz | 7 dB |
XR-A4A8-0404C |
Request Quote |
| XM-A4A8-0404D |
 0401_WEB |
MA4EX240L1-1225T |
QUOTE | Macom | Double Balance | XM-A4A8-0404D | SMT | 5 dBm | 1700 MHz | 2500 MHz | 1700 MHz | 2500 MHz | 0 MHz | 400 MHz | 7 dB |
XR-A4A8-0404D |
Request Quote |
| XM-A4A9-0404C |
0404C |
MA4EX580L1-1225T |
QUOTE | Macom | Double Balance | XM-A4A9-0404C | SMT | 5 dBm | 4700 MHz | 6000 MHz | 4700 MHz | 6000 MHz | 0 MHz | 1050 MHz | 8 dB |
XR-A4A9-0404C |
Request Quote |
| XM-A4A9-0404D |
 0398_WEB |
MA4EX580L1-1225T |
QUOTE | Macom | Double Balance | XM-A4A9-0404D | SMT | 5 dBm | 4700 MHz | 6000 MHz | 4700 MHz | 6000 MHz | 0 MHz | 1050 MHz | 8 dB |
XR-A4A9-0404D |
Request Quote |
| XM-A4B1-0404C |
0404C |
MA4EX600L1-1225T |
QUOTE | Macom | Double Balance | XM-A4B1-0404C | SMT | 5 dBm | 4200 MHz | 6000 MHz | 4200 MHz | 6000 MHz | 4200 MHz | 6000 MHz | 6.8 dB |
XR-A4B1-0404C |
Request Quote |
| XM-A4B1-0404D |
0398_WEB |
MA4EX600L1-1225T |
QUOTE | Macom | Double Balance | XM-A4B1-0404D | SMT | 5 dBm | 4200 MHz | 6000 MHz | 4200 MHz | 6000 MHz | 4200 MHz | 6000 MHz | 6.8 dB |
XR-A4B1-0404D |
Request Quote |
| XM-A4B2-0404C |
0404C |
MA4EX950H1-1225T |
QUOTE | Macom | Double Balance | XM-A4B2-0404C | SMT | 15 dBm | 700 MHz | 1200 MHz | 700 MHz | 1200 MHz | 0 MHz | 400 MHz | 7 dB |
XR-A4B2-0404C |
Request Quote |
| XM-A4B2-0404D |
0398_WEB |
MA4EX950H1-1225T |
QUOTE | Macom | Double Balance | XM-A4B2-0404D | SMT | 15 dBm | 700 MHz | 1200 MHz | 700 MHz | 1200 MHz | 0 MHz | 400 MHz | 7 dB |
XR-A4B2-0404D |
Request Quote |
| XM-A4B3-0404C |
0404C |
MA4EX950L1-1225T |
QUOTE | Macom | Double Balance | XM-A4B3-0404C | SMT | 5 dBm | 700 MHz | 1200 MHz | 700 MHz | 1200 MHz | 0 MHz | 400 MHz | 7 dB |
XR-A4B3-0404C |
Request Quote |
| XM-A4B3-0404D |
0398_WEB |
MA4EX950L1-1225T |
QUOTE | Macom | Double Balance | XM-A4B3-0404D | SMT | 5 dBm | 700 MHz | 1200 MHz | 700 MHz | 1200 MHz | 0 MHz | 400 MHz | 7 dB |
XR-A4B3-0404D |
Request Quote |
| XM-A4B5-0404C |
0404C |
MAMXSS0012 |
$331.00 | Macom | N/A | XM-A4B5-0404C | SMT | 5 dBm | 800 MHz | 1000 MHz | 800 MHz | 1000 MHz | 0 MHz | 200 MHz | 8 dB |
XR-A4B5-0404C |
Request Quote |
| XM-A4B5-0404D |
 0402_WEB |
MAMXSS0012 |
$112.00 | Macom | N/A | XM-A4B5-0404D | SMT | 5 dBm | 800 MHz | 1000 MHz | 800 MHz | 1000 MHz | 0 MHz | 200 MHz | 8 dB |
XR-A4B5-0404D |
Request Quote |
| XM-A4B6-0404C |
0404C |
MAMXSS0013 |
$332.00 | Macom | N/A | XM-A4B6-0404C | SMT | 5 dBm | 1400 MHz | 2100 MHz | 1400 MHz | 2100 MHz | 0 MHz | 500 MHz | 8 dB |
XR-A4B6-0404C |
Request Quote |
| XM-A4B6-0404D |
0402_WEB |
MAMXSS0013 |
$113.00 | Macom | N/A | XM-A4B6-0404D | SMT | 5 dBm | 1400 MHz | 2100 MHz | 1400 MHz | 2100 MHz | 0 MHz | 500 MHz | 8 dB |
XR-A4B6-0404D |
Request Quote |
| XM-A4B7-0904C |
 0904A |
SM4TH |
$917.00 | Macom | N/A | XM-A4B7-0904C | SMT | 23 dBm | 1 MHz | 3400 MHz | 1 MHz | 3400 MHz | 1 MHz | 2000 MHz | 8 dB |
XR-A4B7-0904C |
Request Quote |
| XM-A4B7-0904D |
 0394_WEB |
SM4TH |
$617.00 | Macom | N/A | XM-A4B7-0904D | SMT | 23 dBm | 1 MHz | 3400 MHz | 1 MHz | 3400 MHz | 1 MHz | 2000 MHz | 8 dB |
XR-A4B7-0904D |
Request Quote |
| XM-A4B8-0904C |
0904A |
SM5TH |
$1,081.00 | Macom | N/A | XM-A4B8-0904C | SMT | 23 dBm | 50 MHz | 5000 MHz | 50 MHz | 5000 MHz | 50 MHz | 3000 MHz | 8 dB |
XR-A4B8-0904C |
Request Quote |
| XM-A4B8-0904D |
0394_WEB |
SM5TH |
$873.00 | Macom | N/A | XM-A4B8-0904D | SMT | 23 dBm | 50 MHz | 5000 MHz | 50 MHz | 5000 MHz | 50 MHz | 3000 MHz | 8 dB |
XR-A4B8-0904D |
Request Quote |
| XM-A4B9-0904C |
0904A |
SM6EH |
$861.00 | Macom | N/A | XM-A4B9-0904C | SMT | 20 dBm | 5 MHz | 750 MHz | 5 MHz | 750 MHz | 1 MHz | 500 MHz | 6 dB | Request Quote | |
| XM-A4B9-0904D |
0394_WEB |
SM6EH |
$617.00 | Macom | N/A | XM-A4B9-0904D | SMT | 20 dBm | 5 MHz | 750 MHz | 5 MHz | 750 MHz | 1 MHz | 500 MHz | 6 dB | Request Quote | |
| XM-A4C1-0904C |
0904A |
SM2E |
$1,818.00 | Macom | N/A | XM-A4C1-0904C | SMT | 20 dBm | 10 MHz | 1000 MHz | 10 MHz | 1000 MHz | 0 MHz | 600 MHz | 8 dB | Request Quote | |
| XM-A4C1-0904D |
0394_WEB |
SM2E |
$1,723.00 | Macom | N/A | XM-A4C1-0904D | SMT | 20 dBm | 10 MHz | 1000 MHz | 10 MHz | 1000 MHz | 0 MHz | 600 MHz | 8 dB | Request Quote | |
| XM-A4J1-0404C |
0404D |
HMC292ALC3B |
$439.00 | ADI | N/A | XM-A4J1-0404C | SMT | 13 dBm | 14000 MHz | 30000 MHz | 14000 MHz | 30000 MHz | 0 MHz | 8000 MHz | 9 dB |
XR-A4J1-0404C |
Request Quote |
| XM-A4J1-0404D |
0472_WEB |
HMC292ALC3B |
$229.00 | ADI | N/A | XM-A4J1-0404D | SMT | 13 dBm | 14000 MHz | 30000 MHz | 14000 MHz | 30000 MHz | 0 MHz | 8000 MHz | 9 dB |
XR-A4J1-0404D |
Request Quote |
| XM-A553-0404D |
0193_WEB |
T3H-20GICTG-2 |
$1,268.00 | Marki Microwave | Two-Tone-Terminator | XM-A553-0404D | SMT | 20 dBm | 10 MHz | 20000 MHz | 10 MHz | 20000 MHz | 10 MHz | 18000 MHz | 9.5 dB |
XR-A553-0404D |
Request Quote |
| XM-A558-0404D |
0193_WEB |
T3H-18GICTG-2 |
$1,483.00 | Marki Microwave | Two-Tone-Terminator | XM-A558-0404D | SMT | 20 dBm | 10 MHz | 18000 MHz | 10 MHz | 18000 MHz | 10 MHz | 18000 MHz | 9.5 dB |
XR-A558-0404D |
Request Quote |
