XM Part Number	Image	Spec Sheet	Buy Direct (Intl. add 15%)	Feature Mfr	Type	Low Freq	High Freq	IL	Flat Leakage	Pmax	RoHS	Request Quote

XM-A258-0404C	0404A	RLM-33+	$301.00	Mini-Circuits	Distributed	30 MHz	3000 MHz	0.23 dB	12 dBm	30 dBm	XR-A258-0404C	Request Quote
XM-A258-0404D	0039_WEB	RLM-33+	$122.00	Mini-Circuits	Distributed	30 MHz	3000 MHz	0.23 dB	12 dBm	30 dBm	XR-A258-0404D	Request Quote
XM-A259-0404C	0404A	RLM-33-2W+	$317.00	Mini-Circuits	Distributed	0.2 MHz	2000 MHz	0.25 dB	12 dBm	33 dBm	XR-A259-0404C	Request Quote
XM-A259-0404D	0039_WEB	RLM-33-2W+	$131.00	Mini-Circuits	Distributed	0.2 MHz	2000 MHz	0.25 dB	12 dBm	33 dBm	XR-A259-0404D	Request Quote
XM-A261-0404C	0404A	RLM-63-2W+	$341.00	Mini-Circuits	Distributed	30 MHz	6000 MHz	0.3 dB	12 dBm	32 dBm	XR-A261-0404C	Request Quote
XM-A261-0404D	0039_WEB	RLM-63-2W+	$144.00	Mini-Circuits	Distributed	30 MHz	6000 MHz	0.3 dB	12 dBm	32 dBm	XR-A261-0404D	Request Quote
XM-A262-0404C	0404A	RLM-521-2WL+	$321.00	Mini-Circuits	Distributed	0.5 MHz	520 MHz	0.2 dB	9 dBm	32 dBm	XR-A262-0404C	Request Quote
XM-A262-0404D	0039_WEB	RLM-521-2WL+	$136.00	Mini-Circuits	Distributed	0.5 MHz	520 MHz	0.2 dB	9 dBm	32 dBm	XR-A262-0404D	Request Quote
XM-A263-0404C	0404A	RLM-751-2WL+	$325.00	Mini-Circuits	Distributed	3 MHz	750 MHz	0.2 dB	5 dBm	33 dBm	XR-A263-0404C	Request Quote
XM-A263-0404D	0039_WEB	RLM-751-2WL+	$132.00	Mini-Circuits	Distributed	3 MHz	750 MHz	0.2 dB	5 dBm	33 dBm	XR-A263-0404D	Request Quote
XM-A3L1-0404C-01	0404A	PE45140	$249.00	pSemi	Power	20 MHz	2000 MHz	1 dB	22 dBm	32 dBm	XR-A3L1-0404C-01	Request Quote
XM-A3L1-0404D	0226_WEB	PE45140	$141.00	pSemi	Power	20 MHz	2000 MHz	1 dB	22 dBm	32 dBm	XR-A3L1-0404D	Request Quote
XM-A765-0404C-01	0404A	PE45361	$436.00	pSemi	Power	10 MHz	6000 MHz	0.65 dB	7 to 13 dBm	30 dBm	XR-A765-0404C-01	Request Quote
XM-A765-0404D	0226_WEB	PE45361	$144.00	pSemi	Power	10 MHz	6000 MHz	0.65 dB	7 to 13 dBm	30 dBm	XR-A765-0404D	Request Quote
XM-A774-0404C	0404A	TGL2208-SM	$375.00	Qorvo	Dual Stage	2000 MHz	20000 MHz	1 dB	18 dBm	35 dBm	XR-A774-0404C	Request Quote

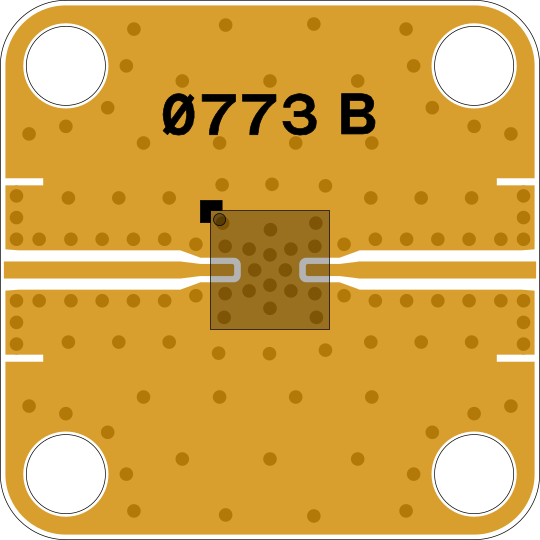

XM-A774-0404D	0773_WEB	TGL2208-SM	$224.00	Qorvo	Dual Stage	2000 MHz	20000 MHz	1 dB	18 dBm	35 dBm	XR-A774-0404D	Request Quote
XM-B1L7-0404C	0404A	DLM-10SM	$392.00	Marki Microwave	Dual Stage	0 MHz	10000 MHz	1.4 dB	10 dBm	27 dBm	XR-B1L7-0404C	Request Quote
XM-B1L7-0404C-01	0404A	DLM-10SM	$596.00	Marki Microwave	Dual Stage	0 MHz	10000 MHz	1.4 dB	10 dBm	27 dBm	XR-B1L7-0404C-01	Request Quote

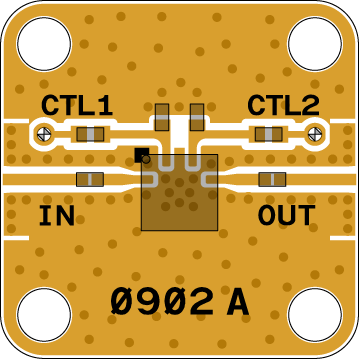

XM-B1L7-0404D	0902_WEB	DLM-10SM	$208.00	Marki Microwave	Tunable	0 MHz	10000 MHz	1.4 dB	10 dBm	27 dBm	XR-B1L7-0404D	Request Quote
XM-B1P6-0204C	0204A	TGL2217	$610.00	Qorvo	High Pwr	100 MHz	20000 MHz	0.5 dB	18.5 dBm	33 dBm	XR-B1P6-0204C	Request Quote

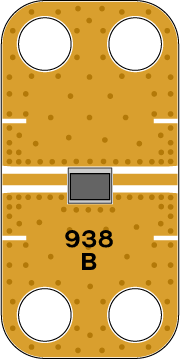

XM-B1P6-0204D	0938_WEB	TGL2217	$463.00	Qorvo	High Pwr	100 MHz	20000 MHz	0.5 dB	18.5 dBm	33 dBm	XR-B1P6-0204D	Request Quote
XM-B1W8-0404C-01	0404A	TC231-1GC1-8053	$1,003.00	Keysight	Diode	0 MHz	65000 MHz	N/A	N/A	19 dBm	XR-B1W8-0404C-01	Request Quote

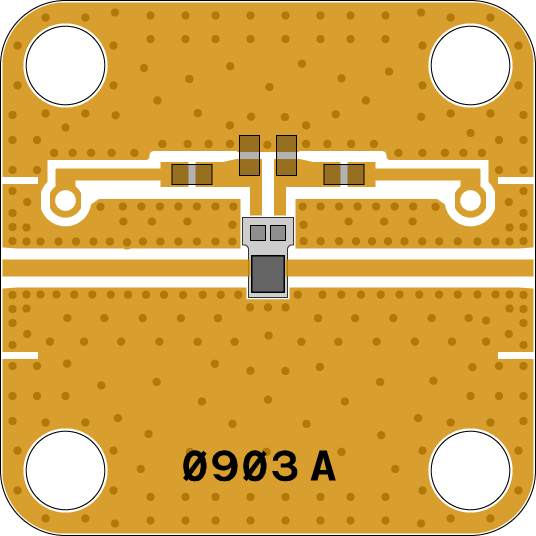

XM-B1W8-0404D	0903_WEB	1GC1-8053	$762.00	Keysight	Diode	0 MHz	65000 MHz	N/A	N/A	19 dBm	XR-B1W8-0404D	Request Quote
XM-B2D2-0404C	0404A	TGL2217-SM	$346.00	Qorvo	High Pwr	100 MHz	20000 MHz	0.9 dB	18.5 dBm	33 dBm	XR-B2D2-0404C	Request Quote

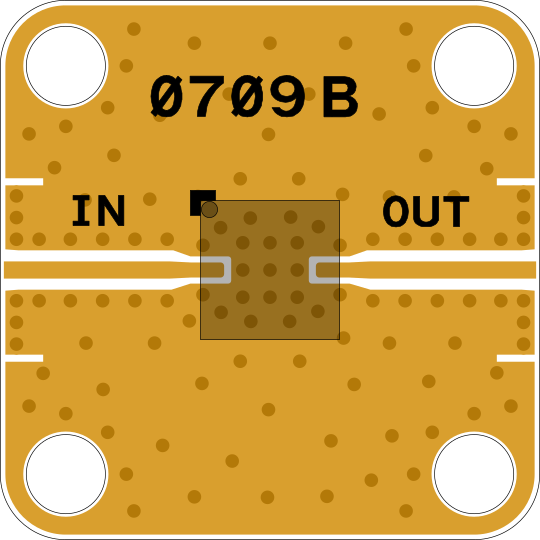

XM-B2D2-0404D	0709_WEB	TGL2217-SM	$181.00	Qorvo	High Pwr	100 MHz	20000 MHz	0.9 dB	18.5 dBm	33 dBm	XR-B2D2-0404D	Request Quote
XM-B5Y4-0404C	0404A	RLM-33H+	$325.00	Mini-Circuits	Distributed	30 MHz	3000 MHz	0.23 dB	18 dBm	33 dBm	XR-B5Y4-0404C	Request Quote
XM-B5Y4-0404D	0039_WEB	RLM-33H+	$132.00	Mini-Circuits	Distributed	30 MHz	3000 MHz	0.23 dB	18 dBm	33 dBm	XR-B5Y4-0404D	Request Quote

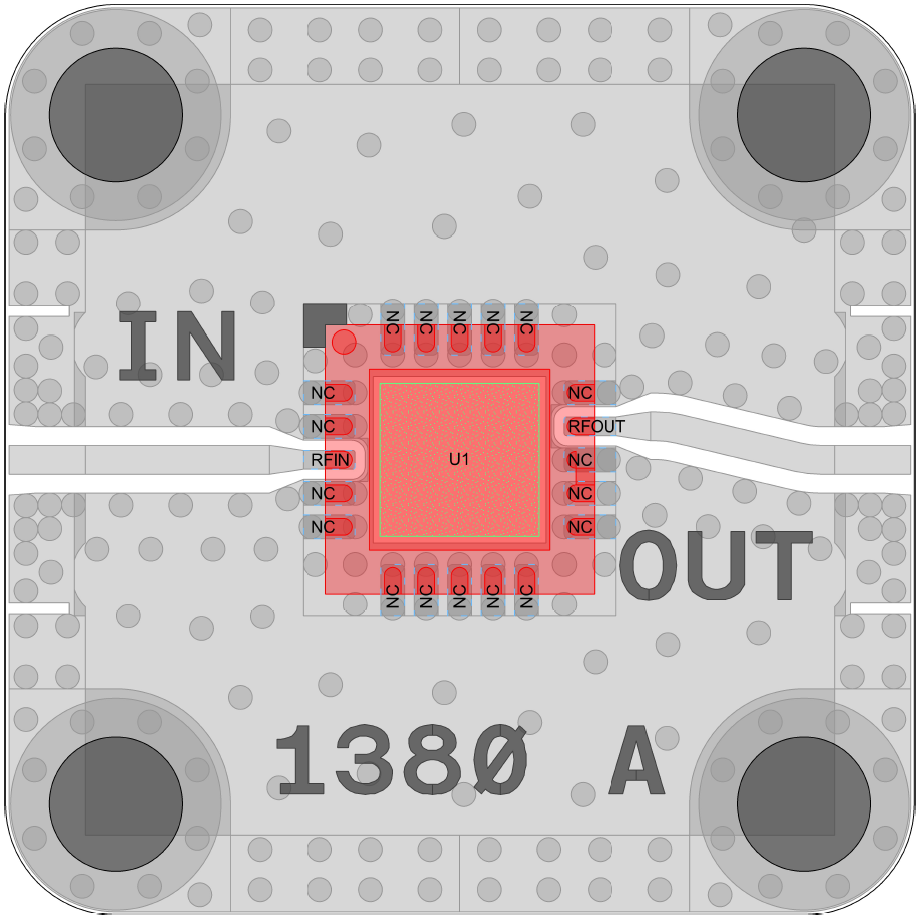

XM-B975-0404D	1380PCB	TGL2210-SM	$228.00	Qorvo	High Pwr	50 MHz	6000 MHz	0.7 dB	17 dBm	N/A	XR-B975-0404D	Request Quote
XM-B9A4-0404C-01	0404A	RLM-43-5W+	$254.00	Mini-Circuits	N/A	20 MHz	4000 MHz	0.36 dB	12 dBm	37 dBm	XR-B9A4-0404C-01	Request Quote
XM-B9A4-0404D	0039_WEB	RLM-43-5W+	$156.00	Mini-Circuits	N/A	20 MHz	4000 MHz	0.36 dB	12 dBm	37 dBm	XR-B9A4-0404D	Request Quote

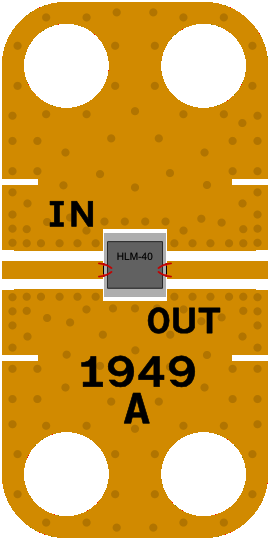

XM-C1A4-0204D	1949	HLM-40CH	$596.00	Marki Microwave	High Pwr	0 MHz	40000 MHz	0.5 dB	18 dBm	N/A	XR-C1A4-0204D	Request Quote
XM-C8H2-0706D	1911_WEB	RLM-23-1WL+	$220.00	Mini-Circuits	N/A	N/A	N/A	N/A	N/A	N/A	XR-C8H2-0706D	Request Quote

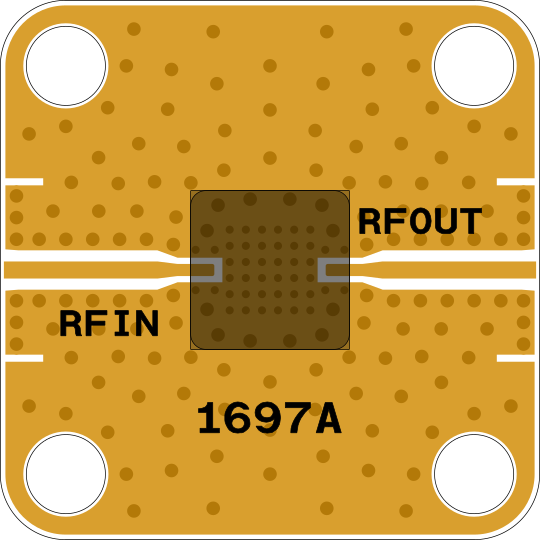

XM-C9Y4-0404D	1697_WEB	TGL2209-SM	$217.00	Qorvo	High Pwr	8000 MHz	12000 MHz	0.5 dB	18.5 dBm	N/A	XR-C9Y4-0404D	Request Quote

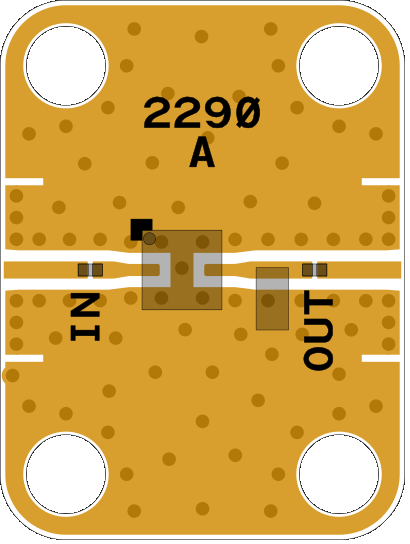

XM-D1U7-0304D	2290	CLA4606-085LF	$60.00	Skyworks	High Pwr	10 MHz	6000 MHz	0.2 dB	N/A	N/A	XR-D1U7-0304D	Request Quote

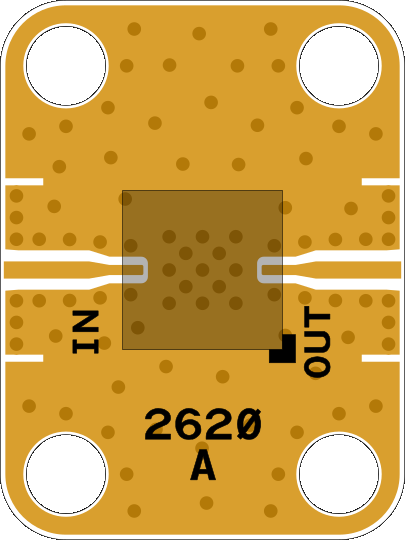

XM-D4H7-0304D	2620_WEB	HLM-40PSM	$204.00	Marki Microwave	High Pwr	0 MHz	40000 MHz	.05 dB	15 dBm	N/A	XR-D4H7-0304D	Request Quote
