1 - 65 of 65 | Results Per Page | View

Request Information Compare Items

XM Part Number	Image	Spec Sheet	Buy Direct (Intl. add 15%)	Feature Mfr	Type	Low Freq	High Freq	Div N	Pin Low	Pin High	Pout	RoHS	Request Quote

XM-A297-0604C-01	0604A	hmc705	$608.00	ADI	Integer	100 MHz	6500 MHz	1 to 17	-15 dBm	10 dBm	0 dBm	XR-A297-0604C-01	Request Quote

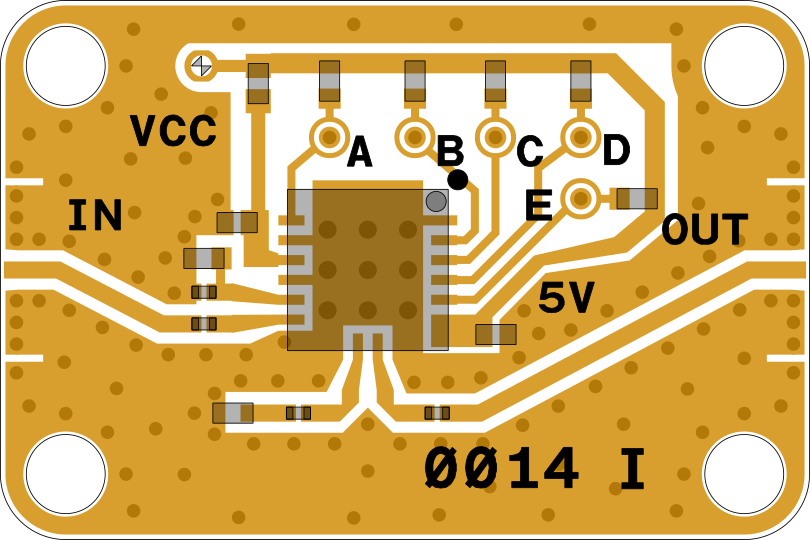

XM-A297-0604D	0014_WEB	hmc705	$303.00	ADI	Integer	100 MHz	6500 MHz	17	-15 dBm	10 dBm	0 dBm	XR-A297-0604D	Request Quote

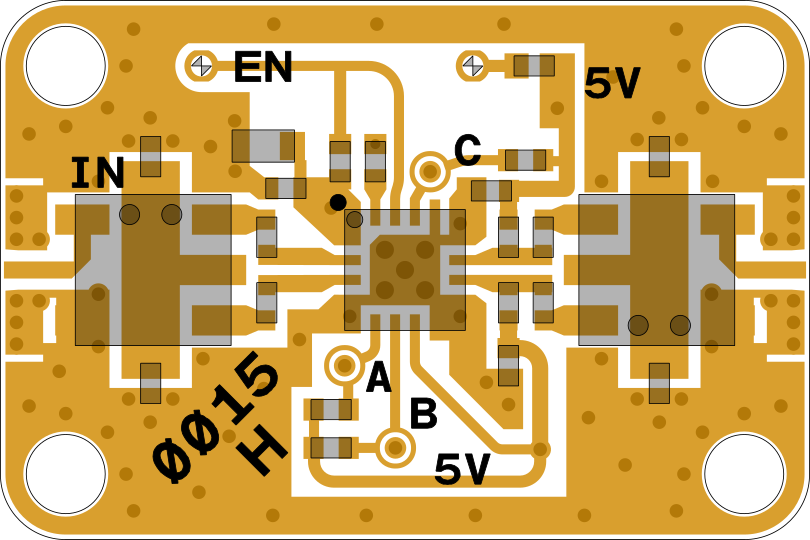

XM-A298-0604C-01	0604A	hmc794	$535.00	ADI	Integer	200 MHz	2000 MHz	2	-2 dBm	10 dBm	4.5 dBm	XR-A298-0604C-01	Request Quote
XM-A298-0604D	0015_WEB	hmc794	$220.00	ADI	Integer	200 MHz	2000 MHz	2	-2 dBm	10 dBm	4.5 dBm	XR-A298-0604D	Request Quote
XM-A299-0404C	0404A	hmc862a	$357.00	ADI	Integer	100 MHz	24000 MHz	1, 2, 4, 8	-15 dBm	10 dBm	-3 dBm	XR-A299-0404C	Request Quote
XM-A299-0404C-01	0404A	hmc862a	$482.00	ADI	Integer	100 MHz	24000 MHz	1, 2, 4, 8	-15 dBm	10 dBm	-3 dBm	XR-A299-0404C-01	Request Quote

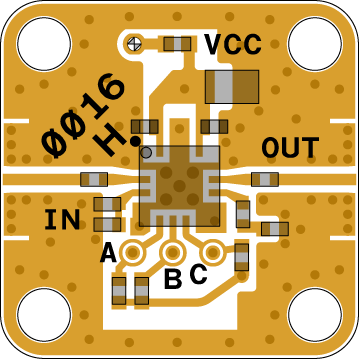

XM-A299-0404D	0016_WEB	hmc862a	$179.00	ADI	Integer	100 MHz	24000 MHz	1, 2, 4, 8	-15 dBm	10 dBm	-3 dBm	XR-A299-0404D	Request Quote

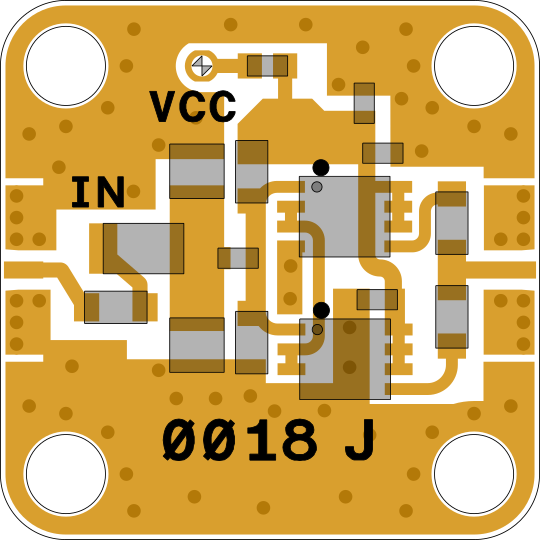

XM-A2A1-0404C-01	0404A	NC7SZ74-D	$416.00	Fairchild	Integer	1 MHz	300 MHz	2	7 dBm	17 dBm	12 dBm	XR-A2A1-0404C-01	Request Quote
XM-A2A1-0404D	0018_WEB	NC7SZ74-D	$115.00	Fairchild	Integer	1 MHz	300 MHz	2	7 dBm	17 dBm	12 dBm	XR-A2A1-0404D	Request Quote

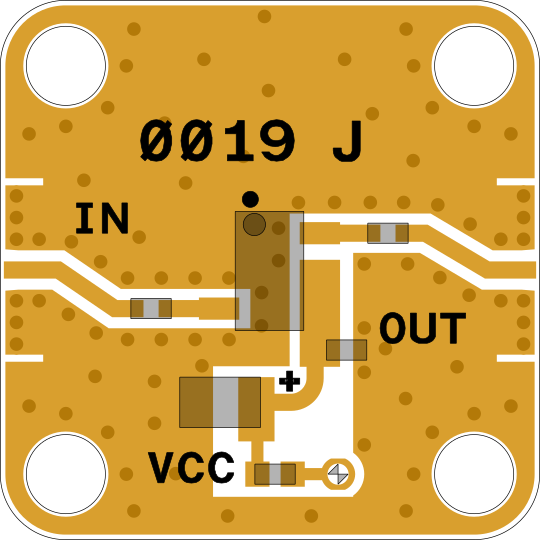

XM-A2K6-0404C-01	0404A	hmc432	$451.00	ADI	Divide By 2	0 MHz	8000 MHz	2	-12 dBm	12 dBm	-6.5 dBm	XR-A2K6-0404C-01	Request Quote
XM-A2K6-0404D	0019_WEB	hmc432	$115.00	ADI	Divide By 2	0 MHz	8000 MHz	2	-12 dBm	12 dBm	-6.5 dBm	XR-A2K6-0404D	Request Quote

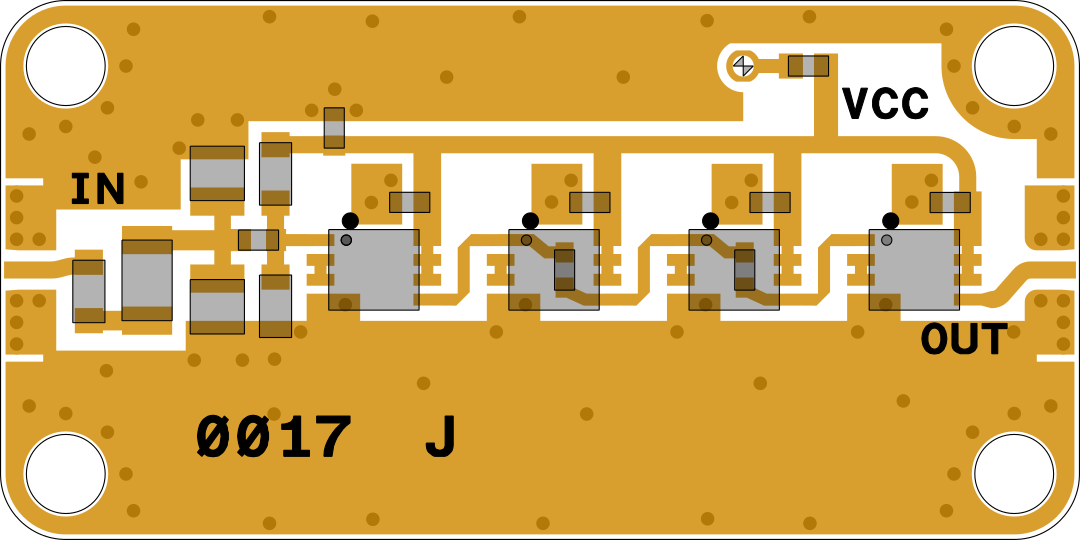

XM-A2K7-0804C-01	0804A	NC7SZ74-D	$496.00	Fairchild	Integer	1 MHz	300 MHz	4,8,16	7 dBm	17 dBm	12 dBm	XR-A2K7-0804C-01	Request Quote
XM-A2K7-0804D	0017_WEB	NC7SZ74-D	$115.00	Fairchild	Integer	1 MHz	300 MHz	4,8,16	7 dBm	17 dBm	12 dBm	XR-A2K7-0804D	Request Quote
XM-A439-0604C-01	0014_WEB	hmc705	$475.00	ADI	Divide By 2	100 MHz	6500 MHz	2	-15 dBm	10 dBm	0 dBm	XR-A439-0604C-01	Request Quote
XM-A439-0604D	0014_WEB	hmc705	$266.00	ADI	Divide By 2	100 MHz	6500 MHz	2	-15 dBm	10 dBm	0 dBm	XR-A439-0604D	Request Quote
XM-A441-0604C-01	0014_WEB	hmc705	$475.00	ADI	Divide By 4	100 MHz	6500 MHz	4	-15 dBm	10 dBm	0 dBm	XR-A441-0604C-01	Request Quote
XM-A441-0604D	0014_WEB	hmc705	$266.00	ADI	Divide By 4	100 MHz	6500 MHz	4	-15 dBm	10 dBm	0 dBm	XR-A441-0604D	Request Quote
XM-A442-0604C-01	0604A	hmc705	$569.00	ADI	Divide By 8	100 MHz	6500 MHz	8	-15 dBm	10 dBm	0 dBm	XR-A442-0604C-01	Request Quote
XM-A442-0604D	0014_WEB	hmc705	$266.00	ADI	Divide By 8	100 MHz	6500 MHz	8	-15 dBm	10 dBm	0 dBm	XR-A442-0604D	Request Quote
XM-A443-0604C-01	0604A	hmc705	$621.00	ADI	Divide by 16	100 MHz	6500 MHz	16	-15 dBm	10 dBm	0 dBm	XR-A443-0604C-01	Request Quote
XM-A443-0604D	0014_WEB	hmc705	$317.00	ADI	Divide by 16	100 MHz	6500 MHz	16	-15 dBm	10 dBm	0 dBm	XR-A443-0604D	Request Quote

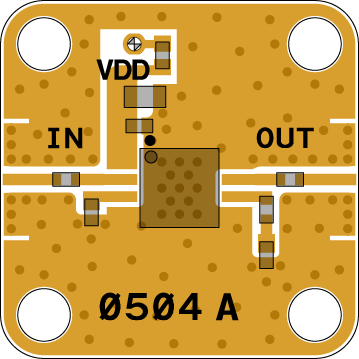

XM-A5J1-0404C-01	0404A	HMC437MS8GE	$489.00	ADI	Divide By 3	0 MHz	7000 MHz	3	-12 dBm	12 dBm	-2 dBm	XR-A5J1-0404C-01	Request Quote
XM-A5J1-0404D	0504_WEB	HMC437MS8GE	$185.00	ADI	Divide By 3	0 MHz	7000 MHz	3	-12 dBm	12 dBm	-2 dBm	XR-A5J1-0404D	Request Quote
XM-A5J2-0404C-01	0404A	HMC438MS8GE	$489.00	ADI	Divide By 5	0 MHz	7000 MHz	5	-15 dBm	12 dBm	-1 dBm	XR-A5J2-0404C-01	Request Quote
XM-A5J2-0404D	0504_WEB	HMC438MS8GE	$185.00	ADI	Divide By 5	0 MHz	7000 MHz	5	-15 dBm	12 dBm	-1 dBm	XR-A5J2-0404D	Request Quote
XM-A5J5-0404C-01	0404A	HMC492LP3E	$471.00	ADI	Divide By 2	200 MHz	18000 MHz	2	-20 dBm	5 dBm	-4 dBm	XR-A5J5-0404C-01	Request Quote

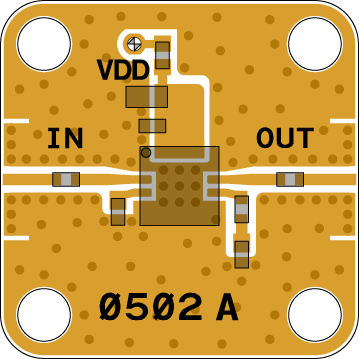

XM-A5J5-0404D	0502_WEB	HMC492LP3E	$168.00	ADI	Divide By 2	50 MHz	18000 MHz	2	-20 dBm	5 dBm	-4 dBm	XR-A5J5-0404D	Request Quote
XM-A5J6-0404C-01	0404A	HMC493LP3E	$463.00	ADI	Divide By 4	0 MHz	18000 MHz	4	-20 dBm	10 dBm	-4 dBm	XR-A5J6-0404C-01	Request Quote
XM-A5J6-0404D	0502_WEB	HMC493LP3E	$161.00	ADI	Divide By 4	0 MHz	18000 MHz	4	-20 dBm	10 dBm	-4 dBm	XR-A5J6-0404D	Request Quote
XM-A5J7-0404C-01	0404A	HMC494LP3E	$463.00	ADI	Divide By 8	0 MHz	18000 MHz	8	-20 dBm	10 dBm	-4 dBm	XR-A5J7-0404C-01	Request Quote
XM-A5J7-0404D	0502_WEB	HMC494LP3E	$161.00	ADI	Divide By 8	0 MHz	18000 MHz	8	-20 dBm	10 dBm	-4 dBm	XR-A5J7-0404D	Request Quote
XM-A5J8-0404C-01	0404A	HMC361S8GE	$438.00	ADI	Divide By 2	0 MHz	10000 MHz	2	-10 dBm	10 dBm	3 dBm	XR-A5J8-0404C-01	Request Quote

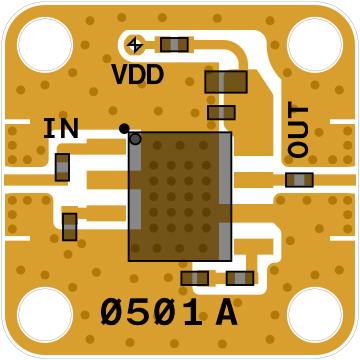

XM-A5J8-0404D	0501_WEB	HMC361S8GE	$136.00	ADI	Divide By 2	0 MHz	10000 MHz	2	-10 dBm	10 dBm	3 dBm	XR-A5J8-0404D	Request Quote
XM-A5J9-0404C-01	0404A	HMC362S8GE	$448.00	ADI	Divide By 4	0 MHz	12000 MHz	4	-15 dBm	10 dBm	N/A	XR-A5J9-0404C-01	Request Quote
XM-A5J9-0404D	0501_WEB	HMC362S8GE	$146.00	ADI	Divide By 4	0 MHz	12000 MHz	4	-15 dBm	10 dBm	N/A	XR-A5J9-0404D	Request Quote
XM-A5K1-0404C-01	0404A	HMC363S8GE	$448.00	ADI	Divide By 8	200 MHz	13000 MHz	8	-15 dBm	10 dBm	-6 dBm	XR-A5K1-0404C-01	Request Quote
XM-A5K1-0404D	0501_WEB	HMC363S8GE	$146.00	ADI	Divide By 8	200 MHz	13000 MHz	8	-15 dBm	10 dBm	-6 dBm	XR-A5K1-0404D	Request Quote
XM-A5K2-0404C-01	0404A	HMC365S8GE	$448.00	ADI	Divide By 4	0 MHz	13000 MHz	4	-15 dBm	10 dBm	4 dBm	XR-A5K2-0404C-01	Request Quote
XM-A5K2-0404D	0501_WEB	HMC365S8GE	$146.00	ADI	Divide By 4	0 MHz	13000 MHz	4	-15 dBm	10 dBm	4 dBm	XR-A5K2-0404D	Request Quote
XM-A5K3-0604C-01	0604A	HMC361G8	$698.00	ADI	Divide By 2	10 MHz	13000 MHz	2	-15 dBm	10 dBm	1 dBm	XR-A5K3-0604C-01	Request Quote

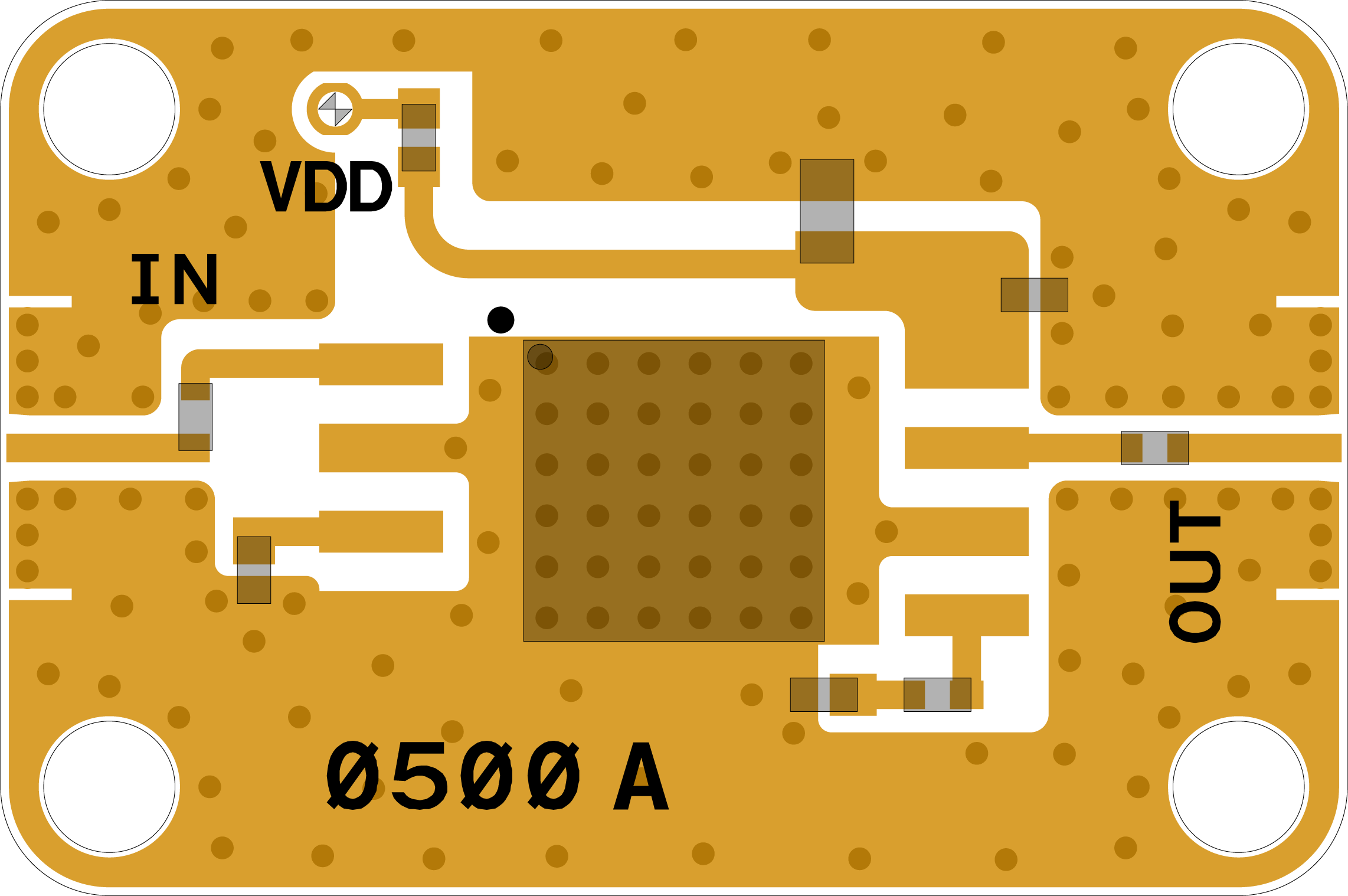

XM-A5K3-0604D	0500_WEB	HMC361G8	$435.00	ADI	Divide By 2	10 MHz	13000 MHz	2	-15 dBm	10 dBm	1 dBm	XR-A5K3-0604D	Request Quote
XM-A5K4-0604C-01	0604A	HMC363G8	$679.00	ADI	Divide By 8	200 MHz	13000 MHz	8	-15 dBm	10 dBm	-4 dBm	XR-A5K4-0604C-01	Request Quote
XM-A5K4-0604D	0500_WEB	HMC363G8	$454.00	ADI	Divide By 8	200 MHz	13000 MHz	8	-15 dBm	10 dBm	-4 dBm	XR-A5K4-0604D	Request Quote
XM-A5K5-0604C-01	0604A	HMC365G8	$719.00	ADI	Divide By 4	0 MHz	13000 MHz	4	-15 dBm	10 dBm	7 dBm	XR-A5K5-0604C-01	Request Quote
XM-A5K5-0604D	0500_WEB	HMC365G8	$438.00	ADI	Divide By 4	0 MHz	13000 MHz	4	-15 dBm	10 dBm	7 dBm	XR-A5K5-0604D	Request Quote

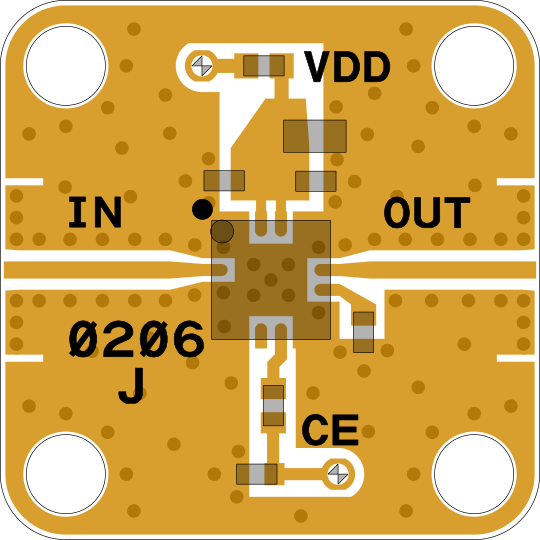

XM-A5P2-0404C-01	0404A	ADF5000BCPZ	$469.00	ADI	Divide By 2	4000 MHz	18000 MHz	2	-10 dBm	10 dBm	-5 dBm	XR-A5P2-0404C-01	Request Quote
XM-A5P2-0404D	0206_WEB	ADF5000BCPZ	$133.00	ADI	Divide By 2	4000 MHz	18000 MHz	2	-10 dBm	10 dBm	-5 dBm	XR-A5P2-0404D	Request Quote
XM-A5P3-0404C-01	0404A	ADF5001BCPZ	$461.00	ADI	Divide By 4	4000 MHz	18000 MHz	4	-10 dBm	10 dBm	-5 dBm	XR-A5P3-0404C-01	Request Quote
XM-A5P3-0404D	0206_WEB	ADF5001BCPZ	$125.00	ADI	Divide By 4	4000 MHz	18000 MHz	4	-10 dBm	10 dBm	-5 dBm	XR-A5P3-0404D	Request Quote
XM-A5P4-0404C-01	0404A	ADF5002BCPZ	$471.00	ADI	Divide By 8	4000 MHz	18000 MHz	8	-10 dBm	10 dBm	-5 dBm	XR-A5P4-0404C-01	Request Quote
XM-A5P4-0404D	0206_WEB	ADF5002BCPZ	$135.00	ADI	Divide By 8	4000 MHz	18000 MHz	8	-10 dBm	10 dBm	-5 dBm	XR-A5P4-0404D	Request Quote

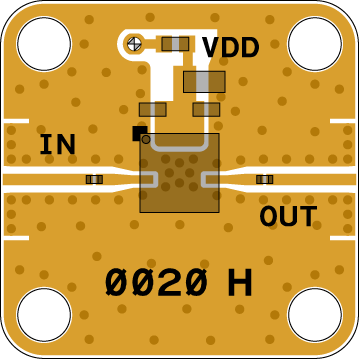

XM-A5R9-0404C-01	0404A	HMC447LC3	$494.00	ADI	Divide By 4	10000 MHz	26000 MHz	4	15 dBm	10 dBm	-4 dBm	XR-A5R9-0404C-01	Request Quote
XM-A5R9-0404D	0020_WEB	HMC447LC3	$200.00	ADI	Divide By 4	10000 MHz	26000 MHz	4	15 dBm	10 dBm	-4 dBm	XR-A5R9-0404D	Request Quote
XM-A5T1-0404C-01	0404A	HMC434E	$453.00	ADI	Divide By 8	200 MHz	8000 MHz	8	-10 dBm	10 dBm	-2 dBm	XR-A5T1-0404C-01	Request Quote
XM-A5T1-0404D	0019_WEB	HMC434E	$118.00	ADI	Divide By 8	200 MHz	8000 MHz	8	-10 dBm	10 dBm	-2 dBm	XR-A5T1-0404D	Request Quote
XM-A5T2-0604C-01	0604A	HMC905LP3E	$617.00	ADI	Integer	400 MHz	6000 MHz	1 to 4	0 dBm	10 dBm	6 dBm	XR-A5T2-0604C-01	Request Quote
XM-A5T2-0604D	0015_WEB	HMC905LP3E	$266.00	ADI	Integer	400 MHz	6000 MHz	1 to 4	0 dBm	10 dBm	6 dBm	XR-A5T2-0604D	Request Quote
XM-A691-0404C-01	0404A	HMC433E	$452.00	ADI	Divide By 4	0 MHz	8000 MHz	4	-12 dBm	10 dBm	-3.5 dBm	XR-A691-0404C-01	Request Quote
XM-A691-0404D	0019_WEB	HMC433E	$117.00	ADI	Divide By 4	0 MHz	8000 MHz	4	-12 dBm	10 dBm	-3.5 dBm	XR-A691-0404D	Request Quote

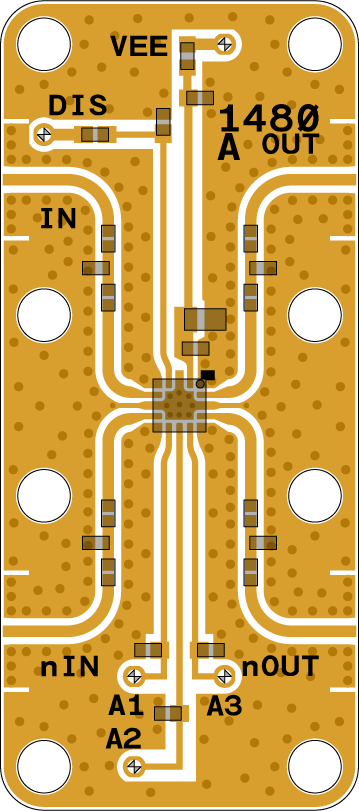

XM-C1A1-0409D	1480_WEB	TC1100	$118.00	Keysight	Multi-Modulus	0 MHz	48000 MHz	4	N/A	N/A	N/A		Request Quote
XM-C1A2-0409D	1480_WEB	TC1100	$118.00	Keysight	Multi-Modulus	0 MHz	48000 MHz	8	N/A	N/A	N/A		Request Quote
XM-C1A3-0409D	1480_WEB	TC1100	$118.00	Keysight	Multi-Modulus	0 MHz	48000 MHz	16	N/A	N/A	N/A		Request Quote
XM-C7A6-0409D	1480_WEB	TC1100	$187.00	Keysight	Multi-Modulus	0 MHz	48000 MHz	2	N/A	N/A	N/A		Request Quote
XM-C7J1-0604D	0015_WEB	hmc794	$174.00	ADI	Integer	200 MHz	2000 MHz	3	-2 dBm	10 dBm	4.5 dBm	XR-C7J1-0604D	Request Quote
XM-C7J2-0604D	0015_WEB	hmc794	$174.00	ADI	Integer	200 MHz	2000 MHz	4	-2 dBm	10 dBm	4.5 dBm	XR-C7J2-0604D	Request Quote
