XM Part Number	Image	Spec Sheet	Buy Direct (Intl. add 15%)	Feature Mfr	Type	Low Freq	High Freq	IL	P1dB	IP3	RoHS	Request Quote

XM-A5A2-0419C-01	0419A	CMD195C3	$1,423.00	Qorvo	SP4T	0 MHz	18000 MHz	4 dB	25 dBm	40 dBm	XR-A5A2-0419C-01	Request Quote
XM-A5A2-0419D	0177_WEB	CMD195C3	$720.00	Qorvo	SP4T	0 MHz	18000 MHz	4 dB	25 dBm	40 dBm	XR-A5A2-0419D	Request Quote
XM-A5A4-0419C-01	0419A	CMD196C3	$1,155.00	Qorvo	SP2T	0 MHz	18000 MHz	1.5 dB	23 dBm	38 dBm	XR-A5A4-0419C-01	Request Quote
XM-A5A4-0419D	0177_WEB	CMD196C3	$654.00	Qorvo	SP2T	0 MHz	18000 MHz	1.5 dB	23 dBm	38 dBm	XR-A5A4-0419D	Request Quote
XM-A5A6-0409C-01	0409D	CMD203C4	$1,028.00	Qorvo	SP4T	0 MHz	20000 MHz	2.4 dB	21 dBm	30 dBm	XR-A5A6-0409C-01	Request Quote
XM-A5A6-0409D	0361_WEB	CMD203C4	$469.00	Qorvo	SP4T	0 MHz	20000 MHz	2.4 dB	21 dBm	30 dBm	XR-A5A6-0409D	Request Quote
XM-A5A8-0404C-01	0404A	CMD204C3	$601.00	Qorvo	SP1T	0 MHz	20000 MHz	1.3 dB	25 dBm	38 dBm	XR-A5A8-0404C-01	Request Quote
XM-A5A8-0404D	0824_WEB	CMD204C3	$259.00	Qorvo	SP1T	0 MHz	20000 MHz	1.3 dB	25 dBm	38 dBm	XR-A5A8-0404D	Request Quote
XM-A728-0419C-01	0419A	TGS2352-2-SM	$1,922.00	Qorvo	SP4T	500 MHz	12000 MHz	1 dB	N/A	N/A	XR-A728-0419C-01	Request Quote
XM-A728-0419D	0719_WEB	TGS2352-2-SM	$1,373.00	Qorvo	SP4T	500 MHz	12000 MHz	1 dB	N/A	N/A	XR-A728-0419D	Request Quote
XM-A7K1-0404C-01	0404D	CMD195C3	$614.00	Qorvo	SP2T	0 MHz	18000 MHz	4 dB	25 dBm	40 dBm	XR-A7K1-0404C-01	Request Quote
XM-A7K1-0404D	0726_WEB	CMD195C3	$252.00	Qorvo	SP2T	0 MHz	18000 MHz	4 dB	25 dBm	40 dBm	XR-A7K1-0404D	Request Quote
XM-A7K2-0404C-01	0404D	CMD196C3	$608.00	Qorvo	SP2T	0 MHz	18000 MHz	1.5 dB	23 dBm	38 dBm	XR-A7K2-0404C-01	Request Quote
XM-A7K2-0404D	0726_WEB	CMD196C3	$231.00	Qorvo	SP2T	0 MHz	18000 MHz	1.5 dB	23 dBm	38 dBm	XR-A7K2-0404D	Request Quote
XM-A7K3-0404C-01	0404C	CMD195C3	$616.00	Qorvo	SP2T	0 MHz	18000 MHz	4 dB	25 dBm	40 dBm	XR-A7K3-0404C-01	Request Quote
XM-A7K3-0404D	0733_WEB	CMD195C3	$255.00	Qorvo	SP2T	0 MHz	18000 MHz	4 dB	25 dBm	40 dBm	XR-A7K3-0404D	Request Quote
XM-A7K4-0404C-01	0404C	CMD196C3	$611.00	Qorvo	SP2T	0 MHz	18000 MHz	1.5 dB	23 dBm	38 dBm	XR-A7K4-0404C-01	Request Quote
XM-A7K4-0404D	0733_WEB	CMD196C3	$233.00	Qorvo	SP2T	0 MHz	18000 MHz	1.5 dB	23 dBm	38 dBm	XR-A7K4-0404D	Request Quote
XM-A9X3-0409C-01	0409F	CMD272P3	$590.00	Qorvo	DP2T	0 MHz	10000 MHz	1 dB	25 dBm	38 dBm	XR-A9X3-0409C-01	Request Quote
XM-A9X3-0409D	1212_WEB	CMD272P3	$303.00	Qorvo	DP2T	0 MHz	10000 MHz	1 dB	25 dBm	38 dBm	XR-A9X3-0409D	Request Quote
XM-B6F4-0409C-01	0409A	TGS2352-2-SM	$1,255.00	Qorvo	SP2T	500 MHz	12000 MHz	1 dB	N/A	N/A	XR-B6F4-0409C-01	Request Quote
XM-B6F4-0409D	1180_WEB	TGS2352-2-SM	$576.00	Qorvo	SP2T	500 MHz	12000 MHz	1 dB	N/A	N/A	XR-B6F4-0409D	Request Quote
XM-B6F5-0409C-01	0409B	TGS2352-2-SM	$1,249.00	Qorvo	SP2T	500 MHz	12000 MHz	1 dB	N/A	N/A	XR-B6F5-0409C-01	Request Quote
XM-B6F5-0409D	1182_WEB	TGS2352-2-SM	$570.00	Qorvo	SP2T	500 MHz	12000 MHz	1 dB	N/A	N/A	XR-B6F5-0409D	Request Quote
XM-B6F6-0409C-01	0409A	TGS2353-2-SM	$1,237.00	Qorvo	SP2T	500 MHz	18000 MHz	1.5 dB	40 dBm	58 dBm	XR-B6F6-0409C-01	Request Quote
XM-B6F6-0409D	1180_WEB	TGS2353-2-SM	$558.00	Qorvo	SP2T	500 MHz	18000 MHz	1.5 dB	40 dBm	58 dBm	XR-B6F6-0409D	Request Quote
XM-B6F7-0409C-01	0409B	TGS2353-2-SM	$1,237.00	Qorvo	SP2T	500 MHz	18000 MHz	1.5 dB	40 dBm	58 dBm	XR-B6F7-0409C-01	Request Quote
XM-B6F7-0409D	1182_WEB	TGS2353-2-SM	$558.00	Qorvo	SP2T	500 MHz	18000 MHz	1.5 dB	40 dBm	58 dBm	XR-B6F7-0409D	Request Quote
XM-B6G2-0619C-01	TBD	QPC6034	$1,103.00	Qorvo	SP3T	5 MHz	6000 MHz	1 dB	36 dBm	59 dBm	XR-B6G2-0619C-01	Request Quote
XM-B6G2-0619D	1183_WEB	QPC6034	$367.00	Qorvo	SP3T	5 MHz	6000 MHz	1 dB	36 dBm	59 dBm	XR-B6G2-0619D	Request Quote
XM-B6G3-0619C-01	0619A	QPC6044	$1,183.00	Qorvo	SP4T	5 MHz	6000 MHz	1.2 dB	37 dBm	61 dBm	XR-B6G3-0619C-01	Request Quote
XM-B6G3-0619D	0990_WEB	QPC6044	$356.00	Qorvo	SP4T	5 MHz	6000 MHz	1.2 dB	37 dBm	61 dBm	XR-B6G3-0619D	Request Quote
XM-B6G4-0619C-01	0619B	QPC6044	$1,164.00	Qorvo	SP4T	5 MHz	6000 MHz	1.2 dB	37 dBm	61 dBm	XR-B6G4-0619C-01	Request Quote
XM-B6G4-0619D	0991_WEB	QPC6044	$338.00	Qorvo	SP4T	5 MHz	6000 MHz	1.2 dB	37 dBm	61 dBm	XR-B6G4-0619D	Request Quote
XM-B6G5-0619C-01	TBD	QPC6054	$1,104.00	Qorvo	SP5T	5 MHz	6000 MHz	2.2 dB	36 dBm	59 dBm	XR-B6G5-0619C-01	Request Quote
XM-B6G5-0619D	1183_WEB	QPC6054	$364.00	Qorvo	SP5T	5 MHz	6000 MHz	2.2 dB	36 dBm	59 dBm	XR-B6G5-0619D	Request Quote
XM-B6G6-0619C-01	TBD	QPC6064	$1,104.00	Qorvo	SP6T	5 MHz	6000 MHz	1.3 dB	36 dBm	59 dBm	XR-B6G6-0619C-01	Request Quote
XM-B6G6-0619D	1183_WEB	QPC6064	$365.00	Qorvo	SP6T	5 MHz	6000 MHz	1.3 dB	36 dBm	59 dBm	XR-B6G6-0619D	Request Quote
XM-B6G7-0409C-01	0409A	QPC6324	$711.00	Qorvo	SP2T	5 MHz	6000 MHz	1.35 dB	37 dBm	60 dBm	XR-B6G7-0409C-01	Request Quote
XM-B6G7-0409D	1184_WEB	QPC6324	$187.00	Qorvo	SP2T	5 MHz	6000 MHz	1.35 dB	37 dBm	60 dBm	XR-B6G7-0409D	Request Quote
XM-B6G8-0409C-01	0409B	QPC6324	$711.00	Qorvo	SP2T	5 MHz	6000 MHz	1.35 dB	37 dBm	60 dBm	XR-B6G8-0409C-01	Request Quote
XM-B6G8-0409D	1185_WEB	QPC6324	$187.00	Qorvo	SP2T	5 MHz	6000 MHz	1.35 dB	37 dBm	60 dBm	XR-B6G8-0409D	Request Quote
XM-B6G9-0404C-01	0404A	QPC6014	$500.00	Qorvo	SP1T	5 MHz	6000 MHz	1.05 dB	36 dBm	58 dBm	XR-B6G9-0404C-01	Request Quote
XM-B6G9-0404D	1186_WEB	QPC6014	$151.00	Qorvo	SP1T	5 MHz	6000 MHz	1.05 dB	36 dBm	58 dBm	XR-B6G9-0404D	Request Quote
XM-B8C6-0409C-01	0409F	CMD273P3	$575.00	Qorvo	DP2T	0 MHz	12000 MHz	1.7 dB	25 dBm	44 dBm	XR-B8C6-0409C-01	Request Quote
XM-B8C6-0409D	1212_WEB	CMD273P3	$285.00	Qorvo	DP2T	0 MHz	12000 MHz	1.7 dB	25 dBm	44 dBm	XR-B8C6-0409D	Request Quote
XM-B9T2-0409C-01	0409B	CMD196C3	$719.00	Qorvo	SP2T	0 MHz	18000 MHz	1.5 dB	23 dBm	38 dBm	XR-B9T2-0409C-01	Request Quote
XM-B9T2-0409D	0696_WEB	CMD196C3	$264.00	Qorvo	SP2T	0 MHz	18000 MHz	1.5 dB	23 dBm	38 dBm	XR-B9T2-0409D	Request Quote
XM-C3P7-0409C-01	0409A	TGS4304	QUOTE	Qorvo	SP2T	32000 MHz	40000 MHz	1 dB	33 dBm	N/A	XR-C3P7-0409C-01	Request Quote

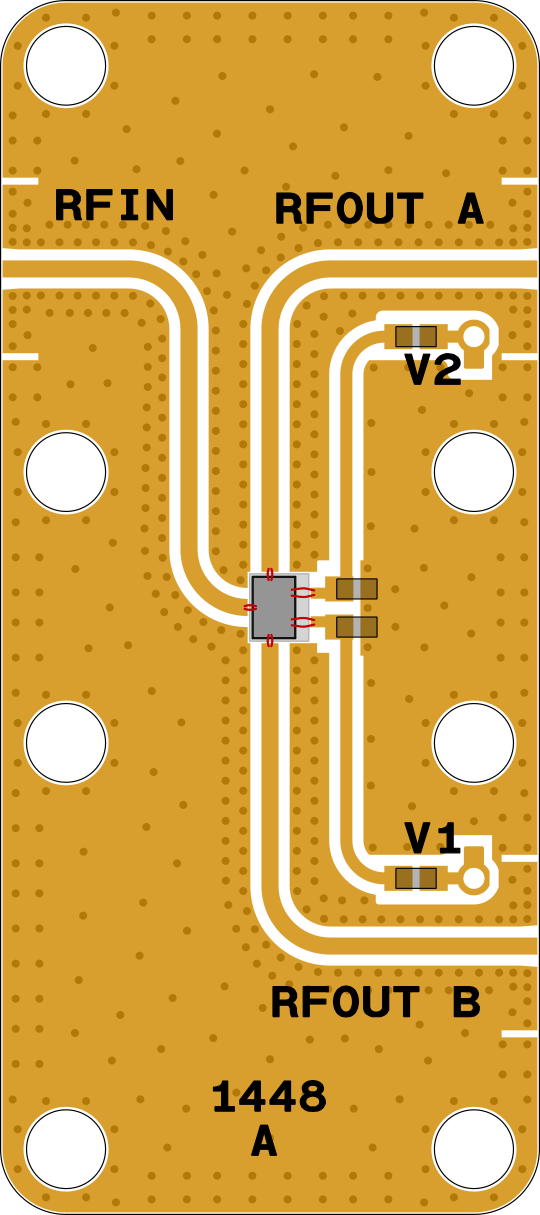

XM-C3P7-0409D	1448_WEB	TGS4304	QUOTE	Qorvo	SP2T	32000 MHz	40000 MHz	1 dB	33 dBm	N/A	XR-C3P7-0409D	Request Quote
XM-C3U5-0409C-01	0409A	TGS4302	$1,560.00	Qorvo	SP2T	27000 MHz	46000 MHz	0.9 dB	35 dBm	N/A	XR-C3U5-0409C-01	Request Quote

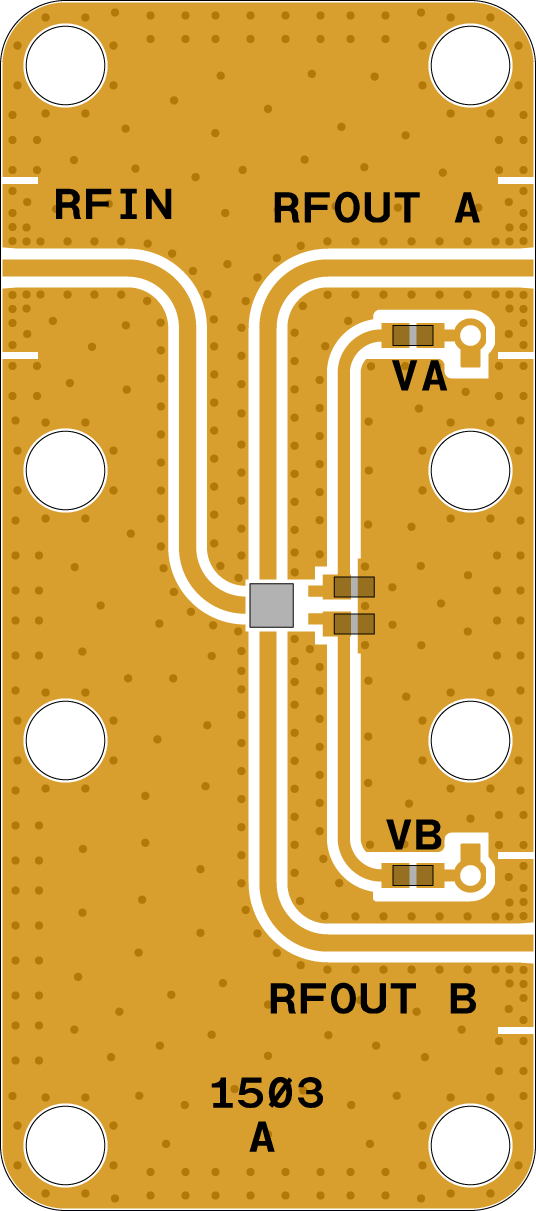

XM-C3U5-0409D	1503_WEB	TGS4302	QUOTE	Qorvo	SP2T	27000 MHz	46000 MHz	0.9 dB	35 dBm	N/A	XR-C3U5-0409D	Request Quote
XM-C418-0404C-01	0404B	TGS4304	QUOTE	Qorvo	SP2T	32000 MHz	40000 MHz	1 dB	33 dBm	N/A	XR-C418-0404C-01	Request Quote

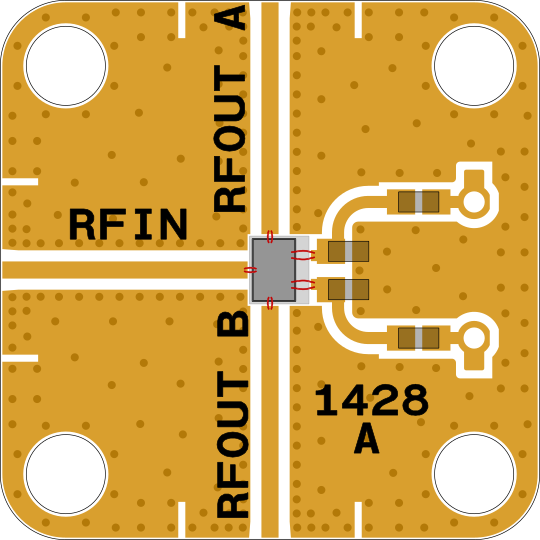

XM-C418-0404D	1428_WEB	TGS4304	QUOTE	Qorvo	SP2T	32000 MHz	40000 MHz	1 dB	33 dBm	N/A	XR-C418-0404D	Request Quote
XM-C422-0404C-01	0404B	TGS4302	QUOTE	Qorvo	SP2T	27000 MHz	46000 MHz	0.9 dB	35 dBm	N/A	XR-C422-0404C-01	Request Quote

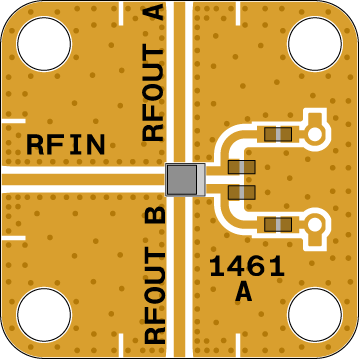

XM-C422-0404D	1461_WEB	TGS4302	QUOTE	Qorvo	SP2T	27000 MHz	46000 MHz	0.9 dB	35 dBm	N/A	XR-C422-0404D	Request Quote
XM-C567-0409D	1504_WEB	TGS4302	QUOTE	Qorvo	SP2T	27000 MHz	46000 MHz	0.9 dB	35 dBm	N/A	XR-C567-0409D	Request Quote
XM-C585-0409C-01	0409A	CMD195C3	$751.00	Qorvo	SP2T	0 MHz	18000 MHz	4 dB	25 dBm	40 dBm	XR-C585-0409C-01	Request Quote
XM-C585-0409D	0695_WEB	CMD195C3	$297.00	Qorvo	SP2T	0 MHz	18000 MHz	4 dB	25 dBm	40 dBm	XR-C585-0409D	Request Quote
XM-C586-0409C-01	0409B	CMD195C3	$739.00	Qorvo	SP2T	0 MHz	18000 MHz	4 dB	25 dBm	40 dBm	XR-C586-0409C-01	Request Quote
XM-C586-0409D	0696_WEB	CMD195C3	$285.00	Qorvo	SP2T	0 MHz	18000 MHz	4 dB	25 dBm	40 dBm	XR-C586-0409D	Request Quote
XM-C587-0409C-01	0409A	CMD196C3	$719.00	Qorvo	SP2T	0 MHz	18000 MHz	1.5 dB	23 dBm	38 dBm	XR-C587-0409C-01	Request Quote
XM-C587-0409D	0695_WEB	CMD196C3	$264.00	Qorvo	SP2T	0 MHz	18000 MHz	1.5 dB	23 dBm	38 dBm	XR-C587-0409D	Request Quote

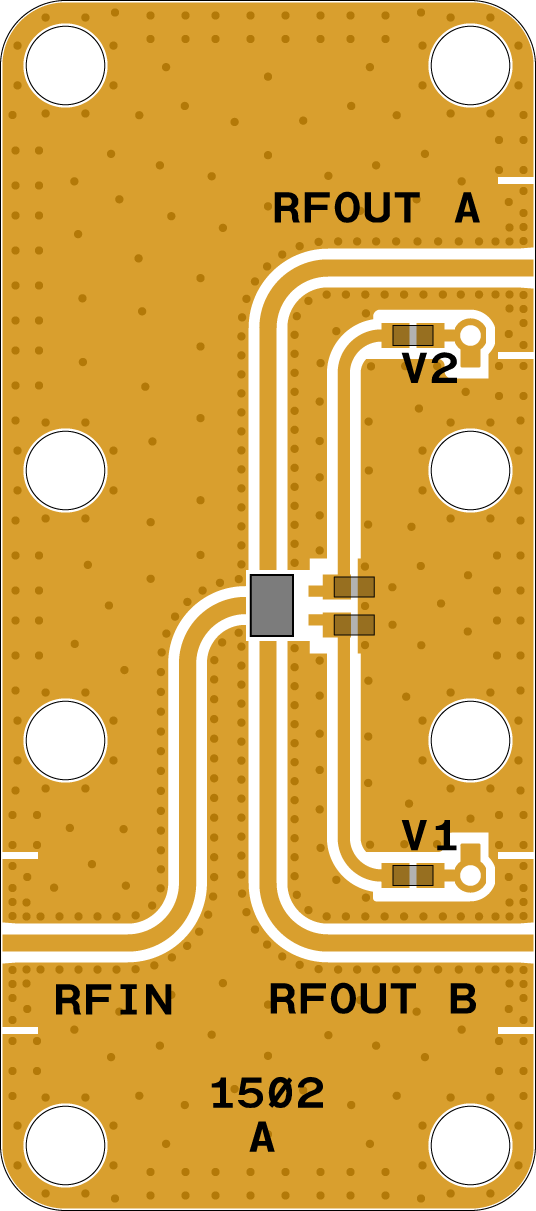

XM-C793-0409D	1502_WEB	TGS4304	QUOTE	Qorvo	SP2T	32000 MHz	40000 MHz	1 dB	33 dBm	N/A	XR-C793-0409D	Request Quote

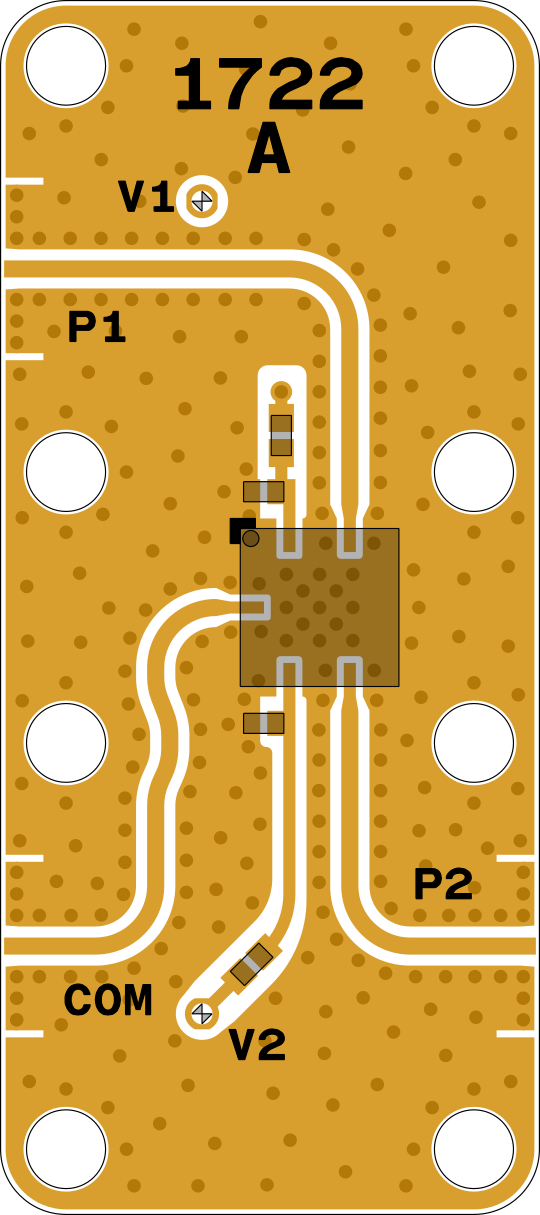

XM-C9A7-0409D	1722_WEB	TGS2353-2-SM	$558.00	Qorvo	SP2T	500 MHz	18000 MHz	1.5 dB	40 dBm	58 dBm	XR-C9A7-0409D	Request Quote
