XM Part Number Image Spec Sheet Buy Direct
(Intl. add 15%) 		Feature Mfr Type CF 3 dB BW IL 20 dB Rej Low Side 20 dB Rej High Side 40 dB Rej Low Side 40 dB Rej High Side RoHS Request Quote
XM-A162-0204C
0204A
 		BFCN-1525+
$264.00 Mini-Circuits LTCC 1525 MHz 320 MHz 2.18 dB 1290 MHz 2230 MHz N/A N/A
XR-A162-0204C 		Request Quote
XM-A162-0204D
0030
 		BFCN-1525+
$73.00 Mini-Circuits LTCC 1525 MHz 320 MHz 2.18 dB 1290 MHz 2230 MHz 1122 MHz 3230 MHz
XR-A162-0204D 		Request Quote
XM-A163-0204C
0204A
 		BFCN-1840+
$250.00 Mini-Circuits LTCC 1840 MHz 500 MHz 1.79 dB 1493 MHz 2950 MHz 1360 MHz 4130 MHz
XR-A163-0204C 		Request Quote
XM-A163-0204D
0030
 		BFCN-1840+
$70.00 Mini-Circuits LTCC 1840 MHz 500 MHz 1.79 dB 1493 MHz 2950 MHz 1360 MHz 4130 MHz
XR-A163-0204D 		Request Quote
XM-A164-0204C
0204A
 		BFCN-1945+
$264.00 Mini-Circuits LTCC 1945 MHz 450 MHz 1.7 dB 1560 MHz 3012 MHz N/A N/A
XR-A164-0204C 		Request Quote
XM-A164-0204D
0030
 		BFCN-1945+
$73.00 Mini-Circuits LTCC 1945 MHz 450 MHz 1.7 dB 1560 MHz 3012 MHz 1425 MHz 4171 MHz
XR-A164-0204D 		Request Quote
XM-A165-0204C
0204A
 		BFCN-2275+
$264.00 Mini-Circuits LTCC 2275 MHz 530 MHz 1.56 dB 1770 MHz 3555 MHz N/A N/A
XR-A165-0204C 		Request Quote
XM-A165-0204D
0030
 		BFCN-2275+
$73.00 Mini-Circuits LTCC 2275 MHz 530 MHz 1.56 dB 1770 MHz 3555 MHz 1575 MHz 4700 MHz
XR-A165-0204D 		Request Quote
XM-A166-0204C
0204A
 		BFCN-2555+
$251.00 Mini-Circuits LTCC 2555 MHz 511 MHz 3.73 dB 2170 MHz 2960 MHz N/A N/A
XR-A166-0204C 		Request Quote
XM-A166-0204D
0027_WEB
 		BFCN-2555+
$69.00 Mini-Circuits LTCC 2555 MHz 511 MHz 3.73 dB 2170 MHz 2960 MHz 1820 MHz 3600 MHz
XR-A166-0204D 		Request Quote
XM-A167-0204C
0204A
 		BFCN-2700+
$264.00 Mini-Circuits LTCC 2700 MHz 490 MHz 1.95 dB 2306 MHz 3080 MHz N/A N/A
XR-A167-0204C 		Request Quote
XM-A167-0204D
0030
 		BFCN-2700+
$73.00 Mini-Circuits LTCC 2700 MHz 490 MHz 1.95 dB 2306 MHz 3080 MHz 603 MHz N/A
XR-A167-0204D 		Request Quote
XM-A168-0204C
0204A
 		BFCN-2850+
$250.00 Mini-Circuits LTCC 2850 MHz 600 MHz 1.81 dB 2460 MHz 3300 MHz N/A N/A
XR-A168-0204C 		Request Quote
XM-A168-0204D
0030
 		BFCN-2850+
$70.00 Mini-Circuits LTCC 2850 MHz 600 MHz 1.81 dB 2460 MHz 3300 MHz 620 MHz N/A
XR-A168-0204D 		Request Quote
XM-A169-0204C
0204A
 		BFCN-2900+
$263.00 Mini-Circuits LTCC 2900 MHz 1000 MHz 1.65 dB 1960 MHz 3800 MHz 1580 MHz 5015 MHz
XR-A169-0204C 		Request Quote
XM-A169-0204D
0027_WEB
 		BFCN-2900+
$72.00 Mini-Circuits LTCC 2900 MHz 1000 MHz 1.65 dB 1960 MHz 3800 MHz 1580 MHz 5015 MHz
XR-A169-0204D 		Request Quote
XM-A171-0204C
0204A
 		BFCN-3010+
$264.00 Mini-Circuits LTCC 3010 MHz 500 MHz 2.56 dB 2650 MHz 2370 MHz N/A N/A
XR-A171-0204C 		Request Quote
XM-A171-0204D
0030
 		BFCN-3010+
$73.00 Mini-Circuits LTCC 3010 MHz 500 MHz 2.56 dB 2650 MHz 2370 MHz 700 MHz N/A
XR-A171-0204D 		Request Quote
XM-A172-0204C
0204A
 		BFCN-3600+
$264.00 Mini-Circuits LTCC 3600 MHz 1630 MHz 1.3 dB 1930 MHz 4950 MHz N/A N/A
XR-A172-0204C 		Request Quote
XM-A172-0204D
0030
 		BFCN-3600+
$73.00 Mini-Circuits LTCC 3600 MHz 1630 MHz 1.3 dB 1930 MHz 4950 MHz 1100 MHz 5580 MHz
XR-A172-0204D 		Request Quote
XM-A173-0204C
0204A
 		BFCN-4100+
$264.00 Mini-Circuits LTCC 4100 MHz 1630 MHz 0.96 dB 2400 MHz 5725 MHz N/A N/A
XR-A173-0204C 		Request Quote
XM-A173-0204D
0030
 		BFCN-4100+
$73.00 Mini-Circuits LTCC 4100 MHz 1630 MHz 0.96 dB 2400 MHz 5725 MHz 1350 MHz 13100 MHz
XR-A173-0204D 		Request Quote
XM-A174-0204C
0204A
 		BFCN-4440+
$264.00 Mini-Circuits LTCC 4440 MHz 2000 MHz 0.9 dB 2200 MHz 6300 MHz N/A N/A
XR-A174-0204C 		Request Quote
XM-A174-0204D
0030
 		BFCN-4440+
$73.00 Mini-Circuits LTCC 4440 MHz 2000 MHz 0.9 dB 2200 MHz 6300 MHz 1200 MHz N/A
XR-A174-0204D 		Request Quote
XM-A175-0204C
0204A
 		BFCN-7200+
$251.00 Mini-Circuits LTCC 7200 MHz 860 MHz 1.83 dB 6520 MHz 8400 MHz N/A N/A
XR-A175-0204C 		Request Quote
XM-A175-0204D
1908_WEB
 		BFCN-7200+
$69.00 Mini-Circuits LTCC 7200 MHz 860 MHz 1.83 dB 6520 MHz 8400 MHz 116 MHz N/A
XR-A175-0204D 		Request Quote
XM-A176-0204C
0204A
 		BFCN-7500+
$251.00 Mini-Circuits LTCC 7500 MHz 1150 MHz 1.53 dB 6640 MHz 8890 MHz N/A N/A
XR-A176-0204C 		Request Quote
XM-A176-0204D
1908_WEB
 		BFCN-7500+
$69.00 Mini-Circuits LTCC 7500 MHz 1150 MHz 1.53 dB 6640 MHz 8890 MHz 220 MHz N/A
XR-A176-0204D 		Request Quote
XM-A177-0204C
0204A
 		BFCN-7700+
$263.00 Mini-Circuits LTCC 7700 MHz 1250 MHz 1.7 dB 6730 MHz 9110 MHz N/A N/A
XR-A177-0204C 		Request Quote
XM-A177-0204D
1908_WEB
 		BFCN-7700+
$72.00 Mini-Circuits LTCC 7700 MHz 1250 MHz 1.7 dB 6730 MHz 9110 MHz 6590 MHz N/A
XR-A177-0204D 		Request Quote
XM-A178-0204C
0204A
 		BFCN-8000+
$263.00 Mini-Circuits LTCC 8000 MHz 1000 MHz 1.6 dB 7140 MHz 9350 MHz N/A N/A
XR-A178-0204C 		Request Quote
XM-A178-0204D
1908_WEB
 		BFCN-8000+
$72.00 Mini-Circuits LTCC 8000 MHz 1000 MHz 1.6 dB 7140 MHz 9350 MHz N/A N/A
XR-A178-0204D 		Request Quote
XM-A179-0204C
0204A
 		BFCN-8450+
$250.00 Mini-Circuits LTCC 8450 MHz 1100 MHz 1.54 dB 7480 MHz 9885 MHz N/A N/A
XR-A179-0204C 		Request Quote
XM-A179-0204D
1908_WEB
 		BFCN-8450+
$70.00 Mini-Circuits LTCC 8450 MHz 1100 MHz 1.54 dB 7480 MHz 9885 MHz 7280 MHz N/A
XR-A179-0204D 		Request Quote
XM-A181-0204C
0204A
 		BFCN-8650+
$263.00 Mini-Circuits LTCC 8650 MHz 1150 MHz 1.9 dB 7600 MHz 10000 MHz N/A N/A
XR-A181-0204C 		Request Quote
XM-A181-0204D
1908_WEB
 		BFCN-8650+
$72.00 Mini-Circuits LTCC 8650 MHz 1150 MHz 1.9 dB 7600 MHz 10000 MHz 200 MHz N/A
XR-A181-0204D 		Request Quote
XM-A3H5-0404C
0404A
 		XBF-282+
$273.00 Mini-Circuits Reflectionless 2750 MHz 1340 MHz 2.14 dB 1710 MHz 11260 MHz 28 MHz N/A
XR-A3H5-0404C 		Request Quote
XM-A3H5-0404D
0312_WEB
 		XBF-282+
$92.00 Mini-Circuits Reflectionless 2750 MHz 1340 MHz 2.14 dB 1710 MHz 11260 MHz 28 MHz 35360 MHz
XR-A3H5-0404D 		Request Quote
XM-A478-0404C
0404A
 		SYBP-1950+
$272.00 Mini-Circuits Lumped 1950 MHz 500 MHz 1.2 dB 1030 MHz 2690 MHz 1090 MHz 2900 MHz
XR-A478-0404C 		Request Quote
XM-A478-0404D

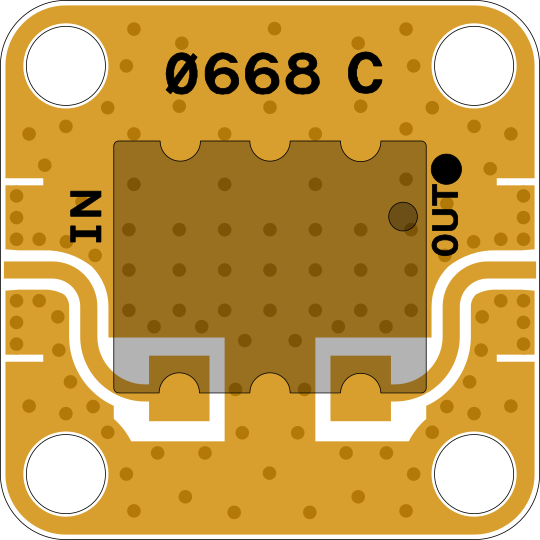

0668_WEB
 		SYBP-1950+
$91.00 Mini-Circuits Lumped 1950 MHz 500 MHz 1.2 dB 1030 MHz 2690 MHz 1090 MHz 2900 MHz
XR-A478-0404D 		Request Quote
XM-A525-0204D
1346_WEB
 		BFCN-1052+
$70.00 Mini-Circuits LTCC 10770 MHz 2250 MHz 1.6 dB 8400 MHz 14000 MHz N/A N/A
XR-A525-0204D 		Request Quote
XM-A6H8-0204C
0204A
 		BFCN-5100+
$263.00 Mini-Circuits LTCC 5100 MHz 5000 MHz 0.75 dB 2500 MHz 8875 MHz N/A N/A
XR-A6H8-0204C 		Request Quote
XM-A6H8-0204D
0940_WEB
 		BFCN-5100+
$72.00 Mini-Circuits LTCC 5100 MHz 5000 MHz 0.75 dB 2500 MHz 8875 MHz 2300 MHz 9300 MHz
XR-A6H8-0204D 		Request Quote
XM-A6W6-0204C
0204A
 		BFCN-1445+
$264.00 Mini-Circuits LTCC 1445 MHz 275 MHz 2.06 dB 1165 MHz 2140 MHz N/A N/A
XR-A6W6-0204C 		Request Quote
XM-A6W6-0204D
0030
 		BFCN-1445+
$73.00 Mini-Circuits LTCC 1445 MHz 275 MHz 2.06 dB 1165 MHz 2140 MHz 1060 MHz 3120 MHz
XR-A6W6-0204D 		Request Quote
XM-A6W7-0204C
0204A
 		BFCN-1560+
$251.00 Mini-Circuits LTCC 1560 MHz 408 MHz 2.61 dB 1178 MHz 1958 MHz N/A N/A
XR-A6W7-0204C 		Request Quote
XM-A6W7-0204D
0027_WEB
 		BFCN-1560+
$69.00 Mini-Circuits LTCC 1560 MHz 408 MHz 2.61 dB 1178 MHz 1958 MHz 950 MHz 2081 MHz
XR-A6W7-0204D 		Request Quote
XM-A6W8-0204C
0204A
 		BFCN-1575+
$264.00 Mini-Circuits LTCC 1575 MHz 325 MHz 2.1 dB 1280 MHz 2300 MHz N/A N/A
XR-A6W8-0204C 		Request Quote
XM-A6W8-0204D
0030
 		BFCN-1575+
$73.00 Mini-Circuits LTCC 1575 MHz 325 MHz 2.1 dB 1280 MHz 2300 MHz 1150 MHz 3250 MHz
XR-A6W8-0204D 		Request Quote
XM-A6W9-0204C
0204A
 		BFCN-1690+
$263.00 Mini-Circuits LTCC 1690 MHz 530 MHz 2.6 dB 1300 MHz 2080 MHz N/A N/A
XR-A6W9-0204C 		Request Quote
XM-A6W9-0204D
0027_WEB
 		BFCN-1690+
$72.00 Mini-Circuits LTCC 1690 MHz 530 MHz 2.6 dB 1300 MHz 2080 MHz 1000 MHz 2200 MHz
XR-A6W9-0204D 		Request Quote
XM-A6Y1-0204C
0204A
 		BFCN-1855+
$251.00 Mini-Circuits LTCC 1855 MHz 450 MHz 1.6 dB 1450 MHz 3000 MHz N/A N/A
XR-A6Y1-0204C 		Request Quote
XM-A6Y1-0204D
0030
 		BFCN-1855+
$70.00 Mini-Circuits LTCC 1855 MHz 450 MHz 1.6 dB 1450 MHz 3000 MHz 1320 MHz 4330 MHz
XR-A6Y1-0204D 		Request Quote
XM-A6Y2-0204C
0204A
 		BFCN-1860+
$261.00 Mini-Circuits LTCC 1860 MHz 1000 MHz 1.5 dB 1300 MHz 2600 MHz N/A N/A
XR-A6Y2-0204C 		Request Quote
XM-A6Y2-0204D
1908_WEB
 		BFCN-1860+
$69.00 Mini-Circuits LTCC 1860 MHz 1000 MHz 1.5 dB 1300 MHz 2600 MHz 300 MHz N/A
XR-A6Y2-0204D 		Request Quote
XM-A6Y3-0204C
0204A
 		BFCN-1900+
$250.00 Mini-Circuits LTCC 1900 MHz 27 MHz 2.6 dB 1687 MHz 2153 MHz N/A N/A
XR-A6Y3-0204C 		Request Quote
XM-A6Y3-0204D
1908_WEB
 		BFCN-1900+
$70.00 Mini-Circuits LTCC 1900 MHz 27 MHz 2.6 dB 1687 MHz 2153 MHz 1687 MHz 2200 MHz
XR-A6Y3-0204D 		Request Quote
XM-A6Y4-0204C
0204A
 		BFCN-2360+
$264.00 Mini-Circuits LTCC 2360 MHz 560 MHz 1.5 dB 1850 MHz 3670 MHz N/A N/A
XR-A6Y4-0204C 		Request Quote
XM-A6Y4-0204D
0030
 		BFCN-2360+
$73.00 Mini-Circuits LTCC 2360 MHz 560 MHz 1.5 dB 1850 MHz 3670 MHz 1600 MHz 4800 MHz
XR-A6Y4-0204D 		Request Quote
XM-A6Y5-0204C
0204A
 		BFCN-2435+
$264.00 Mini-Circuits LTCC 2435 MHz 600 MHz 1.5 dB 1900 MHz 3700 MHz N/A N/A
XR-A6Y5-0204C 		Request Quote
XM-A6Y5-0204D
0030
 		BFCN-2435+
$73.00 Mini-Circuits LTCC 2435 MHz 600 MHz 1.5 dB 1900 MHz 3700 MHz 1700 MHz 4720 MHz
XR-A6Y5-0204D 		Request Quote
XM-A6Y6-0204C
0204A
 		BFCN-2450+
$263.00 Mini-Circuits LTCC 2450 MHz 450 MHz 1.95 dB 2180 MHz 3220 MHz N/A N/A
XR-A6Y6-0204C 		Request Quote
XM-A6Y6-0204D
1908_WEB
 		BFCN-2450+
$72.00 Mini-Circuits LTCC 2450 MHz 450 MHz 1.95 dB 2180 MHz 3220 MHz 2098 MHz 4740 MHz
XR-A6Y6-0204D 		Request Quote
XM-A6Y7-0204C
0204A
 		BFCN-2500+
$263.00 Mini-Circuits LTCC 2500 MHz 800 MHz 1.6 dB 1620 MHz 3700 MHz N/A N/A
XR-A6Y7-0204C 		Request Quote
XM-A6Y7-0204D
1908_WEB
 		BFCN-2500+
$72.00 Mini-Circuits LTCC 2500 MHz 800 MHz 1.6 dB 1620 MHz 3700 MHz 1450 MHz 500 MHz
XR-A6Y7-0204D 		Request Quote
XM-A6Y8-0204C
0204A
 		BFCN-2840+
$250.00 Mini-Circuits LTCC 2840 MHz 500 MHz 2.19 dB 2500 MHz 3200 MHz N/A N/A
XR-A6Y8-0204C 		Request Quote
XM-A6Y8-0204D
0030
 		BFCN-2840+
$70.00 Mini-Circuits LTCC 2840 MHz 500 MHz 2.19 dB 2500 MHz 3200 MHz 660 MHz 4300 MHz
XR-A6Y8-0204D 		Request Quote
XM-A6Y9-0204C
0204A
 		BFCN-2910+
$250.00 Mini-Circuits LTCC 2910 MHz 380 MHz 2.62 dB 2602 MHz 3292 MHz N/A N/A
XR-A6Y9-0204C 		Request Quote
XM-A6Y9-0204D
0030
 		BFCN-2910+
$70.00 Mini-Circuits LTCC 2910 MHz 380 MHz 2.62 dB 2602 MHz 3292 MHz 640 MHz 4317 MHz
XR-A6Y9-0204D 		Request Quote
XM-A711-0204C
0204A
 		BFCN-2975+
$264.00 Mini-Circuits LTCC 2975 MHz 870 MHz 2.2 dB 1800 MHz 3900 MHz N/A N/A
XR-A711-0204C 		Request Quote
XM-A711-0204D
0030
 		BFCN-2975+
$73.00 Mini-Circuits LTCC 2975 MHz 870 MHz 2.2 dB 1800 MHz 3900 MHz 1100 MHz 5000 MHz
XR-A711-0204D 		Request Quote
XM-A712-0204C
0204A
 		BFCN-3085+
$264.00 Mini-Circuits LTCC 3085 MHz 600 MHz 1.65 dB 1850 MHz 4000 MHz N/A N/A
XR-A712-0204C 		Request Quote
XM-A712-0204D
0030
 		BFCN-3085+
$73.00 Mini-Circuits LTCC 3085 MHz 600 MHz 1.65 dB 1850 MHz 4000 MHz 1130 MHz 5000 MHz
XR-A712-0204D 		Request Quote
XM-A713-0204C
0204A
 		BFCN-3085A+
$266.00 Mini-Circuits LTCC 3085 MHz 1200 MHz 1.5 dB 1850 MHz 4000 MHz N/A N/A
XR-A713-0204C 		Request Quote
XM-A713-0204D
0030
 		BFCN-3085A+
$73.00 Mini-Circuits LTCC 3085 MHz 1200 MHz 1.5 dB 1850 MHz 4000 MHz 1150 MHz 5030 MHz
XR-A713-0204D 		Request Quote
XM-A714-0204C
0204A
 		BFCN-3115+
$264.00 Mini-Circuits LTCC 3115 MHz 1360 MHz 1.5 dB 1900 MHz 4200 MHz N/A N/A
XR-A714-0204C 		Request Quote
XM-A714-0204D
0030
 		BFCN-3115+
$73.00 Mini-Circuits LTCC 3115 MHz 1360 MHz 1.5 dB 1900 MHz 4200 MHz 1130 MHz 5240 MHz
XR-A714-0204D 		Request Quote
XM-A715-0204C
0204A
 		BFCN-3700+
$263.00 Mini-Circuits LTCC 3700 MHz 2300 MHz 1.5 dB 2275 MHz 5400 MHz N/A N/A
XR-A715-0204C 		Request Quote
XM-A715-0204D
1908_WEB
 		BFCN-3700+
$72.00 Mini-Circuits LTCC 3700 MHz 2300 MHz 1.5 dB 2275 MHz 5400 MHz 2070 MHz 5700 MHz
XR-A715-0204D 		Request Quote
XM-A716-0204C
0204A
 		BFCN-4800+
$264.00 Mini-Circuits LTCC 4800 MHz 2250 MHz 0.67 dB 2430 MHz 7000 MHz N/A N/A
XR-A716-0204C 		Request Quote
XM-A716-0204D
0030
 		BFCN-4800+
$73.00 Mini-Circuits LTCC 4800 MHz 2250 MHz 0.67 dB 2430 MHz 7000 MHz 1270 MHz N/A
XR-A716-0204D 		Request Quote
XM-A717-0204C
0204A
 		BFCN-5200+
$263.00 Mini-Circuits LTCC 5200 MHz 3000 MHz 1.5 dB 3500 MHz 7500 MHz N/A N/A
XR-A717-0204C 		Request Quote
XM-A717-0204D
1908_WEB
 		BFCN-5200+
$72.00 Mini-Circuits LTCC 5200 MHz 3000 MHz 1.5 dB 3500 MHz 7500 MHz 570 MHz N/A
XR-A717-0204D 		Request Quote
XM-A718-0204C
0204A
 		BFCN-5750+
$263.00 Mini-Circuits LTCC 5750 MHz 1050 MHz 1.77 dB 4500 MHz 7540 MHz N/A N/A
XR-A718-0204C 		Request Quote
XM-A718-0204D
1908_WEB
 		BFCN-5750+
$72.00 Mini-Circuits LTCC 5750 MHz 1050 MHz 1.77 dB 4500 MHz 7540 MHz 3740 MHz 8400 MHz
XR-A718-0204D 		Request Quote
XM-A719-0204C
0204A
 		BFCN-7350+
$251.00 Mini-Circuits LTCC 7350 MHz 1150 MHz 1.82 dB 6450 MHz 8500 MHz N/A N/A
XR-A719-0204C 		Request Quote
XM-A719-0204D
1908_WEB
 		BFCN-7350+
$69.00 Mini-Circuits LTCC 7350 MHz 1150 MHz 1.82 dB 6450 MHz 8500 MHz 130 MHz N/A
XR-A719-0204D 		Request Quote
XM-A721-0204C
0204A
 		BFCN-7900+
$251.00 Mini-Circuits LTCC 7900 MHz 1120 MHz 1.54 dB 6950 MHz 9300 MHz N/A N/A
XR-A721-0204C 		Request Quote
XM-A721-0204D
1908_WEB
 		BFCN-7900+
$69.00 Mini-Circuits LTCC 7900 MHz 1120 MHz 1.54 dB 6950 MHz 9300 MHz 9800 MHz N/A
XR-A721-0204D 		Request Quote
XM-A722-0204C
0204A
 		BFCN-8350+
$264.00 Mini-Circuits LTCC 8350 MHz 1120 MHz 1.5 dB 7250 MHz 9600 MHz N/A N/A
XR-A722-0204C 		Request Quote
XM-A722-0204D
1908_WEB
 		BFCN-8350+
$73.00 Mini-Circuits LTCC 8350 MHz 1120 MHz 1.5 dB 7250 MHz 9600 MHz 7080 MHz N/A
XR-A722-0204D 		Request Quote
XM-A7B1-0204C
0204A
 		BFCV-5270+
$264.00 Mini-Circuits LTCC 5270 MHz 3320 MHz 1.18 dB 3350 MHz 7910 MHz N/A N/A
XR-A7B1-0204C 		Request Quote
XM-A7B1-0204D
0615_WEB
 		BFCV-5270+
$73.00 Mini-Circuits LTCC 5270 MHz 3320 MHz 1.18 dB 3350 MHz 7910 MHz 2240 MHz 8565 MHz
XR-A7B1-0204D 		Request Quote
XM-A9F9-0604C
0604A
 		RBP-253+
$309.00 Mini-Circuits Lumped Element 253 MHz 186 MHz 1.15 dB 150 MHz 409 MHz 120 MHz 500 MHz
XR-A9F9-0604C 		Request Quote
XM-A9F9-0604D
0282_WEB
 		RBP-253+
$118.00 Mini-Circuits Lumped Element 227 MHz 186 MHz 1.15 dB 150 MHz 409 MHz 120 MHz 500 MHz
XR-A9F9-0604D 		Request Quote
XM-B1G5-1004C
1004A
 		SXBP-20R5+
$398.00 Mini-Circuits Lumped Element 20.5 MHz 4.2 MHz 2.25 dB 17.5 MHz 25.5 MHz 16.16 MHz 34 MHz
XR-B1G5-1004C 		Request Quote
XM-B1G5-1004D

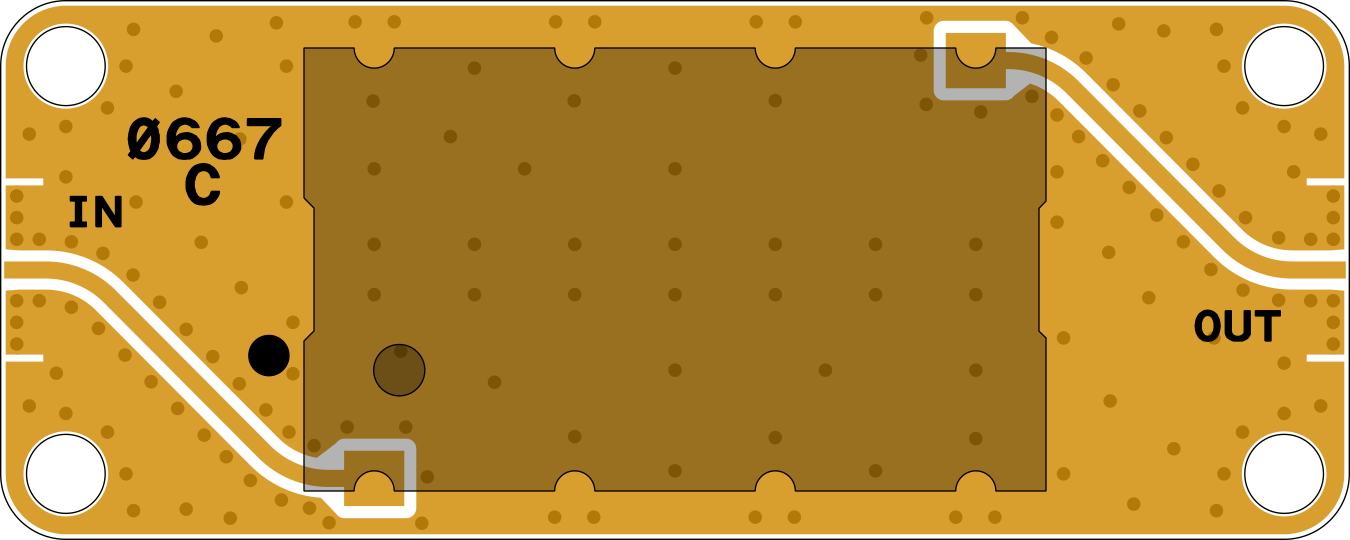

0667_WEB
 		SXBP-20R5+
$154.00 Mini-Circuits Lumped Element 20.5 MHz 4.2 MHz 2.25 dB 17.5 MHz 25.5 MHz 16.16 MHz 34 MHz
XR-B1G5-1004D 		Request Quote
XM-B214-0204C
0204A
 		BFCN-1262+
$250.00 Mini-Circuits Planar 1262 MHz 2150 MHz 4.1 dB 1127 MHz 1420 MHz N/A N/A
XR-B214-0204C 		Request Quote
XM-B214-0204D
1346_WEB
 		BFCN-1262+
$69.00 Mini-Circuits Planar 12600 MHz 2150 MHz 4.1 dB 1127 MHz 1420 MHz 1050 MHz 1480 MHz
XR-B214-0204D 		Request Quote
XM-B2F4-1206C
1204C
 		BPF-V1000+
$631.00 Mini-Circuits Lumped Element 1000 MHz 287 MHz 0.48 dB 818 MHz 1197 MHz N/A N/A
XR-B2F4-1206C 		Request Quote
XM-B2F4-1206D

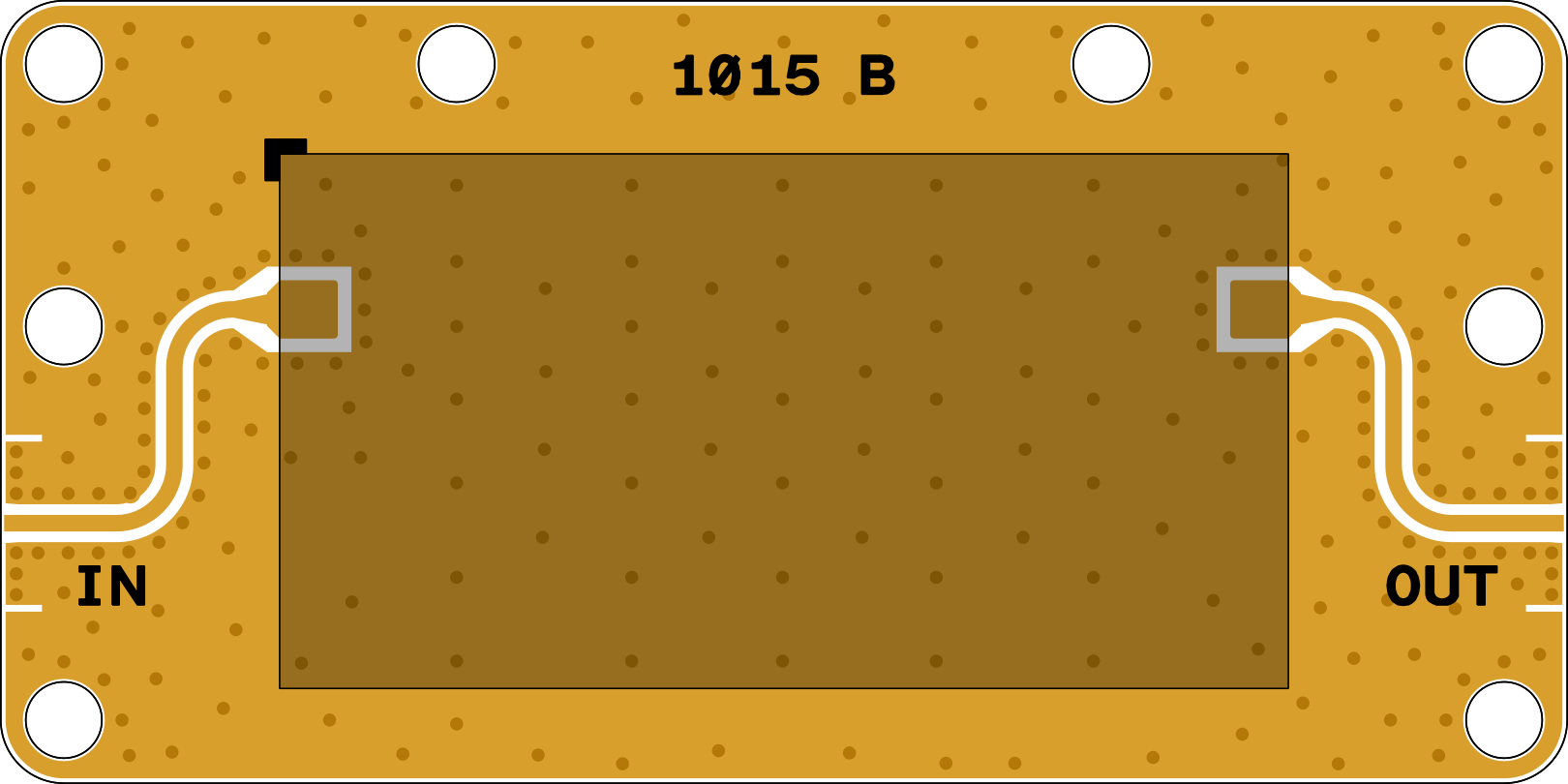

1015_WEB
 		BPF-V1000+
$286.00 Mini-Circuits Lumped Element 1000 MHz 287 MHz 0.48 dB 818 MHz 1197 MHz 780 MHz 1290 MHz
XR-B2F4-1206D 		Request Quote
XM-B2L8-0404C
0404A
 		BFTC-415+
$265.00 Mini-Circuits LTCC 415 MHz 170 MHz 4 dB 268 MHz 580 MHz N/A N/A
XR-B2L8-0404C 		Request Quote
XM-B2L8-0404D
1406_WEB
 		BFTC-415+
$80.00 Mini-Circuits LTCC 415 MHz 170 MHz 4 dB 268 MHz 580 MHz 240 MHz 650 MHz
XR-B2L8-0404D 		Request Quote
XM-B2L9-0404C
0404A
 		BFTC-500+
$263.00 Mini-Circuits LTCC 500 MHz 280 MHz 2.28 dB 324 MHz 700 MHz N/A N/A
XR-B2L9-0404C 		Request Quote
XM-B2L9-0404D
1406_WEB
 		BFTC-500+
$82.00 Mini-Circuits LTCC 500 MHz 280 MHz 2.28 dB 324 MHz 700 MHz 290 MHz 854 MHz
XR-B2L9-0404D 		Request Quote
XM-B2M1-0404C
0404A
 		BFTC-615+
$258.00 Mini-Circuits LTCC 615 MHz 416 MHz 2.18 dB 360 MHz 890 MHz N/A N/A
XR-B2M1-0404C 		Request Quote
XM-B2M1-0404D
1406_WEB
 		BFTC-615+
$74.00 Mini-Circuits LTCC 615 MHz 416 MHz 2.18 dB 360 MHz 890 MHz 320 MHz 2230 MHz
XR-B2M1-0404D 		Request Quote
XM-B2M2-0404C
0404A
 		BFTC-618+
$263.00 Mini-Circuits LTCC 618 MHz 400 MHz 2.03 dB 380 MHz 910 MHz N/A N/A
XR-B2M2-0404C 		Request Quote
XM-B2M2-0404D
1406_WEB
 		BFTC-618+
$80.00 Mini-Circuits LTCC 618 MHz 400 MHz 2.03 dB 380 MHz 910 MHz 330 MHz 980 MHz
XR-B2M2-0404D 		Request Quote
XM-B2T5-1007D

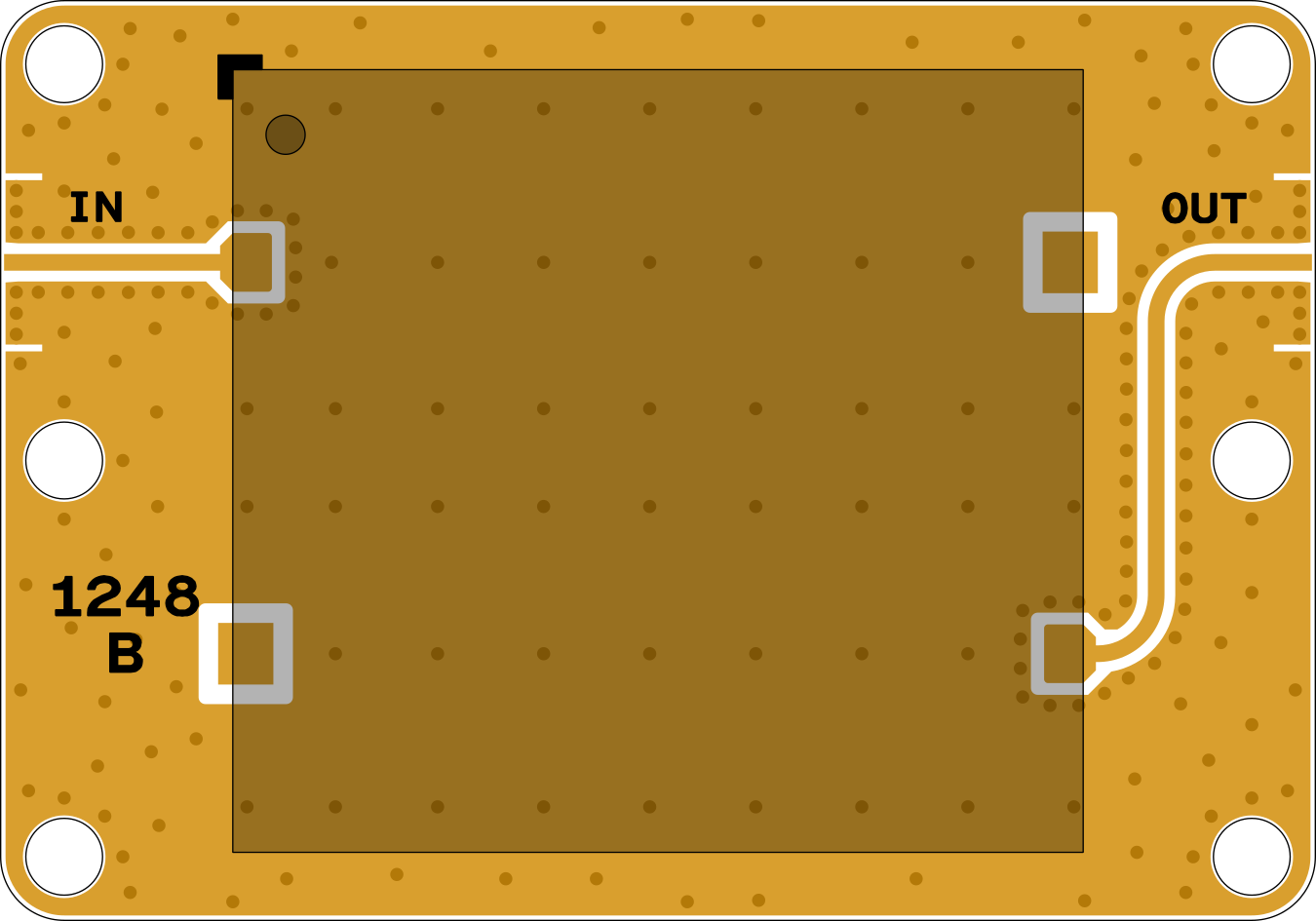

1248_WEB
 		BPF-C138+
$232.00 Mini-Circuits Lumped Element 138 MHz 93 MHz 0.61 dB 89 MHz 197 MHz 85 MHz 201 MHz
XR-B2T5-1007D 		Request Quote
XM-B2T5-1009C
1009B
 		BPF-C138+
QUOTE Mini-Circuits Lumped Element 138 MHz 93 MHz 0.61 dB 89 MHz 197 MHz 85 MHz 201 MHz
XR-B2T5-1009C 		Request Quote
XM-B2T6-1007D
1248_WEB
 		BPF-C141+
$232.00 Mini-Circuits Lumped Element 141 MHz 100 MHz 0.84 dB 95 MHz 208 MHz 91 MHz 215 MHz
XR-B2T6-1007D 		Request Quote
XM-B2T6-1009C
1009B
 		BPF-C141+
QUOTE Mini-Circuits Lumped Element 141 MHz 100 MHz 0.84 dB 95 MHz 208 MHz 91 MHz 215 MHz
XR-B2T6-1009C 		Request Quote
XM-B2T7-1007D
1248_WEB
 		BPF-C45+
$232.00 Mini-Circuits Lumped Element 45 MHz 60 MHz 0.39 dB 24 MHz 91 MHz 21 MHz 94 MHz
XR-B2T7-1007D 		Request Quote
XM-B2T7-1009C
1009B
 		BPF-C45+
QUOTE Mini-Circuits Lumped Element 45 MHz 60 MHz 0.39 dB 24 MHz 91 MHz 21 MHz 94 MHz
XR-B2T7-1009C 		Request Quote
XM-B2T8-1007D
1248_WEB
 		BPF-C450+
$232.00 Mini-Circuits Lumped Element 450 MHz 270 MHz 0.89 dB 330 MHz 674 MHz 311 MHz 732 MHz
XR-B2T8-1007D 		Request Quote
XM-B2T8-1009C
1009B
 		BPF-C450+
QUOTE Mini-Circuits Lumped Element 450 MHz 270 MHz 0.89 dB 330 MHz 674 MHz 311 MHz 732 MHz
XR-B2T8-1009C 		Request Quote
XM-B2T9-1007D
1248_WEB
 		BPF-C495+
$253.00 Mini-Circuits Lumped Element 495 MHz 108 MHz 1.35 dB 421 MHz 601 MHz 387 MHz 673 MHz
XR-B2T9-1007D 		Request Quote
XM-B2T9-1009C
1009B
 		BPF-C495+
QUOTE Mini-Circuits Lumped Element 495 MHz 108 MHz 1.35 dB 421 MHz 601 MHz N/A N/A
XR-B2T9-1009C 		Request Quote
XM-B2U1-1007D
1248_WEB
 		BPF-C4R5+
$215.00 Mini-Circuits Lumped Element 4.5 MHz 9 MHz 0.31 dB 0.73 MHz 15 MHz 0.512 MHz 22 MHz
XR-B2U1-1007D 		Request Quote
XM-B2U1-1009C
1009B
 		BPF-C4R5+
QUOTE Mini-Circuits Lumped Element 4.5 MHz 9 MHz 0.31 dB 0.73 MHz 15 MHz N/A N/A
XR-B2U1-1009C 		Request Quote
XM-B2U2-1007D
1248_WEB
 		BPF-C510+
$253.00 Mini-Circuits Lumped Element 510 MHz 1029 MHz 0.37 dB 17.5 MHz 1102 MHz 17.53 MHz 1138 MHz
XR-B2U2-1007D 		Request Quote
XM-B2U2-1009C
1009B
 		BPF-C510+
QUOTE Mini-Circuits Lumped Element 510 MHz 1029 MHz 0.37 dB 17.5 MHz 1102 MHz N/A N/A
XR-B2U2-1009C 		Request Quote
XM-B2U3-1007D
1248_WEB
 		BPF-C587+
$244.00 Mini-Circuits Lumped Element 587 MHz 288 MHz 0.67 dB 445 MHz 787 MHz 422 MHz 903 MHz
XR-B2U3-1007D 		Request Quote
XM-B2U3-1009C
1009B
 		BPF-C587+
QUOTE Mini-Circuits Lumped Element 587 MHz 288 MHz 0.67 dB 445 MHz 787 MHz N/A N/A
XR-B2U3-1009C 		Request Quote
XM-B2U4-1007D
1248_WEB
 		BPF-C59+
$241.00 Mini-Circuits Lumped Element 59 MHz 74 MHz 0.47 dB 24 MHz 112 MHz 21.5 MHz 123 MHz
XR-B2U4-1007D 		Request Quote
XM-B2U4-1009C
1009B
 		BPF-C59+
QUOTE Mini-Circuits Lumped Element 59 MHz 74 MHz 0.47 dB 24 MHz 112 MHz N/A N/A
XR-B2U4-1009C 		Request Quote
XM-B2U5-1007D
1248_WEB
 		BPF-C650+
$253.00 Mini-Circuits Lumped Element 650 MHz 333 MHz 1.12 dB 330 MHz 841 MHz 218 MHz 879 MHz
XR-B2U5-1007D 		Request Quote
XM-B2U5-1009C
1009B
 		BPF-C650+
QUOTE Mini-Circuits Lumped Element 650 MHz 333 MHz 1.12 dB 330 MHz 841 MHz 218 MHz 879 MHz
XR-B2U5-1009C 		Request Quote
XM-B2U6-1007D
1248_WEB
 		BPF-C670+
$241.00 Mini-Circuits Lumped Element 670 MHz 453 MHz 0.76 dB 400 MHz 934 MHz 374 MHz 983 MHz
XR-B2U6-1007D 		Request Quote
XM-B2U6-1009C
1009B
 		BPF-C670+
QUOTE Mini-Circuits Lumped Element 670 MHz 453 MHz 0.76 dB 400 MHz 934 MHz N/A N/A
XR-B2U6-1009C 		Request Quote
XM-B2U7-1007D
1248_WEB
 		BPF-C70+
$266.00 Mini-Circuits Lumped Element 70 MHz 4.5 MHz 5.33 dB 66 MHz 74 MHz 64 MHz 77 MHz
XR-B2U7-1007D 		Request Quote
XM-B2U7-1009C
1009B
 		BPF-C70+
QUOTE Mini-Circuits Lumped Element 70 MHz 4.5 MHz 5.33 dB 66 MHz 74 MHz 64 MHz 77 MHz
XR-B2U7-1009C 		Request Quote
XM-B2U8-1007D
1248_WEB
 		BPF-C73+
$232.00 Mini-Circuits Lumped Element 73 MHz 40 MHz 0.8 dB 47 MHz 99 MHz 42.7 MHz 104 MHz
XR-B2U8-1007D 		Request Quote
XM-B2U8-1009C
1009B
 		BPF-C73+
QUOTE Mini-Circuits Lumped Element 73 MHz 40 MHz 0.8 dB 47 MHz 99 MHz 42.7 MHz 104 MHz
XR-B2U8-1009C 		Request Quote
XM-B2U9-1007D
1248_WEB
 		BPF-C75+
$232.00 Mini-Circuits Lumped Element 75 MHz 37 MHz 0.97 dB 50 MHz 99 MHz 45.5 MHz 105 MHz
XR-B2U9-1007D 		Request Quote
XM-B2U9-1009C
1009B
 		BPF-C75+
QUOTE Mini-Circuits Lumped Element 75 MHz 37 MHz 0.97 dB 50 MHz 99 MHz 45.5 MHz 105 MHz
XR-B2U9-1009C 		Request Quote
XM-B5E8-0204C
0204A
 		BFCN-5540+
$264.00 Mini-Circuits LTCC 5540 MHz 3000 MHz 1.7 dB 3580 MHz 7620 MHz N/A N/A
XR-B5E8-0204C 		Request Quote
XM-B5E8-0204D
0030
 		BFCN-5540+
$73.00 Mini-Circuits LTCC 5540 MHz 3000 MHz 1.7 dB 3580 MHz 7620 MHz 685 MHz 8150 MHz
XR-B5E8-0204D 		Request Quote
XM-B5M5-0808D

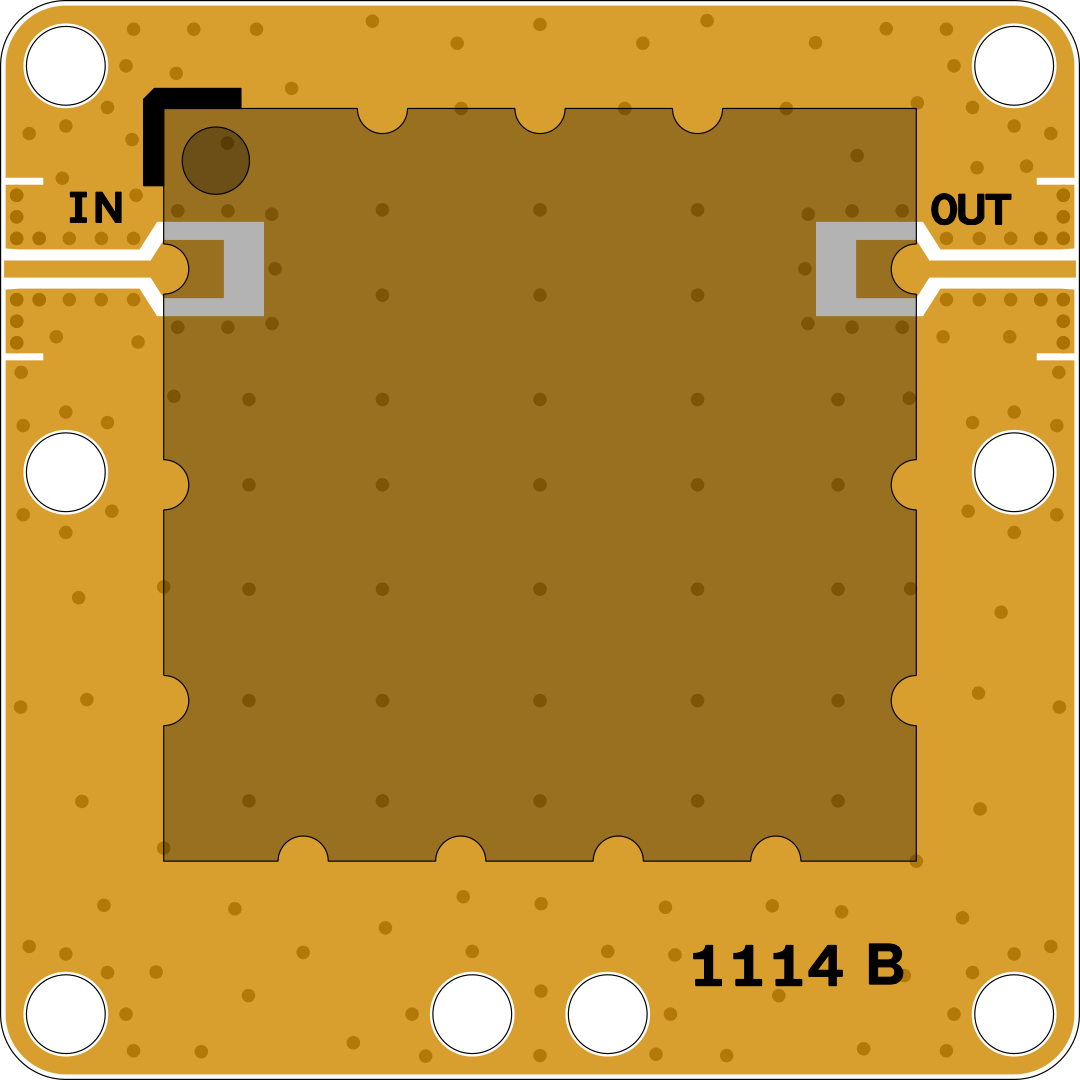

1114_WEB
 		CBP-1555C+
$225.00 Mini-Circuits Ceramic 1555 MHz 140 MHz 1.03 dB 1436 MHz 1670 MHz 1380 MHz 1780 MHz
XR-B5M5-0808D 		Request Quote
XM-B5M5-0809C
0809A
 		CBP-1555C+
QUOTE Mini-Circuits Ceramic 1555 MHz 140 MHz 1.03 dB 1436 MHz 1670 MHz 1380 MHz 1780 MHz
XR-B5M5-0809C 		Request Quote
XM-B5M6-0808D
1114_WEB
 		CBP-1228C+
$225.00 Mini-Circuits Ceramic 1228 MHz 87.3 MHz 1.07 dB 1160 MHz 1304 MHz 1120 MHz 1375 MHz
XR-B5M6-0808D 		Request Quote
XM-B5M6-0809C
0809A
 		CBP-1228C+
QUOTE Mini-Circuits Ceramic 1228 MHz 87.3 MHz 1.07 dB 1160 MHz 1304 MHz 1120 MHz 1375 MHz
XR-B5M6-0809C 		Request Quote
XM-B5M9-1004C
1004A
 		SXBP-100+
$392.00 Mini-Circuits Lumped Element 100 MHz 48 MHz 1.51 dB 69 MHz 136 MHz 59 MHz 158 MHz
XR-B5M9-1004C 		Request Quote
XM-B5M9-1004D
0667_WEB
 		SXBP-100+
$149.00 Mini-Circuits Lumped Element 100 MHz 48 MHz 1.51 dB 69 MHz 136 MHz 59 MHz 158 MHz
XR-B5M9-1004D 		Request Quote
XM-B6N4-1404C

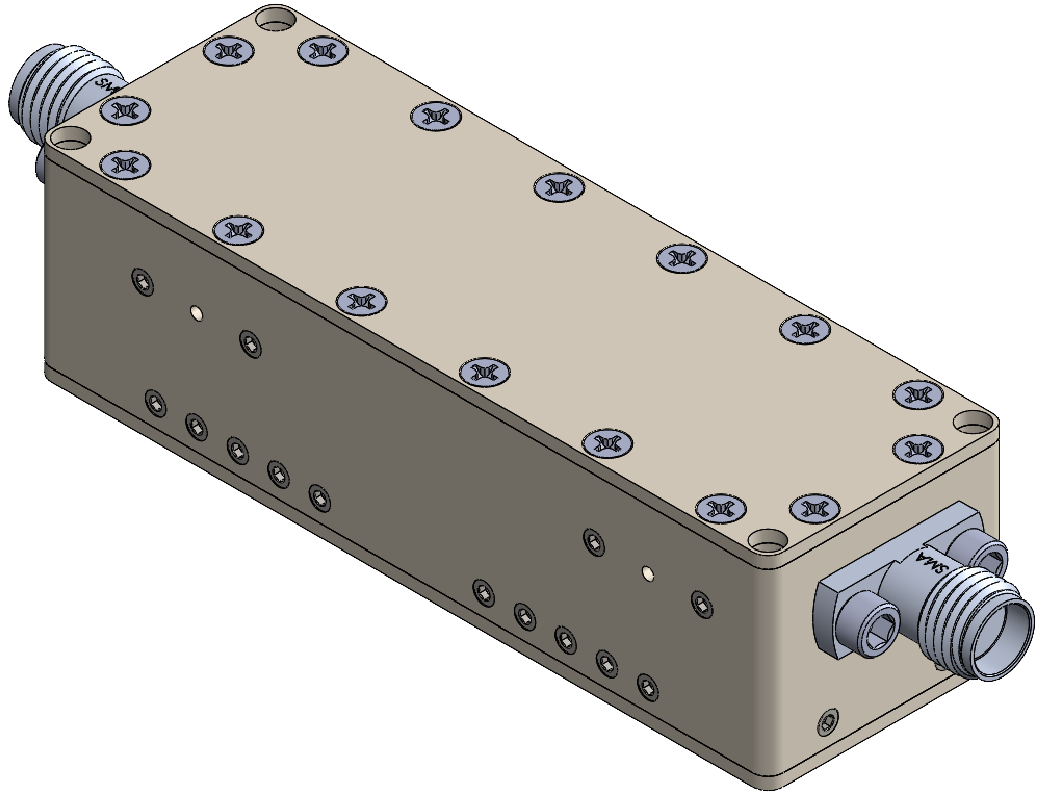

1404A
 		BPF-A113+
$467.00 Mini-Circuits Lumped Element 113 MHz 20 MHz 1.88 dB 95 MHz 130 MHz 89 MHz 146 MHz
XR-B6N4-1404C 		Request Quote
XM-B6N4-1404D

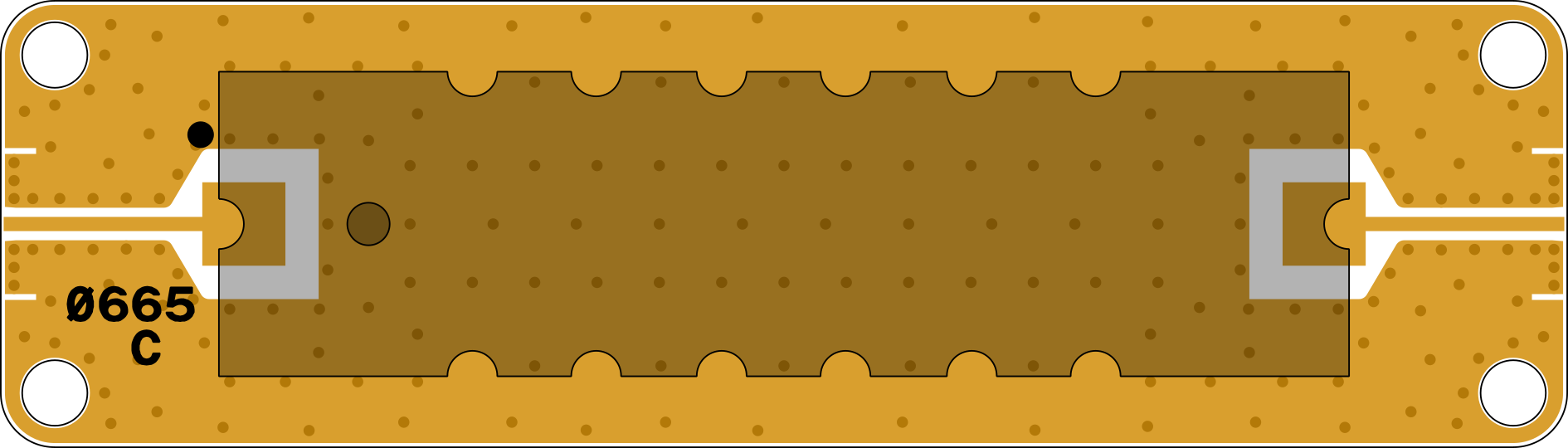

0665_WEB
 		BPF-A113+
$230.00 Mini-Circuits Lumped Element 113 MHz 20 MHz 1.88 dB 95 MHz 130 MHz 89 MHz 146 MHz
XR-B6N4-1404D 		Request Quote
XM-B6N5-1404C
1404A
 		BPF-A1140+
$463.00 Mini-Circuits Lumped Element 1140 MHz 710 MHz 1.21 dB 736 MHz 1542 MHz N/A N/A
XR-B6N5-1404C 		Request Quote
XM-B6N5-1404D
0665_WEB
 		BPF-A1140+
$230.00 Mini-Circuits Lumped Element 1140 MHz 710 MHz 1.21 dB 736 MHz 1542 MHz 703 MHz 1586 MHz
XR-B6N5-1404D 		Request Quote
XM-B6N6-1404C
1404A
 		BPF-A120+
$477.00 Mini-Circuits Lumped Element 120 MHz 70 MHz 0.98 dB 84 MHz 170 MHz N/A N/A
XR-B6N6-1404C 		Request Quote
XM-B6N6-1404D
0665_WEB
 		BPF-A120+
$244.00 Mini-Circuits Lumped Element 120 MHz 70 MHz 0.98 dB 84 MHz 170 MHz 78 MHz 180 MHz
XR-B6N6-1404D 		Request Quote
XM-B6N7-1404C
1404A
 		BPF-A122+
$478.00 Mini-Circuits Lumped Element 122 MHz 6 MHz 3.33 dB 113 MHz 132 MHz N/A N/A
XR-B6N7-1404C 		Request Quote
XM-B6N7-1404D
0665_WEB
 		BPF-A122+
$244.00 Mini-Circuits Lumped Element 122 MHz 6 MHz 3.33 dB 113 MHz 132 MHz 108 MHz 134 MHz
XR-B6N7-1404D 		Request Quote
XM-B6N8-1404C
1404A
 		BPF-A127+
$450.00 Mini-Circuits Lumped Element 127 MHz 29 MHz 2.32 dB 105 MHz 150 MHz N/A N/A
XR-B6N8-1404C 		Request Quote
XM-B6N8-1404D
0665_WEB
 		BPF-A127+
$220.00 Mini-Circuits Lumped Element 127 MHz 29 MHz 2.32 dB 105 MHz 150 MHz 100 MHz 164 MHz
XR-B6N8-1404D 		Request Quote
XM-B6N9-1404C
1404A
 		BPF-A1340+
$477.00 Mini-Circuits Lumped Element 1340 MHz 1200 MHz 1.09 dB 800 MHz 2200 MHz 785 MHz 2400 MHz
XR-B6N9-1404C 		Request Quote
XM-B6N9-1404D
0665_WEB
 		BPF-A1340+
$244.00 Mini-Circuits Lumped Element 1340 MHz 1200 MHz 1.09 dB 800 MHz 2200 MHz 785 MHz 2400 MHz
XR-B6N9-1404D 		Request Quote
XM-B6P2-1404C
1404A
 		BPF-A1600+
$477.00 Mini-Circuits Lumped Element 1600 MHz 517 MHz 1.6 dB 1260 MHz 1920 MHz N/A N/A
XR-B6P2-1404C 		Request Quote
XM-B6P2-1404D
0665_WEB
 		BPF-A1600+
$244.00 Mini-Circuits Lumped Element 1600 MHz 517 MHz 1.6 dB 1260 MHz 1920 MHz 1260 MHz 2000 MHz
XR-B6P2-1404D 		Request Quote
XM-B6P6-1404C
1404A
 		BPF-A332+
$462.00 Mini-Circuits Lumped Element 332 MHz 29 MHz 3.46 dB 311 MHz 355 MHz 297 MHz 373 MHz
XR-B6P6-1404C 		Request Quote
XM-B6P6-1404D
0665_WEB
 		BPF-A332+
$230.00 Mini-Circuits Lumped Element 332 MHz 29 MHz 3.46 dB 311 MHz 355 MHz 297 MHz 373 MHz
XR-B6P6-1404D 		Request Quote
XM-B6P7-1404C
1404A
 		BPF-A355+
$454.00 Mini-Circuits Lumped Element 355 MHz 146 MHz 1.08 dB 249 MHz 437 MHz N/A N/A
XR-B6P7-1404C 		Request Quote
XM-B6P7-1404D
0665_WEB
 		BPF-A355+
$220.00 Mini-Circuits Lumped Element 355 MHz 146 MHz 1.08 dB 249 MHz 437 MHz 220 MHz 456 MHz
XR-B6P7-1404D 		Request Quote
XM-B6P8-1404C
1404A
 		BPF-A400+
$454.00 Mini-Circuits Lumped Element 400 MHz 58 MHz 2.63 dB 354 MHz 455 MHz 331 MHz 515 MHz
XR-B6P8-1404C 		Request Quote
XM-B6P8-1404D
0665_WEB
 		BPF-A400+
$220.00 Mini-Circuits Lumped Element 400 MHz 58 MHz 2.63 dB 354 MHz 455 MHz 331 MHz 515 MHz
XR-B6P8-1404D 		Request Quote
XM-B6P9-1404C
1404A
 		BPF-A410+
$455.00 Mini-Circuits Lumped Element 410 MHz 140 MHz 2.3 dB 324 MHz 500 MHz 295 MHz 519 MHz
XR-B6P9-1404C 		Request Quote
XM-B6P9-1404D
0665_WEB
 		BPF-A410+
$228.00 Mini-Circuits Lumped Element 410 MHz 140 MHz 2.3 dB 324 MHz 500 MHz 295 MHz 519 MHz
XR-B6P9-1404D 		Request Quote
XM-B6R1-1404C
1404A
 		BPF-A490+
$456.00 Mini-Circuits Lumped Element 490 MHz 286 MHz 0.71 dB 296 MHz 665 MHz 260 MHz 703 MHz
XR-B6R1-1404C 		Request Quote
XM-B6R1-1404D
0665_WEB
 		BPF-A490+
$220.00 Mini-Circuits Lumped Element 490 MHz 286 MHz 0.71 dB 296 MHz 665 MHz 260 MHz 703 MHz
XR-B6R1-1404D 		Request Quote
XM-B6R2-1404C
1404A
 		BPF-A580+
$450.00 Mini-Circuits Lumped Element 580 MHz 175 MHz 2.01 dB 449 MHz 705 MHz 412 MHz 733 MHz
XR-B6R2-1404C 		Request Quote
XM-B6R2-1404D
0665_WEB
 		BPF-A580+
$220.00 Mini-Circuits Lumped Element 580 MHz 175 MHz 2.01 dB 449 MHz 705 MHz 412 MHz 733 MHz
XR-B6R2-1404D 		Request Quote
XM-B6R3-1404C
1404A
 		BPF-A60+
$478.00 Mini-Circuits Lumped Element 60 MHz 13 MHz 2.15 dB 52 MHz 71 MHz N/A N/A
XR-B6R3-1404C 		Request Quote
XM-B6R3-1404D
0665_WEB
 		BPF-A60+
$244.00 Mini-Circuits Lumped Element 60 MHz 13 MHz 2.15 dB 52 MHz 71 MHz 50 MHz 78 MHz
XR-B6R3-1404D 		Request Quote
XM-B6R4-1404C
1404A
 		BPF-A600+
$450.00 Mini-Circuits Lumped Element 600 MHz 275 MHz 0.78 dB 400 MHz 375 MHz N/A N/A
XR-B6R4-1404C 		Request Quote
XM-B6R4-1404D
0665_WEB
 		BPF-A600+
$220.00 Mini-Circuits Lumped Element 600 MHz 275 MHz 0.78 dB 400 MHz 375 MHz 257 MHz 770 MHz
XR-B6R4-1404D 		Request Quote
XM-B6R5-1404C
1404A
 		BPF-A69+
$450.00 Mini-Circuits Lumped Element 69 MHz 39 MHz 1.23 dB 42 MHz 96 MHz 34 MHz 101 MHz
XR-B6R5-1404C 		Request Quote
XM-B6R5-1404D
0665_WEB
 		BPF-A69+
$220.00 Mini-Circuits Lumped Element 69 MHz 39 MHz 1.23 dB 42 MHz 96 MHz 34 MHz 101 MHz
XR-B6R5-1404D 		Request Quote
XM-B6R6-1404C
1404A
 		BPF-A730+
$450.00 Mini-Circuits Lumped Element 730 MHz 150 MHz 2.41 dB 617 MHz 582 MHz 856 MHz 964 MHz
XR-B6R6-1404C 		Request Quote
XM-B6R6-1404D
0665_WEB
 		BPF-A730+
$220.00 Mini-Circuits Lumped Element 730 MHz 150 MHz 2.41 dB 617 MHz 582 MHz 856 MHz 964 MHz
XR-B6R6-1404D 		Request Quote
XM-B6R7-1404C
1404A
 		BPF-A75+
$450.00 Mini-Circuits Lumped Element 75 MHz 13 MHz 3.63 dB 66 MHz 85 MHz 63 MHz 91 MHz
XR-B6R7-1404C 		Request Quote
XM-B6R7-1404D
0665_WEB
 		BPF-A75+
$220.00 Mini-Circuits Lumped Element 75 MHz 13 MHz 3.63 dB 66 MHz 85 MHz 63 MHz 91 MHz
XR-B6R7-1404D 		Request Quote
XM-B6R8-1404C
1404A
 		BPF-A76+
$456.00 Mini-Circuits Lumped Element 76 MHz 12 MHz 2.63 dB 67 MHz 85 MHz 64 MHz 90 MHz
XR-B6R8-1404C 		Request Quote
XM-B6R8-1404D
0665_WEB
 		BPF-A76+
$220.00 Mini-Circuits Lumped Element 76 MHz 12 MHz 2.63 dB 67 MHz 85 MHz 64 MHz 90 MHz
XR-B6R8-1404D 		Request Quote
XM-B6R9-1404C
1404A
 		BPF-A800+
$450.00 Mini-Circuits Lumped Element 800 MHz 50 MHz 3.1 dB 717 MHz 856 MHz 683 MHz 940 MHz
XR-B6R9-1404C 		Request Quote
XM-B6R9-1404D
0665_WEB
 		BPF-A800+
$220.00 Mini-Circuits Lumped Element 800 MHz 50 MHz 3.1 dB 717 MHz 856 MHz 683 MHz 940 MHz
XR-B6R9-1404D 		Request Quote
XM-B6T1-1404C
1404A
 		BPF-A950+
$450.00 Mini-Circuits Lumped Element 950 MHz 600 MHz 0.83 dB 636 MHz 1269 MHz 605 MHz 1300 MHz
XR-B6T1-1404C 		Request Quote
XM-B6T1-1404D
0665_WEB
 		BPF-A950+
$220.00 Mini-Circuits Lumped Element 950 MHz 600 MHz 0.83 dB 636 MHz 1269 MHz 605 MHz 1300 MHz
XR-B6T1-1404D 		Request Quote
XM-B6T3-1004C
1004A
 		BPF-B140N+
$401.00 Mini-Circuits Lumped Element 140 MHz 12 MHz 4.25 dB 130 MHz 150 MHz 123 MHz 159 MHz
XR-B6T3-1004C 		Request Quote
XM-B6T3-1004D
0666_WEB
 		BPF-B140N+
$156.00 Mini-Circuits Lumped Element 140 MHz 12 MHz 4.25 dB 130 MHz 150 MHz 123 MHz 159 MHz
XR-B6T3-1004D 		Request Quote
XM-B6T4-1004C
1004A
 		BPF-B140W+
$401.00 Mini-Circuits Lumped Element 140 MHz 22 MHz 2.07 dB 122 MHz 160 MHz 111 MHz 177 MHz
XR-B6T4-1004C 		Request Quote
XM-B6T4-1004D
0666_WEB
 		BPF-B140W+
$156.00 Mini-Circuits Lumped Element 140 MHz 22 MHz 2.07 dB 122 MHz 160 MHz 111 MHz 177 MHz
XR-B6T4-1004D 		Request Quote
XM-B6T5-1004C
1004A
 		BPF-B157+
$384.00 Mini-Circuits Lumped Element 157 MHz 24 MHz 2.27 dB 135 MHz 179 MHz 123 MHz 200 MHz
XR-B6T5-1004C 		Request Quote
XM-B6T5-1004D
0666_WEB
 		BPF-B157+
$150.00 Mini-Circuits Lumped Element 157 MHz 24 MHz 2.27 dB 135 MHz 179 MHz 123 MHz 200 MHz
XR-B6T5-1004D 		Request Quote
XM-B6T6-1004C
1004A
 		BPF-B177+
$384.00 Mini-Circuits Lumped Element 177 MHz 28 MHz 2.29 dB 155 MHz 202 MHz 141 MHz 224 MHz
XR-B6T6-1004C 		Request Quote
XM-B6T6-1004D
0666_WEB
 		BPF-B177+
$150.00 Mini-Circuits Lumped Element 177 MHz 28 MHz 2.29 dB 155 MHz 202 MHz 141 MHz 224 MHz
XR-B6T6-1004D 		Request Quote
XM-B6T7-1004C
1004A
 		BPF-B190+
$384.00 Mini-Circuits Lumped Element 190 MHz 18 MHz 3.5 dB 175 MHz 206 MHz 164 MHz 220 MHz
XR-B6T7-1004C 		Request Quote
XM-B6T7-1004D
0666_WEB
 		BPF-B190+
$150.00 Mini-Circuits Lumped Element 190 MHz 18 MHz 3.5 dB 175 MHz 206 MHz 164 MHz 220 MHz
XR-B6T7-1004D 		Request Quote
XM-B6T8-1004C
1004A
 		BPF-B199+
$401.00 Mini-Circuits Lumped Element 199 MHz 19 MHz 3.11 dB 183 MHz 216 MHz N/A N/A
XR-B6T8-1004C 		Request Quote
XM-B6T8-1004D
0666_WEB
 		BPF-B199+
$156.00 Mini-Circuits Lumped Element 199 MHz 19 MHz 3.11 dB 183 MHz 216 MHz 173 MHz 230 MHz
XR-B6T8-1004D 		Request Quote
XM-B6T9-1004C
1004A
 		BPF-B48+
$444.00 Mini-Circuits Lumped Element 48 MHz 6 MHz 2.3 dB 42 MHz 54 MHz 38 MHz 61 MHz
XR-B6T9-1004C 		Request Quote
