| XM Part Number | Image | Spec Sheet |
Buy Direct (Intl. add 15%) |
Feature Mfr | Type | PKG | LO Level | LO Low Freq | LO High Freq | RF Low Freq | RF High Freq | IF Low FreqMixer | IF High Freq | Conv Loss | RoHS | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XM-A3V2-0604C |
 0604D |
MAMXES0117 |
$264.00 | Macom | N/A | SMT | 17 dBm | 80 MHz | 2500 MHz | 80 MHz | 2500 MHz | 0 MHz | 1000 MHz | 6.5 dB |
XR-A3V2-0604C |
Request Quote |
| XM-A3V2-0604D |
 0411_WEB |
MAMXES0117 |
$88.00 | Macom | N/A | SMT | 17 dBm | 80 MHz | 2500 MHz | 80 MHz | 2500 MHz | 0 MHz | 1000 MHz | 6.5 dB |
XR-A3V2-0604D |
Request Quote |
| XM-A4A4-0404C |
 0404D |
MAMX-011009 |
$371.00 | Macom | Sub Harmonic | SMT | 15 dBm | 14000 MHz | 32000 MHz | 14000 MHz | 32000 MHz | 0 MHz | 7000 MHz | 11 dB |
XR-A4A4-0404C |
Request Quote |
| XM-A4A4-0404D |
 0406_WEB |
MAMX-011009 |
$159.00 | Macom | Sub Harmonic | SMT | 15 dBm | 4000 MHz | 20000 MHz | 14000 MHz | 32000 MHz | 0 MHz | 7000 MHz | 11 dB |
XR-A4A4-0404D |
Request Quote |
| XM-A4A5-0404C |
 0404C |
MAMX-011021 |
$450.00 | Macom | High Linearity | SMT | 14 dBm | 3000 MHz | 35000 MHz | 5000 MHz | 33000 MHz | 0 MHz | 4500 MHz | 8 dB |
XR-A4A5-0404C |
Request Quote |
| XM-A4A5-0404D |
 0405_WEB |
MAMX-011021 |
$236.00 | Macom | High Linearity | SMT | 14 dBm | 3000 MHz | 33000 MHz | 5000 MHz | 35000 MHz | 0 MHz | 4500 MHz | 8 dB |
XR-A4A5-0404D |
Request Quote |
| XM-A4A8-0404C |
0404C |
MA4EX240L1-1225T |
QUOTE | Macom | Double Balance | SMT | 5 dBm | 1700 MHz | 2500 MHz | 1700 MHz | 2500 MHz | 0 MHz | 400 MHz | 7 dB |
XR-A4A8-0404C |
Request Quote |
| XM-A4A8-0404D |
 0401_WEB |
MA4EX240L1-1225T |
QUOTE | Macom | Double Balance | SMT | 5 dBm | 1700 MHz | 2500 MHz | 1700 MHz | 2500 MHz | 0 MHz | 400 MHz | 7 dB |
XR-A4A8-0404D |
Request Quote |
| XM-A4A9-0404C |
0404C |
MA4EX580L1-1225T |
QUOTE | Macom | Double Balance | SMT | 5 dBm | 4700 MHz | 6000 MHz | 4700 MHz | 6000 MHz | 0 MHz | 1050 MHz | 8 dB |
XR-A4A9-0404C |
Request Quote |
| XM-A4A9-0404D |
 0398_WEB |
MA4EX580L1-1225T |
QUOTE | Macom | Double Balance | SMT | 5 dBm | 4700 MHz | 6000 MHz | 4700 MHz | 6000 MHz | 0 MHz | 1050 MHz | 8 dB |
XR-A4A9-0404D |
Request Quote |
| XM-A4B1-0404C |
0404C |
MA4EX600L1-1225T |
QUOTE | Macom | Double Balance | SMT | 5 dBm | 4200 MHz | 6000 MHz | 4200 MHz | 6000 MHz | 4200 MHz | 6000 MHz | 6.8 dB |
XR-A4B1-0404C |
Request Quote |
| XM-A4B1-0404D |
0398_WEB |
MA4EX600L1-1225T |
QUOTE | Macom | Double Balance | SMT | 5 dBm | 4200 MHz | 6000 MHz | 4200 MHz | 6000 MHz | 4200 MHz | 6000 MHz | 6.8 dB |
XR-A4B1-0404D |
Request Quote |
| XM-A4B2-0404C |
0404C |
MA4EX950H1-1225T |
QUOTE | Macom | Double Balance | SMT | 15 dBm | 700 MHz | 1200 MHz | 700 MHz | 1200 MHz | 0 MHz | 400 MHz | 7 dB |
XR-A4B2-0404C |
Request Quote |
| XM-A4B2-0404D |
0398_WEB |
MA4EX950H1-1225T |
QUOTE | Macom | Double Balance | SMT | 15 dBm | 700 MHz | 1200 MHz | 700 MHz | 1200 MHz | 0 MHz | 400 MHz | 7 dB |
XR-A4B2-0404D |
Request Quote |
| XM-A4B3-0404C |
0404C |
MA4EX950L1-1225T |
QUOTE | Macom | Double Balance | SMT | 5 dBm | 700 MHz | 1200 MHz | 700 MHz | 1200 MHz | 0 MHz | 400 MHz | 7 dB |
XR-A4B3-0404C |
Request Quote |
| XM-A4B3-0404D |
0398_WEB |
MA4EX950L1-1225T |
QUOTE | Macom | Double Balance | SMT | 5 dBm | 700 MHz | 1200 MHz | 700 MHz | 1200 MHz | 0 MHz | 400 MHz | 7 dB |
XR-A4B3-0404D |
Request Quote |
| XM-A4B5-0404C |
0404C |
MAMXSS0012 |
$331.00 | Macom | N/A | SMT | 5 dBm | 800 MHz | 1000 MHz | 800 MHz | 1000 MHz | 0 MHz | 200 MHz | 8 dB |
XR-A4B5-0404C |
Request Quote |
| XM-A4B5-0404D |
 0402_WEB |
MAMXSS0012 |
$112.00 | Macom | N/A | SMT | 5 dBm | 800 MHz | 1000 MHz | 800 MHz | 1000 MHz | 0 MHz | 200 MHz | 8 dB |
XR-A4B5-0404D |
Request Quote |
| XM-A4B6-0404C |
0404C |
MAMXSS0013 |
$332.00 | Macom | N/A | SMT | 5 dBm | 1400 MHz | 2100 MHz | 1400 MHz | 2100 MHz | 0 MHz | 500 MHz | 8 dB |
XR-A4B6-0404C |
Request Quote |
| XM-A4B6-0404D |
0402_WEB |
MAMXSS0013 |
$113.00 | Macom | N/A | SMT | 5 dBm | 1400 MHz | 2100 MHz | 1400 MHz | 2100 MHz | 0 MHz | 500 MHz | 8 dB |
XR-A4B6-0404D |
Request Quote |
| XM-A4B7-0904C |
 0904A |
SM4TH |
$917.00 | Macom | N/A | SMT | 23 dBm | 1 MHz | 3400 MHz | 1 MHz | 3400 MHz | 1 MHz | 2000 MHz | 8 dB |
XR-A4B7-0904C |
Request Quote |
| XM-A4B7-0904D |
 0394_WEB |
SM4TH |
$617.00 | Macom | N/A | SMT | 23 dBm | 1 MHz | 3400 MHz | 1 MHz | 3400 MHz | 1 MHz | 2000 MHz | 8 dB |
XR-A4B7-0904D |
Request Quote |
| XM-A4B8-0904C |
0904A |
SM5TH |
$1,081.00 | Macom | N/A | SMT | 23 dBm | 50 MHz | 5000 MHz | 50 MHz | 5000 MHz | 50 MHz | 3000 MHz | 8 dB |
XR-A4B8-0904C |
Request Quote |
| XM-A4B8-0904D |
0394_WEB |
SM5TH |
$873.00 | Macom | N/A | SMT | 23 dBm | 50 MHz | 5000 MHz | 50 MHz | 5000 MHz | 50 MHz | 3000 MHz | 8 dB |
XR-A4B8-0904D |
Request Quote |
| XM-A4B9-0904C |
0904A |
SM6EH |
$861.00 | Macom | N/A | SMT | 20 dBm | 5 MHz | 750 MHz | 5 MHz | 750 MHz | 1 MHz | 500 MHz | 6 dB | Request Quote | |
| XM-A4B9-0904D |
0394_WEB |
SM6EH |
$617.00 | Macom | N/A | SMT | 20 dBm | 5 MHz | 750 MHz | 5 MHz | 750 MHz | 1 MHz | 500 MHz | 6 dB | Request Quote | |
| XM-A4C1-0904C |
0904A |
SM2E |
$1,818.00 | Macom | N/A | SMT | 20 dBm | 10 MHz | 1000 MHz | 10 MHz | 1000 MHz | 0 MHz | 600 MHz | 8 dB | Request Quote | |
| XM-A4C1-0904D |
0394_WEB |
SM2E |
$1,723.00 | Macom | N/A | SMT | 20 dBm | 10 MHz | 1000 MHz | 10 MHz | 1000 MHz | 0 MHz | 600 MHz | 8 dB | Request Quote | |
| XM-A6R1-0404C |
0404D |
MAMX-011021 |
$350.00 | Macom | High Linearity | SMT | 14 dBm | 3000 MHz | 35000 MHz | 5000 MHz | 33000 MHz | 0 MHz | 4500 MHz | 8 dB |
XR-A6R1-0404C |
Request Quote |
| XM-A6R1-0404D |

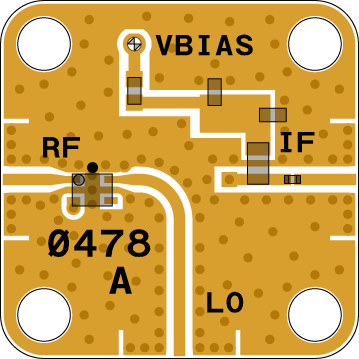

 0478_WEB |
MAMX-011021 |
$134.00 | Macom | High Linearity | SMT | 14 dBm | 3000 MHz | 35000 MHz | 5000 MHz | 33000 MHz | 0 MHz | 4500 MHz | 8 dB |
XR-A6R1-0404D |
Request Quote |
| XM-B191-0404D |

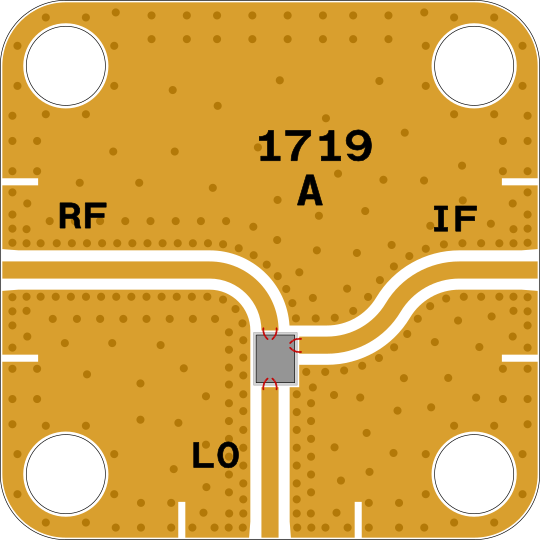

 1719_WEB |
MAMX-011036-DIE |
QUOTE | Macom | Double Balance | DIE | 15 dBm | 8000 MHz | 43000 MHz | 8000 MHz | 43000 MHz | 0 MHz | 10000 MHz | 8 dB |
XR-B191-0404D |
Request Quote |
| XM-B192-0404D |

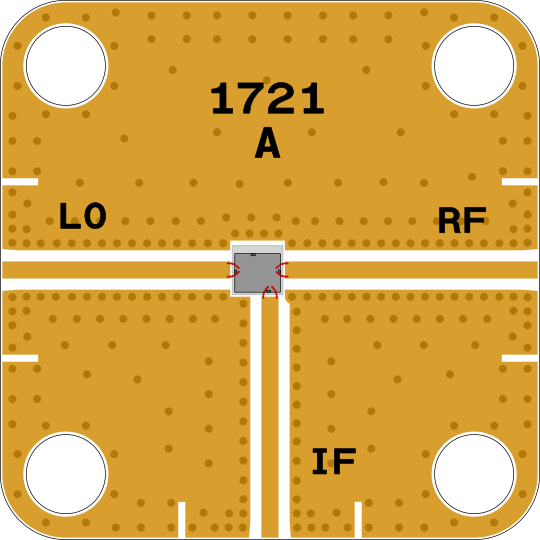

 1721_WEB |
MAMX-011037-DIE |
QUOTE | Macom | N/A | DIE | 15 dBm | 18000 MHz | 46000 MHz | 18000 MHz | 46000 MHz | 0 MHz | 20000 MHz | 6.5 dB |
XR-B192-0404D |
Request Quote |
| XM-B193-0404D |

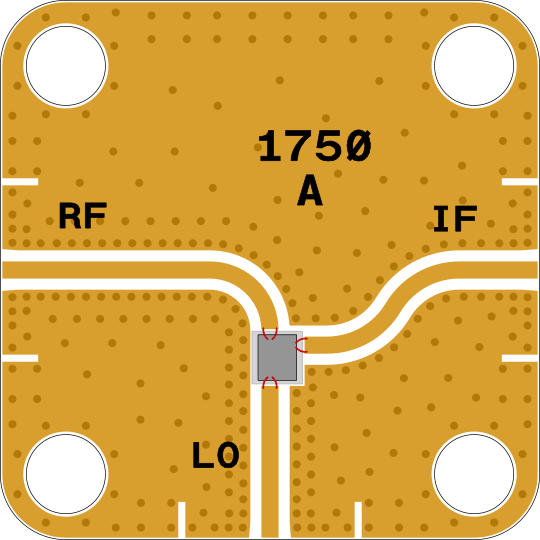

 1750_WEB |
MAMX-011037-DIE |
QUOTE | Macom | Double Balance | DIE | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
XR-B193-0404D |
Request Quote |
| XM-B6M4-0404C |
0404D |
MAMX-011036 |
$504.00 | Macom | Double Balance | SMT | 15 dBm | 8000 MHz | 43000 MHz | 8000 MHz | 43000 MHz | 0 MHz | 10000 MHz | 8.5 dB |
XR-B6M4-0404C |
Request Quote |
| XM-B6M4-0404D |
 0472_WEB |
MAMX-011036 |
$324.00 | Macom | Double Balance | SMT | 15 dBm | 8000 MHz | 43000 MHz | 8000 MHz | 43000 MHz | 0 MHz | 10000 MHz | 8.5 dB |
XR-B6M4-0404D |
Request Quote |
| XM-B6M8-0404C |
0404C |
MAMX-011036 |
$504.00 | Macom | Double Balance | SMT | 15 dBm | 8000 MHz | 43000 MHz | 8000 MHz | 43000 MHz | 0 MHz | 10000 MHz | 8.5 dB |
XR-B6M8-0404C |
Request Quote |
| XM-B6M8-0404D |
 0505_WEB |
MAMX-011036 |
$324.00 | Macom | Double Balance | SMT | 15 dBm | 8000 MHz | 43000 MHz | 8000 MHz | 43000 MHz | 0 MHz | 10000 MHz | 8.5 dB |
XR-B6M8-0404D |
Request Quote |
| XM-B9E2-0404D |
0472_WEB |
MAMX-011035 |
$205.00 | Macom | Double Balance | SMT | 15 dBm | 5500 MHz | 19000 MHz | 5500 MHz | 19000 MHz | 0 MHz | 6000 MHz | 6 dB |
XR-B9E2-0404D |
Request Quote |
| XM-B9E3-0404D |
0505_WEB |
MAMX-011035 |
$205.00 | Macom | Double Balance | SMT | 15 dBm | 5500 MHz | 19000 MHz | 5500 MHz | 19000 MHz | 0 MHz | 6000 MHz | 6 dB |
XR-B9E3-0404D |
Request Quote |
| XM-B9E4-0404D |
0472_WEB |
MAMX-011054 |
$283.00 | Macom | Double Balance | SMT | 15 dBm | 18000 MHz | 45000 MHz | 18000 MHz | 45000 MHz | 0 MHz | 20000 MHz | 6.5 dB |
XR-B9E4-0404D |
Request Quote |
| XM-B9E5-0404D |
0505_WEB |
MAMX-011054 |
$283.00 | Macom | Double Balance | SMT | 15 dBm | 18000 MHz | 45000 MHz | 18000 MHz | 45000 MHz | 0 MHz | 20000 MHz | 6.5 dB |
XR-B9E5-0404D |
Request Quote |
| XM-C7C8-0409D |

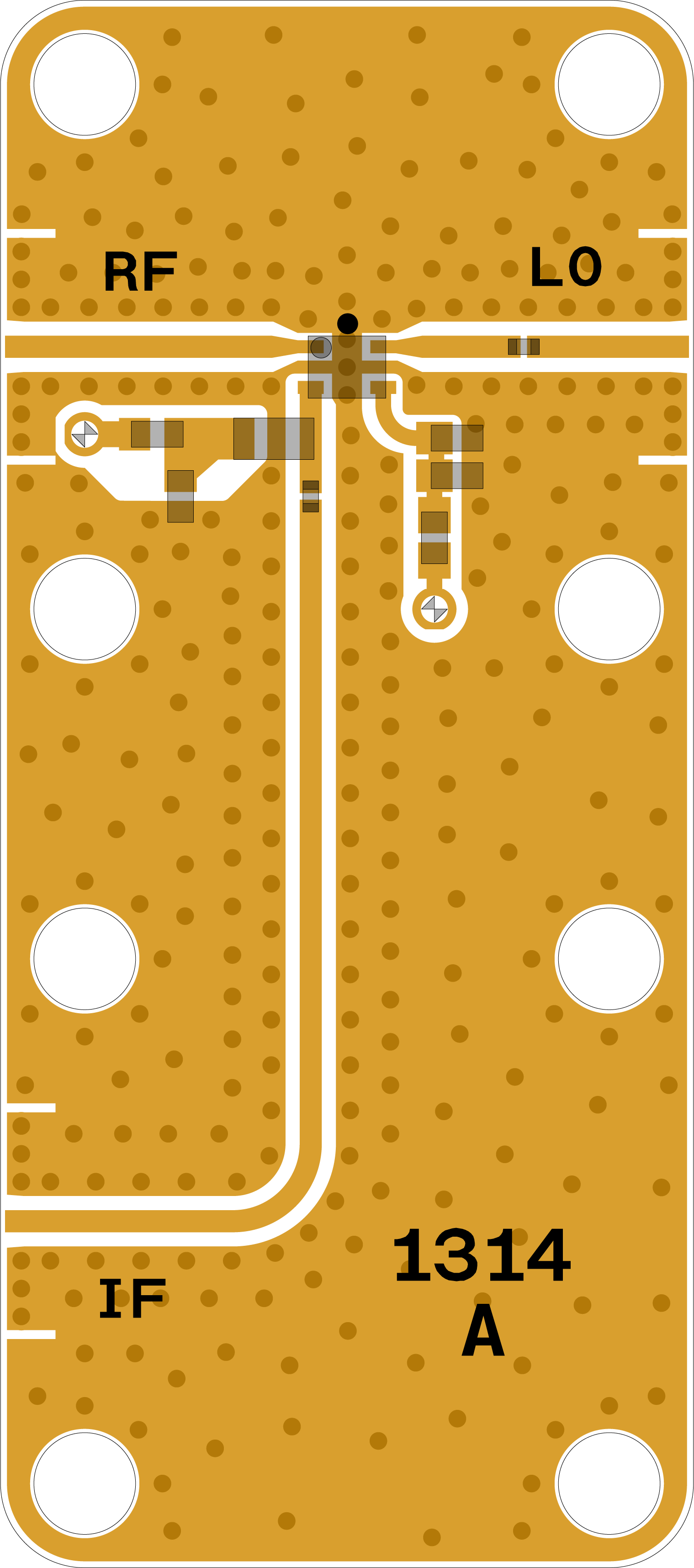

 1314_WEB |
MAMX-011009 |
$231.00 | Macom | Sub Harmonic | SMT | 15 dBm | 14000 MHz | 32000 MHz | 14000 MHz | 32000 MHz | 0 MHz | 7000 MHz | 11 dB |
XR-C7C8-0409D |
Request Quote |
