XM Part Number Image Spec Sheet Buy Direct
(Intl. add 15%) 		Feature Mfr Type XM Part Number CF 3 dB BW IL 20 dB Rej Low Side 20 dB Rej High Side 40 dB Rej Low Side 40 dB Rej High Side RoHS S-Parameter Plot Request Quote
XM-A162-0204C
0204A
 		BFCN-1525+
$264.00 Mini-Circuits LTCC XM-A162-0204C 1525 MHz 320 MHz 2.18 dB 1290 MHz 2230 MHz N/A N/A
XR-A162-0204C 		Request Quote
XM-A162-0204D
0030
 		BFCN-1525+
$73.00 Mini-Circuits LTCC XM-A162-0204D 1525 MHz 320 MHz 2.18 dB 1290 MHz 2230 MHz 1122 MHz 3230 MHz
XR-A162-0204D 		Request Quote
XM-A163-0204C
0204A
 		BFCN-1840+
$250.00 Mini-Circuits LTCC XM-A163-0204C 1840 MHz 500 MHz 1.79 dB 1493 MHz 2950 MHz 1360 MHz 4130 MHz
XR-A163-0204C 		Request Quote
XM-A163-0204D
0030
 		BFCN-1840+
$70.00 Mini-Circuits LTCC XM-A163-0204D 1840 MHz 500 MHz 1.79 dB 1493 MHz 2950 MHz 1360 MHz 4130 MHz
XR-A163-0204D 		Request Quote
XM-A164-0204C
0204A
 		BFCN-1945+
$264.00 Mini-Circuits LTCC XM-A164-0204C 1945 MHz 450 MHz 1.7 dB 1560 MHz 3012 MHz N/A N/A
XR-A164-0204C 		Request Quote
XM-A164-0204D
0030
 		BFCN-1945+
$73.00 Mini-Circuits LTCC XM-A164-0204D 1945 MHz 450 MHz 1.7 dB 1560 MHz 3012 MHz 1425 MHz 4171 MHz
XR-A164-0204D 		Request Quote
XM-A165-0204C
0204A
 		BFCN-2275+
$264.00 Mini-Circuits LTCC XM-A165-0204C 2275 MHz 530 MHz 1.56 dB 1770 MHz 3555 MHz N/A N/A
XR-A165-0204C 		Request Quote
XM-A165-0204D
0030
 		BFCN-2275+
$73.00 Mini-Circuits LTCC XM-A165-0204D 2275 MHz 530 MHz 1.56 dB 1770 MHz 3555 MHz 1575 MHz 4700 MHz
XR-A165-0204D 		Request Quote
XM-A166-0204C
0204A
 		BFCN-2555+
$251.00 Mini-Circuits LTCC XM-A166-0204C 2555 MHz 511 MHz 3.73 dB 2170 MHz 2960 MHz N/A N/A
XR-A166-0204C 		Request Quote
XM-A166-0204D
0027_WEB
 		BFCN-2555+
$69.00 Mini-Circuits LTCC XM-A166-0204D 2555 MHz 511 MHz 3.73 dB 2170 MHz 2960 MHz 1820 MHz 3600 MHz
XR-A166-0204D 		Request Quote
XM-A167-0204C
0204A
 		BFCN-2700+
$264.00 Mini-Circuits LTCC XM-A167-0204C 2700 MHz 490 MHz 1.95 dB 2306 MHz 3080 MHz N/A N/A
XR-A167-0204C 		Request Quote
XM-A167-0204D
0030
 		BFCN-2700+
$73.00 Mini-Circuits LTCC XM-A167-0204D 2700 MHz 490 MHz 1.95 dB 2306 MHz 3080 MHz 603 MHz N/A
XR-A167-0204D 		Request Quote
XM-A168-0204C
0204A
 		BFCN-2850+
$250.00 Mini-Circuits LTCC XM-A168-0204C 2850 MHz 600 MHz 1.81 dB 2460 MHz 3300 MHz N/A N/A
XR-A168-0204C 		Request Quote
XM-A168-0204D
0030
 		BFCN-2850+
$70.00 Mini-Circuits LTCC XM-A168-0204D 2850 MHz 600 MHz 1.81 dB 2460 MHz 3300 MHz 620 MHz N/A
XR-A168-0204D 		Request Quote
XM-A169-0204C
0204A
 		BFCN-2900+
$263.00 Mini-Circuits LTCC XM-A169-0204C 2900 MHz 1000 MHz 1.65 dB 1960 MHz 3800 MHz 1580 MHz 5015 MHz
XR-A169-0204C 		Request Quote
XM-A169-0204D
0027_WEB
 		BFCN-2900+
$72.00 Mini-Circuits LTCC XM-A169-0204D 2900 MHz 1000 MHz 1.65 dB 1960 MHz 3800 MHz 1580 MHz 5015 MHz
XR-A169-0204D 		Request Quote
XM-A171-0204C
0204A
 		BFCN-3010+
$264.00 Mini-Circuits LTCC XM-A171-0204C 3010 MHz 500 MHz 2.56 dB 2650 MHz 2370 MHz N/A N/A
XR-A171-0204C 		Request Quote
XM-A171-0204D
0030
 		BFCN-3010+
$73.00 Mini-Circuits LTCC XM-A171-0204D 3010 MHz 500 MHz 2.56 dB 2650 MHz 2370 MHz 700 MHz N/A
XR-A171-0204D 		Request Quote
XM-A172-0204C
0204A
 		BFCN-3600+
$264.00 Mini-Circuits LTCC XM-A172-0204C 3600 MHz 1630 MHz 1.3 dB 1930 MHz 4950 MHz N/A N/A
XR-A172-0204C 		Request Quote
XM-A172-0204D
0030
 		BFCN-3600+
$73.00 Mini-Circuits LTCC XM-A172-0204D 3600 MHz 1630 MHz 1.3 dB 1930 MHz 4950 MHz 1100 MHz 5580 MHz
XR-A172-0204D 		Request Quote
XM-A173-0204C
0204A
 		BFCN-4100+
$264.00 Mini-Circuits LTCC XM-A173-0204C 4100 MHz 1630 MHz 0.96 dB 2400 MHz 5725 MHz N/A N/A
XR-A173-0204C 		Request Quote
XM-A173-0204D
0030
 		BFCN-4100+
$73.00 Mini-Circuits LTCC XM-A173-0204D 4100 MHz 1630 MHz 0.96 dB 2400 MHz 5725 MHz 1350 MHz 13100 MHz
XR-A173-0204D 		Request Quote
XM-A174-0204C
0204A
 		BFCN-4440+
$264.00 Mini-Circuits LTCC XM-A174-0204C 4440 MHz 2000 MHz 0.9 dB 2200 MHz 6300 MHz N/A N/A
XR-A174-0204C 		Request Quote
XM-A174-0204D
0030
 		BFCN-4440+
$73.00 Mini-Circuits LTCC XM-A174-0204D 4440 MHz 2000 MHz 0.9 dB 2200 MHz 6300 MHz 1200 MHz N/A
XR-A174-0204D 		Request Quote
XM-A175-0204C
0204A
 		BFCN-7200+
$251.00 Mini-Circuits LTCC XM-A175-0204C 7200 MHz 860 MHz 1.83 dB 6520 MHz 8400 MHz N/A N/A
XR-A175-0204C 		Request Quote
XM-A175-0204D
1908_WEB
 		BFCN-7200+
$69.00 Mini-Circuits LTCC XM-A175-0204D 7200 MHz 860 MHz 1.83 dB 6520 MHz 8400 MHz 116 MHz N/A
XR-A175-0204D 		Request Quote
XM-A176-0204C
0204A
 		BFCN-7500+
$251.00 Mini-Circuits LTCC XM-A176-0204C 7500 MHz 1150 MHz 1.53 dB 6640 MHz 8890 MHz N/A N/A
XR-A176-0204C 		Request Quote
XM-A176-0204D
1908_WEB
 		BFCN-7500+
$69.00 Mini-Circuits LTCC XM-A176-0204D 7500 MHz 1150 MHz 1.53 dB 6640 MHz 8890 MHz 220 MHz N/A
XR-A176-0204D 		Request Quote
XM-A177-0204C
0204A
 		BFCN-7700+
$263.00 Mini-Circuits LTCC XM-A177-0204C 7700 MHz 1250 MHz 1.7 dB 6730 MHz 9110 MHz N/A N/A
XR-A177-0204C 		Request Quote
XM-A177-0204D
1908_WEB
 		BFCN-7700+
$72.00 Mini-Circuits LTCC XM-A177-0204D 7700 MHz 1250 MHz 1.7 dB 6730 MHz 9110 MHz 6590 MHz N/A
XR-A177-0204D 		Request Quote
XM-A178-0204C
0204A
 		BFCN-8000+
$263.00 Mini-Circuits LTCC XM-A178-0204C 8000 MHz 1000 MHz 1.6 dB 7140 MHz 9350 MHz N/A N/A
XR-A178-0204C 		Request Quote
XM-A178-0204D
1908_WEB
 		BFCN-8000+
$72.00 Mini-Circuits LTCC XM-A178-0204D 8000 MHz 1000 MHz 1.6 dB 7140 MHz 9350 MHz N/A N/A
XR-A178-0204D 		Request Quote
XM-A179-0204C
0204A
 		BFCN-8450+
$250.00 Mini-Circuits LTCC XM-A179-0204C 8450 MHz 1100 MHz 1.54 dB 7480 MHz 9885 MHz N/A N/A
XR-A179-0204C 		Request Quote
XM-A179-0204D
1908_WEB
 		BFCN-8450+
$70.00 Mini-Circuits LTCC XM-A179-0204D 8450 MHz 1100 MHz 1.54 dB 7480 MHz 9885 MHz 7280 MHz N/A
XR-A179-0204D 		Request Quote
XM-A181-0204C
0204A
 		BFCN-8650+
$263.00 Mini-Circuits LTCC XM-A181-0204C 8650 MHz 1150 MHz 1.9 dB 7600 MHz 10000 MHz N/A N/A
XR-A181-0204C 		Request Quote
XM-A181-0204D
1908_WEB
 		BFCN-8650+
$72.00 Mini-Circuits LTCC XM-A181-0204D 8650 MHz 1150 MHz 1.9 dB 7600 MHz 10000 MHz 200 MHz N/A
XR-A181-0204D 		Request Quote
XM-A265-0604C
0604A
 		B148QF0S
$524.00 DLI Planar XM-A265-0604C 15000 MHz 7950 MHz 1.09 dB 10100 MHz 20110 MHz 8410 MHz 21980 MHz
XR-A265-0604C 		Request Quote
XM-A265-0604D

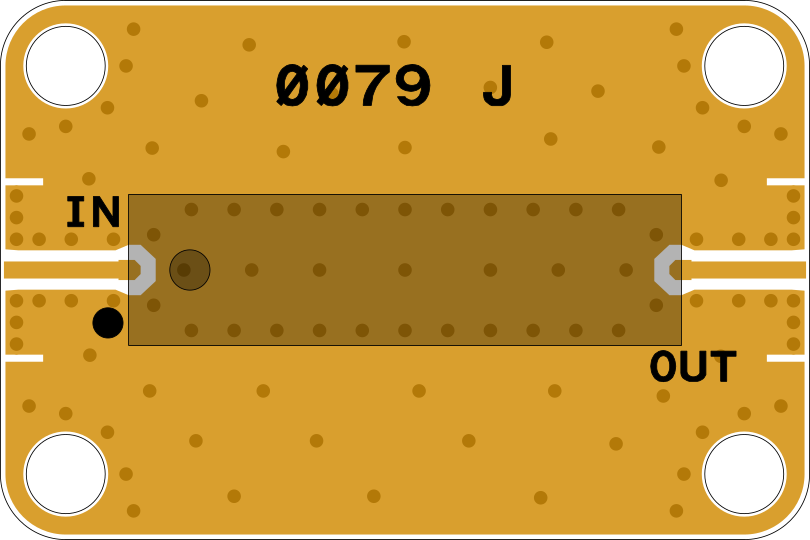

0079_WEB
 		B148QF0S
$394.00 DLI Planar XM-A265-0604D 15000 MHz 7950 MHz 1.09 dB 10100 MHz 20110 MHz 8410 MHz 21980 MHz
XR-A265-0604D 		Request Quote
XM-A267-1204C
1204C
 		$563.00 X-Microwave Lumped Element XM-A267-1204C 160 MHz 8900 MHz 5.41 dB 153 MHz 167 MHz 150 MHz 170 MHz Request Quote
XM-A267-1204D
1093_WEB
 		$389.00 X-Microwave Lumped Element XM-A267-1204D 160 MHz 8900 MHz 5.41 dB 153 MHz 167 MHz 150 MHz 170 MHz Request Quote
XM-A268-1204C
1204C
 		$493.00 X-Microwave Lumped Element XM-A268-1204C 240 MHz 16450 MHz 4.95 dB 228 MHz 252 MHz 223 MHz 258 MHz Request Quote
XM-A268-1204D
1093_WEB
 		$319.00 X-Microwave Lumped Element XM-A268-1204D 240 MHz 16450 MHz 4.95 dB 228 MHz 252 MHz 223 MHz 258 MHz Request Quote
XM-A269-1204C
1204C
 		$668.00 X-Microwave Lumped Element XM-A269-1204C 300 MHz 19 MHz 4.51 dB 287 MHz 316 MHz 283 MHz 326 MHz Request Quote
XM-A269-1204D
1093_WEB
 		$494.00 X-Microwave Lumped Element XM-A269-1204D 300 MHz 19 MHz 4.51 dB 287 MHz 316 MHz 283 MHz 326 MHz Request Quote
XM-A271-1204C
1204C
 		$703.00 X-Microwave Lumped Element XM-A271-1204C 320 MHz 19 MHz 4.83 dB 307 MHz 336 MHz 302 MHz 347 MHz Request Quote
XM-A271-1204D
1093_WEB
 		$529.00 X-Microwave Lumped Element XM-A271-1204D 320 MHz 19 MHz 4.83 dB 307 MHz 336 MHz 302 MHz 347 MHz Request Quote
XM-A272-1204C
1204C
 		$717.00 X-Microwave Lumped Element XM-A272-1204C 360 MHz 23 MHz 4.6 dB 346 MHz 377 MHz 339 MHz 388 MHz Request Quote
XM-A272-1204D
1093_WEB
 		$494.00 X-Microwave Lumped Element XM-A272-1204D 360 MHz 23 MHz 4.6 dB 346 MHz 377 MHz 339 MHz 388 MHz Request Quote
XM-A273-1204C
1204C
 		QUOTE X-Microwave Lumped Element XM-A273-1204C 480 MHz 29 MHz 4.86 dB 460 MHz 503 MHz 452 MHz 517 MHz Request Quote
XM-A273-1204D
1093_WEB
 		QUOTE X-Microwave Lumped Element XM-A273-1204D 480 MHz 29 MHz 4.86 dB 460 MHz 503 MHz 452 MHz 517 MHz Request Quote
XM-A274-1204C
1204C
 		$563.00 X-Microwave Lumped Element XM-A274-1204C 500 MHz 30 MHz 4.28 dB 480 MHz 521 MHz 470 MHz 529 MHz Request Quote
XM-A274-1204D
1093_WEB
 		$389.00 X-Microwave Lumped Element XM-A274-1204D 500 MHz 30 MHz 4.28 dB 480 MHz 521 MHz 470 MHz 529 MHz Request Quote
XM-A275-1204C
1204C
 		$703.00 X-Microwave Lumped Element XM-A275-1204C 640 MHz 40 MHz 4.04 dB 615 MHz 671 MHz 605 MHz 687 MHz Request Quote
XM-A275-1204D
1093_WEB
 		$529.00 X-Microwave Lumped Element XM-A275-1204D 640 MHz 40 MHz 4.04 dB 615 MHz 671 MHz 605 MHz 687 MHz Request Quote
XM-A276-1204C
1204C
 		$563.00 X-Microwave Lumped Element XM-A276-1204C 720 MHz 40 MHz 4.69 dB 692 MHz 749 MHz 680 MHz 760 MHz Request Quote
XM-A276-1204D
1093_WEB
 		$389.00 X-Microwave Lumped Element XM-A276-1204D 720 MHz 40 MHz 4.69 dB 692 MHz 749 MHz 680 MHz 760 MHz Request Quote
XM-A277-1204C
1204C
 		$714.00 X-Microwave Lumped Element XM-A277-1204C 960 MHz 59 MHz 4.28 dB 921 MHz 1004 MHz 904 MHz 1020 MHz Request Quote
XM-A277-1204D
1093_WEB
 		$540.00 X-Microwave Lumped Element XM-A277-1204D 960 MHz 59 MHz 4.28 dB 921 MHz 1004 MHz 904 MHz 1020 MHz Request Quote
XM-A278-1204C
1204C
 		$563.00 X-Microwave Lumped Element XM-A278-1204C 1000 MHz 58 MHz 4.63 dB 959 MHz 1044 MHz 942 MHz 1060 MHz Request Quote
XM-A278-1204D
1093_WEB
 		$389.00 X-Microwave Lumped Element XM-A278-1204D 1000 MHz 58 MHz 4.63 dB 959 MHz 1044 MHz 942 MHz 1060 MHz Request Quote
XM-A279-1204C
1204C
 		$703.00 X-Microwave Lumped Element XM-A279-1204C 1280 MHz 74 MHz 4.53 dB 1228 MHz 1333 MHz 1206 MHz 1356 MHz Request Quote
XM-A279-1204D
1093_WEB
 		$529.00 X-Microwave Lumped Element XM-A279-1204D 1280 MHz 74 MHz 4.53 dB 1228 MHz 1333 MHz 1206 MHz 1356 MHz Request Quote
XM-A281-1204C
1204C
 		$563.00 X-Microwave Lumped Element XM-A281-1204C 1440 MHz 78 MHz 4.01 dB 1383 MHz 1496 MHz 1359 MHz 1513 MHz Request Quote
XM-A281-1204D
1093_WEB
 		$389.00 X-Microwave Lumped Element XM-A281-1204D 1440 MHz 78 MHz 4.01 dB 1383 MHz 1496 MHz 1359 MHz 1513 MHz Request Quote
XM-A282-1204C
1204C
 		QUOTE X-Microwave Lumped Element XM-A282-1204C 1500 MHz 80 MHz 4.86 dB 1440 MHz 1561 MHz 1416 MHz 1585 MHz Request Quote
XM-A282-1204D
1093_WEB
 		QUOTE X-Microwave Lumped Element XM-A282-1204D 1500 MHz 80 MHz 4.86 dB 1440 MHz 1561 MHz 1416 MHz 1585 MHz Request Quote
XM-A283-1204C
1204C
 		$714.00 X-Microwave Lumped Element XM-A283-1204C 1920 MHz 102 MHz 4.49 dB 1849 MHz 1994 MHz 1822 MHz 2025 MHz Request Quote
XM-A283-1204D
1093_WEB
 		$540.00 X-Microwave Lumped Element XM-A283-1204D 1920 MHz 102 MHz 4.49 dB 1849 MHz 1994 MHz 1822 MHz 2025 MHz Request Quote
XM-A284-1204C
1204C
 		QUOTE X-Microwave Lumped Element XM-A284-1204C 2000 MHz 112 MHz 4 dB 1921 MHz 2081 MHz 1890 MHz 2118 MHz Request Quote
XM-A284-1204D
1093_WEB
 		QUOTE X-Microwave Lumped Element XM-A284-1204D 2000 MHz 112 MHz 4 dB 1921 MHz 2081 MHz 1890 MHz 2118 MHz Request Quote
XM-A285-1204C
1204C
 		$714.00 X-Microwave Lumped Element XM-A285-1204C 2500 MHz 145 MHz 4.81 dB 2401 MHz 2606 MHz 2361 MHz 2650 MHz Request Quote
XM-A285-1204D
1093_WEB
 		$540.00 X-Microwave Lumped Element XM-A285-1204D 2500 MHz 145 MHz 4.81 dB 2401 MHz 2606 MHz 2361 MHz 2650 MHz Request Quote
XM-A286-1204C
1204C
 		$668.00 X-Microwave Lumped Element XM-A286-1204C 2565 MHz 142 MHz 4.28 dB 2462 MHz 2665 MHz 2421 MHz 2708 MHz Request Quote
XM-A286-1204D
1093_WEB
 		$494.00 X-Microwave Lumped Element XM-A286-1204D 2565 MHz 142 MHz 4.28 dB 2462 MHz 2665 MHz 2421 MHz 2708 MHz Request Quote
XM-A287-1204C
1204C
 		QUOTE X-Microwave Lumped Element XM-A287-1204C 2880 MHz 155 MHz 4.66 dB 2767 MHz 2995 MHz 2724 MHz 3041 MHz Request Quote
XM-A287-1204D
1093_WEB
 		QUOTE X-Microwave Lumped Element XM-A287-1204D 2880 MHz 155 MHz 4.66 dB 2767 MHz 2995 MHz 2724 MHz 3041 MHz Request Quote
XM-A288-1204C
1204C
 		$570.00 X-Microwave Lumped Element XM-A288-1204C 3000 MHz 165 MHz 5.08 dB 2882 MHz 3118 MHz 2839 MHz 3162 MHz Request Quote
XM-A288-1204D
1093_WEB
 		$517.00 X-Microwave Lumped Element XM-A288-1204D 3000 MHz 165 MHz 5.08 dB 2882 MHz 3118 MHz 2839 MHz 3162 MHz Request Quote
XM-A289-1204C
1204C
 		$714.00 X-Microwave Lumped Element XM-A289-1204C 4000 MHz 203 MHz 5.13 dB 3840 MHz 4168 MHz 3779 MHz 4224 MHz Request Quote
XM-A289-1204D
1093_WEB
 		$540.00 X-Microwave Lumped Element XM-A289-1204D 4000 MHz 203 MHz 5.13 dB 3840 MHz 4168 MHz 3779 MHz 4224 MHz Request Quote
XM-A296-0804C
0804A
 		$271.00 X-Microwave Planar XM-A296-0804C 10000 MHz 1200 MHz N/A N/A N/A N/A N/A
XR-A296-0804C 		Request Quote
XM-A296-0804D
0140_WEB
 		$100.00 X-Microwave Planar XM-A296-0804D 9800 MHz 1130 MHz 3.81 dB 8900 MHz 10980 MHz 8100 MHz 11600 MHz
XR-A296-0804D 		Request Quote
XM-A2B3-0404C
0404A
 		B096QC2S
$441.00 DLI Planar XM-A2B3-0404C 10000 MHz 5440 MHz 1.52 dB 6920 MHz 12920 MHz 6380 MHz 13120 MHz
XR-A2B3-0404C 		Request Quote
XM-A2B3-0404D

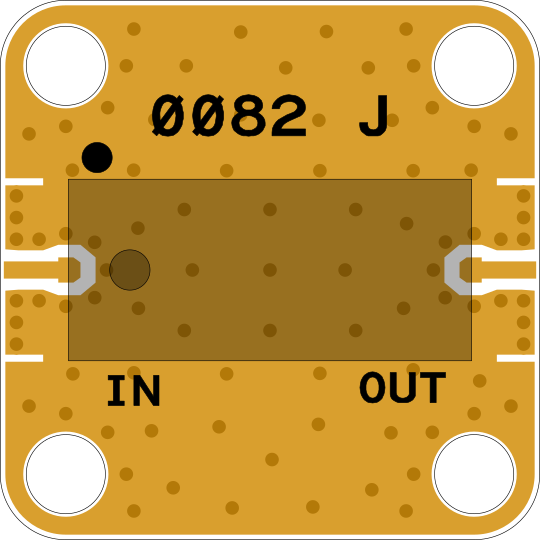

0082_WEB
 		B096QC2S
$302.00 DLI Planar XM-A2B3-0404D 10000 MHz 5440 MHz 1.52 dB 6920 MHz 12920 MHz 6380 MHz 13120 MHz
XR-A2B3-0404D 		Request Quote
XM-A2C2-0604D

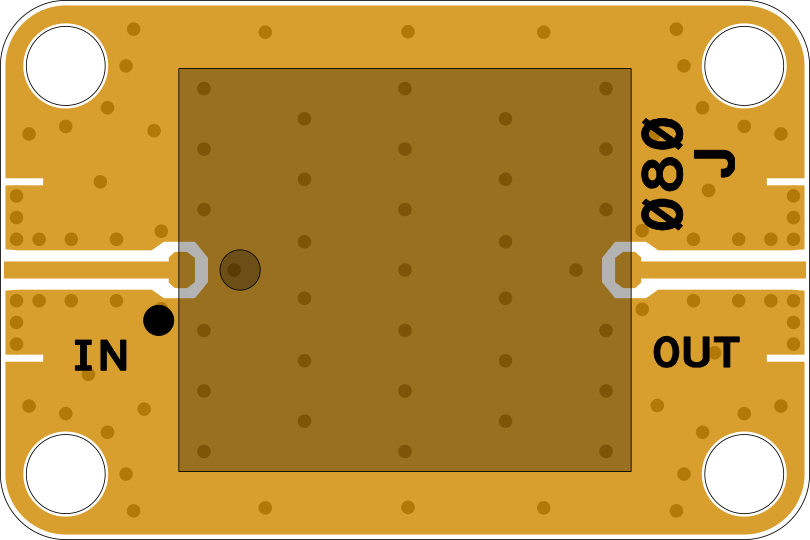

0080_WEB
 		B028RF2S
$533.00 DLI Planar XM-A2C2-0604D 3000 MHz 2336 MHz 1.15 dB 1650 MHz 4390 MHz 1390 MHz 4705 MHz
XR-A2C2-0604D 		Request Quote
XM-A2C3-0604C
0604A
 		B056RC4S
$589.00 DLI Planar XM-A2C3-0604C 6000 MHz 4700 MHz 1.63 dB 3600 MHz 8580 MHz 3340 MHz 8680 MHz
XR-A2C3-0604C 		Request Quote
XM-A2C3-0604D

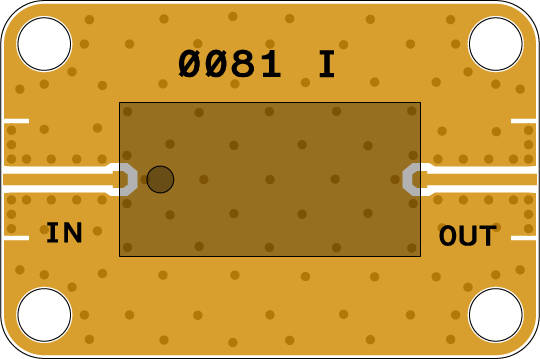

0081_WEB
 		B056RC4S
$426.00 DLI Planar XM-A2C3-0604D 6000 MHz 4700 MHz 1.63 dB 3600 MHz 8580 MHz 3340 MHz 8680 MHz
XR-A2C3-0604D 		Request Quote
XM-A2U1-0604C
0604A
 		B033ND5S
$550.00 DLI Planar XM-A2U1-0604C 3300 MHz 750 MHz 1.84 dB 2850 MHz 3850 MHz 2500 MHz 3950 MHz
XR-A2U1-0604C 		Request Quote
XM-A2U1-0604D

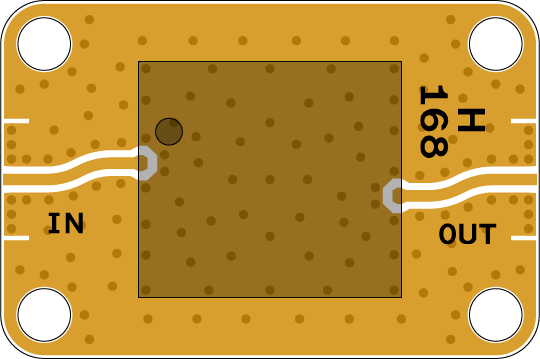

0168_WEB
 		B033ND5S
$402.00 DLI Planar XM-A2U1-0604D 3300 MHz 750 MHz 1.84 dB 2850 MHz 3850 MHz 2500 MHz 3950 MHz
XR-A2U1-0604D 		Request Quote
XM-A2W7-0804C
0804A
 		$271.00 X-Microwave Planar XM-A2W7-0804C 18400 MHz 1300 MHz N/A N/A N/A N/A N/A
XR-A2W7-0804C 		Request Quote
XM-A2W7-0804D
0194_WEB
 		$122.00 X-Microwave Planar XM-A2W7-0804D 18400 MHz 1095 MHz 7.47 dB 17250 MHz 19540 MHz 16500 MHz 19970 MHz
XR-A2W7-0804D 		Request Quote
XM-A2W8-0804C
0804A
 		$271.00 X-Microwave Planar XM-A2W8-0804C 15100 MHz 1200 MHz N/A N/A N/A N/A N/A
XR-A2W8-0804C 		Request Quote
XM-A2W8-0804D
0195_WEB
 		$122.00 X-Microwave Planar XM-A2W8-0804D 15100 MHz 1300 MHz 5.75 dB 13850 MHz 16400 MHz 13000 MHz 17100 MHz
XR-A2W8-0804D 		Request Quote
XM-A2Y9-0604C
0604A
 		B012MD5S
$445.00 DLI Planar XM-A2Y9-0604C 1227 MHz 192 MHz 1.99 dB 1075 MHz 1350 MHz 976 MHz 1395 MHz
XR-A2Y9-0604C 		Request Quote
XM-A2Y9-0604D

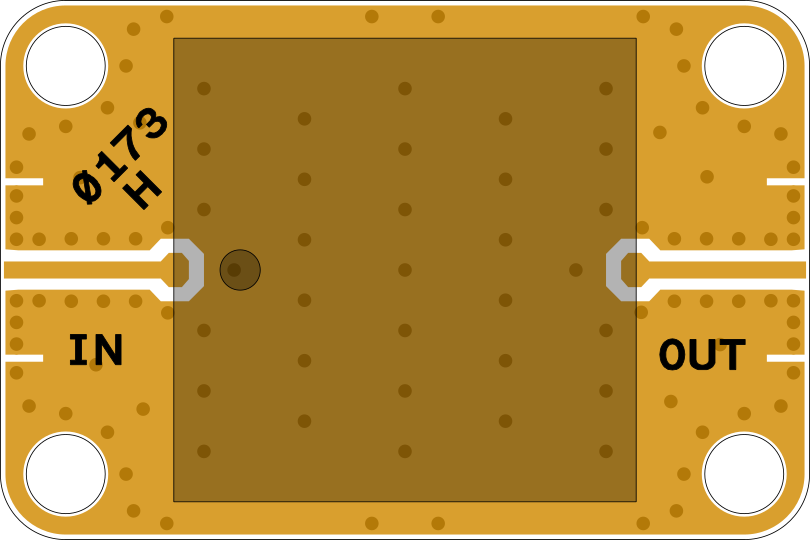

0173_WEB
 		B012MD5S
$267.00 DLI Planar XM-A2Y9-0604D 1227 MHz 192 MHz 1.99 dB 1075 MHz 1350 MHz 976 MHz 1395 MHz
XR-A2Y9-0604D 		Request Quote
XM-A3H5-0404C
0404A
 		XBF-282+
$273.00 Mini-Circuits Reflectionless XM-A3H5-0404C 2750 MHz 1340 MHz 2.14 dB 1710 MHz 11260 MHz 28 MHz N/A
XR-A3H5-0404C 		Request Quote
XM-A3H5-0404D
0312_WEB
 		XBF-282+
$92.00 Mini-Circuits Reflectionless XM-A3H5-0404D 2750 MHz 1340 MHz 2.14 dB 1710 MHz 11260 MHz 28 MHz 35360 MHz
XR-A3H5-0404D 		Request Quote
XM-A3U9-0204C
0204A
 		DEA202450BT-1213C1
$161.00 TDK LTCC XM-A3U9-0204C 2450 MHz 530 MHz 1.06 dB 1790 MHz 3220 MHz N/A N/A
XR-A3U9-0204C 		Request Quote
XM-A3U9-0204D
0410_WEB
 		DEA202450BT-1213C1
$48.00 TDK LTCC XM-A3U9-0204D 2450 MHz 530 MHz 1.06 dB 1790 MHz 3220 MHz 1350 MHz 3840 MHz
XR-A3U9-0204D 		Request Quote
XM-A475-0204D

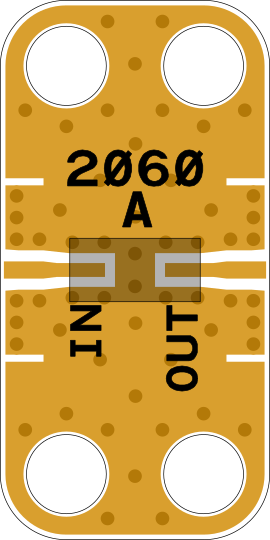

2060_WEB
 		880273
$820.00 Qorvo BAW XM-A475-0204D 1575 MHz 45 MHz 2.35 dB N/A N/A N/A N/A
XR-A475-0204D 		Request Quote
XM-A476-0304D

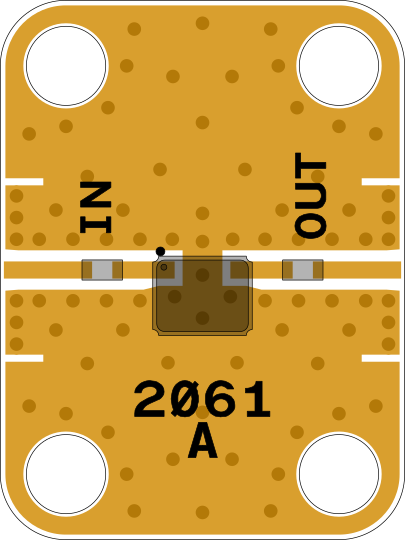

2061_WEB
 		AKF-1938
$205.00 Akoustis BAW XM-A476-0304D 3830 MHz 100 MHz 1.8 dB N/A N/A N/A N/A
XR-A476-0304D 		Request Quote
XM-A478-0404C
0404A
 		SYBP-1950+
$272.00 Mini-Circuits Lumped XM-A478-0404C 1950 MHz 500 MHz 1.2 dB 1030 MHz 2690 MHz 1090 MHz 2900 MHz
XR-A478-0404C 		Request Quote
XM-A478-0404D
0668_WEB
 		SYBP-1950+
$91.00 Mini-Circuits Lumped XM-A478-0404D 1950 MHz 500 MHz 1.2 dB 1030 MHz 2690 MHz 1090 MHz 2900 MHz
XR-A478-0404D 		Request Quote
XM-A484-0604D

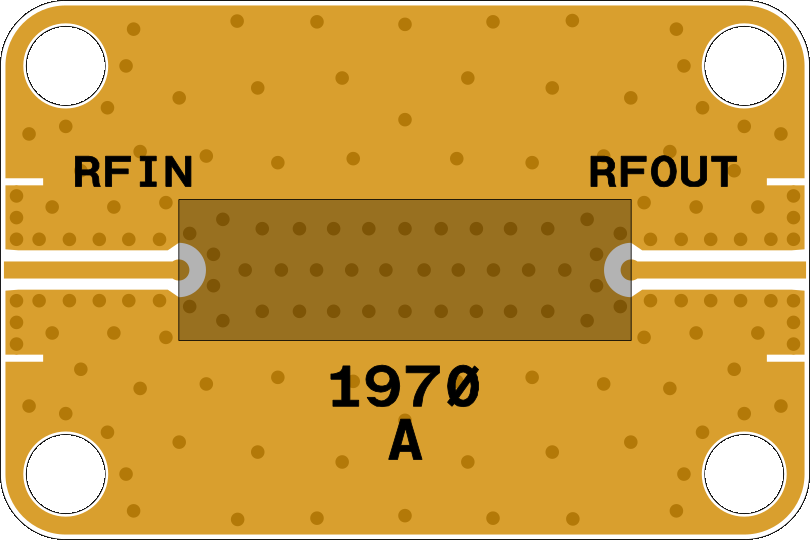

1970
 		B291MB0S
$290.00 DLI Ceramic XM-A484-0604D 29100 MHz 3800 MHz 3.0 dB N/A N/A N/A N/A
XR-A484-0604D 		Request Quote
XM-A491-1204D
1093_WEB
 		$459.00 X-Microwave Lumped Element XM-A491-1204D N/A N/A N/A N/A N/A N/A N/A Request Quote
XM-A525-0204D
1346_WEB
 		BFCN-1052+
$70.00 Mini-Circuits LTCC XM-A525-0204D 10770 MHz 2250 MHz 1.6 dB 8400 MHz 14000 MHz N/A N/A
XR-A525-0204D 		Request Quote
XM-A6H8-0204C
0204A
 		BFCN-5100+
$263.00 Mini-Circuits LTCC XM-A6H8-0204C 5100 MHz 5000 MHz 0.75 dB 2500 MHz 8875 MHz N/A N/A
XR-A6H8-0204C 		Request Quote
XM-A6H8-0204D
0940_WEB
 		BFCN-5100+
$72.00 Mini-Circuits LTCC XM-A6H8-0204D 5100 MHz 5000 MHz 0.75 dB 2500 MHz 8875 MHz 2300 MHz 9300 MHz
XR-A6H8-0204D 		Request Quote
XM-A6H9-0604C
0604A
 		B080MB5S
$493.00 DLI Planar XM-A6H9-0604C 8000 MHz 1412 MHz 1.79 dB 7182 MHz 8960 MHz 6930 MHz 9180 MHz
XR-A6H9-0604C 		Request Quote
XM-A6H9-0604D
0471_WEB
 		B080MB5S
$340.00 DLI Planar XM-A6H9-0604D 8000 MHz 1412 MHz 1.79 dB 7182 MHz 8960 MHz 6930 MHz 9180 MHz
XR-A6H9-0604D 		Request Quote
XM-A6W6-0204C
0204A
 		BFCN-1445+
$264.00 Mini-Circuits LTCC XM-A6W6-0204C 1445 MHz 275 MHz 2.06 dB 1165 MHz 2140 MHz N/A N/A
XR-A6W6-0204C 		Request Quote
XM-A6W6-0204D
0030
 		BFCN-1445+
$73.00 Mini-Circuits LTCC XM-A6W6-0204D 1445 MHz 275 MHz 2.06 dB 1165 MHz 2140 MHz 1060 MHz 3120 MHz
XR-A6W6-0204D 		Request Quote
XM-A6W7-0204C
0204A
 		BFCN-1560+
$251.00 Mini-Circuits LTCC XM-A6W7-0204C 1560 MHz 408 MHz 2.61 dB 1178 MHz 1958 MHz N/A N/A
XR-A6W7-0204C 		Request Quote
XM-A6W7-0204D
0027_WEB
 		BFCN-1560+
$69.00 Mini-Circuits LTCC XM-A6W7-0204D 1560 MHz 408 MHz 2.61 dB 1178 MHz 1958 MHz 950 MHz 2081 MHz
XR-A6W7-0204D 		Request Quote
XM-A6W8-0204C
0204A
 		BFCN-1575+
$264.00 Mini-Circuits LTCC XM-A6W8-0204C 1575 MHz 325 MHz 2.1 dB 1280 MHz 2300 MHz N/A N/A
XR-A6W8-0204C 		Request Quote
XM-A6W8-0204D
0030
 		BFCN-1575+
$73.00 Mini-Circuits LTCC XM-A6W8-0204D 1575 MHz 325 MHz 2.1 dB 1280 MHz 2300 MHz 1150 MHz 3250 MHz
XR-A6W8-0204D 		Request Quote
XM-A6W9-0204C
0204A
 		BFCN-1690+
$263.00 Mini-Circuits LTCC XM-A6W9-0204C 1690 MHz 530 MHz 2.6 dB 1300 MHz 2080 MHz N/A N/A
XR-A6W9-0204C 		Request Quote
XM-A6W9-0204D
0027_WEB
 		BFCN-1690+
$72.00 Mini-Circuits LTCC XM-A6W9-0204D 1690 MHz 530 MHz 2.6 dB 1300 MHz 2080 MHz 1000 MHz 2200 MHz
XR-A6W9-0204D 		Request Quote
XM-A6Y1-0204C
0204A
 		BFCN-1855+
$251.00 Mini-Circuits LTCC XM-A6Y1-0204C 1855 MHz 450 MHz 1.6 dB 1450 MHz 3000 MHz N/A N/A
XR-A6Y1-0204C 		Request Quote
XM-A6Y1-0204D
0030
 		BFCN-1855+
$70.00 Mini-Circuits LTCC XM-A6Y1-0204D 1855 MHz 450 MHz 1.6 dB 1450 MHz 3000 MHz 1320 MHz 4330 MHz
XR-A6Y1-0204D 		Request Quote
XM-A6Y2-0204C
0204A
 		BFCN-1860+
$261.00 Mini-Circuits LTCC XM-A6Y2-0204C 1860 MHz 1000 MHz 1.5 dB 1300 MHz 2600 MHz N/A N/A
XR-A6Y2-0204C 		Request Quote
XM-A6Y2-0204D
1908_WEB
 		BFCN-1860+
$69.00 Mini-Circuits LTCC XM-A6Y2-0204D 1860 MHz 1000 MHz 1.5 dB 1300 MHz 2600 MHz 300 MHz N/A
XR-A6Y2-0204D 		Request Quote
XM-A6Y3-0204C
0204A
 		BFCN-1900+
$250.00 Mini-Circuits LTCC XM-A6Y3-0204C 1900 MHz 27 MHz 2.6 dB 1687 MHz 2153 MHz N/A N/A
XR-A6Y3-0204C 		Request Quote
XM-A6Y3-0204D
1908_WEB
 		BFCN-1900+
$70.00 Mini-Circuits LTCC XM-A6Y3-0204D 1900 MHz 27 MHz 2.6 dB 1687 MHz 2153 MHz 1687 MHz 2200 MHz
XR-A6Y3-0204D 		Request Quote
XM-A6Y4-0204C
0204A
 		BFCN-2360+
$264.00 Mini-Circuits LTCC XM-A6Y4-0204C 2360 MHz 560 MHz 1.5 dB 1850 MHz 3670 MHz N/A N/A
XR-A6Y4-0204C 		Request Quote
XM-A6Y4-0204D
0030
 		BFCN-2360+
$73.00 Mini-Circuits LTCC XM-A6Y4-0204D 2360 MHz 560 MHz 1.5 dB 1850 MHz 3670 MHz 1600 MHz 4800 MHz
XR-A6Y4-0204D 		Request Quote
XM-A6Y5-0204C
0204A
 		BFCN-2435+
$264.00 Mini-Circuits LTCC XM-A6Y5-0204C 2435 MHz 600 MHz 1.5 dB 1900 MHz 3700 MHz N/A N/A
XR-A6Y5-0204C 		Request Quote
XM-A6Y5-0204D
0030
 		BFCN-2435+
$73.00 Mini-Circuits LTCC XM-A6Y5-0204D 2435 MHz 600 MHz 1.5 dB 1900 MHz 3700 MHz 1700 MHz 4720 MHz
XR-A6Y5-0204D 		Request Quote
XM-A6Y6-0204C
0204A
 		BFCN-2450+
$263.00 Mini-Circuits LTCC XM-A6Y6-0204C 2450 MHz 450 MHz 1.95 dB 2180 MHz 3220 MHz N/A N/A
XR-A6Y6-0204C 		Request Quote
XM-A6Y6-0204D
1908_WEB
 		BFCN-2450+
$72.00 Mini-Circuits LTCC XM-A6Y6-0204D 2450 MHz 450 MHz 1.95 dB 2180 MHz 3220 MHz 2098 MHz 4740 MHz
XR-A6Y6-0204D 		Request Quote
XM-A6Y7-0204C
0204A
 		BFCN-2500+
$263.00 Mini-Circuits LTCC XM-A6Y7-0204C 2500 MHz 800 MHz 1.6 dB 1620 MHz 3700 MHz N/A N/A
XR-A6Y7-0204C 		Request Quote
XM-A6Y7-0204D
1908_WEB
 		BFCN-2500+
$72.00 Mini-Circuits LTCC XM-A6Y7-0204D 2500 MHz 800 MHz 1.6 dB 1620 MHz 3700 MHz 1450 MHz 500 MHz
XR-A6Y7-0204D 		Request Quote
XM-A6Y8-0204C
0204A
 		BFCN-2840+
$250.00 Mini-Circuits LTCC XM-A6Y8-0204C 2840 MHz 500 MHz 2.19 dB 2500 MHz 3200 MHz N/A N/A
XR-A6Y8-0204C 		Request Quote
XM-A6Y8-0204D
0030
 		BFCN-2840+
$70.00 Mini-Circuits LTCC XM-A6Y8-0204D 2840 MHz 500 MHz 2.19 dB 2500 MHz 3200 MHz 660 MHz 4300 MHz
XR-A6Y8-0204D 		Request Quote
XM-A6Y9-0204C
0204A
 		BFCN-2910+
$250.00 Mini-Circuits LTCC XM-A6Y9-0204C 2910 MHz 380 MHz 2.62 dB 2602 MHz 3292 MHz N/A N/A
XR-A6Y9-0204C 		Request Quote
XM-A6Y9-0204D
0030
 		BFCN-2910+
$70.00 Mini-Circuits LTCC XM-A6Y9-0204D 2910 MHz 380 MHz 2.62 dB 2602 MHz 3292 MHz 640 MHz 4317 MHz
XR-A6Y9-0204D 		Request Quote
XM-A711-0204C
0204A
 		BFCN-2975+
$264.00 Mini-Circuits LTCC XM-A711-0204C 2975 MHz 870 MHz 2.2 dB 1800 MHz 3900 MHz N/A N/A
XR-A711-0204C 		Request Quote
XM-A711-0204D
0030
 		BFCN-2975+
$73.00 Mini-Circuits LTCC XM-A711-0204D 2975 MHz 870 MHz 2.2 dB 1800 MHz 3900 MHz 1100 MHz 5000 MHz
XR-A711-0204D 		Request Quote
XM-A712-0204C
0204A
 		BFCN-3085+
$264.00 Mini-Circuits LTCC XM-A712-0204C 3085 MHz 600 MHz 1.65 dB 1850 MHz 4000 MHz N/A N/A
XR-A712-0204C 		Request Quote
XM-A712-0204D
0030
 		BFCN-3085+
$73.00 Mini-Circuits LTCC XM-A712-0204D 3085 MHz 600 MHz 1.65 dB 1850 MHz 4000 MHz 1130 MHz 5000 MHz
XR-A712-0204D 		Request Quote
XM-A713-0204C
0204A
 		BFCN-3085A+
$266.00 Mini-Circuits LTCC XM-A713-0204C 3085 MHz 1200 MHz 1.5 dB 1850 MHz 4000 MHz N/A N/A
XR-A713-0204C 		Request Quote
XM-A713-0204D
0030
 		BFCN-3085A+
$73.00 Mini-Circuits LTCC XM-A713-0204D 3085 MHz 1200 MHz 1.5 dB 1850 MHz 4000 MHz 1150 MHz 5030 MHz
XR-A713-0204D 		Request Quote
XM-A714-0204C
0204A
 		BFCN-3115+
$264.00 Mini-Circuits LTCC XM-A714-0204C 3115 MHz 1360 MHz 1.5 dB 1900 MHz 4200 MHz N/A N/A
XR-A714-0204C 		Request Quote
XM-A714-0204D
0030
 		BFCN-3115+
$73.00 Mini-Circuits LTCC XM-A714-0204D 3115 MHz 1360 MHz 1.5 dB 1900 MHz 4200 MHz 1130 MHz 5240 MHz
XR-A714-0204D 		Request Quote
XM-A715-0204C
0204A
 		BFCN-3700+
$263.00 Mini-Circuits LTCC XM-A715-0204C 3700 MHz 2300 MHz 1.5 dB 2275 MHz 5400 MHz N/A N/A
XR-A715-0204C 		Request Quote
XM-A715-0204D
1908_WEB
 		BFCN-3700+
$72.00 Mini-Circuits LTCC XM-A715-0204D 3700 MHz 2300 MHz 1.5 dB 2275 MHz 5400 MHz 2070 MHz 5700 MHz
XR-A715-0204D 		Request Quote
XM-A716-0204C
0204A
 		BFCN-4800+
$264.00 Mini-Circuits LTCC XM-A716-0204C 4800 MHz 2250 MHz 0.67 dB 2430 MHz 7000 MHz N/A N/A
XR-A716-0204C 		Request Quote
XM-A716-0204D
0030
 		BFCN-4800+
$73.00 Mini-Circuits LTCC XM-A716-0204D 4800 MHz 2250 MHz 0.67 dB 2430 MHz 7000 MHz 1270 MHz N/A
XR-A716-0204D 		Request Quote
XM-A717-0204C
0204A
 		BFCN-5200+
$263.00 Mini-Circuits LTCC XM-A717-0204C 5200 MHz 3000 MHz 1.5 dB 3500 MHz 7500 MHz N/A N/A
XR-A717-0204C 		Request Quote
XM-A717-0204D
1908_WEB
 		BFCN-5200+
$72.00 Mini-Circuits LTCC XM-A717-0204D 5200 MHz 3000 MHz 1.5 dB 3500 MHz 7500 MHz 570 MHz N/A
XR-A717-0204D 		Request Quote
XM-A718-0204C
0204A
 		BFCN-5750+
$263.00 Mini-Circuits LTCC XM-A718-0204C 5750 MHz 1050 MHz 1.77 dB 4500 MHz 7540 MHz N/A N/A
XR-A718-0204C 		Request Quote
XM-A718-0204D
1908_WEB
 		BFCN-5750+
$72.00 Mini-Circuits LTCC XM-A718-0204D 5750 MHz 1050 MHz 1.77 dB 4500 MHz 7540 MHz 3740 MHz 8400 MHz
XR-A718-0204D 		Request Quote
XM-A719-0204C
0204A
 		BFCN-7350+
$251.00 Mini-Circuits LTCC XM-A719-0204C 7350 MHz 1150 MHz 1.82 dB 6450 MHz 8500 MHz N/A N/A
XR-A719-0204C 		Request Quote
XM-A719-0204D
1908_WEB
 		BFCN-7350+
$69.00 Mini-Circuits LTCC XM-A719-0204D 7350 MHz 1150 MHz 1.82 dB 6450 MHz 8500 MHz 130 MHz N/A
XR-A719-0204D 		Request Quote
XM-A721-0204C
0204A
 		BFCN-7900+
$251.00 Mini-Circuits LTCC XM-A721-0204C 7900 MHz 1120 MHz 1.54 dB 6950 MHz 9300 MHz N/A N/A
XR-A721-0204C 		Request Quote
XM-A721-0204D
1908_WEB
 		BFCN-7900+
$69.00 Mini-Circuits LTCC XM-A721-0204D 7900 MHz 1120 MHz 1.54 dB 6950 MHz 9300 MHz 9800 MHz N/A
XR-A721-0204D 		Request Quote
XM-A722-0204C
0204A
 		BFCN-8350+
$264.00 Mini-Circuits LTCC XM-A722-0204C 8350 MHz 1120 MHz 1.5 dB 7250 MHz 9600 MHz N/A N/A
XR-A722-0204C 		Request Quote
XM-A722-0204D
1908_WEB
 		BFCN-8350+
$73.00 Mini-Circuits LTCC XM-A722-0204D 8350 MHz 1120 MHz 1.5 dB 7250 MHz 9600 MHz 7080 MHz N/A
XR-A722-0204D 		Request Quote
XM-A7B1-0204C
0204A
 		BFCV-5270+
$264.00 Mini-Circuits LTCC XM-A7B1-0204C 5270 MHz 3320 MHz 1.18 dB 3350 MHz 7910 MHz N/A N/A
XR-A7B1-0204C 		Request Quote
XM-A7B1-0204D
0615_WEB
 		BFCV-5270+
$73.00 Mini-Circuits LTCC XM-A7B1-0204D 5270 MHz 3320 MHz 1.18 dB 3350 MHz 7910 MHz 2240 MHz 8565 MHz
XR-A7B1-0204D 		Request Quote
XM-A7F9-0804C
0804A
 		$271.00 X-Microwave Planar XM-A7F9-0804C 12820 MHz 1850 MHz 6 dB 11560 MHz 14140 MHz 10950 MHz 14770 MHz
XR-A7F9-0804C 		Request Quote
XM-A7F9-0804D
0769_WEB
 		$122.00 X-Microwave Planar XM-A7F9-0804D 12820 MHz 1850 MHz N/A N/A N/A N/A N/A
XR-A7F9-0804D 		Request Quote
XM-A7J1-1004C
1004A
 		FB-1300SMG
$567.00 Marki Microwave Planar XM-A7J1-1004C 13000 MHz 2730 MHz 1.81 dB 10360 MHz 15400 MHz 9000 MHz 16460 MHz
XR-A7J1-1004C 		Request Quote
XM-A7J1-1004D

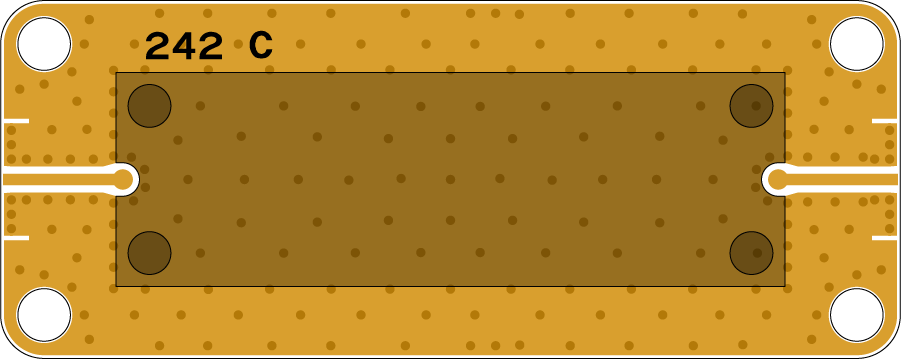

0242_WEB
 		FB-1300SMG
$372.00 Marki Microwave Planar XM-A7J1-1004D 13000 MHz 2730 MHz 1.81 dB 10360 MHz 15400 MHz 9000 MHz 16460 MHz
XR-A7J1-1004D 		Request Quote
XM-A7J2-0404C
0404A
 		B39921B3588U410
$490.00 TDK SAW XM-A7J2-0404C 915 MHz 26 MHz 2.9 dB 890 MHz 940 MHz 885 MHz 962.5 MHz
XR-A7J2-0404C 		Request Quote
XM-A7J2-0404D
0473_WEB
 		B39921B3588U410
$371.00 TDK SAW XM-A7J2-0404D 915 MHz 26 MHz 2.9 dB 890 MHz 940 MHz 885 MHz 962.5 MHz
XR-A7J2-0404D 		Request Quote
XM-A7L9-0404C
0404A
 		B280LB0S
$420.00 DLI Planar XM-A7L9-0404C 28000 MHz 2800 MHz 1.37 dB 25900 MHz 29760 MHz 25220 MHz 30600 MHz
XR-A7L9-0404C 		Request Quote
XM-A7L9-0404D

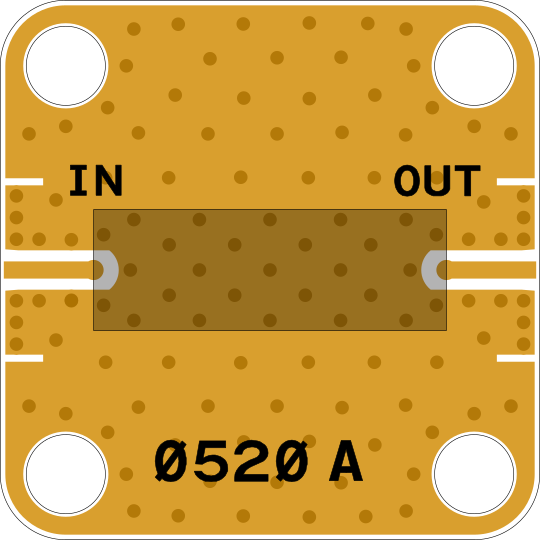

0520_WEB
 		B280LB0S
$222.00 DLI Planar XM-A7L9-0404D 28000 MHz 2800 MHz 1.37 dB 25900 MHz 29760 MHz 25220 MHz 30600 MHz
XR-A7L9-0404D 		Request Quote
XM-A7W4-0604C
0604E
 		B280LA0S
$380.00 DLI Planar XM-A7W4-0604C 28000 MHz 2250 MHz 2.18 dB 26420 MHz 29160 MHz 26000 MHz 29500 MHz
XR-A7W4-0604C 		Request Quote
XM-A7W4-0604D

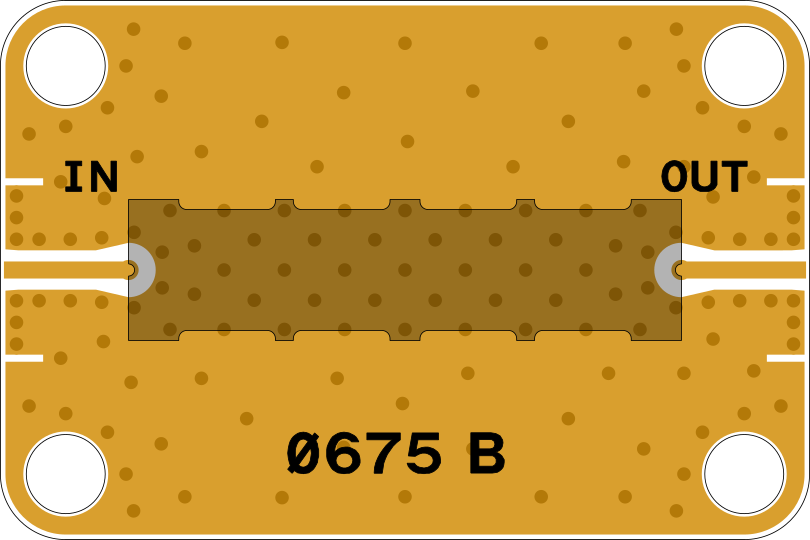

0675_WEB
 		B280LA0S
$305.00 DLI Planar XM-A7W4-0604D 28000 MHz 2250 MHz 2.18 dB 26420 MHz 29160 MHz 26000 MHz 29500 MHz
XR-A7W4-0604D 		Request Quote
XM-A7W5-0804C
0804A
 		B161LA0S
$583.00 DLI Planar XM-A7W5-0804C 16000 MHz 1360 MHz 3.4 dB 15060 MHz 16870 MHz 14720 MHz 16970 MHz
XR-A7W5-0804C 		Request Quote
XM-A7W5-0804D

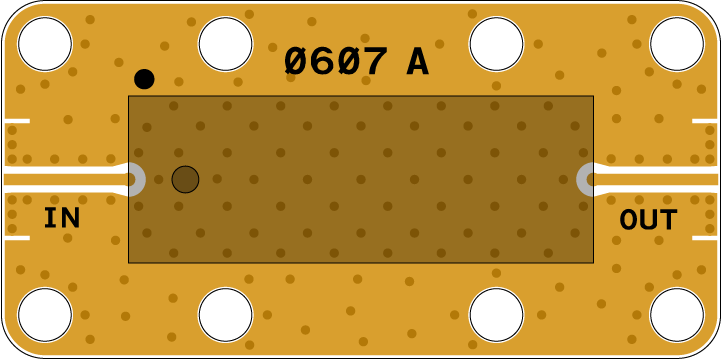

0607_WEB
 		B161LA0S
$429.00 DLI Planar XM-A7W5-0804D 16000 MHz 1360 MHz 3.4 dB 15060 MHz 16870 MHz 14720 MHz 16970 MHz
XR-A7W5-0804D 		Request Quote
XM-A7W6-0604C
0604A
 		B120MB1S
$486.00 DLI Planar XM-A7W6-0604C 12000 MHz 1590 MHz 1.69 dB 11010 MHz 12920 MHz 10670 MHz 13090 MHz
XR-A7W6-0604C 		Request Quote
XM-A7W6-0604D

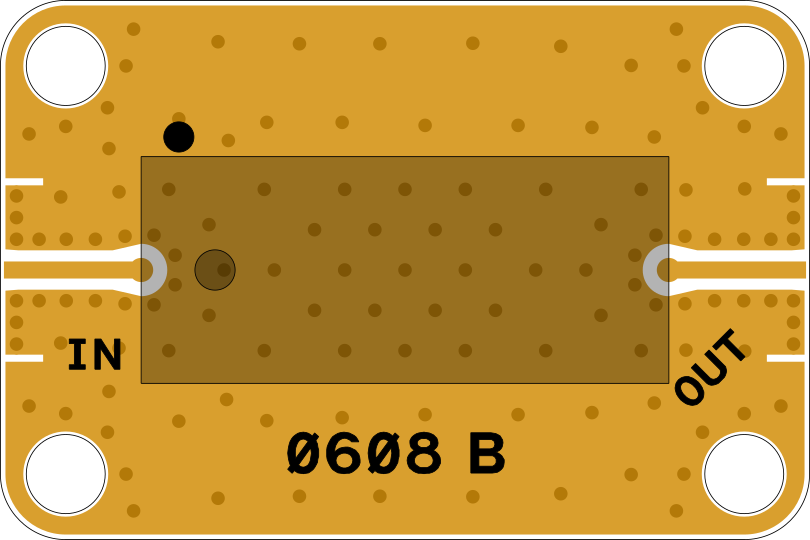

0608_WEB
 		B120MB1S
$352.00 DLI Planar XM-A7W6-0604D 12000 MHz 1590 MHz 1.69 dB 11010 MHz 12920 MHz 10670 MHz 13090 MHz
XR-A7W6-0604D 		Request Quote
XM-A7W9-0604C
0604A
 		B016MD6S
$421.00 DLI Planar XM-A7W9-0604C 1575 MHz 231 MHz 1.9 dB 1380 MHz 1730 MHz 1230 MHz 1800 MHz
XR-A7W9-0604C 		Request Quote
XM-A7W9-0604D
0173_WEB
 		B016MD6S
$250.00 DLI Planar XM-A7W9-0604D 1575 MHz 231 MHz 1.9 dB 1380 MHz 1730 MHz 1230 MHz 1800 MHz
XR-A7W9-0604D 		Request Quote
XM-A8G5-1004C
1004A
 		FB-1445SM
$530.00 Marki Microwave Planar XM-A8G5-1004C 14450 MHz 3300 MHz 1.87 dB 11380 MHz 16830 MHz 9790 MHz 18220 MHz Request Quote
XM-A8G5-1004D
0242_WEB
 		FB-1445SM
$329.00 Marki Microwave Planar XM-A8G5-1004D 14450 MHz 3300 MHz 1.87 dB 11380 MHz 16830 MHz 9790 MHz 18220 MHz Request Quote
XM-A9F9-0604C
0604A
 		RBP-253+
$309.00 Mini-Circuits Lumped Element XM-A9F9-0604C 253 MHz 186 MHz 1.15 dB 150 MHz 409 MHz 120 MHz 500 MHz
XR-A9F9-0604C 		Request Quote
XM-A9F9-0604D
0282_WEB
 		RBP-253+
$118.00 Mini-Circuits Lumped Element XM-A9F9-0604D 227 MHz 186 MHz 1.15 dB 150 MHz 409 MHz 120 MHz 500 MHz
XR-A9F9-0604D 		Request Quote
XM-A9H5-0404C
0404A
 		AVX-BP-Series
$278.00 AVX MLO XM-A9H5-0404C 770 MHz 250 MHz 1.28 dB 500 MHz 1150 MHz 460 MHz 1230 MHz
XR-A9H5-0404C 		Request Quote
XM-A9H5-0404D
0780_WEB
 		AVX-BP-Series
$104.00 AVX MLO XM-A9H5-0404D 770 MHz 250 MHz 1.28 dB 500 MHz 1150 MHz 460 MHz 1230 MHz
XR-A9H5-0404D 		Request Quote
XM-A9H7-0604C
0604A
 		AVX-BP-Series
$312.00 AVX MLO XM-A9H7-0604C 1100 MHz 690 MHz 1.34 dB 718 MHz 1600 MHz 673 MHz 1703 MHz
XR-A9H7-0604C 		Request Quote
XM-A9H7-0604D

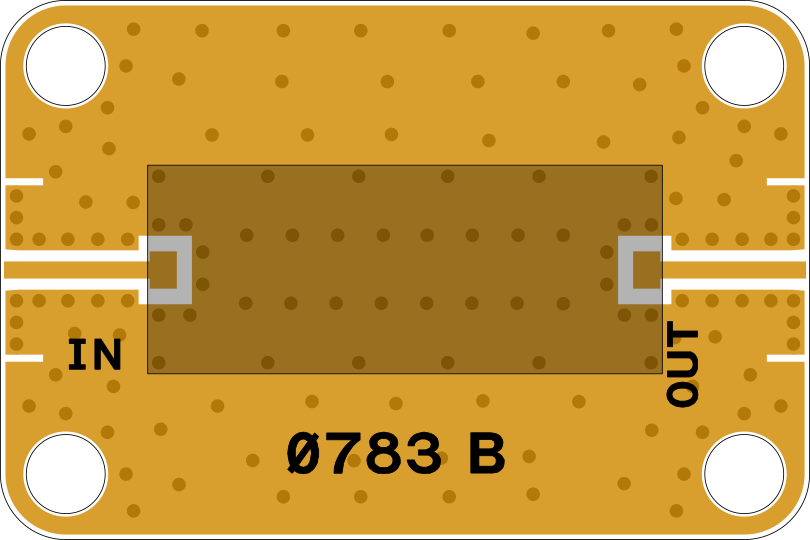

0783_WEB
 		AVX-BP-Series
$130.00 AVX MLO XM-A9H7-0604D 1100 MHz 690 MHz 1.34 dB 718 MHz 1600 MHz 673 MHz 1703 MHz
XR-A9H7-0604D 		Request Quote
XM-A9H8-0604C
0604A
 		AVX-BP-Series
$312.00 AVX MLO XM-A9H8-0604C 1130 MHz 713 MHz 1.36 dB 741 MHz 1655 MHz 680 MHz 1740 MHz
XR-A9H8-0604C 		Request Quote
XM-A9H8-0604D
0783_WEB
 		AVX-BP-Series
$130.00 AVX MLO XM-A9H8-0604D 1130 MHz 713 MHz 1.36 dB 741 MHz 1655 MHz 680 MHz 1740 MHz
XR-A9H8-0604D 		Request Quote
XM-A9H9-0604C
0604A
 		AVX-BP-Series
$312.00 AVX MLO XM-A9H9-0604C 1190 MHz 665 MHz 1.54 dB 823 MHz 1630 MHz 770 MHz 1735 MHz
XR-A9H9-0604C 		Request Quote
XM-A9H9-0604D
0783_WEB
 		AVX-BP-Series
$130.00 AVX MLO XM-A9H9-0604D 1190 MHz 665 MHz 1.54 dB 823 MHz 1630 MHz 770 MHz 1735 MHz
XR-A9H9-0604D 		Request Quote
XM-A9J1-0604C
0604A
 		AVX-BP-Series
$311.00 AVX MLO XM-A9J1-0604C 3430 MHz 2225 MHz 0.93 dB 2090 MHz 5190 MHz 1950 MHz 5670 MHz
XR-A9J1-0604C 		Request Quote
XM-A9J1-0604D

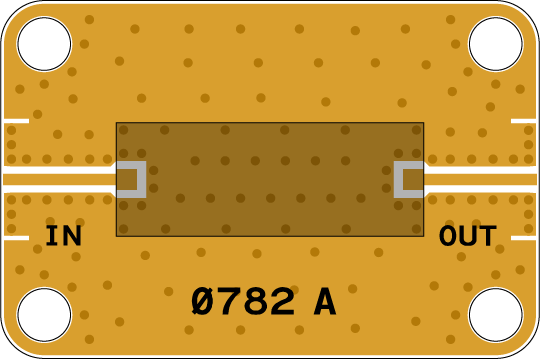

0782_WEB
 		AVX-BP-Series
$129.00 AVX MLO XM-A9J1-0604D 3430 MHz 2225 MHz 0.93 dB 2090 MHz 5190 MHz 1950 MHz 5670 MHz
XR-A9J1-0604D 		Request Quote
XM-A9J2-0604C
0604A
 		AVX-BP-Series
$311.00 AVX MLO XM-A9J2-0604C 4440 MHz 2620 MHz 0.91 dB 3070 MHz 6440 MHz 2865 MHz 7095 MHz
XR-A9J2-0604C 		Request Quote
XM-A9J2-0604D
0782_WEB
 		AVX-BP-Series
$129.00 AVX MLO XM-A9J2-0604D 4440 MHz 2620 MHz 0.91 dB 3070 MHz 6440 MHz 2865 MHz 7095 MHz
XR-A9J2-0604D 		Request Quote
XM-A9J3-0604C
0604A
 		AVX-BP-Series
$311.00 AVX MLO XM-A9J3-0604C 4600 MHz 2635 MHz 0.97 dB 3175 MHz 6640 MHz 2975 MHz 7320 MHz
XR-A9J3-0604C 		Request Quote
XM-A9J3-0604D
0782_WEB
 		AVX-BP-Series
$129.00 AVX MLO XM-A9J3-0604D 4600 MHz 2635 MHz 0.97 dB 3175 MHz 6640 MHz 2975 MHz 7320 MHz
XR-A9J3-0604D 		Request Quote
XM-A9J4-0604C
0604A
 		AVX-BP-Series
$311.00 AVX MLO XM-A9J4-0604C 4680 MHz 2760 MHz 0.95 dB 3245 MHz 6830 MHz 3030 MHz 7520 MHz
XR-A9J4-0604C 		Request Quote
XM-A9J4-0604D
0782_WEB
 		AVX-BP-Series
$129.00 AVX MLO XM-A9J4-0604D 4680 MHz 2760 MHz 0.95 dB 3245 MHz 6830 MHz 3030 MHz 7520 MHz
XR-A9J4-0604D 		Request Quote
XM-B1G5-1004C
1004A
 		SXBP-20R5+
$398.00 Mini-Circuits Lumped Element XM-B1G5-1004C 20.5 MHz 4.2 MHz 2.25 dB 17.5 MHz 25.5 MHz 16.16 MHz 34 MHz
XR-B1G5-1004C 		Request Quote
XM-B1G5-1004D
0667_WEB
 		SXBP-20R5+
$154.00 Mini-Circuits Lumped Element XM-B1G5-1004D 20.5 MHz 4.2 MHz 2.25 dB 17.5 MHz 25.5 MHz 16.16 MHz 34 MHz
XR-B1G5-1004D 		Request Quote
XM-B214-0204C
0204A
 		BFCN-1262+
$250.00 Mini-Circuits Planar XM-B214-0204C 1262 MHz 2150 MHz 4.1 dB 1127 MHz 1420 MHz N/A N/A
XR-B214-0204C 		Request Quote
XM-B214-0204D
1346_WEB
 		BFCN-1262+
$69.00 Mini-Circuits Planar XM-B214-0204D 12600 MHz 2150 MHz 4.1 dB 1127 MHz 1420 MHz 1050 MHz 1480 MHz
XR-B214-0204D 		Request Quote
