1 - 51 of 51 | Results Per Page | View

Request Information Compare Items

XM Part Number	Image	Spec Sheet	Buy Direct (Intl. add 15%)	Feature Mfr	Type	Low Freq	High Freq	IL	Isolation	Amp Bal	Phase Bal	RoHS	Request Quote

XM-A2B1-0404C	0404B	PDW05758	$359.00	DLI	2-Way	4500 MHz	18000 MHz	4 dB	N/A	N/A	N/A	XR-A2B1-0404C	Request Quote
XM-A2B1-0404D	0166_WEB	PDW05758	$151.00	DLI	2-Way	4500 MHz	18000 MHz	4 dB	N/A	N/A	N/A	XR-A2B1-0404D	Request Quote
XM-A2N2-0404C	0404B	PDR05848	$381.00	DLI	2-Way	0 MHz	27000 MHz	6.5 dB	N/A	N/A	N/A	XR-A2N2-0404C	Request Quote
XM-A2N2-0404C-02	0404B	PDR05848	$340.00	DLI	2-Way	0 MHz	40000 MHz	6.5 dB	N/A	N/A	N/A	XR-A2N2-0404C-02	Request Quote
XM-A2N2-0404D	0160_WEB	PDR05848	$114.00	DLI	2-Way	0 MHz	40000 MHz	6.5 dB	N/A	N/A	N/A	XR-A2N2-0404D	Request Quote
XM-A2T8-0604C	0604B	PDW06038	$461.00	DLI	2-Way	2000 MHz	10000 MHz	3.6 dB	N/A	N/A	N/A	XR-A2T8-0604C	Request Quote
XM-A2T8-0604D	0169_WEB	PDW06038	$272.00	DLI	2-Way	2000 MHz	10000 MHz	3.6 dB	N/A	N/A	N/A	XR-A2T8-0604D	Request Quote
XM-A326-0419C	0419A	PDW05758	$733.00	DLI	4-Way	4500 MHz	18000 MHz	4 dB	N/A	N/A	N/A	XR-A326-0419C	Request Quote
XM-A326-0419D	0176_WEB	PDW05758	$426.00	DLI	4-Way	4500 MHz	18000 MHz	4 dB	N/A	N/A	N/A	XR-A326-0419D	Request Quote
XM-A3E4-0419C	0419A	PDR05848	$719.00	DLI	4-Way	0 MHz	40000 MHz	13 dB	N/A	N/A	N/A	XR-A3E4-0419C	Request Quote
XM-A3E4-0419C-02	0419A	PDR05848	$764.00	DLI	4-Way	0 MHz	40000 MHz	13 dB	N/A	N/A	N/A	XR-A3E4-0419C-02	Request Quote
XM-A3E4-0419D	0323_WEB	PDR05848	$313.00	DLI	4-Way	0 MHz	40000 MHz	13 dB	N/A	N/A	N/A	XR-A3E4-0419D	Request Quote
XM-A3U7-0409C	0409A	PDR05848	$435.00	DLI	2-Way	0 MHz	40000 MHz	6.5 dB	N/A	N/A	N/A	XR-A3U7-0409C	Request Quote
XM-A3U7-0409D	0421_WEB	PDR05848	$146.00	DLI	2-Way	0 MHz	40000 MHz	6.5 dB	N/A	N/A	N/A	XR-A3U7-0409D	Request Quote
XM-A4H7-0409C	0409A	PDW05758	$397.00	DLI	2-Way	4500 MHz	18000 MHz	4 dB	N/A	N/A	N/A	XR-A4H7-0409C	Request Quote
XM-A4H7-0409D	0489_WEB	PDW05758	$188.00	DLI	2-Way	4500 MHz	18000 MHz	4 dB	N/A	N/A	N/A	XR-A4H7-0409D	Request Quote
XM-A5D1-0409C	0409B	PDR05848	$435.00	DLI	2-Way	0 MHz	40000 MHz	6.5 dB	N/A	N/A	N/A	XR-A5D1-0409C	Request Quote
XM-A5D1-0409D	0493_WEB	PDR05848	$146.00	DLI	2-Way	0 MHz	40000 MHz	6.5 dB	N/A	N/A	N/A	XR-A5D1-0409D	Request Quote
XM-A7C5-0619C	0419A	PDW06089	$841.00	DLI	4-Way	6000 MHz	18000 MHz	7 dB	N/A	N/A	N/A	XR-A7C5-0619C	Request Quote
XM-A7C5-0619D	0621_WEB	PDW06089	$501.00	DLI	4-Way	6000 MHz	18000 MHz	7 dB	N/A	N/A	N/A	XR-A7C5-0619D	Request Quote
XM-A7Y7-0619C	0619A	PDW07069	$748.00	DLI	4-Way	25000 MHz	32000 MHz	3.7 dB	N/A	0.25 dB	5 Deg	XR-A7Y7-0619C	Request Quote
XM-A7Y7-0619D	0664_WEB	PDW07069	$310.00	DLI	4-Way	25000 MHz	32000 MHz	3.7 dB	N/A	0.25 dB	5 Deg	XR-A7Y7-0619D	Request Quote
XM-A7Y8-0404C	0404B	PDW06984	$393.00	DLI	2-Way	25000 MHz	32000 MHz	0.25 dB	N/A	N/A	N/A	XR-A7Y8-0404C	Request Quote
XM-A7Y8-0404D	0663_WEB	PDW06984	$241.00	DLI	2-Way	25000 MHz	32000 MHz	0.25 dB	N/A	N/A	N/A	XR-A7Y8-0404D	Request Quote
XM-A7Y9-0604C	0604B	PDW06407	$465.00	DLI	2-Way	2000 MHz	18000 MHz	5 dB	N/A	N/A	N/A	XR-A7Y9-0604C	Request Quote
XM-A7Y9-0604D	0617_WEB	PDW06407	$247.00	DLI	2-Way	2000 MHz	18000 MHz	5 dB	N/A	N/A	N/A	XR-A7Y9-0604D	Request Quote
XM-A7Z1-0404C	0404B	PDW06401	$345.00	DLI	2-Way	15000 MHz	17000 MHz	3.5 dB	N/A	N/A	N/A	XR-A7Z1-0404C	Request Quote
XM-A7Z1-0404D	0619_WEB	PDW06401	$110.00	DLI	2-Way	15000 MHz	17000 MHz	3.5 dB	N/A	N/A	N/A	XR-A7Z1-0404D	Request Quote
XM-A7Z2-0404C	0404B	PDW06400	$328.00	DLI	2-Way	11000 MHz	13000 MHz	3.5 dB	N/A	N/A	N/A	XR-A7Z2-0404C	Request Quote
XM-A7Z2-0404D	0620_WEB	PDW06400	$106.00	DLI	2-Way	11000 MHz	13000 MHz	3.5 dB	N/A	N/A	N/A	XR-A7Z2-0404D	Request Quote
XM-A7Z4-0404C	0404B	PDW06398	$345.00	DLI	2-Way	5000 MHz	7000 MHz	3.3 dB	N/A	N/A	N/A	XR-A7Z4-0404C	Request Quote
XM-A7Z4-0404D	0609_WEB	PDW06398	$119.00	DLI	2-Way	5000 MHz	7000 MHz	3.3 dB	N/A	N/A	N/A	XR-A7Z4-0404D	Request Quote
XM-B6K8-0404C	0404B	PDR06380	$344.00	DLI	2-Way	0 MHz	40000 MHz	0.5 dB	N/A	N/A	N/A	XR-B6K8-0404C	Request Quote
XM-B6K8-0404D	0160_WEB	PDR06380	$100.00	DLI	2-Way	0 MHz	40000 MHz	0.5 dB	N/A	N/A	N/A	XR-B6K8-0404D	Request Quote
XM-B7N5-0404C	0404B	PDW07691	$324.00	DLI	2-Way	18000 MHz	20000 MHz	N/A	N/A	0.25 dB	5 Deg	XR-B7N5-0404C	Request Quote
XM-B7N5-0404D	1153_WEB	PDW07691	$103.00	DLI	2-Way	18000 MHz	20000 MHz	N/A	N/A	0.25 dB	5 Deg	XR-B7N5-0404D	Request Quote
XM-B7N6-0404C	0404B	PDW07630	$364.00	DLI	2-Way	25000 MHz	32000 MHz	3.25 dB	N/A	0.25 dB	5 Deg	XR-B7N6-0404C	Request Quote
XM-B7N6-0404D	1154_WEB	PDW07630	$207.00	DLI	2-Way	25000 MHz	32000 MHz	3.25 dB	N/A	0.25 dB	5 Deg	XR-B7N6-0404D	Request Quote
XM-B7N7-0404C	0404B	PDR06390	$353.00	DLI	2-Way	0 MHz	20000 MHz	0.25 dB	N/A	N/A	N/A	XR-B7N7-0404C	Request Quote
XM-B7N7-0404D	1155_WEB	PDR06390	$145.00	DLI	2-Way	0 MHz	20000 MHz	0.25 dB	N/A	N/A	N/A	XR-B7N7-0404D	Request Quote
XM-C5N1-0404C	0404B	PDW06399	$308.00	DLI	2-Way	9000 MHz	11000 MHz	3.3 dB	N/A	0.25 dB	5 Deg	XR-C5N1-0404C	Request Quote

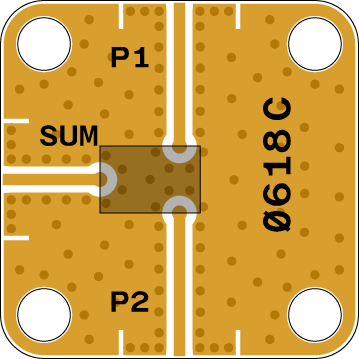

XM-C5N1-0404D	0618_WEB	PDW06399	$100.00	DLI	2-Way	9000 MHz	11000 MHz	3.3 dB	N/A	0.25 dB	5 Deg	XR-C5N1-0404D	Request Quote
XM-C874-0404D	1154_WEB	PDW08323	$86.00	DLI	2-Way	37000 MHz	42000 MHz	3.5 dB	N/A	0.3 dB	3 Deg	XR-C874-0404D	Request Quote

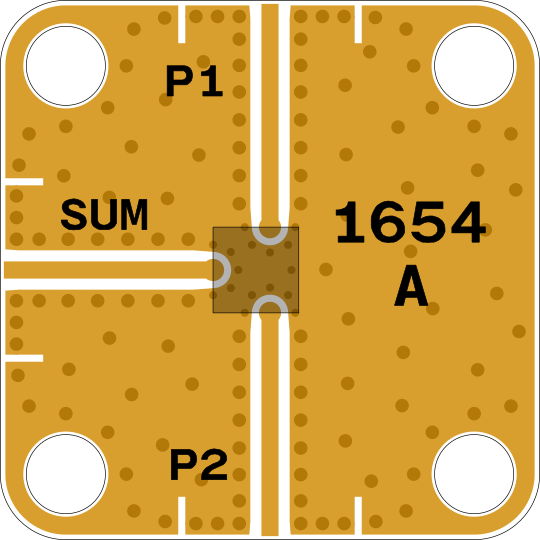

XM-C875-0404D	1654_WEB	PDW08604	$98.00	DLI	2-Way	10600 MHz	11800 MHz	3.3 dB	N/A	0.2 dB	2 Deg	XR-C875-0404D	Request Quote
XM-C8J6-0409D	1661_WEB	PDW06399	$136.00	DLI	2-Way	9000 MHz	11000 MHz	3.3 dB	N/A	0.25 dB	5 Deg	XR-C8J6-0409D	Request Quote

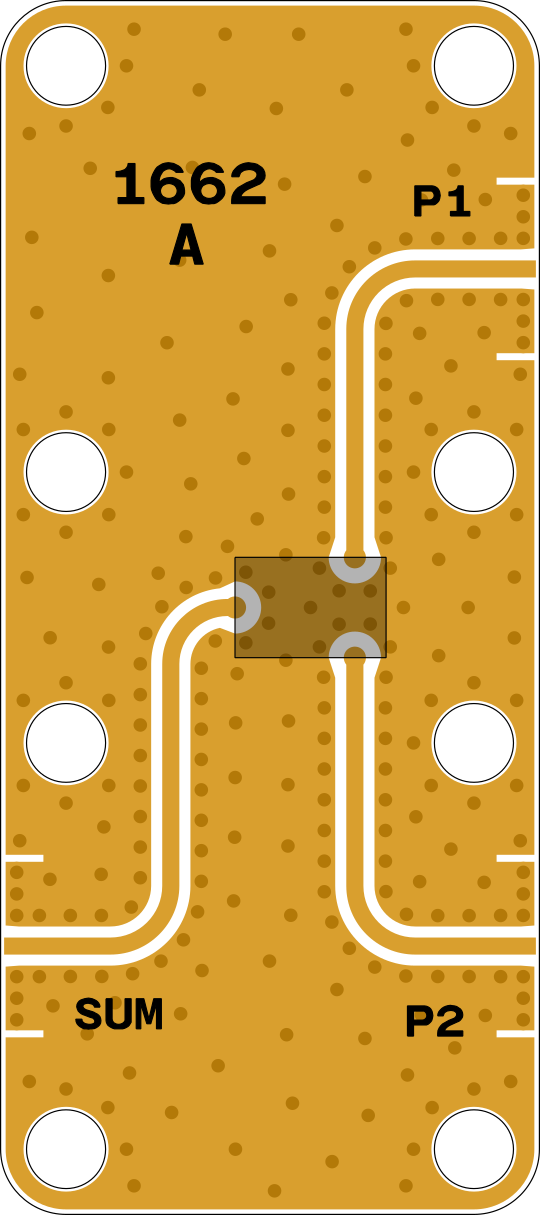

XM-C8J7-0409D	1662_WEB	PDW06399	$136.00	DLI	2-Way	9000 MHz	11000 MHz	3.3 dB	N/A	0.25 dB	5 Deg	XR-C8J7-0409D	Request Quote
XM-C8K4-0404C	0404D	PDW05758	$359.00	DLI	2-Way	4500 MHz	18000 MHz	4 dB	N/A	0.025 dB	3 Deg	XR-C8K4-0404C	Request Quote

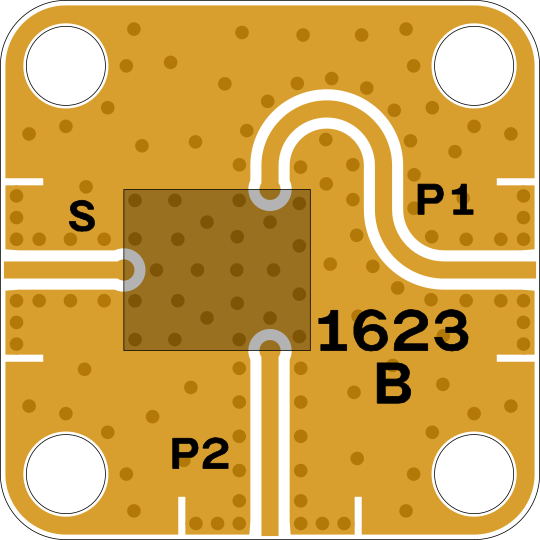

XM-C8K4-0404D	1623_WEB	PDW05758	$151.00	DLI	2-Way	4500 MHz	18000 MHz	4 dB	N/A	0.025 dB	3 Deg	XR-C8K4-0404D	Request Quote
XM-C8K5-0404C	0404C	PDW05758	$359.00	DLI	2-Way	4500 MHz	18000 MHz	4 dB	N/A	0.025 dB	3 Deg	XR-C8K5-0404C	Request Quote

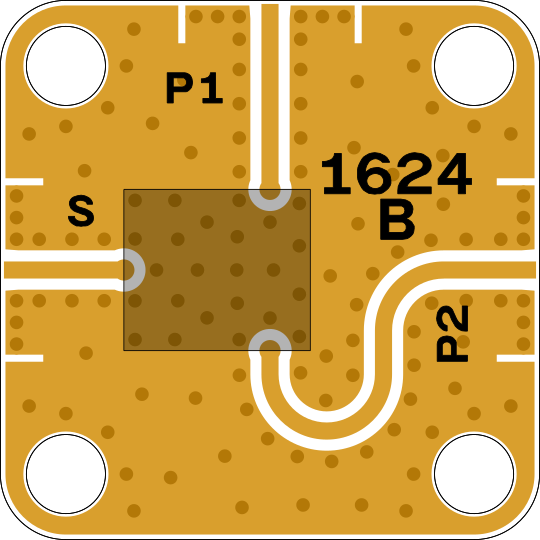

XM-C8K5-0404D	1624_WEB	PDW05758	$151.00	DLI	2-Way	4500 MHz	18000 MHz	4 dB	N/A	0.025 dB	3 Deg	XR-C8K5-0404D	Request Quote

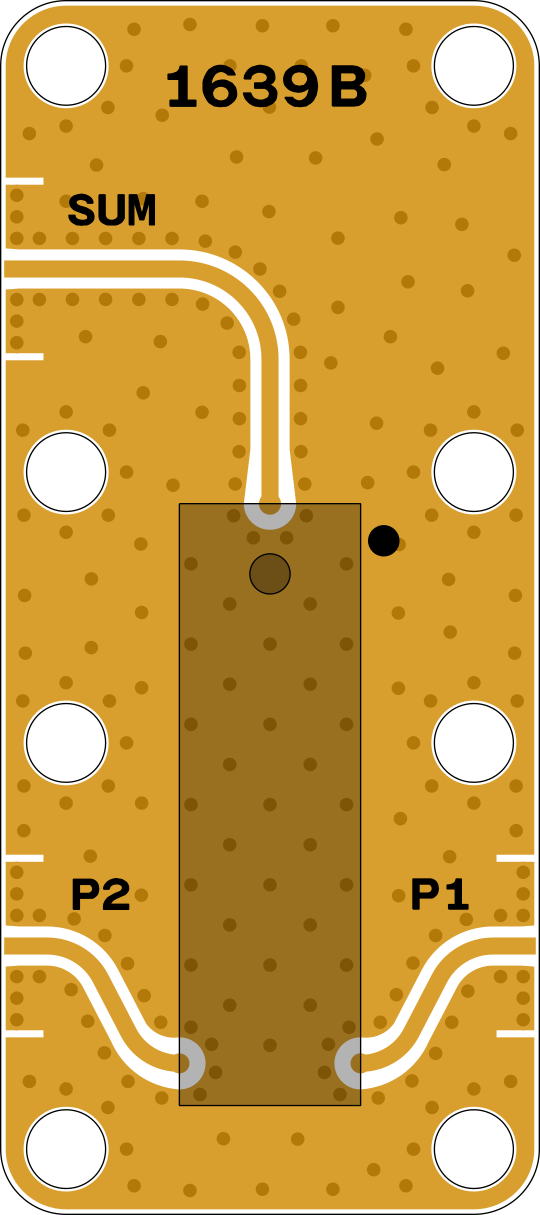

XM-C9J4-0409D	1639_WEB	PDW06407	$267.00	DLI	2-Way	2000 MHz	18000 MHz	5 dB	20 dB	0.25 dB	5 Deg	XR-C9J4-0409D	Request Quote
