XM Part Number Image Spec Sheet Buy Direct
(Intl. add 15%) 		Feature Mfr Type CF 3 dB BW IL 20 dB Rej Low Side 20 dB Rej High Side 40 dB Rej Low Side 40 dB Rej High Side RoHS Request Quote
XM-A265-0604C
0604A
 		B148QF0S
$524.00 DLI Planar 15000 MHz 7950 MHz 1.09 dB 10100 MHz 20110 MHz 8410 MHz 21980 MHz
XR-A265-0604C 		Request Quote
XM-A265-0604D
0079_WEB
 		B148QF0S
$394.00 DLI Planar 15000 MHz 7950 MHz 1.09 dB 10100 MHz 20110 MHz 8410 MHz 21980 MHz
XR-A265-0604D 		Request Quote
XM-A2B3-0404C
0404A
 		B096QC2S
$441.00 DLI Planar 10000 MHz 5440 MHz 1.52 dB 6920 MHz 12920 MHz 6380 MHz 13120 MHz
XR-A2B3-0404C 		Request Quote
XM-A2B3-0404D
0082_WEB
 		B096QC2S
$302.00 DLI Planar 10000 MHz 5440 MHz 1.52 dB 6920 MHz 12920 MHz 6380 MHz 13120 MHz
XR-A2B3-0404D 		Request Quote
XM-A2C2-0604D
0080_WEB
 		B028RF2S
$533.00 DLI Planar 3000 MHz 2336 MHz 1.15 dB 1650 MHz 4390 MHz 1390 MHz 4705 MHz
XR-A2C2-0604D 		Request Quote
XM-A2C3-0604C
0604A
 		B056RC4S
$589.00 DLI Planar 6000 MHz 4700 MHz 1.63 dB 3600 MHz 8580 MHz 3340 MHz 8680 MHz
XR-A2C3-0604C 		Request Quote
XM-A2C3-0604D
0081_WEB
 		B056RC4S
$426.00 DLI Planar 6000 MHz 4700 MHz 1.63 dB 3600 MHz 8580 MHz 3340 MHz 8680 MHz
XR-A2C3-0604D 		Request Quote
XM-A2U1-0604C
0604A
 		B033ND5S
$550.00 DLI Planar 3300 MHz 750 MHz 1.84 dB 2850 MHz 3850 MHz 2500 MHz 3950 MHz
XR-A2U1-0604C 		Request Quote
XM-A2U1-0604D
0168_WEB
 		B033ND5S
$402.00 DLI Planar 3300 MHz 750 MHz 1.84 dB 2850 MHz 3850 MHz 2500 MHz 3950 MHz
XR-A2U1-0604D 		Request Quote
XM-A2Y9-0604C
0604A
 		B012MD5S
$445.00 DLI Planar 1227 MHz 192 MHz 1.99 dB 1075 MHz 1350 MHz 976 MHz 1395 MHz
XR-A2Y9-0604C 		Request Quote
XM-A2Y9-0604D
0173_WEB
 		B012MD5S
$267.00 DLI Planar 1227 MHz 192 MHz 1.99 dB 1075 MHz 1350 MHz 976 MHz 1395 MHz
XR-A2Y9-0604D 		Request Quote
XM-A6H9-0604C
0604A
 		B080MB5S
$493.00 DLI Planar 8000 MHz 1412 MHz 1.79 dB 7182 MHz 8960 MHz 6930 MHz 9180 MHz
XR-A6H9-0604C 		Request Quote
XM-A6H9-0604D
0471_WEB
 		B080MB5S
$340.00 DLI Planar 8000 MHz 1412 MHz 1.79 dB 7182 MHz 8960 MHz 6930 MHz 9180 MHz
XR-A6H9-0604D 		Request Quote
XM-A7L9-0404C
0404A
 		B280LB0S
$420.00 DLI Planar 28000 MHz 2800 MHz 1.37 dB 25900 MHz 29760 MHz 25220 MHz 30600 MHz
XR-A7L9-0404C 		Request Quote
XM-A7L9-0404D
0520_WEB
 		B280LB0S
$222.00 DLI Planar 28000 MHz 2800 MHz 1.37 dB 25900 MHz 29760 MHz 25220 MHz 30600 MHz
XR-A7L9-0404D 		Request Quote
XM-A7W4-0604C
0604E
 		B280LA0S
$380.00 DLI Planar 28000 MHz 2250 MHz 2.18 dB 26420 MHz 29160 MHz 26000 MHz 29500 MHz
XR-A7W4-0604C 		Request Quote
XM-A7W4-0604D
0675_WEB
 		B280LA0S
$305.00 DLI Planar 28000 MHz 2250 MHz 2.18 dB 26420 MHz 29160 MHz 26000 MHz 29500 MHz
XR-A7W4-0604D 		Request Quote
XM-A7W5-0804C
0804A
 		B161LA0S
$583.00 DLI Planar 16000 MHz 1360 MHz 3.4 dB 15060 MHz 16870 MHz 14720 MHz 16970 MHz
XR-A7W5-0804C 		Request Quote
XM-A7W5-0804D
0607_WEB
 		B161LA0S
$429.00 DLI Planar 16000 MHz 1360 MHz 3.4 dB 15060 MHz 16870 MHz 14720 MHz 16970 MHz
XR-A7W5-0804D 		Request Quote
XM-A7W6-0604C
0604A
 		B120MB1S
$486.00 DLI Planar 12000 MHz 1590 MHz 1.69 dB 11010 MHz 12920 MHz 10670 MHz 13090 MHz
XR-A7W6-0604C 		Request Quote
XM-A7W6-0604D
0608_WEB
 		B120MB1S
$352.00 DLI Planar 12000 MHz 1590 MHz 1.69 dB 11010 MHz 12920 MHz 10670 MHz 13090 MHz
XR-A7W6-0604D 		Request Quote
XM-A7W9-0604C
0604A
 		B016MD6S
$421.00 DLI Planar 1575 MHz 231 MHz 1.9 dB 1380 MHz 1730 MHz 1230 MHz 1800 MHz
XR-A7W9-0604C 		Request Quote
XM-A7W9-0604D
0173_WEB
 		B016MD6S
$250.00 DLI Planar 1575 MHz 231 MHz 1.9 dB 1380 MHz 1730 MHz 1230 MHz 1800 MHz
XR-A7W9-0604D 		Request Quote
XM-B6N2-0604C
0604A
 		B060NC5S
$480.00 DLI Planar 6000 MHz 1300 MHz 1.23 dB 6160 MHz 6820 MHz 4900 MHz 7040 MHz
XR-B6N2-0604C 		Request Quote
XM-B6N2-0604D

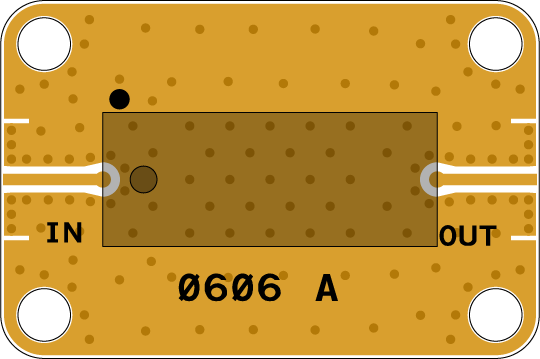

0606_WEB
 		B060NC5S
$325.00 DLI Planar 6000 MHz 1300 MHz 1.23 dB 6160 MHz 6820 MHz 4900 MHz 7040 MHz
XR-B6N2-0604D 		Request Quote
XM-B7D5-0604C
0604A
 		B058MD7S
$493.00 DLI Planar 5700 MHz 1170 MHz 1.2 dB 5020 MHz 6640 MHz 4685 MHz 6950 MHz
XR-B7D5-0604C 		Request Quote
XM-B7D5-0604D

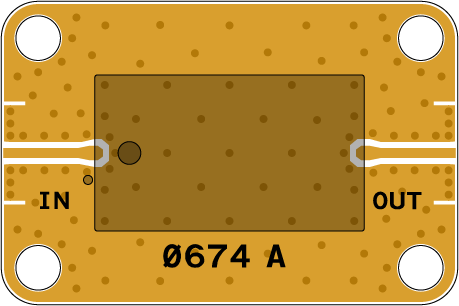

0674_WEB
 		B058MD7S
$348.00 DLI Planar 5700 MHz 1170 MHz 1.2 dB 5020 MHz 6640 MHz 4685 MHz 6950 MHz
XR-B7D5-0604D 		Request Quote
XM-B7L2-0604C
0604A
 		B039NC5S
$536.00 DLI Planar 3950 MHz 950 MHz 1.75 dB 3365 MHz 4600 MHz 3125 MHz 4780 MHz
XR-B7L2-0604C 		Request Quote
XM-B7L2-0604D

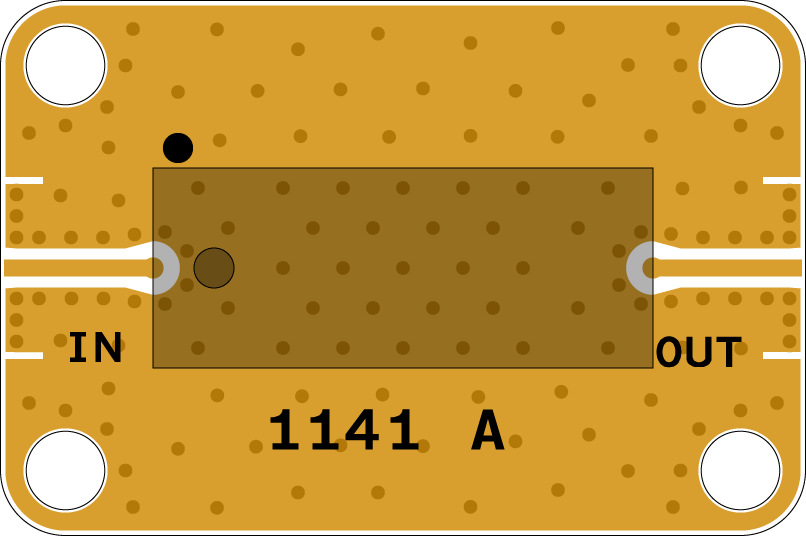

1141_WEB
 		B039NC5S
$336.00 DLI Planar 3950 MHz 950 MHz 1.75 dB 3365 MHz 4600 MHz 3125 MHz 4780 MHz
XR-B7L2-0604D 		Request Quote
XM-B7L3-0604C
0604A
 		B070MB6S
$512.00 DLI Planar 7100 MHz 780 MHz 1.79 dB 6500 MHz 7560 MHz 6300 MHz 6760 MHz
XR-B7L3-0604C 		Request Quote
XM-B7L3-0604D
1141_WEB
 		B070MB6S
$336.00 DLI Planar 7100 MHz 780 MHz 1.79 dB 6500 MHz 7560 MHz 6300 MHz 6760 MHz
XR-B7L3-0604D 		Request Quote
XM-B7L4-0604C
0604A
 		B070NC5S
$531.00 DLI Planar 7000 MHz 1500 MHz 1.08 dB 6150 MHz 8030 MHz 5850 MHz 8290 MHz
XR-B7L4-0604C 		Request Quote
XM-B7L4-0604D
1141_WEB
 		B070NC5S
$382.00 DLI Planar 7000 MHz 1500 MHz 1.08 dB 6150 MHz 8030 MHz 5850 MHz 8290 MHz
XR-B7L4-0604D 		Request Quote
XM-B7L5-0604C
0604A
 		B076MB6S
$520.00 DLI Planar 7600 MHz 940 MHz 1.46 dB 7010 MHz 8290 MHz 6770 MHz 8500 MHz
XR-B7L5-0604C 		Request Quote
XM-B7L5-0604D
1141_WEB
 		B076MB6S
$320.00 DLI Planar 7600 MHz 940 MHz 1.46 dB 7010 MHz 8290 MHz 6770 MHz 8500 MHz
XR-B7L5-0604D 		Request Quote
XM-B7L6-0604C
0604A
 		B024RF2S
$633.00 DLI Planar 2400 MHz 1550 MHz 1.04 dB 1580 MHz 3500 MHz 1275 MHz 3660 MHz
XR-B7L6-0604C 		Request Quote
XM-B7L6-0604D

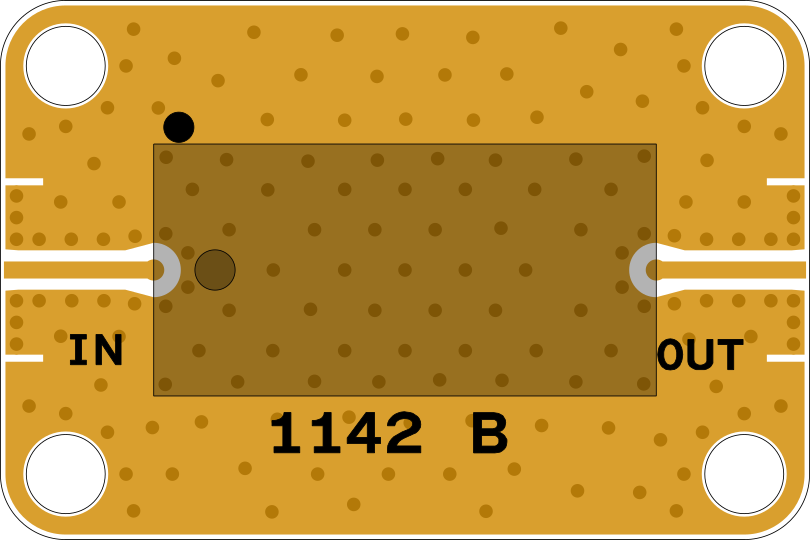

1142_WEB
 		B024RF2S
$493.00 DLI Planar 2400 MHz 1550 MHz 1.04 dB 1580 MHz 3500 MHz 1275 MHz 3660 MHz
XR-B7L6-0604D 		Request Quote
XM-B7L7-0604C
0604A
 		B031ND5S
$887.00 DLI Planar 3125 MHz 720 MHz 1.4 dB 2640 MHz 3670 MHz 2400 MHz 3850 MHz
XR-B7L7-0604C 		Request Quote
XM-B7L7-0604D
1142_WEB
 		B031ND5S
$755.00 DLI Planar 3125 MHz 720 MHz 1.4 dB 2640 MHz 3670 MHz 2400 MHz 3850 MHz
XR-B7L7-0604D 		Request Quote
XM-B7L8-0604C
0604A
 		B032ND5S
$453.00 DLI Planar 3240 MHz 865 MHz 1.15 dB 2660 MHz 3870 MHz 2400 MHz 4050 MHz
XR-B7L8-0604C 		Request Quote
XM-B7L8-0604D
1142_WEB
 		B032ND5S
$274.00 DLI Planar 3240 MHz 865 MHz 1.15 dB 2660 MHz 3870 MHz 2400 MHz 4050 MHz
XR-B7L8-0604D 		Request Quote
XM-B7L9-0604C
0604A
 		B040MB5S
$536.00 DLI Planar 4000 MHz 950 MHz 1.78 dB 3700 MHz 3610 MHz 3120 MHz 4775 MHz
XR-B7L9-0604C 		Request Quote
XM-B7L9-0604D
1142_WEB
 		B040MB5S
$336.00 DLI Planar 4000 MHz 950 MHz 1.78 dB 3700 MHz 3610 MHz 3120 MHz 4775 MHz
XR-B7L9-0604D 		Request Quote
XM-B7M1-0604C
0604A
 		B042OD4S
$529.00 DLI Planar 4250 MHz 1480 MHz 0.89 dB 3430 MHz 5250 MHz 3130 MHz 5465 MHz
XR-B7M1-0604C 		Request Quote
XM-B7M1-0604D
1142_WEB
 		B042OD4S
$362.00 DLI Planar 4250 MHz 1480 MHz 0.89 dB 3430 MHz 5250 MHz 3130 MHz 5465 MHz
XR-B7M1-0604D 		Request Quote
XM-B7M2-0604C
0604A
 		B047MC5S
$554.00 DLI Planar 4700 MHz 975 MHz 1.11 dB 4130 MHz 5375 MHz 3895 MHz 5550 MHz
XR-B7M2-0604C 		Request Quote
XM-B7M2-0604D
1142_WEB
 		B047MC5S
$407.00 DLI Planar 4700 MHz 975 MHz 1.11 dB 4130 MHz 5375 MHz 3895 MHz 5550 MHz
XR-B7M2-0604D 		Request Quote
XM-B7M3-0604C
0604A
 		B062MC5S
$460.00 DLI Planar 6300 MHz 1275 MHz 1.53 dB 5520 MHz 7240 MHz 5200 MHz 7470 MHz
XR-B7M3-0604C 		Request Quote
XM-B7M3-0604D
1142_WEB
 		B062MC5S
$361.00 DLI Planar 6300 MHz 1275 MHz 1.53 dB 5520 MHz 7240 MHz 5200 MHz 7470 MHz
XR-B7M3-0604D 		Request Quote
XM-B7M4-0604C
0604A
 		B065NC5S
$505.00 DLI Planar 6500 MHz 1440 MHz 1.15 dB 5600 MHz 7480 MHz 5230 MHz 7740 MHz
XR-B7M4-0604C 		Request Quote
XM-B7M4-0604D
1142_WEB
 		B065NC5S
$348.00 DLI Planar 6500 MHz 1440 MHz 1.15 dB 5600 MHz 7480 MHz 5230 MHz 7740 MHz
XR-B7M4-0604D 		Request Quote
XM-B7M5-0404C
0404A
 		B050ND4S
$488.00 DLI Planar 5000 MHz 1430 MHz 1.1 dB 4100 MHz 5930 MHz 3750 MHz 6100 MHz
XR-B7M5-0404C 		Request Quote
XM-B7M5-0404D

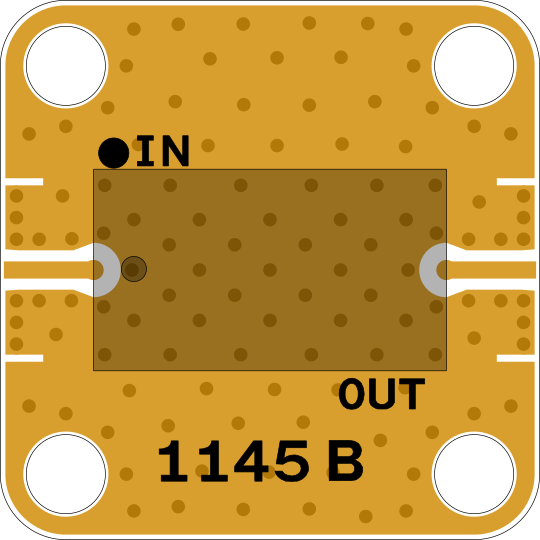

1145_WEB
 		B050ND4S
$302.00 DLI Planar 5000 MHz 1430 MHz 1.1 dB 4100 MHz 5930 MHz 3750 MHz 6100 MHz
XR-B7M5-0404D 		Request Quote
XM-B7M6-0404C
0404A
 		B052NC5S
$482.00 DLI Planar 5200 MHz 1200 MHz 1.1 dB 4450 MHz 6000 MHz 4130 MHz 6160 MHz
XR-B7M6-0404C 		Request Quote
XM-B7M6-0404D
1145_WEB
 		B052NC5S
$381.00 DLI Planar 5200 MHz 1200 MHz 1.1 dB 4450 MHz 6000 MHz 4130 MHz 6160 MHz
XR-B7M6-0404D 		Request Quote
XM-B7M7-0404C
0404A
 		B055NC5S
$480.00 DLI Planar 5500 MHz 1450 MHz 0.97 dB 4640 MHz 6485 MHz 4260 MHz 6685 MHz
XR-B7M7-0404C 		Request Quote
XM-B7M7-0404D
1145_WEB
 		B055NC5S
$329.00 DLI Planar 5500 MHz 1450 MHz 0.97 dB 4640 MHz 6485 MHz 4260 MHz 6685 MHz
XR-B7M7-0404D 		Request Quote
XM-B7M8-0404C
0404A
 		B057MC5S
$463.00 DLI Planar 5700 MHz 870 MHz 1.53 dB 5100 MHz 6300 MHz 4830 MHz 6510 MHz
XR-B7M8-0404C 		Request Quote
XM-B7M8-0404D
1145_WEB
 		B057MC5S
$302.00 DLI Planar 5700 MHz 870 MHz 1.53 dB 5100 MHz 6300 MHz 4830 MHz 6510 MHz
XR-B7M8-0404D 		Request Quote
XM-B7N2-0604C
0604A
 		B274MB1S
$391.00 DLI Planar 28000 MHz 4130 MHz 1.97 dB 25370 MHz 30150 MHz 24860 MHz 30460 MHz
XR-B7N2-0604C 		Request Quote
XM-B7N2-0604D

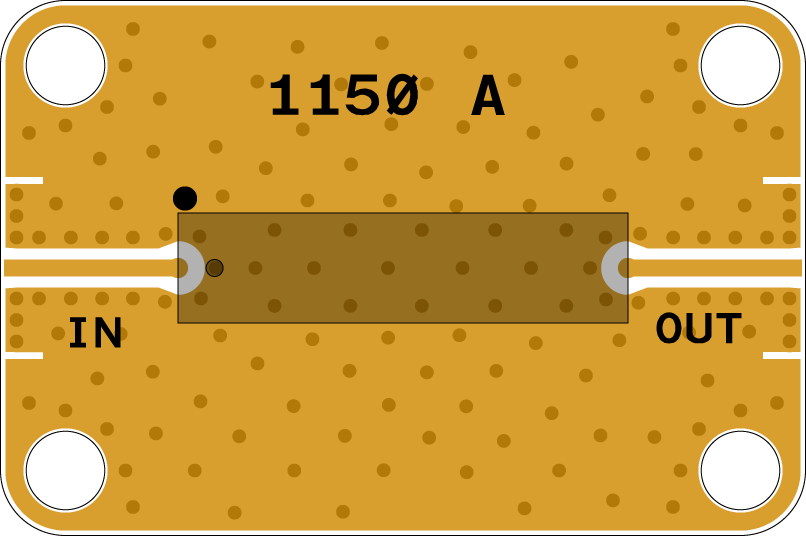

1150_WEB
 		B274MB1S
$154.00 DLI Planar 28000 MHz 4130 MHz 1.97 dB 25370 MHz 30150 MHz 24860 MHz 30460 MHz
XR-B7N2-0604D 		Request Quote
XM-B7N3-0404C
0404A
 		B385MD0S
$379.00 DLI Planar 38500 MHz 4950 MHz 1.13 dB 36000 MHz 43060 MHz 35190 MHz 45840 MHz
XR-B7N3-0404C 		Request Quote
XM-B7N3-0404D

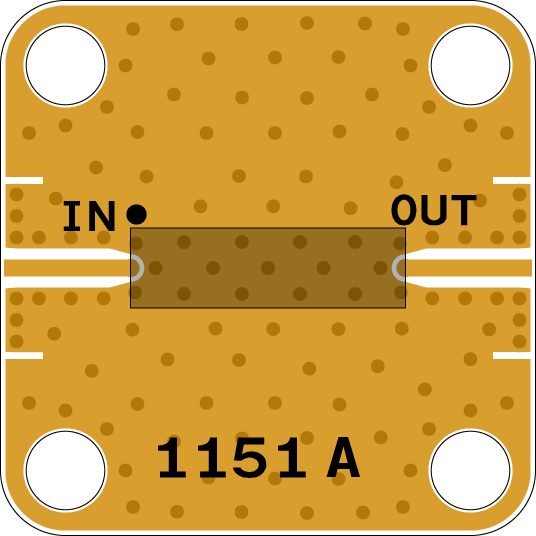

1151_WEB
 		B385MD0S
$179.00 DLI Planar 38500 MHz 4950 MHz 1.13 dB 36000 MHz 43060 MHz 35190 MHz 45840 MHz
XR-B7N3-0404D 		Request Quote
XM-B7N4-0404C
0404A
 		B081RC0S
$418.00 DLI Planar 8500 MHz 5700 MHz 1.29 dB 5580 MHz 11870 MHz 5240 MHz 12020 MHz
XR-B7N4-0404C 		Request Quote
XM-B7N4-0404D

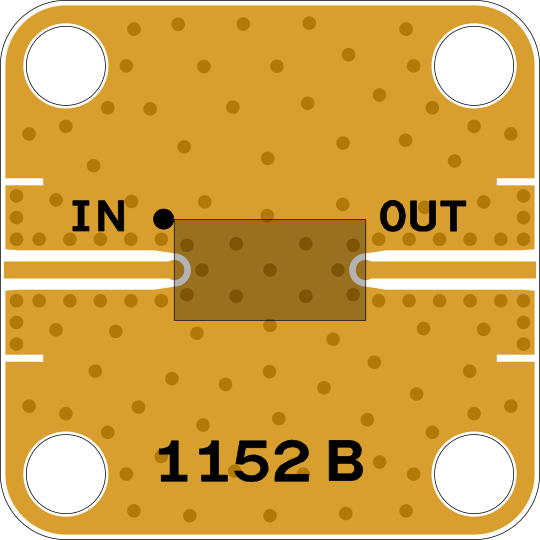

1152_WEB
 		B081RC0S
$267.00 DLI Planar 8500 MHz 5700 MHz 1.29 dB 5580 MHz 11870 MHz 5240 MHz 12020 MHz
XR-B7N4-0404D 		Request Quote
XM-C376-0404C
0404A
 		B259MC1S
$367.00 DLI Planar 26000 MHz 3690 MHz 1.62 dB 23090 MHz 28030 MHz 21090 MHz 28640 MHz
XR-C376-0404C 		Request Quote
XM-C376-0404D

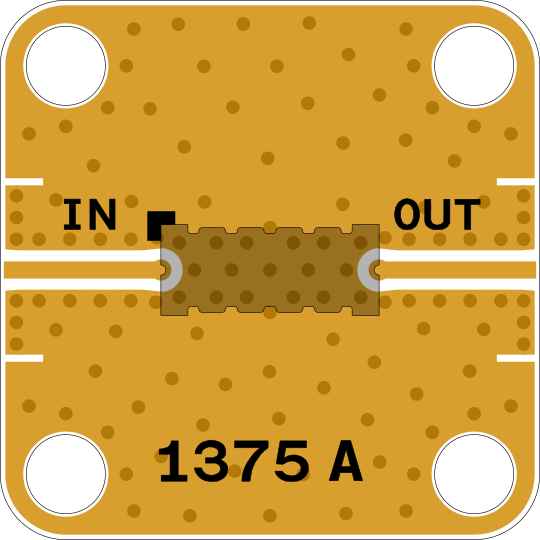

1375_WEB
 		B259MC1S
$126.00 DLI Planar 26000 MHz 3690 MHz 1.62 dB 23090 MHz 28030 MHz 21090 MHz 28640 MHz
XR-C376-0404D 		Request Quote
XM-C452-0404C
0404A
 		B100MC5S
$413.00 DLI Planar 10000 MHz 1840 MHz 1.3 dB 8935 MHz 11350 MHz 8540 MHz 11730 MHz
XR-C452-0404C 		Request Quote
XM-C452-0404D

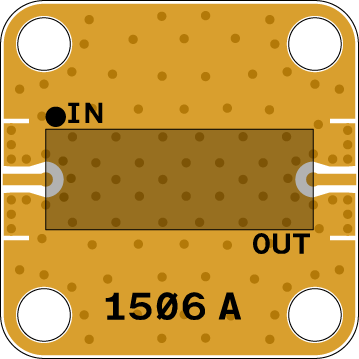

1506_WEB
 		B100MC5S
$253.00 DLI Planar 10000 MHz 1840 MHz 1.3 dB 8935 MHz 11350 MHz 8540 MHz 11730 MHz
XR-C452-0404D 		Request Quote
XM-C5N2-0404C
0404A
 		B144MB1S
$440.00 DLI Planar 14500 MHz 2050 MHz 1.51 dB 13020 MHz 15540 MHz 12440 MHz 15790 MHz
XR-C5N2-0404C 		Request Quote
XM-C5N2-0404D

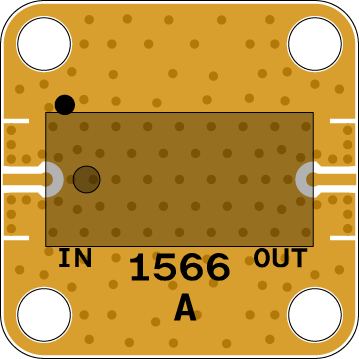

1566_WEB
 		B144MB1S
$266.00 DLI Planar 14500 MHz 2050 MHz 1.51 dB 13020 MHz 15540 MHz 12440 MHz 15790 MHz
XR-C5N2-0404D 		Request Quote
XM-C712-0604D

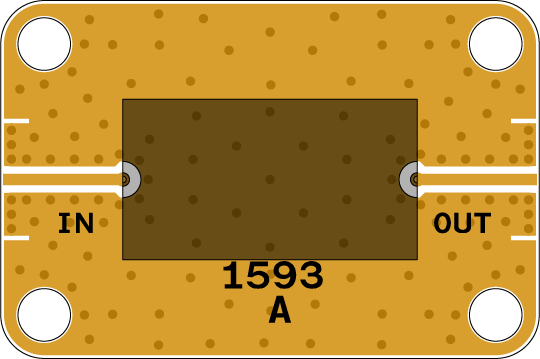

1593_WEB
 		B056MB5S
$412.00 DLI Planar 5600 MHz 1050 MHz 1.32 dB 5020 MHz 6280 MHz 4800 MHz 6425 MHz
XR-C712-0604D 		Request Quote
XM-C713-0604C
0604A
 		B083LB6S
$463.00 DLI Planar 8250 MHz 1200 MHz 1.46 dB 7630 MHz 9200 MHz 7330 MHz 9500 MHz
XR-C713-0604C 		Request Quote
XM-C713-0604D

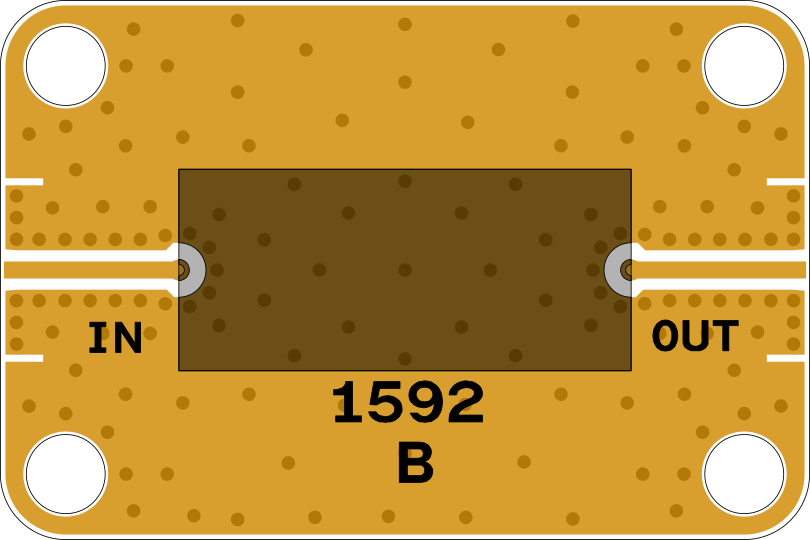

1592_WEB
 		B083LB6S
$318.00 DLI Planar 8250 MHz 1200 MHz 1.46 dB 7630 MHz 9200 MHz 7330 MHz 9500 MHz
XR-C713-0604D 		Request Quote
XM-C714-0404C
0404A
 		B089NC4S
$514.00 DLI Planar 9100 MHz 2430 MHz 1.24 dB 7525 MHz 10530 MHz 7040 MHz 11000 MHz
XR-C714-0404C 		Request Quote
XM-C714-0404D

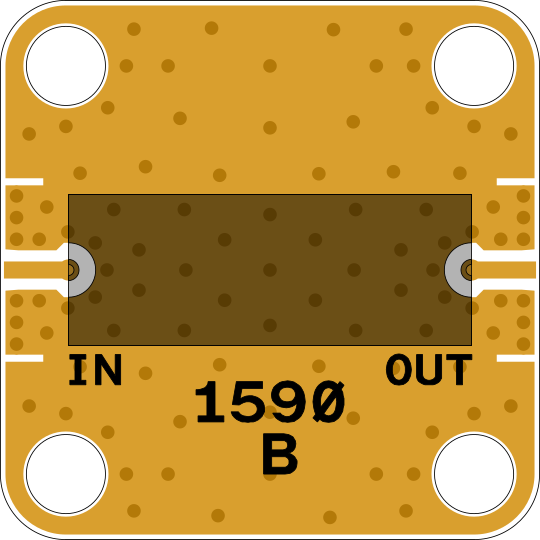

1590_WEB
 		B089NC4S
$372.00 DLI Planar 9100 MHz 2430 MHz 1.24 dB 7525 MHz 10530 MHz 7040 MHz 11000 MHz
XR-C714-0404D 		Request Quote
XM-C715-0604C
0604A
 		B094LA2S
$520.00 DLI Planar 9420 MHz 830 MHz 2.23 dB 8980 MHz 10020 MHz 8800 MHz 10150 MHz
XR-C715-0604C 		Request Quote
XM-C715-0604D
1592_WEB
 		B094LA2S
$366.00 DLI Planar 9420 MHz 830 MHz 2.23 dB 8980 MHz 10020 MHz 8800 MHz 10150 MHz
XR-C715-0604D 		Request Quote
XM-C716-0404C
0404A
 		B095MB1S
$529.00 DLI Planar 9500 MHz 1770 MHz 1.18 dB 8500 MHz 10700 MHz 8130 MHz 11080 MHz
XR-C716-0404C 		Request Quote
XM-C716-0404D
1590_WEB
 		B095MB1S
$389.00 DLI Planar 9500 MHz 1770 MHz 1.18 dB 8500 MHz 10700 MHz 8130 MHz 11080 MHz
XR-C716-0404D 		Request Quote
XM-C717-0404C
0404A
 		B097MB0S
$437.00 DLI Planar 9700 MHz 1615 MHz 1.5 dB 8840 MHz 11000 MHz 8460 MHz 11330 MHz
XR-C717-0404C 		Request Quote
XM-C717-0404D
1590_WEB
 		B097MB0S
$272.00 DLI Planar 9700 MHz 1615 MHz 1.5 dB 8840 MHz 11000 MHz 8460 MHz 11330 MHz
XR-C717-0404D 		Request Quote
XM-C718-0604C
0604A
 		B102MC1S
$489.00 DLI Planar 10250 MHz 1180 MHz 2.25 dB 7620 MHz 9200 MHz 7325 MHz 9490 MHz
XR-C718-0604C 		Request Quote
XM-C718-0604D
1592_WEB
 		B102MC1S
$289.00 DLI Planar 10250 MHz 1180 MHz 2.25 dB 7620 MHz 9200 MHz 7325 MHz 9490 MHz
XR-C718-0604D 		Request Quote
XM-C719-0404C
0404A
 		B099NC4S
$405.00 DLI Planar 10250 MHz 3090 MHz 1.11 dB 8360 MHz 12220 MHz 7590 MHz 12890 MHz
XR-C719-0404C 		Request Quote
XM-C719-0404D
1590_WEB
 		B099NC4S
$255.00 DLI Planar 10250 MHz 3090 MHz 1.11 dB 8360 MHz 12220 MHz 7590 MHz 12890 MHz
XR-C719-0404D 		Request Quote
XM-C721-0604C
0604A
 		B105MB5S
$451.00 DLI Planar 10600 MHz 2250 MHz 1.24 dB 9200 MHz 12350 MHz 8680 MHz 12970 MHz
XR-C721-0604C 		Request Quote
XM-C721-0604D
1592_WEB
 		B105MB5S
$251.00 DLI Planar 10600 MHz 2250 MHz 1.24 dB 9200 MHz 12350 MHz 8680 MHz 12970 MHz
XR-C721-0604D 		Request Quote
XM-C722-0404C
0404A
 		B112MB1S
$487.00 DLI Planar 11200 MHz 1900 MHz 1.35 dB 10280 MHz 12810 MHz 9850 MHz 13220 MHz
XR-C722-0404C 		Request Quote
XM-C722-0404D
1590_WEB
 		B112MB1S
$322.00 DLI Planar 11200 MHz 1900 MHz 1.35 dB 10280 MHz 12810 MHz 9850 MHz 13220 MHz
XR-C722-0404D 		Request Quote
XM-C723-0404C
0404A
 		B111NC4S
$408.00 DLI Planar 11400 MHz 3190 MHz 1.18 dB 9540 MHz 13500 MHz 8935 MHz 14190 MHz
XR-C723-0404C 		Request Quote
XM-C723-0404D
1590_WEB
 		B111NC4S
$267.00 DLI Planar 11400 MHz 3190 MHz 1.18 dB 9540 MHz 13500 MHz 8935 MHz 14190 MHz
XR-C723-0404D 		Request Quote
XM-C724-0404C
0404A
 		B116NC5S
$433.00 DLI Planar 11650 MHz 3300 MHz 1.03 dB 9710 MHz 13810 MHz 9100 MHz 14540 MHz
XR-C724-0404C 		Request Quote
XM-C724-0404D
1590_WEB
 		B116NC5S
$267.00 DLI Planar 11650 MHz 3300 MHz 1.03 dB 9710 MHz 13810 MHz 9100 MHz 14540 MHz
XR-C724-0404D 		Request Quote
XM-C725-0604D
1592_WEB
 		B118LB4S
$260.00 DLI Planar 11800 MHz 1180 MHz 1.35 dB 11080 MHz 12770 MHz 10670 MHz 13030 MHz
XR-C725-0604D 		Request Quote
XM-C726-0404C
0404A
 		B127MB2S
$440.00 DLI Planar 12750 MHz 1880 MHz 1.64 dB 11430 MHz 13720 MHz 10950 MHz 13910 MHz
XR-C726-0404C 		Request Quote
XM-C726-0404D
1566_WEB
 		B127MB2S
$266.00 DLI Planar 12750 MHz 1880 MHz 1.64 dB 11430 MHz 13720 MHz 10950 MHz 13910 MHz
XR-C726-0404D 		Request Quote
XM-C727-0404C
0404A
 		B138MB1S
$439.00 DLI Planar 13750 MHz 1875 MHz 1.59 dB 12370 MHz 14700 MHz 11860 MHz 14920 MHz
XR-C727-0404C 		Request Quote
XM-C727-0404D
1566_WEB
 		B138MB1S
$320.00 DLI Planar 13750 MHz 1875 MHz 1.59 dB 12370 MHz 14700 MHz 11860 MHz 14920 MHz
XR-C727-0404D 		Request Quote
XM-C728-0604C
0604A
 		B138LA2S
$477.00 DLI Planar 13750 MHz 1100 MHz 2.1 dB 13110 MHz 14480 MHz 12840 MHz 14660 MHz
XR-C728-0604C 		Request Quote
XM-C728-0604D

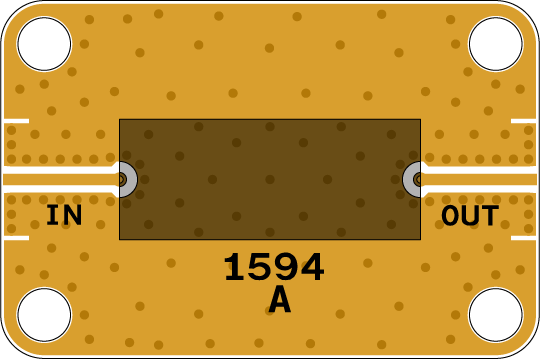

1594_WEB
 		B138LA2S
$277.00 DLI Planar 13750 MHz 1100 MHz 2.1 dB 13110 MHz 14480 MHz 12840 MHz 14660 MHz
XR-C728-0604D 		Request Quote
XM-C729-0404C
0404A
 		B150OG0S
$355.00 DLI Planar 14500 MHz 3380 MHz 0.89 dB 12500 MHz 16970 MHz 11080 MHz 18410 MHz
XR-C729-0404C 		Request Quote
XM-C729-0404D

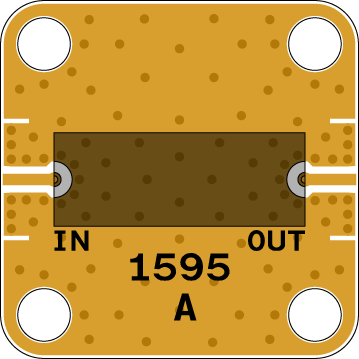

1595_WEB
 		B150OG0S
$209.00 DLI Planar 14500 MHz 3380 MHz 0.89 dB 12500 MHz 16970 MHz 11080 MHz 18410 MHz
XR-C729-0404D 		Request Quote
XM-C731-0604C
0604A
 		B148LA2S
$490.00 DLI Planar 14750 MHz 1330 MHz 2.38 dB 13640 MHz 15330 MHz 13280 MHz 15520 MHz
XR-C731-0604C 		Request Quote
XM-C731-0604D
1592_WEB
 		B148LA2S
$314.00 DLI Planar 14750 MHz 1330 MHz 2.38 dB 13640 MHz 15330 MHz 13280 MHz 15520 MHz
XR-C731-0604D 		Request Quote
XM-C732-0404C
0404A
 		B149MC1S
$424.00 DLI Planar 15000 MHz 1330 MHz 3.1 dB 13630 MHz 15330 MHz 13280 MHz 15520 MHz
XR-C732-0404C 		Request Quote
XM-C732-0404D

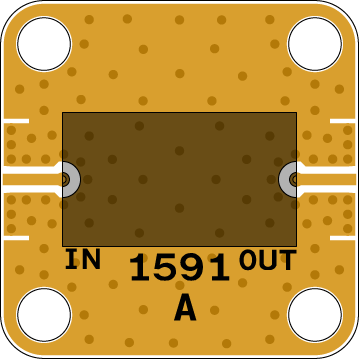

1591_WEB
 		B149MC1S
$253.00 DLI Planar 15000 MHz 1330 MHz 3.1 dB 13630 MHz 15330 MHz 13280 MHz 15520 MHz
XR-C732-0404D 		Request Quote
XM-C733-0404C
0404A
 		B160KA1S
$437.00 DLI Planar 16000 MHz 1500 MHz 1.76 dB 15030 MHz 16960 MHz 14500 MHz 17580 MHz
XR-C733-0404C 		Request Quote
XM-C733-0404D
1566_WEB
 		B160KA1S
$272.00 DLI Planar 16000 MHz 1500 MHz 1.76 dB 15030 MHz 16960 MHz 14500 MHz 17580 MHz
XR-C733-0404D 		Request Quote
XM-C734-0404C
0404A
 		B165LA1S
$437.00 DLI Planar 16500 MHz 1940 MHz 1.76 dB 15080 MHz 17500 MHz 14540 MHz 17780 MHz
XR-C734-0404C 		Request Quote
XM-C734-0404D
1566_WEB
 		B165LA1S
$245.00 DLI Planar 16500 MHz 1940 MHz 1.76 dB 15080 MHz 17500 MHz 14540 MHz 17780 MHz
XR-C734-0404D 		Request Quote
XM-C735-0404C
0404A
 		B168MB1S
$420.00 DLI Planar 16750 MHz 3030 MHz 0.95 dB 14520 MHz 18360 MHz 13530 MHz 18660 MHz
XR-C735-0404C 		Request Quote
XM-C735-0404D
1591_WEB
 		B168MB1S
$229.00 DLI Planar 16750 MHz 3030 MHz 0.95 dB 14520 MHz 18360 MHz 13530 MHz 18660 MHz
XR-C735-0404D 		Request Quote
XM-C737-0404C
0404A
 		B279KB1S
$338.00 DLI Planar 27900 MHz 1620 MHz 2.95 dB 26870 MHz 29160 MHz 26000 MHz 29650 MHz
XR-C737-0404C 		Request Quote
XM-C737-0404D

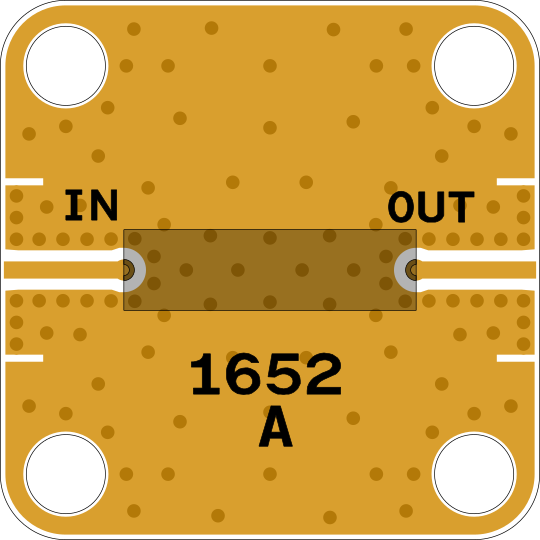

1652_WEB
 		B279KB1S
$170.00 DLI Planar 27900 MHz 1620 MHz 2.95 dB 26870 MHz 29160 MHz 26000 MHz 29650 MHz
XR-C737-0404D 		Request Quote
XM-C738-0404C
0404A
 		B280MC1S
$424.00 DLI Planar 28000 MHz 3500 MHz 1.89 dB 25800 MHz 30380 MHz 24440 MHz 31140 MHz
XR-C738-0404C 		Request Quote
XM-C738-0404D

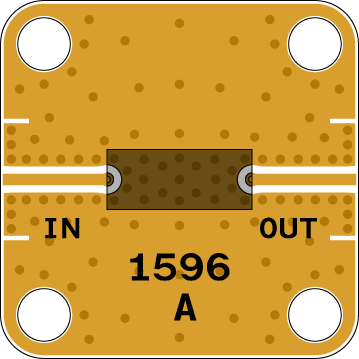

1596_WEB
 		B280MC1S
$239.00 DLI Planar 28000 MHz 3500 MHz 1.89 dB 25800 MHz 30380 MHz 24440 MHz 31140 MHz
XR-C738-0404D 		Request Quote
XM-D269-0604D

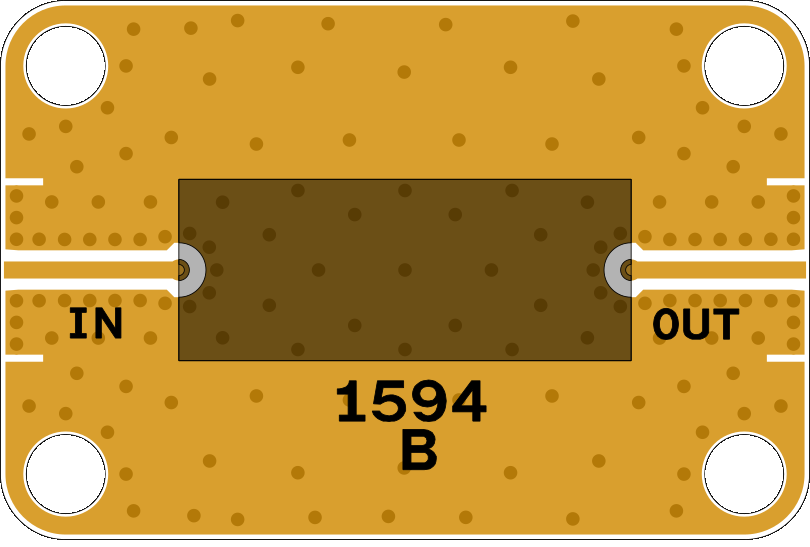

1594
 		B180MA1S
$314.00 DLI Ceramic 18000 MHz 1000 MHz 3.0 dB N/A N/A N/A N/A
XR-D269-0604D 		Request Quote
XM-C1A7-0604D
1970
 		B220LA0S
$336.00 DLI N/A 22000 MHz N/A 3.5 dB N/A N/A N/A N/A
XR-C1A7-0604D 		Request Quote
XM-A484-0604D
1970
 		B291MB0S
$290.00 DLI Ceramic 29100 MHz 3800 MHz 3.0 dB N/A N/A N/A N/A
XR-A484-0604D 		Request Quote
XM-D269-0604C
 		B180MA1S
$470.00 DLI Ceramic 18000 MHz 1000 MHz 3.0 dB N/A N/A N/A N/A
XR-D269-0604C 		Request Quote
