1 - 96 of 96 | Results Per Page | View

Request Information Compare Items

XM Part Number	Image	Spec Sheet	Buy Direct (Intl. add 15%)	Feature Mfr	Type	Low Freq	High Freq	IL	P1dB	IP3	RoHS	Request Quote

XM-A3R1-0409C-01	0409A	ADRF5020BCCZN	$951.00	ADI	SP2T	100 MHz	30000 MHz	3.0 dB	28 dBm	38 dBm	XR-A3R1-0409C-01	Request Quote

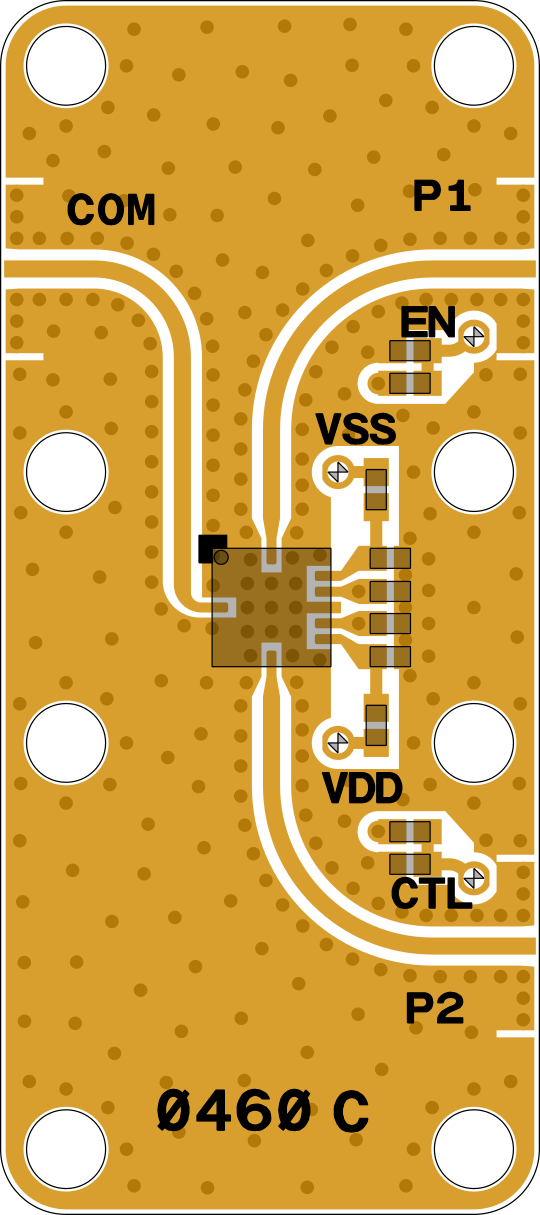

XM-A3R1-0409D	0460_WEB	ADRF5020BCCZN	$339.00	ADI	SP2T	100 MHz	30000 MHz	3.0 dB	28 dBm	38 dBm	XR-A3R1-0409D	Request Quote

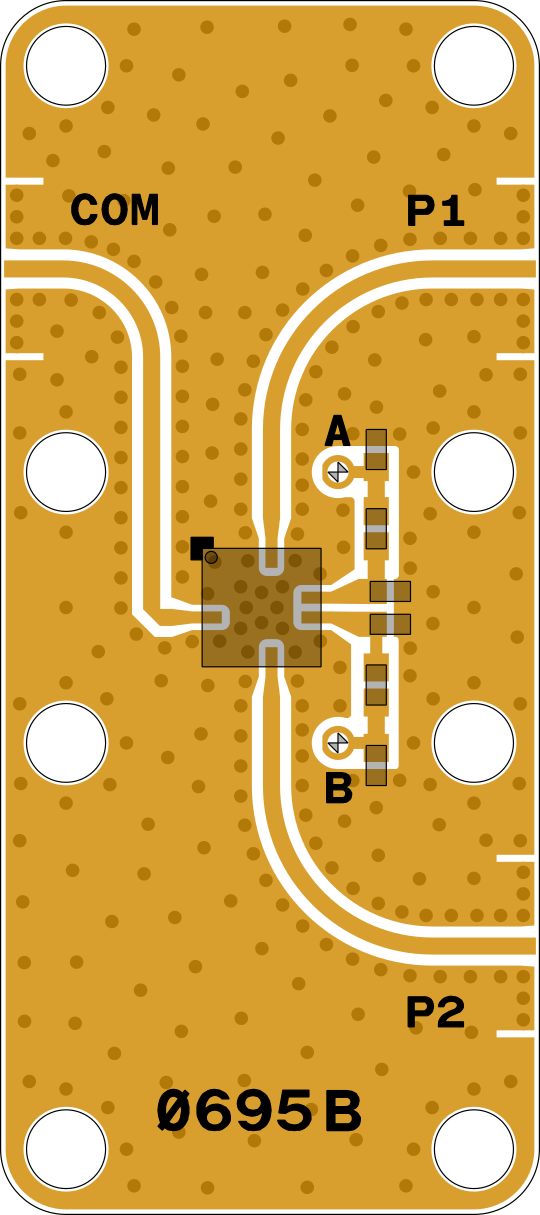

XM-A421-0409D	0695_WEB	HMC547ALC3	$318.00	ADI	SP2T	0 MHz	28000 MHz	2.2 dB	26 dBm	46 dBm	XR-A421-0409D	Request Quote

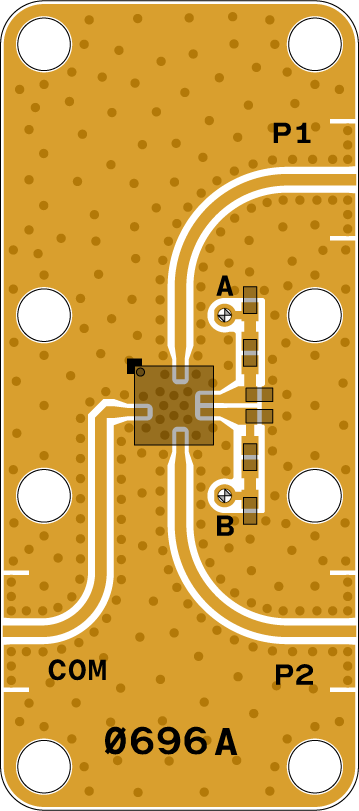

XM-A422-0409D	0696_WEB	HMC547ALC3	$314.00	ADI	SP2T	0 MHz	28000 MHz	2.2 dB	26 dBm	46 dBm	XR-A422-0409D	Request Quote
XM-A5G1-0409C-01	0409B	ADG918BRMZ	$591.00	ADI	SP2T	0 MHz	2000 MHz	0.8 dB	17 dBm	36 dBm	XR-A5G1-0409C-01	Request Quote

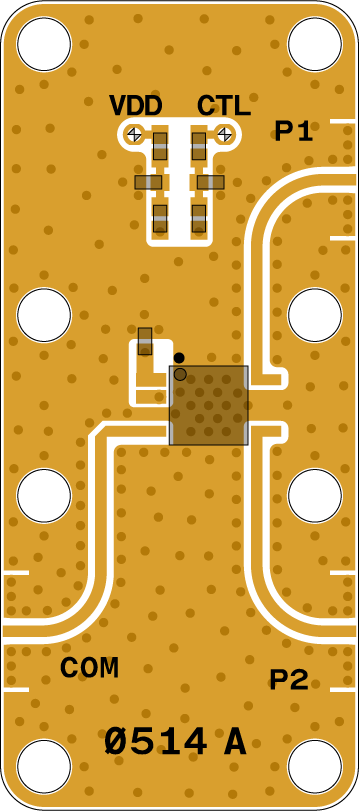

XM-A5G1-0409D	0514_WEB	ADG918BRMZ	$136.00	ADI	SP2T	0 MHz	2000 MHz	0.8 dB	17 dBm	36 dBm	XR-A5G1-0409D	Request Quote
XM-A5G2-0409C-01	0409B	ADG918BRMZ	$579.00	ADI	SP2T	0 MHz	2000 MHz	0.8 dB	17 dBm	36 dBm	XR-A5G2-0409C-01	Request Quote
XM-A5G2-0409D	0514_WEB	ADG918BRMZ	$125.00	ADI	SP2T	0 MHz	2000 MHz	0.8 dB	17 dBm	36 dBm	XR-A5G2-0409D	Request Quote
XM-A5G3-0409C-01	0409A	ADG918BRMZ	$593.00	ADI	SP2T	0 MHz	2000 MHz	0.8 dB	17 dBm	36 dBm	XR-A5G3-0409C-01	Request Quote

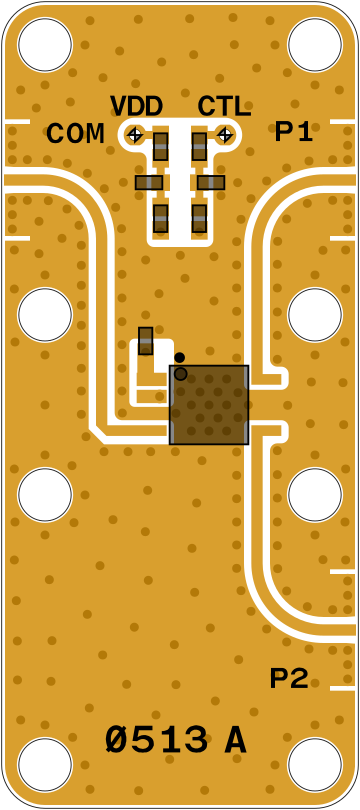

XM-A5G3-0409D	0513_WEB	ADG918BRMZ	$139.00	ADI	SP2T	0 MHz	2000 MHz	0.8 dB	17 dBm	36 dBm	XR-A5G3-0409D	Request Quote
XM-A5G4-0409C-01	0409A	ADG918BRMZ	$593.00	ADI	SP2T	0 MHz	2000 MHz	0.8 dB	17 dBm	36 dBm	XR-A5G4-0409C-01	Request Quote
XM-A5G4-0409D	0513_WEB	ADG918BRMZ	$139.00	ADI	SP2T	0 MHz	2000 MHz	0.8 dB	17 dBm	36 dBm	XR-A5G4-0409D	Request Quote
XM-A5G6-0404C-01	0404A	ADG901BRMZ	$468.00	ADI	SP1T	0 MHz	2500 MHz	0.8 dB	17 dBm	36 dBm	XR-A5G6-0404C-01	Request Quote

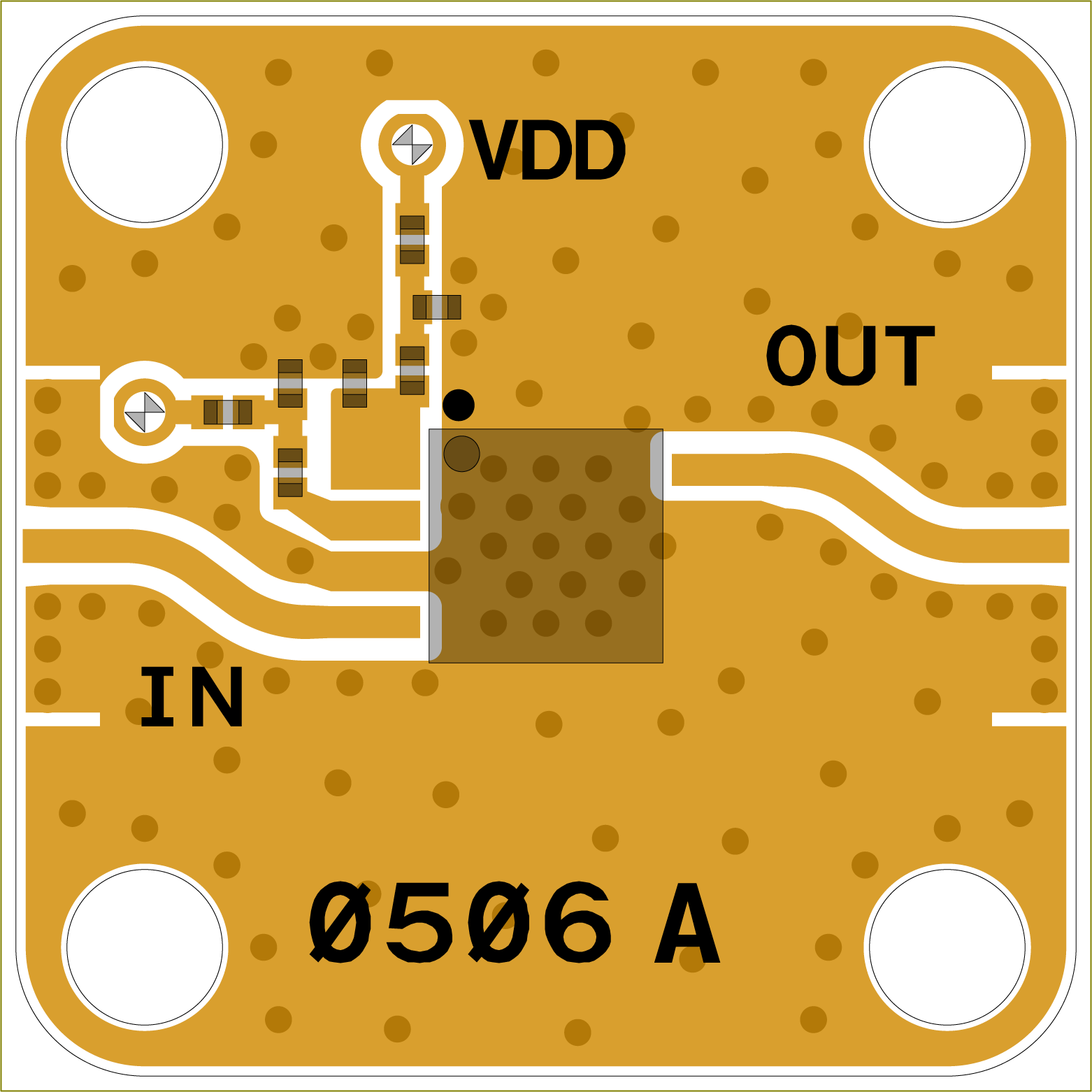

XM-A5G6-0404D	0506_WEB	ADG901BRMZ	$100.00	ADI	SP1T	0 MHz	2500 MHz	0.8 dB	17 dBm	36 dBm	XR-A5G6-0404D	Request Quote
XM-A5G7-0404C-01	0404A	ADG901BRMZ	$454.00	ADI	SP1T	0 MHz	2500 MHz	0.8 dB	17 dBm	36 dBm	XR-A5G7-0404C-01	Request Quote
XM-A5G7-0404D	0506_WEB	ADG901BRMZ	$87.00	ADI	SP1T	0 MHz	2500 MHz	0.8 dB	17 dBm	36 dBm	XR-A5G7-0404D	Request Quote
XM-A5M1-0409C-01	0409A	ADRF5021BCCZN	$960.00	ADI	SP2T	0.009 MHz	30000 MHz	2 dB	28 dBm	52 dBm	XR-A5M1-0409C-01	Request Quote
XM-A5M1-0409D	0460_WEB	ADRF5021BCCZN	$348.00	ADI	SP2T	0.009 MHz	30000 MHz	2 dB	28 dBm	52 dBm	XR-A5M1-0409D	Request Quote
XM-A5M2-0409C-01	0409B	ADRF5021BCCZN	$960.00	ADI	SP2T	0.009 MHz	30000 MHz	2 dB	28 dBm	52 dBm	XR-A5M2-0409C-01	Request Quote

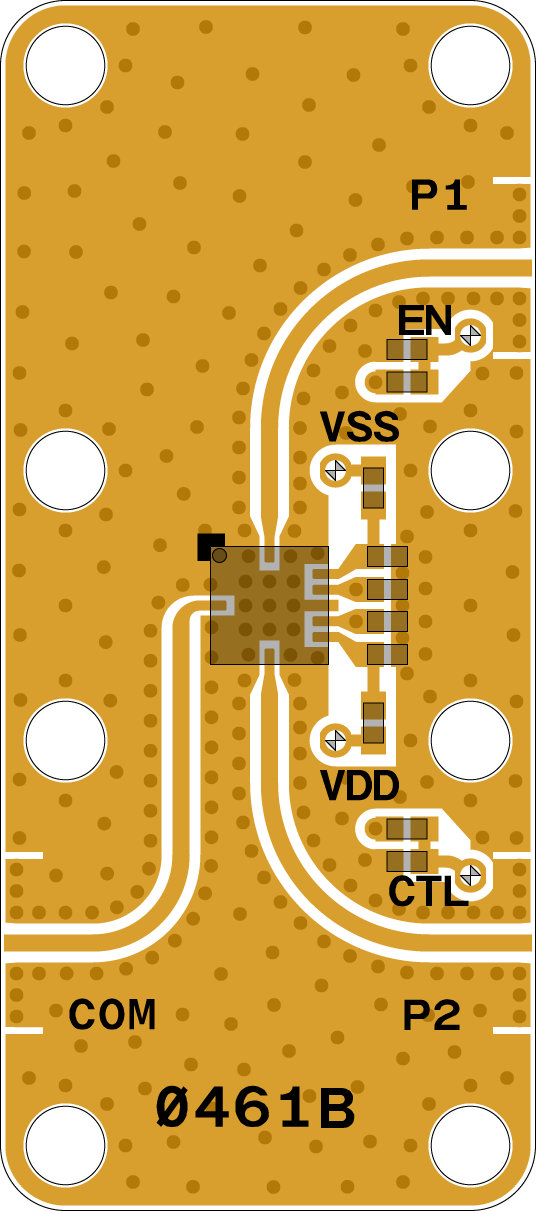

XM-A5M2-0409D	0461_WEB	ADRF5021BCCZN	$348.00	ADI	SP2T	0.009 MHz	30000 MHz	2 dB	28 dBm	52 dBm	XR-A5M2-0409D	Request Quote
XM-A636-0409C-01	0409D	ADRF5040BCPZ	$937.00	ADI	SP4T	0.009 MHz	12000 MHz	0.8 dB	37 dBm	58 dBm	XR-A636-0409C-01	Request Quote

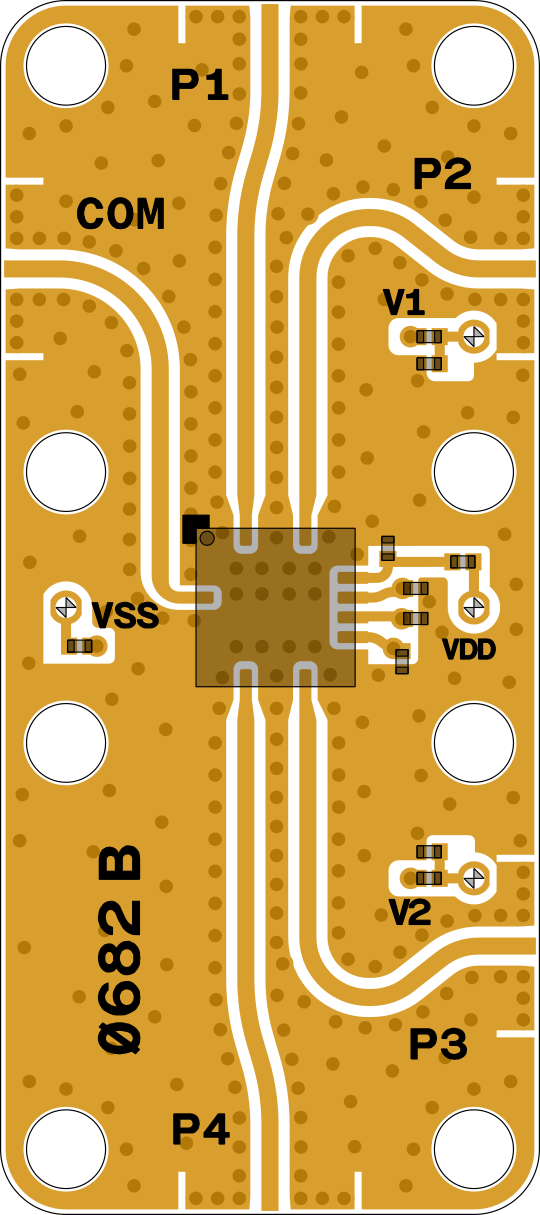

XM-A636-0409D	0682_WEB	ADRF5040BCPZ	$282.00	ADI	SP4T	0.009 MHz	12000 MHz	0.8 dB	37 dBm	58 dBm	XR-A636-0409D	Request Quote
XM-A637-0409C-01	0409A	ADRF5130BCPZ	$734.00	ADI	SP2T	700 MHz	3500 MHz	0.6 dB	46 dBm	68 dBm	XR-A637-0409C-01	Request Quote

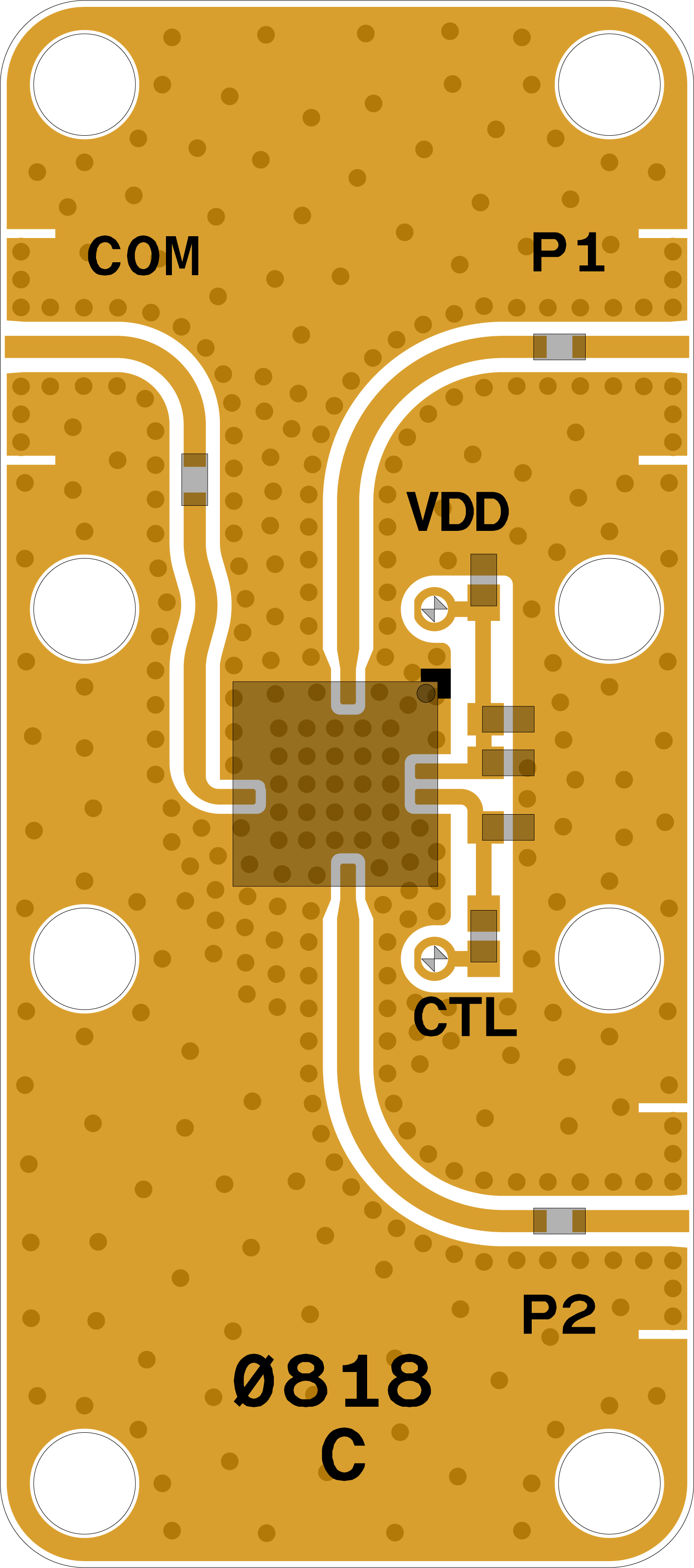

XM-A637-0409D	0818_WEB	ADRF5130BCPZ	$297.00	ADI	SP2T	700 MHz	3500 MHz	0.6 dB	46 dBm	68 dBm	XR-A637-0409D	Request Quote
XM-A645-0409C-01	0409A	HMC1118LP3DE	$491.00	ADI	SP2T	0.009 MHz	13000 MHz	0.68 dB	37 dBm	62 dBm	XR-A645-0409C-01	Request Quote

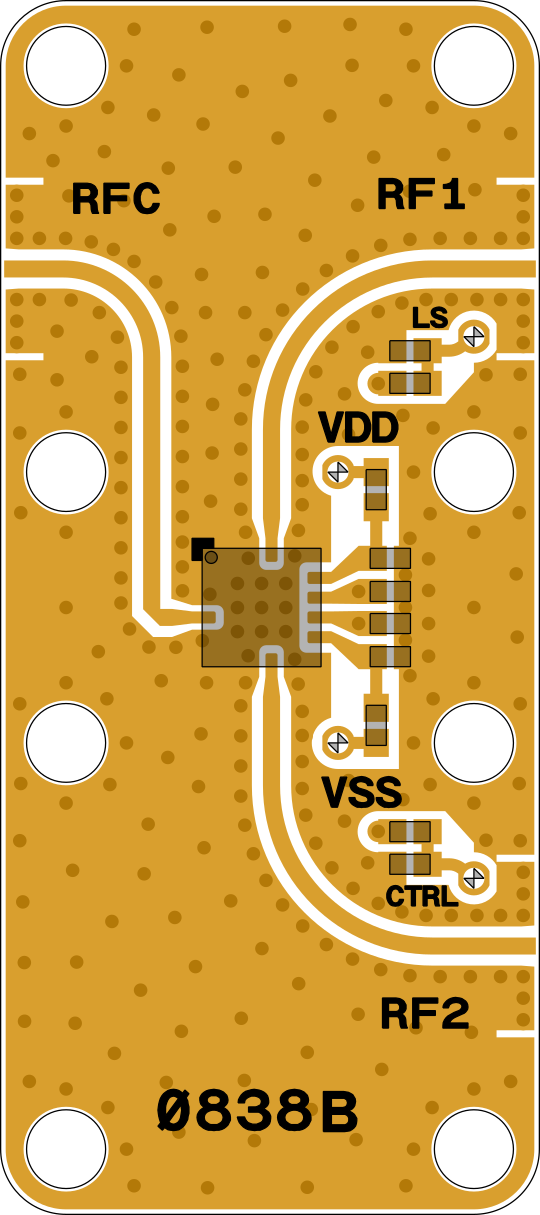

XM-A645-0409D	0838_WEB	HMC1118LP3DE	$231.00	ADI	SP2T	0.009 MHz	13000 MHz	0.68 dB	37 dBm	62 dBm	XR-A645-0409D	Request Quote
XM-A668-0409C-01	0409A	HMC347ALP3E	$738.00	ADI	SP2T	0 MHz	14000 MHz	1.8 dB	29 dBm	47 dBm	XR-A668-0409C-01	Request Quote
XM-A668-0409D	0695_WEB	HMC347ALP3E	$284.00	ADI	SP2T	0 MHz	14000 MHz	1.8 dB	29 dBm	47 dBm	XR-A668-0409D	Request Quote
XM-A6F3-0409C-01	0409B	ADRF5020BCCZN	$951.00	ADI	SP2T	100 MHz	30000 MHz	3.0 dB	28 dBm	38 dBm	XR-A6F3-0409C-01	Request Quote
XM-A6F3-0409D	0461_WEB	ADRF5020BCCZN	$339.00	ADI	SP2T	100 MHz	30000 MHz	3.0 dB	28 dBm	38 dBm	XR-A6F3-0409D	Request Quote
XM-A9R5-0409C-01	0409A	HMC232ALP4E	$755.00	ADI	SP2T	20 MHz	12000 MHz	1.5 dB	30 dBm	48 dBm	XR-A9R5-0409C-01	Request Quote

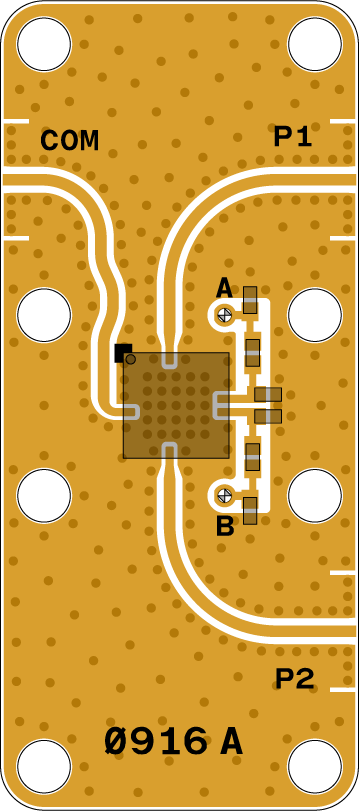

XM-A9R5-0409D	0916_WEB	HMC232ALP4E	$301.00	ADI	SP2T	20 MHz	12000 MHz	1.5 dB	30 dBm	48 dBm	XR-A9R5-0409D	Request Quote
XM-B1C9-0409C-01	0409A	ADRF5024BCCZN	$1,064.00	ADI	SP2T	100 MHz	44000 MHz	1 dB	27.5 dBm	50 dBm	XR-B1C9-0409C-01	Request Quote

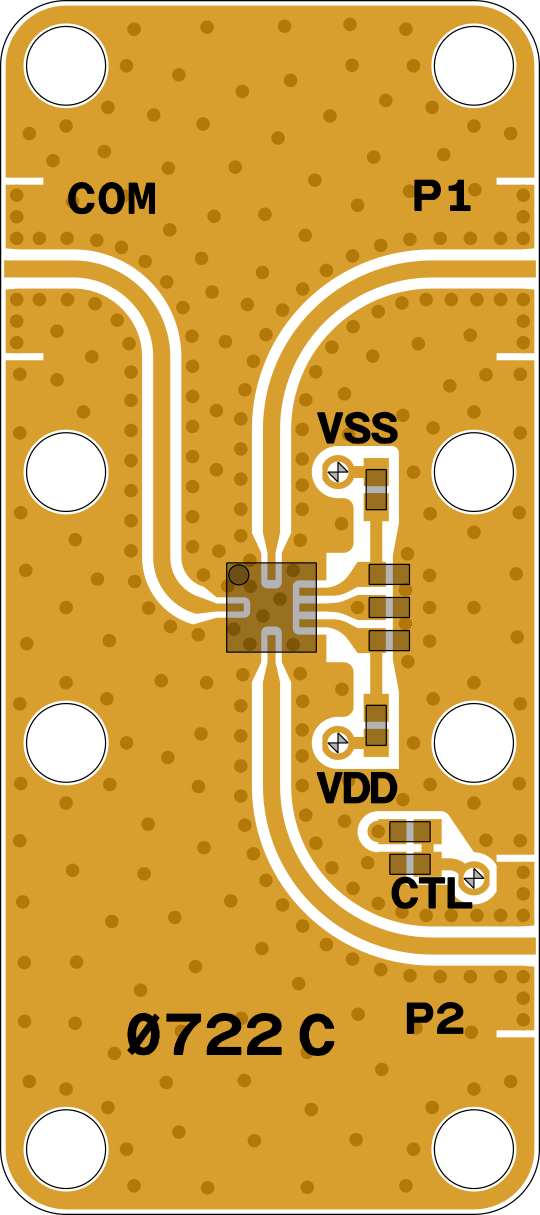

XM-B1C9-0409D	0722_WEB	ADRF5024BCCZN	$363.00	ADI	SP2T	100 MHz	44000 MHz	1 dB	27.5 dBm	50 dBm	XR-B1C9-0409D	Request Quote
XM-B1D8-0409C-01	0409D	ADRF5044BCCZN	$1,157.00	ADI	SP4T	100 MHz	30000 MHz	2.6 dB	28 dBm	50 dBm	XR-B1D8-0409C-01	Request Quote
XM-B1D8-0409D	0682_WEB	ADRF5044BCCZN	$463.00	ADI	SP4T	100 MHz	30000 MHz	2.6 dB	28 dBm	50 dBm	XR-B1D8-0409D	Request Quote
XM-B1J1-0409C-01	0409B	HMC347ALP3E	$738.00	ADI	SP2T	0 MHz	14000 MHz	1.8 dB	29 dBm	47 dBm	XR-B1J1-0409C-01	Request Quote
XM-B1J1-0409D	0696_WEB	HMC347ALP3E	$284.00	ADI	SP2T	0 MHz	14000 MHz	1.8 dB	29 dBm	47 dBm	XR-B1J1-0409D	Request Quote
XM-B1J6-0409C-01	0409A	HMC547ALP3E	$751.00	ADI	SP2T	0 MHz	20000 MHz	2.5 dB	29 dBm	47 dBm	XR-B1J6-0409C-01	Request Quote
XM-B1J6-0409D	0695_WEB	HMC547ALP3E	$297.00	ADI	SP2T	0 MHz	20000 MHz	2.5 dB	29 dBm	47 dBm	XR-B1J6-0409D	Request Quote
XM-B1J7-0409C-01	0409B	HMC547ALP3E	$751.00	ADI	SP2T	0 MHz	20000 MHz	2.5 dB	29 dBm	47 dBm	XR-B1J7-0409C-01	Request Quote
XM-B1J7-0409D	0696_WEB	HMC547ALP3E	$297.00	ADI	SP2T	0 MHz	20000 MHz	2.5 dB	29 dBm	47 dBm	XR-B1J7-0409D	Request Quote
XM-B1K7-0404C-01	0404A	HMC986A	QUOTE	ADI	SP2T	100 MHz	50000 MHz	2.1 dB	28 dBm	40 dBm	XR-B1K7-0404C-01	Request Quote

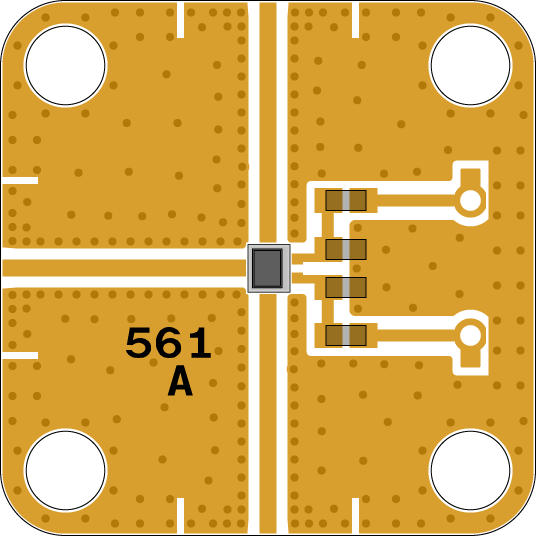

XM-B1K7-0404D	0561_WEB	HMC986A	QUOTE	ADI	SP2T	100 MHz	50000 MHz	2.1 dB	28 dBm	40 dBm	XR-B1K7-0404D	Request Quote

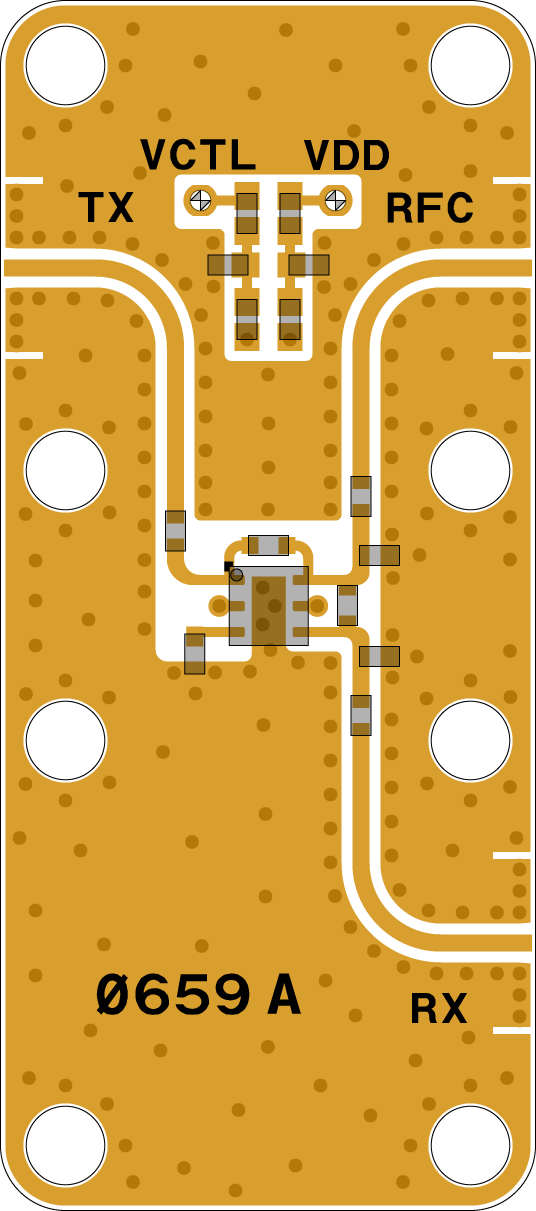

XM-B1K9-0409D	0659_WEB	HMC546LP2E	$271.00	ADI	SP2T	200 MHz	2700 MHz	0.4 dB	40 dBm	67 dBm	XR-B1K9-0409D	Request Quote
XM-B1P9-0819C-01	0819A	ADGM1004	$1,197.00	ADI	SP4T	0 MHz	13000 MHz	0.45 dB	N/A	67 dBm	XR-B1P9-0819C-01	Request Quote

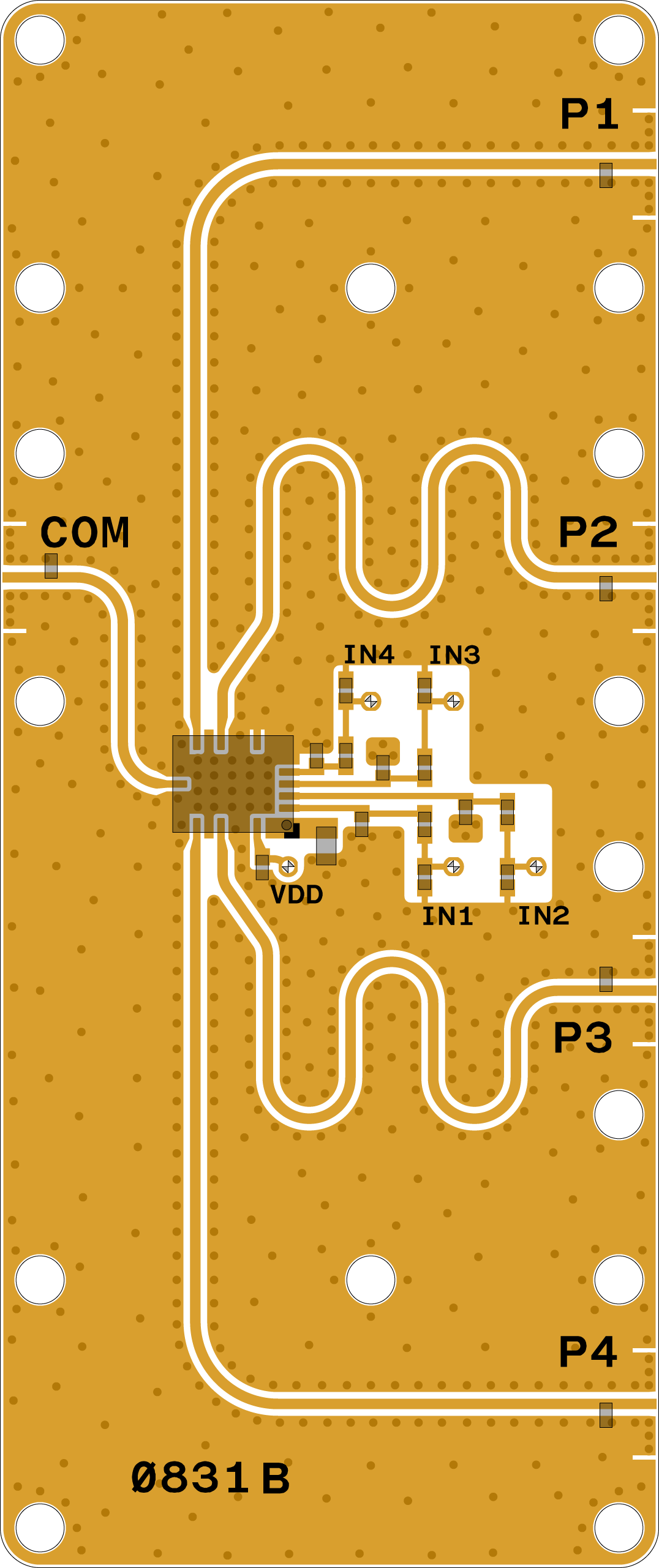

XM-B1P9-0819D	0831_WEB	ADGM1004	$601.00	ADI	SP4T	0 MHz	13000 MHz	0.45 dB	N/A	67 dBm	XR-B1P9-0819D	Request Quote
XM-B5D8-0409C-01	0409A	HMC349ALP4CE	$745.00	ADI	SP2T	100 MHz	4000 MHz	1 dB	34 dBm	53 dBm	XR-B5D8-0409C-01	Request Quote

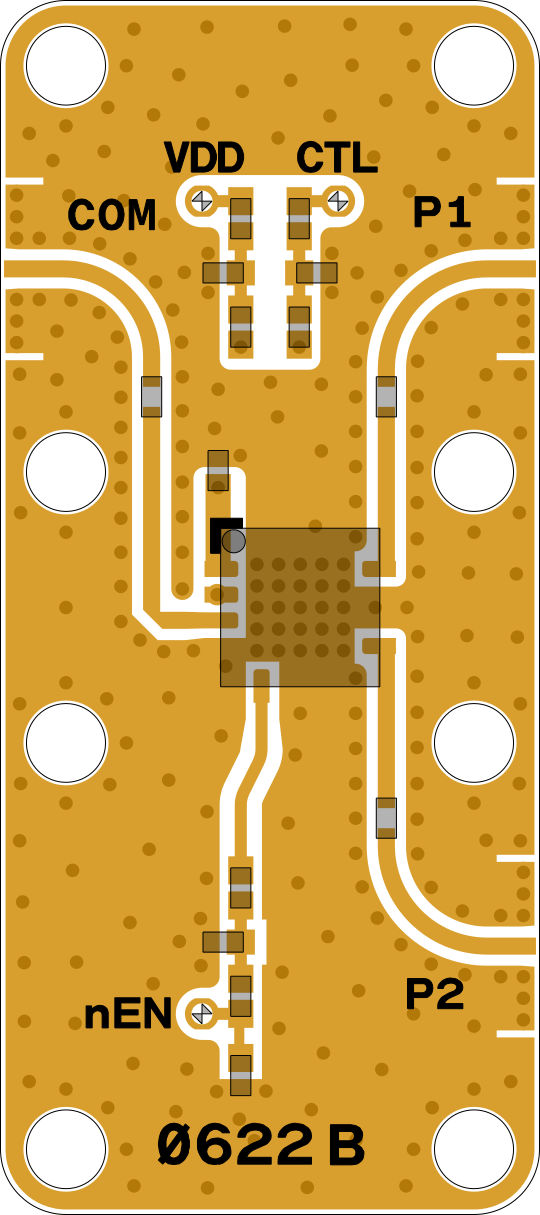

XM-B5D8-0409D	0622_WEB	HMC349ALP4CE	$221.00	ADI	SP2T	100 MHz	4000 MHz	1 dB	34 dBm	53 dBm	XR-B5D8-0409D	Request Quote
XM-B6H9-0409C-01	0409B	ADRF5024BCCZN	$1,067.00	ADI	SP2T	100 MHz	44000 MHz	1 dB	27.5 dBm	50 dBm	XR-B6H9-0409C-01	Request Quote

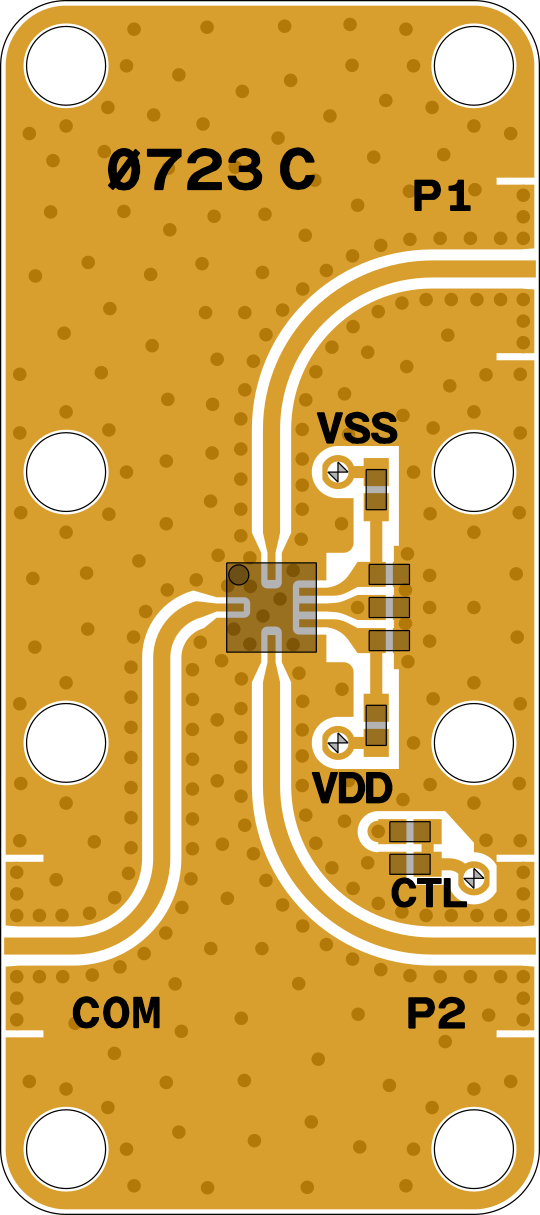

XM-B6H9-0409D	0723_WEB	ADRF5024BCCZN	$366.00	ADI	SP2T	100 MHz	44000 MHz	1 dB	27.5 dBm	50 dBm	XR-B6H9-0409D	Request Quote
XM-B6J1-0409C-01	0409A	ADRF5025	$1,066.00	ADI	SP2T	0.009 MHz	44000 MHz	1 dB	27.5 dBm	50 dBm	XR-B6J1-0409C-01	Request Quote
XM-B6J1-0409D	0722_WEB	ADRF5025	$374.00	ADI	SP2T	0.009 MHz	44000 MHz	1 dB	27.5 dBm	50 dBm	XR-B6J1-0409D	Request Quote
XM-B6J2-0409C-01	0409B	ADRF5025	$1,069.00	ADI	SP2T	0.009 MHz	44000 MHz	1 dB	27.5 dBm	50 dBm	XR-B6J2-0409C-01	Request Quote
XM-B6J2-0409D	0723_WEB	ADRF5025	$377.00	ADI	SP2T	0.009 MHz	44000 MHz	1 dB	27.5 dBm	50 dBm	XR-B6J2-0409D	Request Quote
XM-B6J3-0409C-01	0409A	ADRF5026	$1,065.00	ADI	SP2T	100 MHz	44000 MHz	2 dB	27 dBm	53 dBm	XR-B6J3-0409C-01	Request Quote
XM-B6J3-0409D	0460_WEB	ADRF5026	$364.00	ADI	SP2T	100 MHz	44000 MHz	2 dB	27 dBm	53 dBm	XR-B6J3-0409D	Request Quote
XM-B6J4-0409C-01	0409B	ADRF5026	$1,065.00	ADI	SP2T	100 MHz	44000 MHz	2 dB	27 dBm	53 dBm	XR-B6J4-0409C-01	Request Quote
XM-B6J4-0409D	0461_WEB	ADRF5026	$364.00	ADI	SP2T	100 MHz	44000 MHz	2 dB	27 dBm	53 dBm	XR-B6J4-0409D	Request Quote
XM-B6J5-0409C-01	0409A	ADRF5027	$1,069.00	ADI	SP2T	0.009 MHz	44000 MHz	2 dB	26 dBm	54 dBm	XR-B6J5-0409C-01	Request Quote
XM-B6J5-0409C-03	0409A	ADRF5027	$1,069.00	ADI	SP2T	0.009 MHz	27000 MHz	2 dB	26 dBm	54 dBm	XR-B6J5-0409C-03	Request Quote
XM-B6J5-0409D	0460_WEB	ADRF5027	$369.00	ADI	SP2T	0.009 MHz	44000 MHz	2 dB	26 dBm	54 dBm	XR-B6J5-0409D	Request Quote
XM-B6J6-0409C-01	0409B	ADRF5027	$1,069.00	ADI	SP2T	0.009 MHz	44000 MHz	2 dB	26 dBm	54 dBm	XR-B6J6-0409C-01	Request Quote
XM-B6J6-0409C-03	0409B	ADRF5027	$928.00	ADI	SP2T	9000 MHz	27000 MHz	2 dB	26 dBm	54 dBm	XR-B6J6-0409C-03	Request Quote
XM-B6J6-0409D	0461_WEB	ADRF5027	$369.00	ADI	SP2T	0.009 MHz	44000 MHz	2 dB	26 dBm	54 dBm	XR-B6J6-0409D	Request Quote
XM-B6J9-0419C-01	0419A	ADRF5046BCCZN	$1,457.00	ADI	SP4T	100 MHz	44000 MHz	3.0 dB	27.5 dBm	50 dBm	XR-B6J9-0419C-01	Request Quote

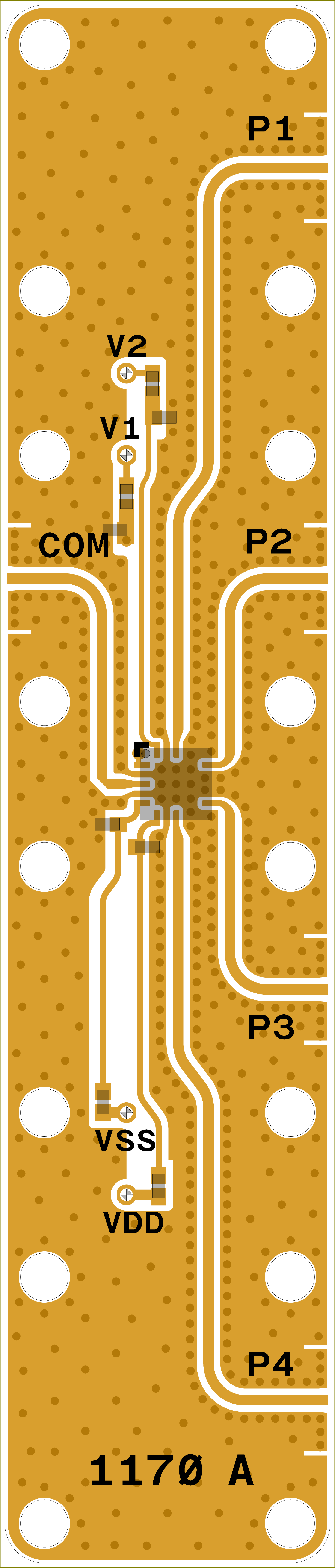

XM-B6J9-0419D	1170_WEB	ADRF5046BCCZN	$514.00	ADI	SP4T	100 MHz	44000 MHz	3.0 dB	27.5 dBm	50 dBm	XR-B6J9-0419D	Request Quote
XM-B6K1-0419C-01	0419A	ADRF5047BCCZN	$1,432.00	ADI	SP4T	0.009 MHz	44000 MHz	2.9 dB	N/A	50 dBm	XR-B6K1-0419C-01	Request Quote
XM-B6K1-0419D	1170_WEB	ADRF5047BCCZN	$489.00	ADI	SP4T	0.009 MHz	44000 MHz	2.9 dB	N/A	50 dBm	XR-B6K1-0419D	Request Quote
XM-B6N3-0409C-01	0409F	HMC199AMS8E	$400.00	ADI	SP2T	0 MHz	2500 MHz	0.5 dB	28 dBm	55 dBm	XR-B6N3-0409C-01	Request Quote

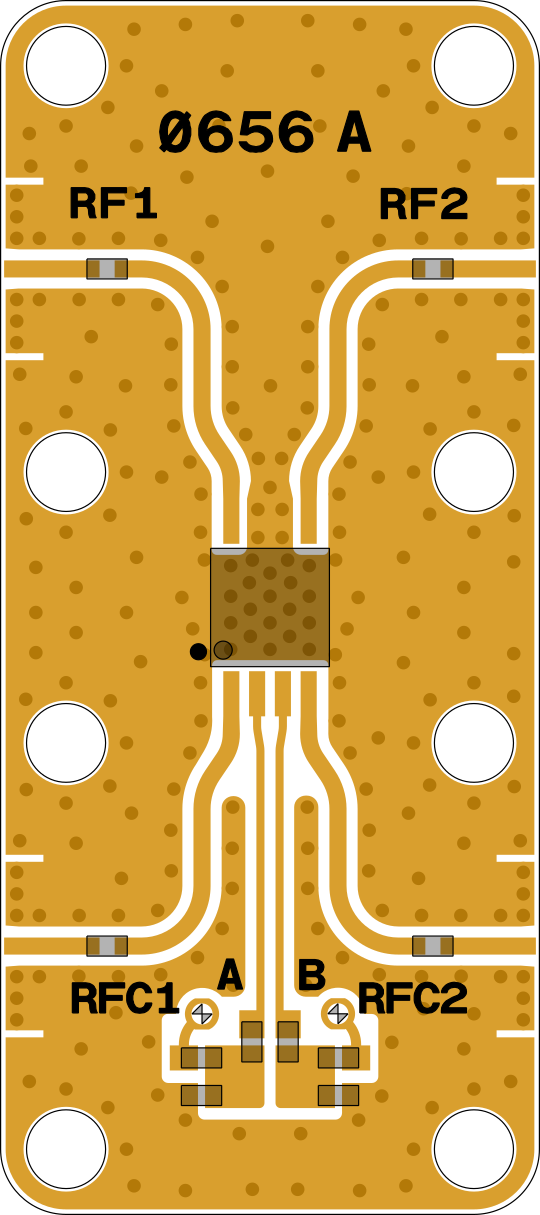

XM-B6N3-0409D	0656_WEB	HMC199AMS8E	$154.00	ADI	SP2T	0 MHz	2500 MHz	0.5 dB	28 dBm	55 dBm	XR-B6N3-0409D	Request Quote
XM-B7D9-0409C-01	0409D	ADRF5045BCCZN	$1,146.00	ADI	SP4T	0.009 MHz	30000 MHz	2.4 dB	28 dBm	50 dBm	XR-B7D9-0409C-01	Request Quote
XM-B7D9-0409D	0682_WEB	ADRF5045BCCZN	$413.00	ADI	SP4T	0.009 MHz	30000 MHz	2.4 dB	28 dBm	50 dBm	XR-B7D9-0409D	Request Quote
XM-B7R1-0404C-01	0404D	ADRF5021BCCZN	$824.00	ADI	SP2T	0.009 MHz	30000 MHz	2 dB	28 dBm	52 dBm	XR-B7R1-0404C-01	Request Quote

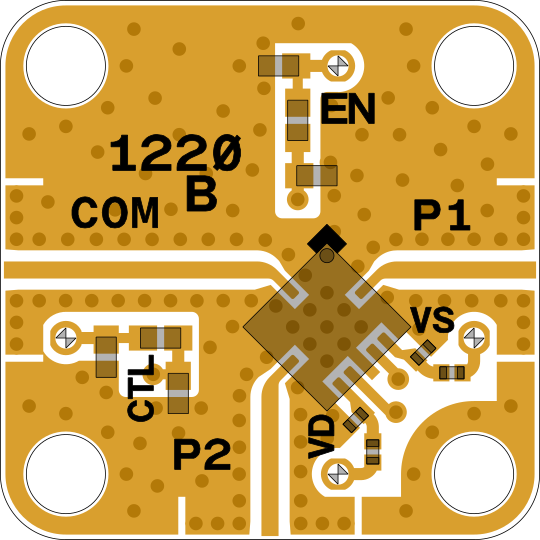

XM-B7R1-0404D	1220_WEB	ADRF5021BCCZN	$310.00	ADI	SP2T	0.009 MHz	30000 MHz	2 dB	28 dBm	52 dBm	XR-B7R1-0404D	Request Quote
XM-B7R2-0404C-01	0404C	ADRF5021BCCZN	$800.00	ADI	SP2T	0.009 MHz	30000 MHz	2 dB	28 dBm	52 dBm	XR-B7R2-0404C-01	Request Quote

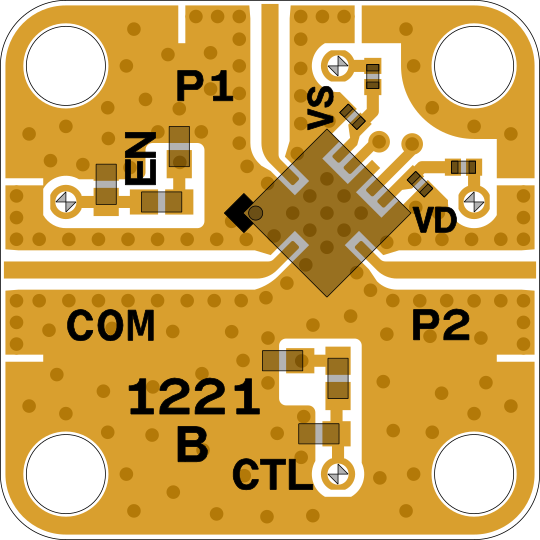

XM-B7R2-0404D	1221_WEB	ADRF5021BCCZN	$287.00	ADI	SP2T	0.009 MHz	30000 MHz	2 dB	28 dBm	52 dBm	XR-B7R2-0404D	Request Quote

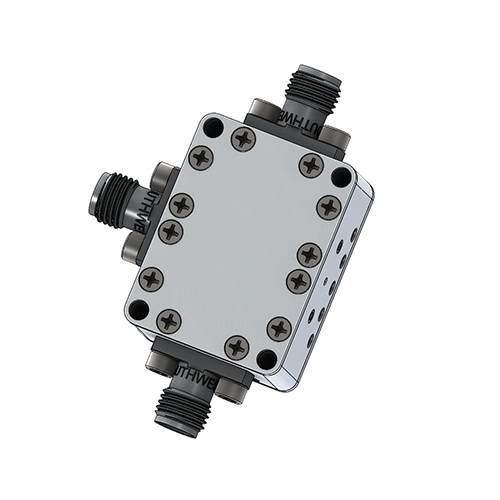

XM-B8R3-0406C-01	0406A	ADRF5021BCCZN	$874.00	ADI	SP2T	0.009 MHz	30000 MHz	2 dB	28 dBm	52 dBm	XR-B8R3-0406C-01	Request Quote

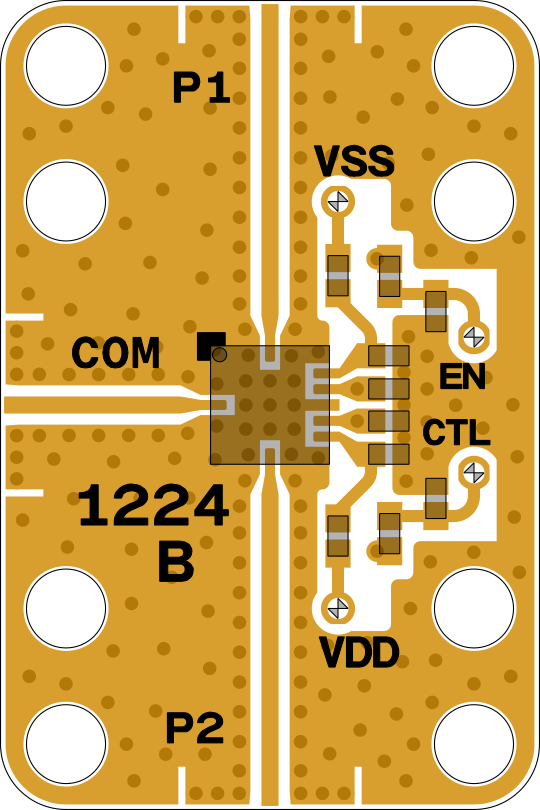

XM-B8R3-0406D	1224_WEB	ADRF5021BCCZN	$308.00	ADI	SP2T	0.009 MHz	30000 MHz	2 dB	28 dBm	52 dBm	XR-B8R3-0406D	Request Quote
XM-B9M6-0404D	1220_WEB	ADRF5020BCCZN	$305.00	ADI	SP2T	100 MHz	30000 MHz	3.0 dB	28 dBm	38 dBm	XR-B9M6-0404D	Request Quote
XM-B9N3-0404D	1220_WEB	ADRF5026	$325.00	ADI	SP2T	100 MHz	44000 MHz	2 dB	27 dBm	53 dBm	XR-B9N3-0404D	Request Quote
XM-B9N4-0404D	1221_WEB	ADRF5026	$325.00	ADI	SP2T	100 MHz	44000 MHz	2 dB	27 dBm	53 dBm	XR-B9N4-0404D	Request Quote
XM-B9N5-0406D	1224_WEB	ADRF5026	$340.00	ADI	SP2T	100 MHz	44000 MHz	2 dB	27 dBm	53 dBm	XR-B9N5-0406D	Request Quote
XM-B9N9-0404D	1221_WEB	ADRF5020BCCZN	$301.00	ADI	SP2T	100 MHz	30000 MHz	3.0 dB	28 dBm	38 dBm	XR-B9N9-0404D	Request Quote
XM-B9P1-0406D	1224_WEB	ADRF5020BCCZN	$315.00	ADI	SP2T	100 MHz	30000 MHz	3.0 dB	28 dBm	38 dBm	XR-B9P1-0406D	Request Quote

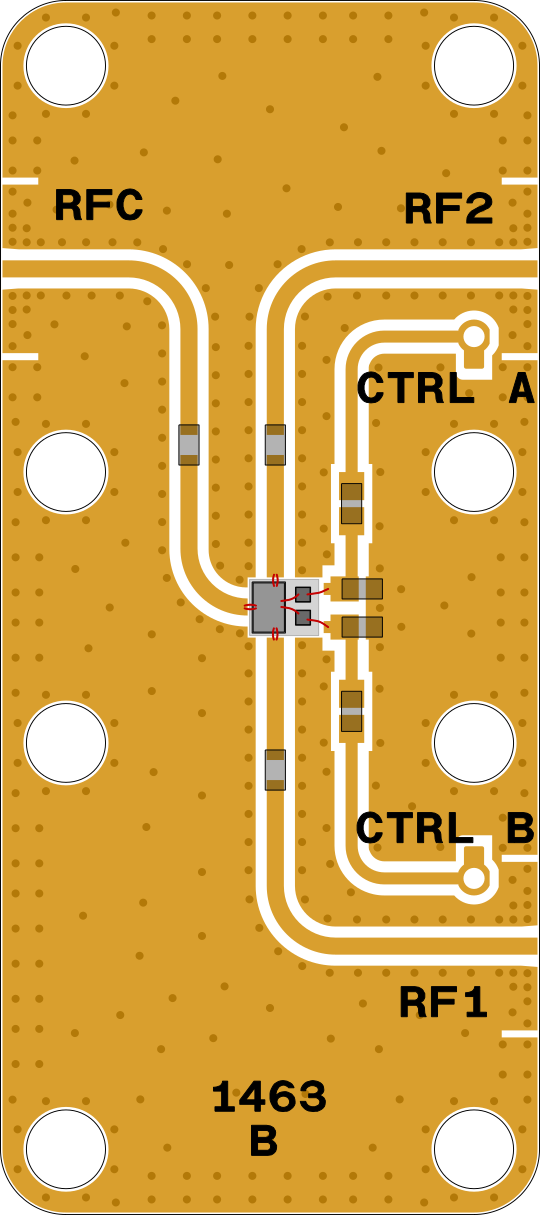

XM-C3V7-0409D	1463_WEB	HMC347B	QUOTE	ADI	SP2T	100 MHz	20000 MHz	1.7 dB	25 dBm	41 dBm	XR-C3V7-0409D	Request Quote
XM-C6G1-0404C-01	0404B	ADRF5130BCPZ	$638.00	ADI	SP2T	700 MHz	3500 MHz	0.6 dB	46 dBm	68 dBm	XR-C6G1-0404C-01	Request Quote

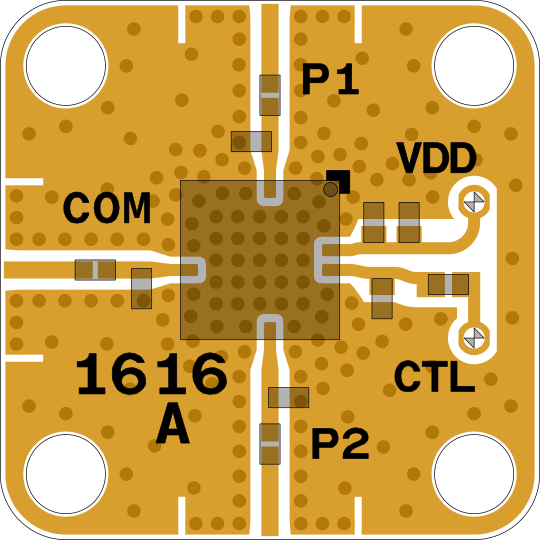

XM-C6G1-0404D	1616_WEB	ADRF5130BCPZ	$256.00	ADI	SP2T	700 MHz	3500 MHz	0.6 dB	46 dBm	68 dBm	XR-C6G1-0404D	Request Quote
XM-C6G9-0409C-01	0409A	ADRF5132	$759.00	ADI	SP2T	700 MHz	5000 MHz	0.6 dB	42.5 dBm	65 dBm	XR-C6G9-0409C-01	Request Quote

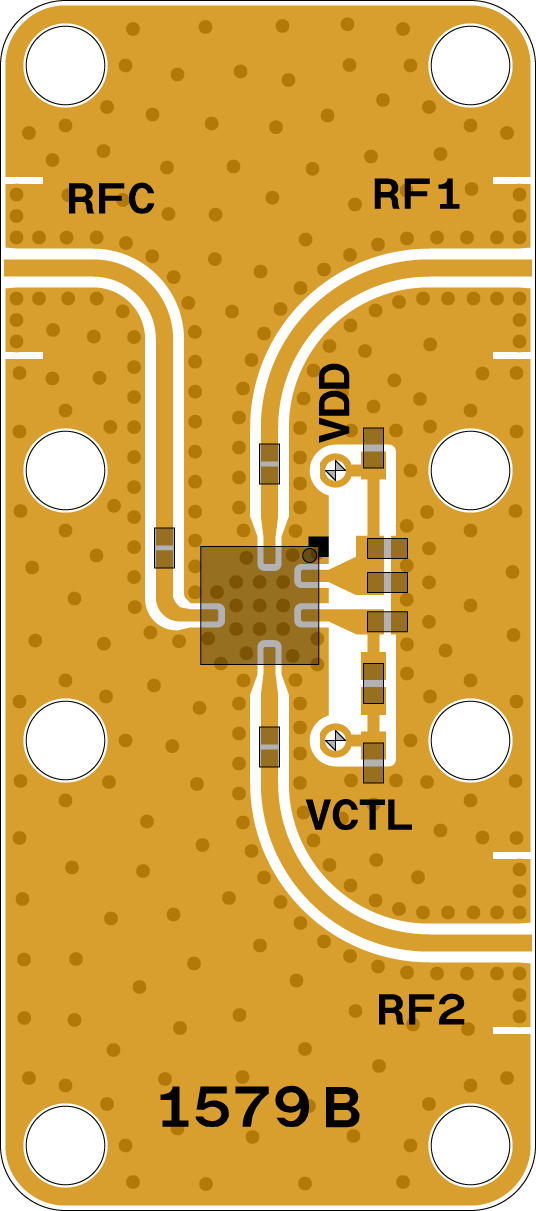

XM-C6G9-0409D	1579_WEB	ADRF5132	$297.00	ADI	SP2T	700 MHz	5000 MHz	0.6 dB	42.5 dBm	65 dBm	XR-C6G9-0409D	Request Quote

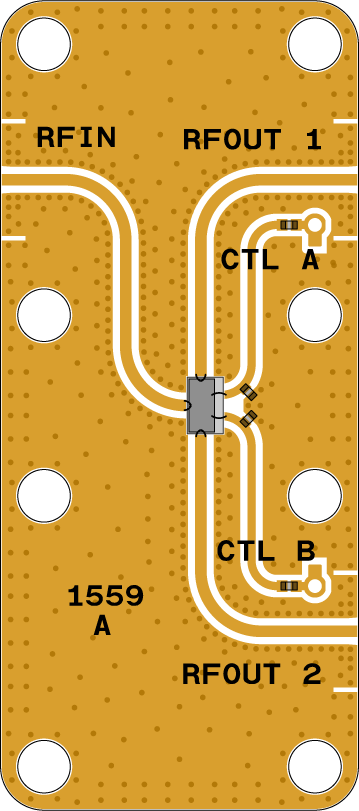

XM-C6K9-0409D	1559_WEB	HMC-SDD112	QUOTE	ADI	SP2T	55000 MHz	86000 MHz	2 dB	N/A	N/A	XR-C6K9-0409D	Request Quote

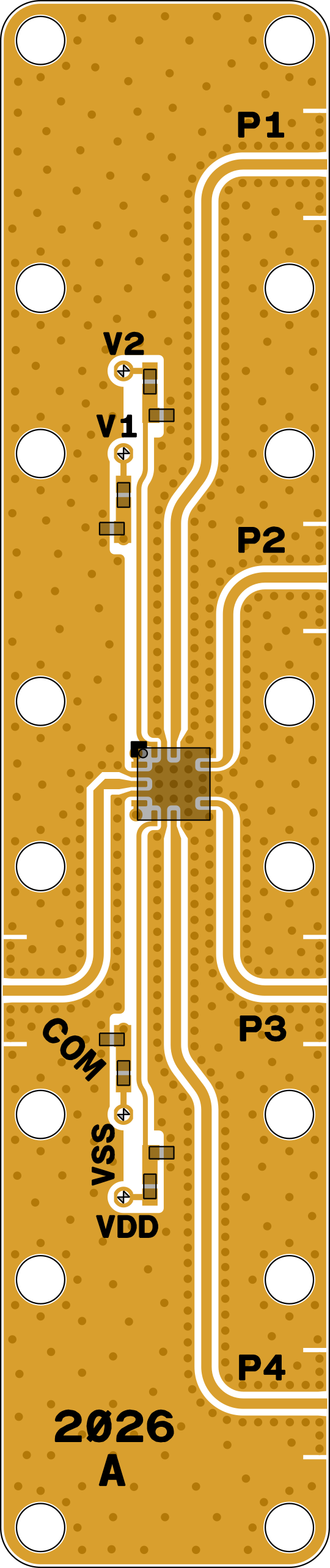

XM-C6M5-0419D	2026_WEB	ADRF5046BCCZN	$514.00	ADI	SP4T	100 MHz	44000 MHz	3.0 dB	27.5 dBm	50 dBm	XR-C6M5-0419D	Request Quote

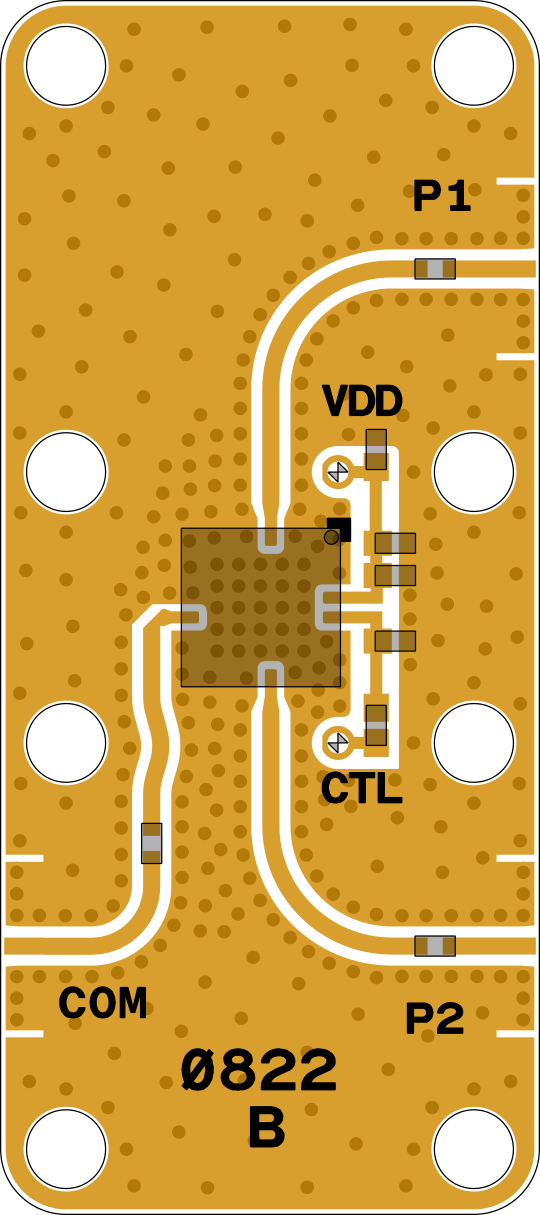

XM-C7N1-0409D	0822_WEB	ADRF5130BCPZ	$296.00	ADI	SP2T	N/A	N/A	N/A	N/A	N/A	XR-C7N1-0409D	Request Quote

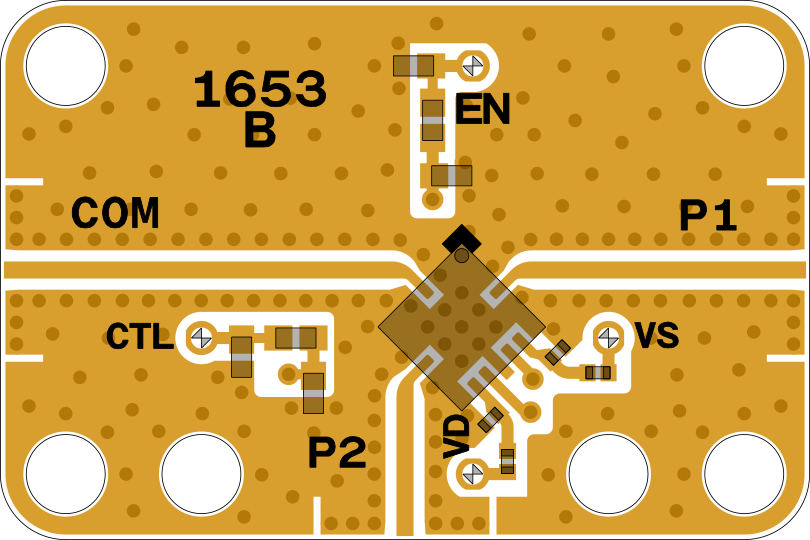

XM-C8A8-0604D	1653_WEB	ADRF5020BCCZN	$321.00	ADI	SP2T	100 MHz	30000 MHz	3.0 dB	28 dBm	38 dBm	XR-C8A8-0604D	Request Quote

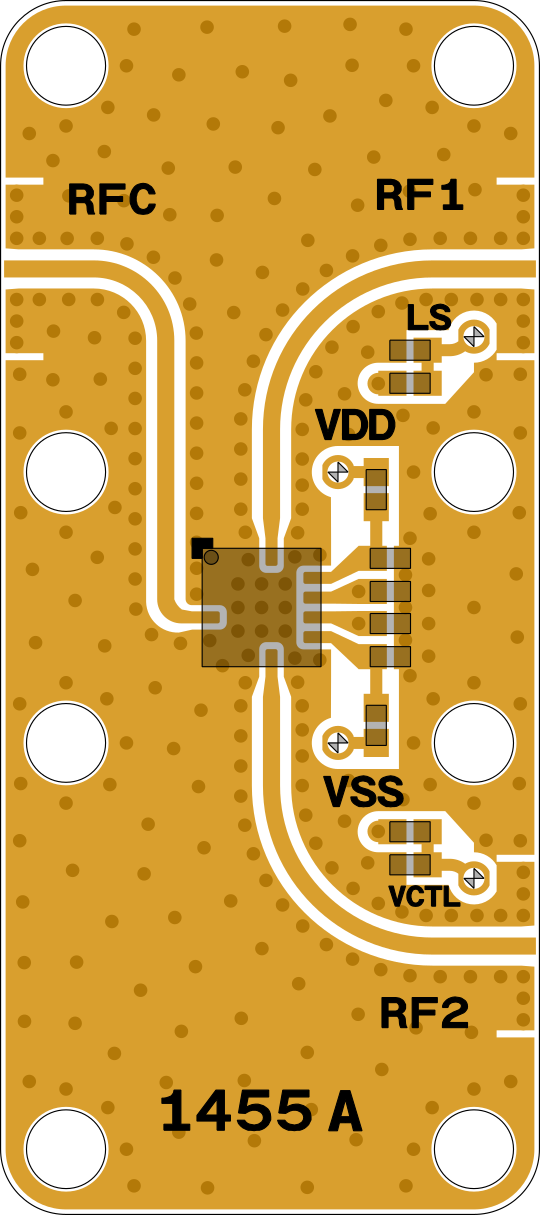

XM-C8L7-0409D	1455_WEB	ADRF5019	$224.00	ADI	SP2T	100 MHz	13000 MHz	0.8 dB	39 dBm	60 dBm	XR-C8L7-0409D	Request Quote

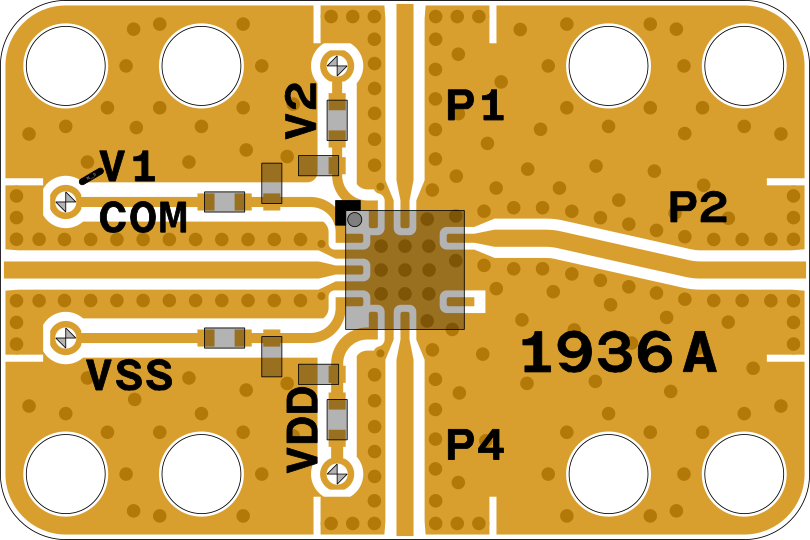

XM-C9K1-0604D	1936_WEB	ADRF5046BCCZN	$420.00	ADI	SP4T	100 MHz	44000 MHz	3.0 dB	27.5 dBm	50 dBm	XR-C9K1-0604D	Request Quote
